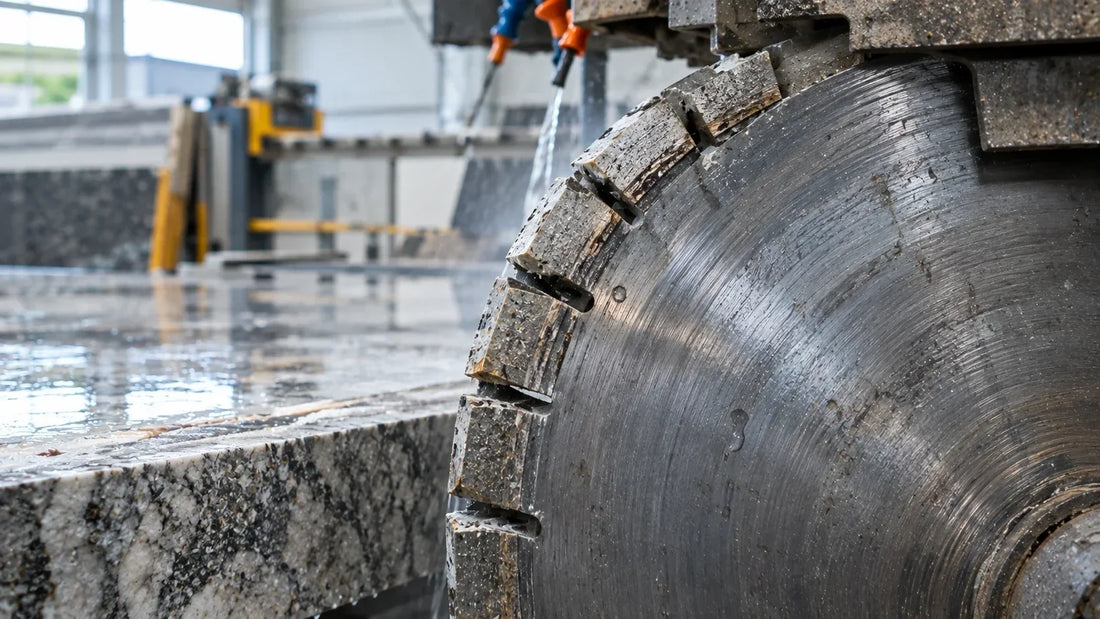

How to Tell If a Diamond Saw Blade Is Dull

The diamond-cutting blades made to cut tough materials like quartzite, granite, marble porcelain, and other stone surfaces quickly and precisely. However, even the best blade can eventually lose its cutting efficiency. The most important thing is to determine when the blade has really worn-out or requires to be trimmed or re-tuned.

A blade that cuts slower, demands more pressure, or generates excessive heat may be the reason to consider investigating. However, these indications don't necessarily mean that the blade is at an end point in its lifespan. A damaged cutting segment or blade that is not selected correctly in the wrong cutting parameters, or an issue with the machine could result in similar results.

Being able to discern the difference will assist fabricators in avoiding unnecessary blade replacements, decrease the time between maintenance and maintain regular cuts.

What Does "Dull" Mean on a Diamond Saw Blade?

Diamond saw blades operate differently than conventional steel blades for cutting. Instead of relying on one razor edge, diamond saw blades utilize diamond particles that are exposed within an element of a segment or bond to grind through the hardest materials.

When the blade is cut the worn diamond particles should be released while the bond gradually exposes new diamond particles. The controlled wear keeps the cutting surface in motion.

Blades can become "dull" in several ways:

• The diamonds that are exposed have worn away.

• It is not strong for the material that is being cut.

• The cutting segments have turned the cut segments have become.

• The blade was employed beyond its useful duration.

• The blade was not properly matched with the materials or the machine.

This is the reason checking the blade and thinking the blade "looks worn" is not always enough. The cutting performance is among the most crucial indicators.

7 Signs Your Diamond Saw Blade May Be Dull

1. The Blade Is Cutting More Slowly

One of the most obvious warning indicators is a significant decrease in the speed of cutting.

If a knife that has before cut through quartzite, granite, porcelain, or any other material with efficiency becomes slower to finish the same cut, its cutting performance must be inspected.

Be attentive to the following:

• The cuts take longer than normal.

• The blade is struggling to maintain the normal rate of feed.

• The production times are growing.

• The operator is required to reduce the speed of the machine.

A gradual decrease in the speed of cutting is normal as the blade wears. A sudden or significant change, however, deserves closer inspection.

2. You Need More Pressure to Maintain the Cut

A diamond blade that is properly fitted is able to cut without the need for excessive pressure on the part of the device.

If the operator is required to increase the pressure of feed to ensure that the blade is moving, the blade might not effectively cutting.

This could happen when the cutting segments are transparent or the diamonds stop being properly exposed.

The excessive pressure isn't an ideal solution. Continued pressure on a blade through the material could create heat, put an additional stress on the saw, and could affect the cutting quality.

The most effective option is to stop the blade and find out the reason why the blade is struggling.

3. The Blade Is Generating Excessive Heat

The heat is another crucial warning signal.

There is a certain amount of heat to be expected in stone cutting, however an unexpected increase in temperatures of the blade or material can suggest that the cutting blade isn't cutting the material in a timely manner.

A blade that is glazed may be able to rub against the surface instead of allowing the fresh diamond particles to carry out the cutting process. This can increase friction and cause excess heat.

When cutting with wet, be sure to check the flow and water supply. Insufficient cooling may cause symptoms that resemble dullness of the blade even though the blade can still be used.

Before changing the blade, check to make sure that the machine as well as the cooling system and cutting conditions are in good working order.

4. Cut Quality Starts Getting Worse

Diamond blades that has lost its effectiveness can also result in poorer cuts.

The material and the application It is possible to notice:

• A little more chipping on the edge

• Rougher cut surfaces

• More micro-chipping

• More inconsistent cuts

• It is difficult to maintain the required finish

Cut quality must always be considered in conjunction with cutting speed. Blades that are cutting, but generating unacceptable edges might not be suitable for the job.

It is important to keep in mind that a the quality of cut doesn't necessarily mean that your blade has dull. A wrong choice of blade alignment, machine alignment and feed rate, as well as the characteristics of the material and other elements can contribute to the chipping process and result in inconsistent results.

5. The Blade Starts Vibrating or Making Unusual Noise

Variations in the sound or vibration may suggest that there is a problem with the cutting system.

If a blade previously running smooth is exhibiting unusual vibrations or noise, or distinct sound of cutting Stop the machine and examine the setting.

Some possible causes include wear on the blade or damage, mounting problems and alignment issues on machines or operating conditions that are not suitable for the machine.

Don't treat any unusual vibration as something you can simply be able to work with. Diamond blades work at a high rate, and any indication of physical damage or an abnormal operation needs to be investigated prior to continuing.

6. The Diamond Segments Look Smooth or Glazed

Physical inspections can also provide a important indication.

Once the machine is fully powered down and the blade isolated, check each cutting segment.

If the diamonds appear to be unusually smooth or shiny instead of showing an active cutting surface the blade might be coated.

Glazing is crucial since it does not always signify that the blade is finished.

A blade that is glazed may retain substantial segment material however it may not be exposing new diamond particles efficiently. In certain circumstances blades, they are in a position to be dressed, or repaired to its original cutting condition instead of being replaced immediately.

This difference can save time and money in a professional manufacturing setting.

7. The Cutting Segments Are Severely Worn or Damaged

There's a difference between a blade which is coated with glaze and one that is at their end serviceable lifespan.

If the cutting segment is severely damaged, cracked, worn or are threatening the core of the steel replacement could be required.

Also, you should look over the blade to see:

• Missing segments

• Cracked segments

• Uneven segment wear

• The blade body is damaged

• Signs of the possibility of overheating

• Other structural issues that can be seen

If you have any doubt regarding the physical quality of the blade, refrain from using it just because it seems to be able of cutting.

Is the Blade Dull or Just Glazed?

This is among the most important questions you need to address prior to replacing the diamond-sharpened saw blade.

A blade that is cutting slowly with shiny or smooth segments could be covered in glaze, rather than being totally wear-out. This means that the blade may have usable diamond material, however the cutting surface isn't exposed to fresh diamonds in a timely manner.

A truly worn blade in contrast could have a significantly decreased segment height or display physical damage, making use unsuitable.

An easy way to diagnose is to examine a range of symptoms at once:

Symptom	Possible Cause
Cutting is slower	Glazing, wear, or an incorrect blade
Additional feed pressure is required	Wear, cutting or glazing parameters
Extreme heat	Glazing, inadequate cooling, or improper operation
Poor edge quality	Blade wear, a defective blade, or the wrong machine configuration
Smooth/shiny segments	Possible glazing
Low segment height	Advanced wear
Missing or cracked segments	Blade damage
Excessive vibration	Blade, mount or machine issue

The trick is to not identify a problem with the blade from just one symptom.

Check Your Blade Before Replacing It

If the blade seems dull, go through the basic process of inspection prior to ordering the replacement.

Step 1: Stopping the machine in a safe manner.

Switch off the machine and follow the manufacturer's security and lockout guidelines prior to checking the blade.

Do not touch or inspect an abrasive blade that is turning.

Step 2: Examine the segments

Be sure to look for signs of segment height and cracks. Also, look for glazing, cracks, worn sections, and uneven wear.

Step 3: Review the cutting conditions

Think about the material that is being cut, the feed speed, cutting depth, and operating conditions.

A blade that is designed for one material could be ineffective when applied to another. Skyline Stone Products offers material-specific solutions for quartz, granite, marble as well as quartzite, porcelain, and ceramic.

Step 4: Ensure that the cooling is checked.

When cutting wet, make sure that water is getting to the cutting surface in a proper manner. A lack of cooling could increase the temperature and adversely affect cutting performance.

Step 5: Make sure the machine is working properly.

Check the compatibility of the arbor, mounting alignment and other machine-related elements in accordance with the specifications of the manufacturer.

Step 6: Determine whether the blade is in need of dressing or replacement.

If the blade has been glazed but has usable segments dressing can bring back the cutting power. In the event that segments have been badly damaged or worn out replacing them is the best option.

Why Diamond Blade Selection Matters

A diamond saw is not the same for every stone. was specifically designed to work with every stone.

Quartzite, granite, marble and porcelain each have their own cutting properties, and that's why the specifications of blades such as diamond concentration segment design, segments, bonds properties and the design of the blade is important.

For instance, Skyline Stone Products offers various high-quality blades for the most demanding stone cutting, and its bridge saw line is designed specifically for different stones like quartz, granite, marble, porcelain, and quartzite.

The right blade for the material and the machine will improve the efficiency of cutting and help reduce wear.

How to Make a Diamond Saw Blade Last Longer

A good selection of blades is just one element of extending the life of a blade. Cut-off techniques also play a large role.

Match the Blade to the Material

Always make sure you use a blade specifically made for the particular material you're cutting. A blade specifically designed to be used on a particular stone might not perform the same for softer or harder material.

Follow the Recommended RPM

Utilize the recommended operating speed, and make sure your blade works with the machine.

Infractions to the specifications could affect cutting efficiency and even the blade's life.

Use the Correct Feed Rate

Do not force the blade into the material. A high pressure on the feed can cause the temperature and cause unnecessary stress to the cutting edge.

However being too cautious can often lead to a haze depending on the blade used and application.

Maintain Proper Cooling

In case of cutting that is wet, sufficient flow of water helps to keep heat under control and also removes cut debris out of the cutting area.

Monitor Blade Performance

Do not wait until the blade ceases to cut completely before you assess the condition of the blade.

The tracking of cutting speed along with edge quality, segment wear and heat will help you identify changes in performance earlier.

What to Use After Cutting: Polishing and Finishing

Cutting is just one of the stages of many stone fabrication tasks. Once a workpiece or slab has been cut, its edges and surfaces might have to be smoothed, sanded, or polishing to get the desired surface.

That's where the proper cleaning pads are crucial.

Skyline Stone Products offers diamond polishing solutions that come in various sizes and grits to be used on granite, stone, quartz concrete, and many other surfaces.

The proper progression of material removal to the finer steps helps fabricators work from a newly cut surface towards the desired final appearance.

When Should You Replace a Diamond Saw Blade?

There isn't a single cutting-hour number that defines how often each diamond blade must be replaced.

Blade life is influenced by factors like:

• Abrasiveness, material hardness

• Quality of the blade and its construction

• Blade size and segment design

• Machine type

• Speed cutting

• Feed rate

• Cutting depth

• Conditions that cool

• Frequency of use

• Operator technique

In lieu of replacing blades based solely on its age or hours of use you should be monitoring the blade's cutting efficiency and physical state.

When the cutting blade appears to be slower, resulting in unacceptable results, or is overheating and displaying severe wear or displaying physical damage replacing the blade is a good idea.

Frequently Asked Questions

Are diamond-sharpened saw blades really wear out?

However, diamond blades will not turn dull in the exact same way as steel blades. Their cutting efficiency decreases when diamond particles wear down and become opaque or stop being effectively exposed due to the bond.

How do I know the diamond blade is coated?

A blade that is glazed could cut more slowly needing more pressure, and produce additional heat, even if the segments still have a lot of material left. The cutting pieces may appear shiny or smooth.

How can a dull diamond blade be sharpened?

A blade that has been glazed can be dressed to show new diamond particles and improve cutting efficiency. However, a heavily damaged or worn blade should be replaced instead of being forced back to use.

Why does my diamond blade cut very slowly?

Slow cutting could be caused by glass wear or damage to the blade however it can be caused by using the incorrect blade, a wrong feeding rate, insufficient cooling, or any other issues related to the machine. Check the entire cutting system prior to changing the blade.

How do you expect the Diamond saw blade be used for?

There is no standard lifespan. Blade life can vary based on the blade's material, design, the machine, cutting conditions, and the frequency of use. The ability to monitor cutting performance is far more beneficial than relying on a set amount of hours.

Final Takeaway

Being aware of how to recognize if the diamond saw blade is worn will help stone fabricators to avoid unnecessary downtime as well as the necessity of replacing tools prematurely.

The most important indicators are the cinhanges the cutting rate, feed pressure, heat production cutting quality, vibration, and the physical state of the diamond segments. But all of these indicators must be taken into consideration together, as an edge that appears dull could be stained or operating in unsuitable cutting conditions.

When replacing the blade, examine the blade's segments, look over your cutting specifications, verify the cooling process, and ensure that the new blade is suitable for the material and machine.

Professional stone fabrication requires choosing the appropriate cutting and finishing tools, which can make an enormous difference. From blades that are specifically designed for the material as well as bridge saw blades, to polishing pads for professionals, the best combination will ensure more precise cuts, better outcomes, and a more efficient process of fabrication.
