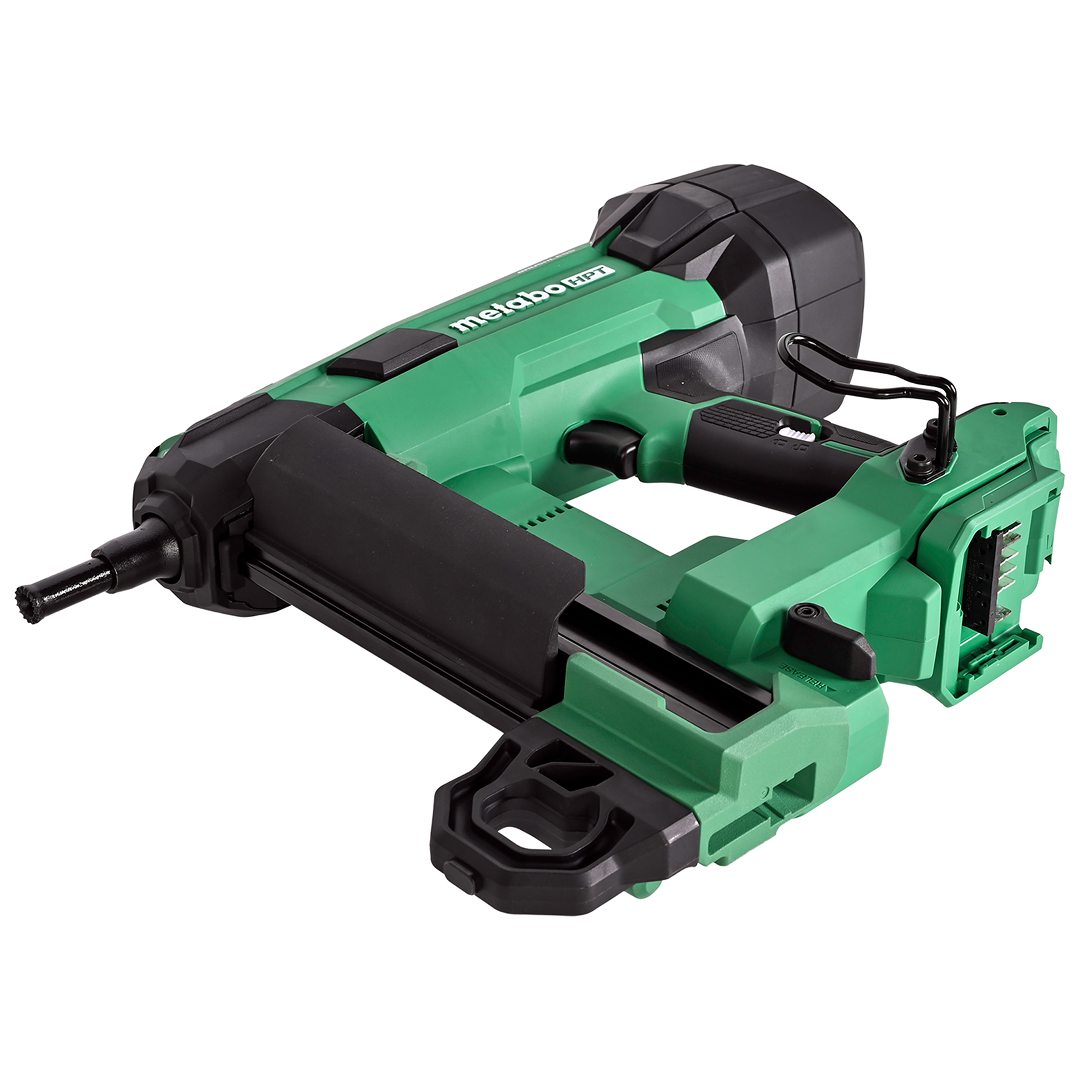

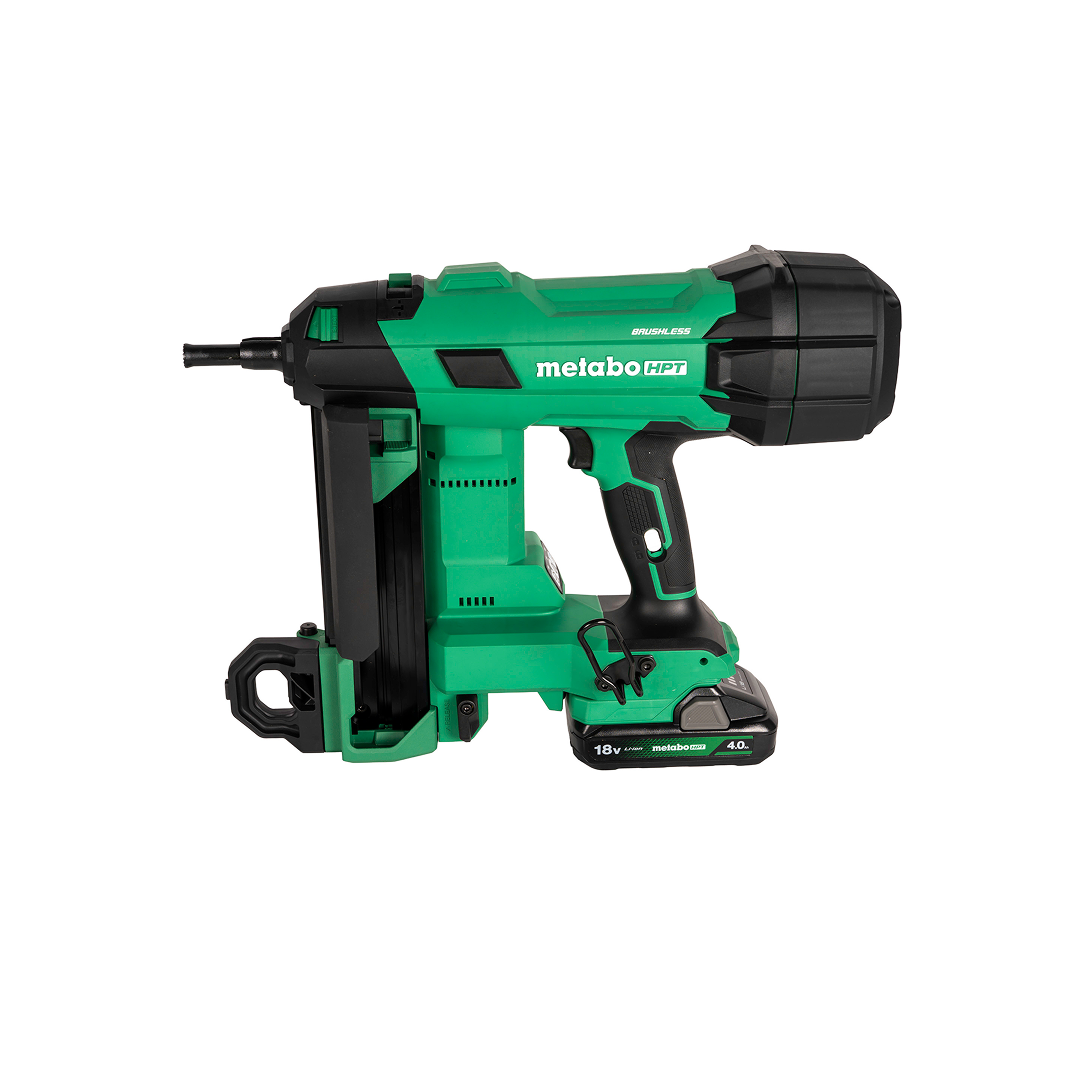

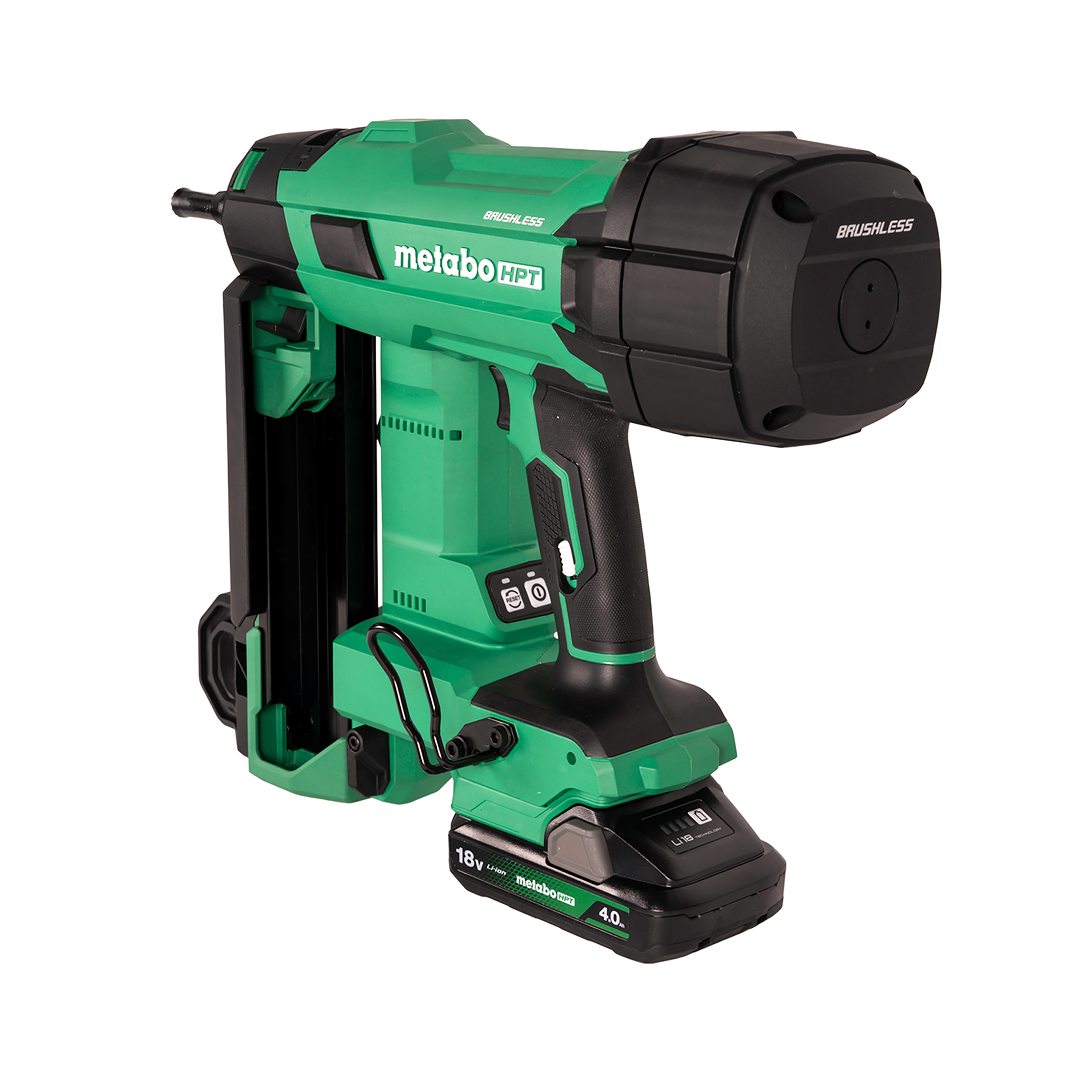

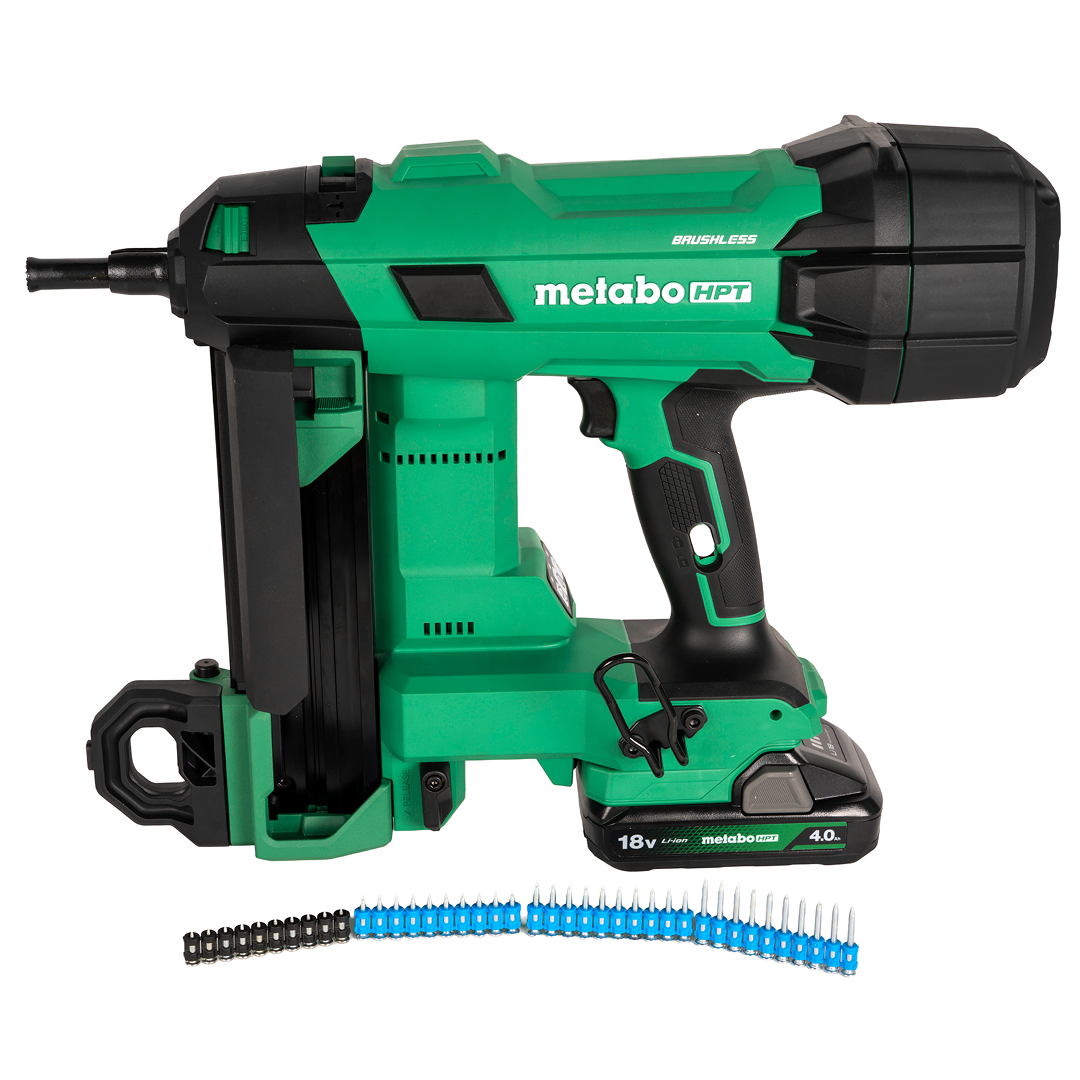

18V MultiVolt™ 1-9/16" Concrete Pin Nailer (1x4.0/8.0Ah)

The 18V MultiVolt™ 1-9/16" Concrete Pin Nailer is a heavy-duty cordless fastening tool engineered for driving pins into concrete and steel with exceptional power, consistency, and jobsite convenience. Designed for professional contractors working in framing track installation, electrical and mechanical fastening, concrete applications, and steel fastening tasks, this nailer delivers powerful cordless performance without the need for gas cartridges or hoses. Built around Metabo HPT’s Air Spring mechanism, it provides outstanding driving force while reducing operating costs and simplifying maintenance compared to traditional gas-powered concrete nailers.

Delivering 110J (81.1 ft-lbs) of driving energy, this concrete pin nailer is built for demanding fastening applications where strength and reliability are critical. It drives concrete and metal pins from 1/2" up to 1-9/16" in length and supports shank diameters from .102" to .118", making it suitable for a wide range of fastening tasks into hard materials. A sequential actuation system provides controlled and safe operation, while the tool-less depth adjuster allows users to fine-tune fastening depth based on material and application requirements. The nailer also features a dry-fire lockout, easy jam-clear access, integrated LED light, on-battery charge indicator, and belt hook for greater jobsite efficiency and convenience.

Key Features

• Cordless concrete pin nailer for fastening into concrete and steel

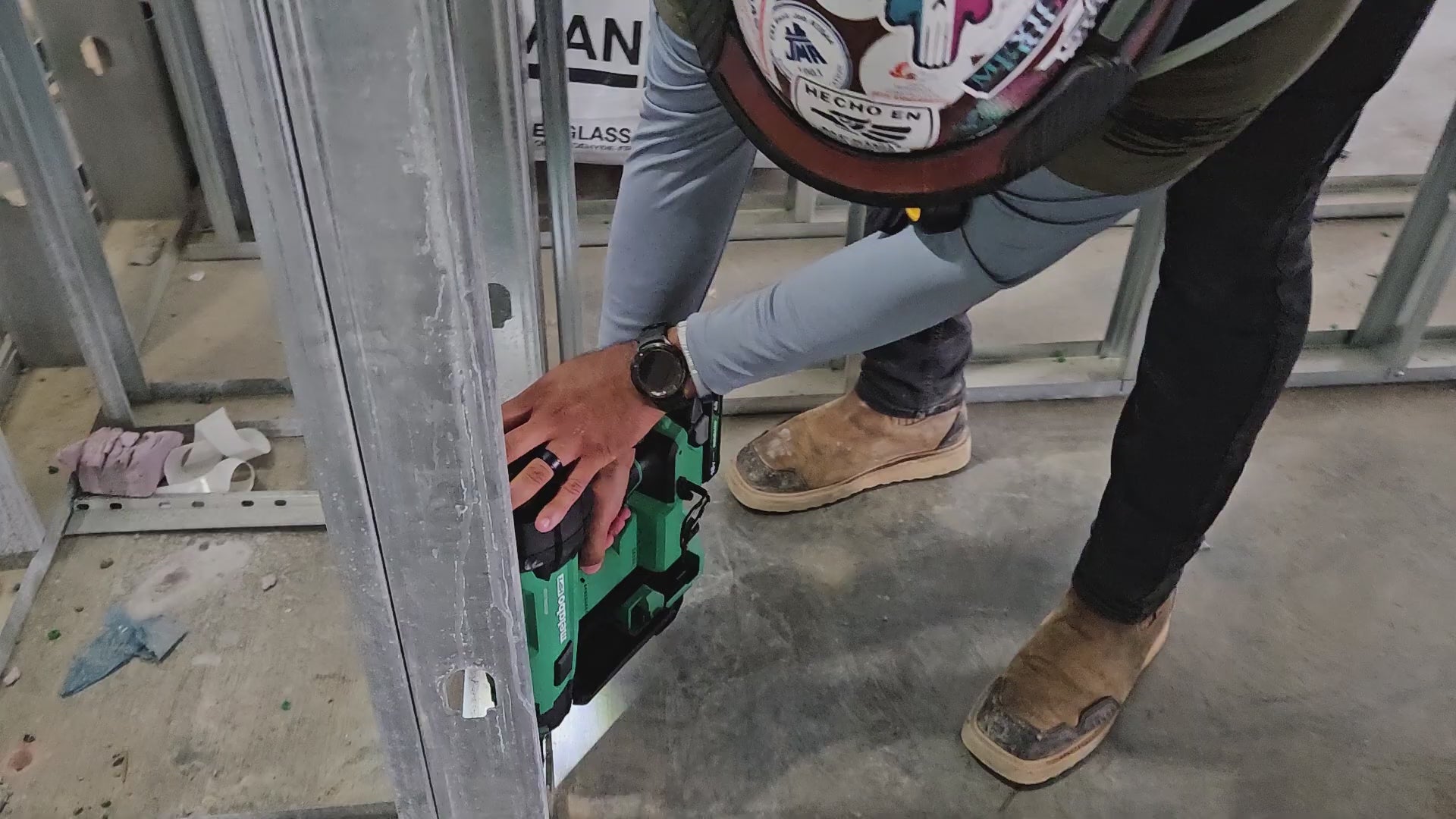

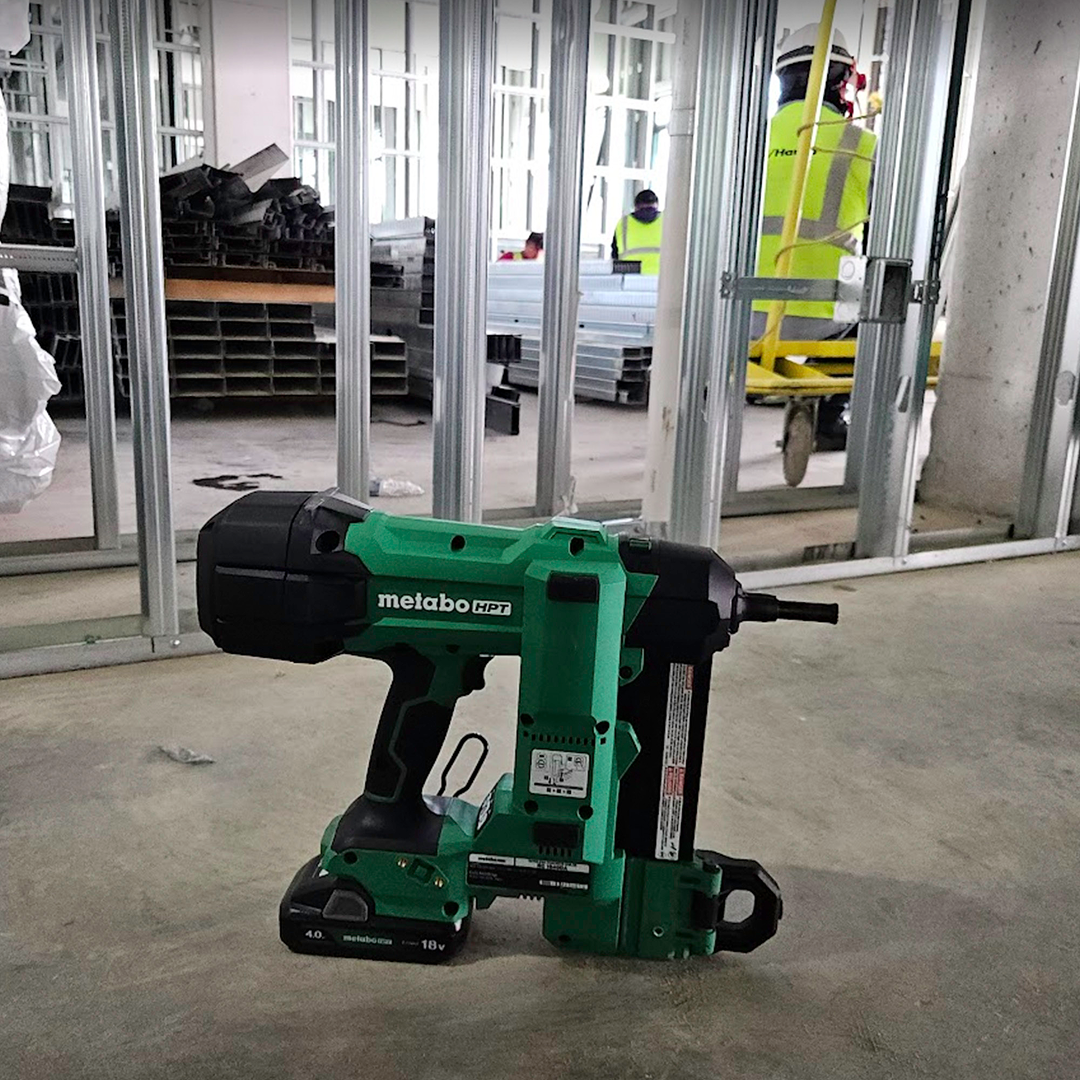

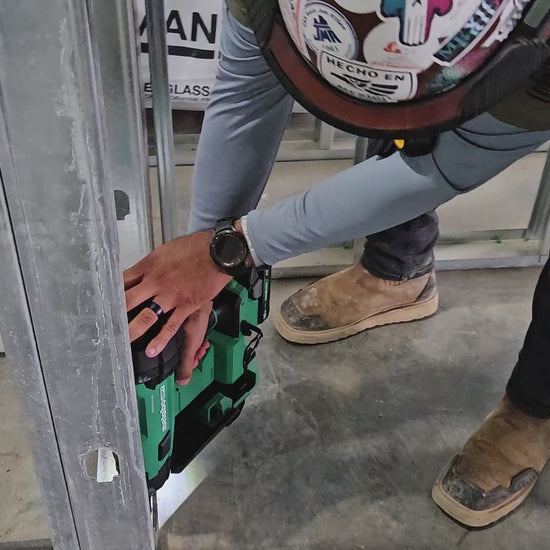

• Ideal for track installation, electrical/mechanical fastening, and concrete construction applications
• Air Spring mechanism delivers powerful cordless driving performance
• High driving energy of 110J (81.1 ft-lbs) for demanding fastening tasks
• No gas cells required, helping reduce operating costs and maintenance
• Low-maintenance design with easy jam-clear access

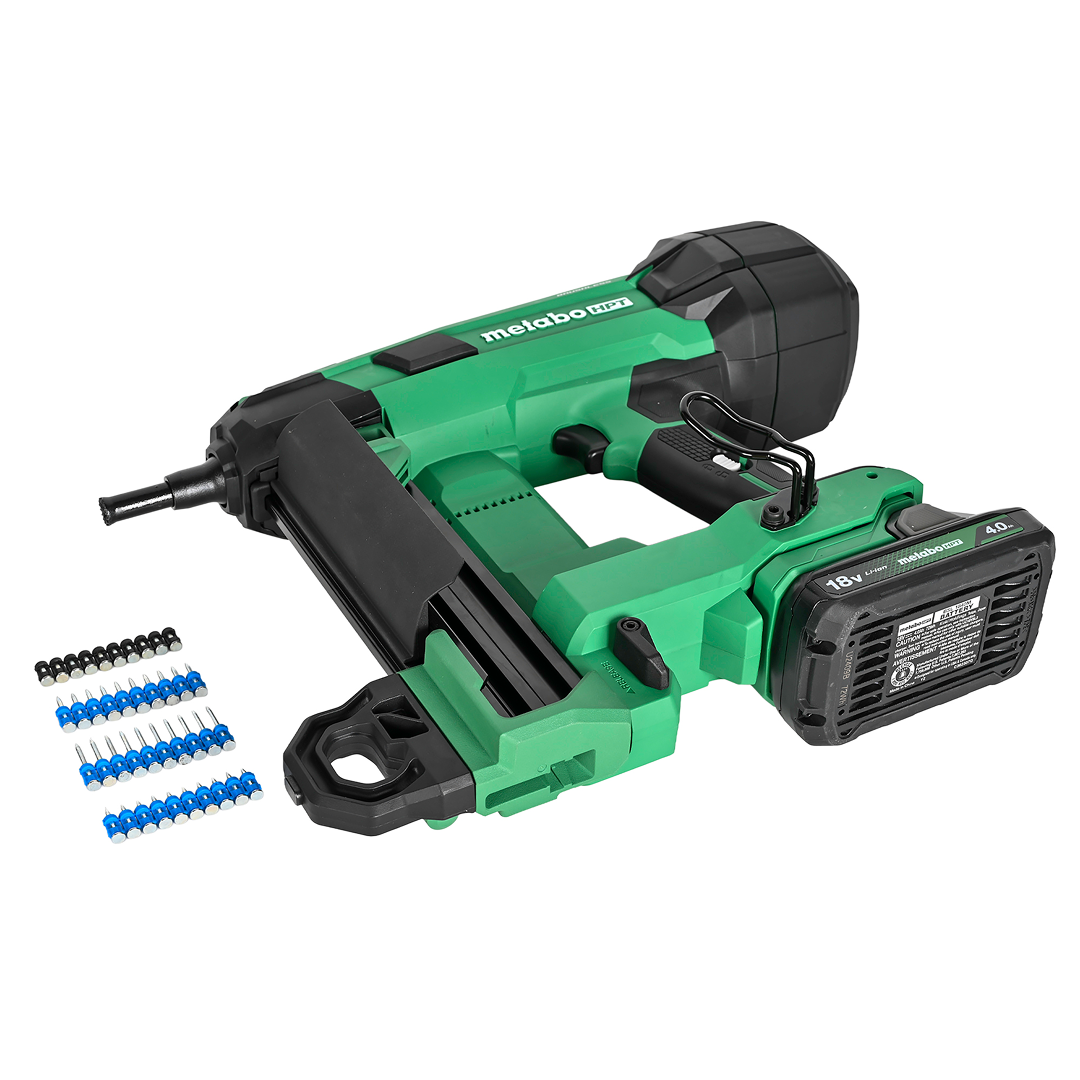

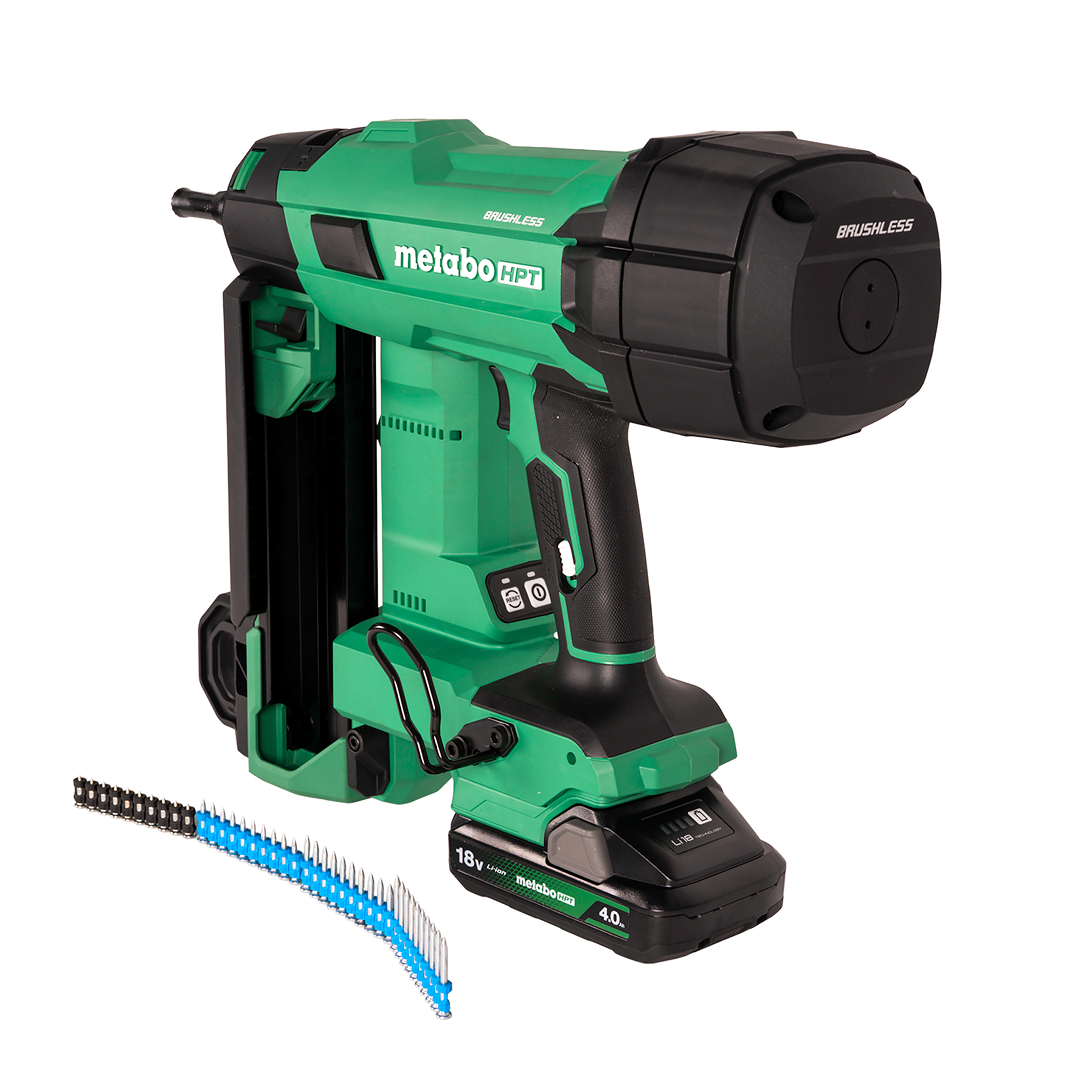

• Drives concrete / metal pins from 1/2" to 1-9/16"
• Supports shank diameters from .102" to .118"
• Sequential actuation for controlled and safe operation
• Tool-less depth adjuster for precise fastening depth control
• Dry-fire lockout helps prevent firing when magazine is empty
• LED light improves visibility in darker work areas
• On-battery charge indicator for convenient battery monitoring
• Belt hook included for easy carrying and jobsite storage
• Compatible with both 18V and 18V/36V MultiVolt batteries

Specifications

• Voltage: 18V
• Fastener Type: Concrete / Metal Pin
• Driving Speed: 1.5 shots/second
• Driving Energy: 81.1 ft-lb (110J)

Fastener Capacity

• Magazine Capacity:
  • 25 pins (Short Magazine)
  • 45 pins (Long Magazine)
• Shank Diameter: .102" – .118"
• Pin Length: 1/2" up to 1-9/16"
• Pins Per Charge: 500

Tool Features

• Actuation: Sequential
• Dry-Fire Lockout: Equipped
• Charge Indicator: On Battery
• LED Light: On Tool
• Belt Hook: Equipped
• Depth Adjuster: Tool-less

Dimensions & Weight

• Dimensions (L x H x W): 12-13/32" x 15-3/4" x 4-3/4"
• Weight (without battery): 10.4 lbs
