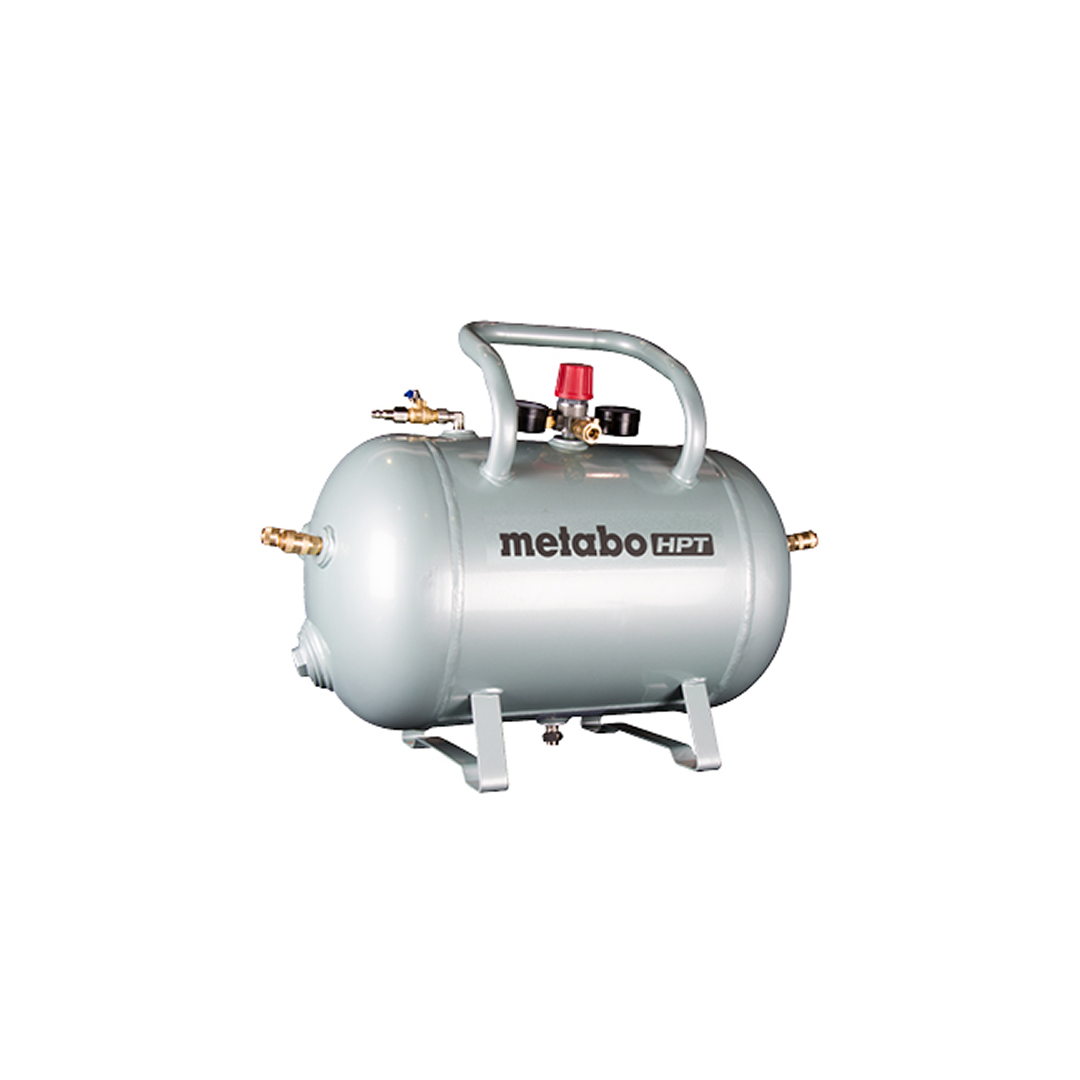

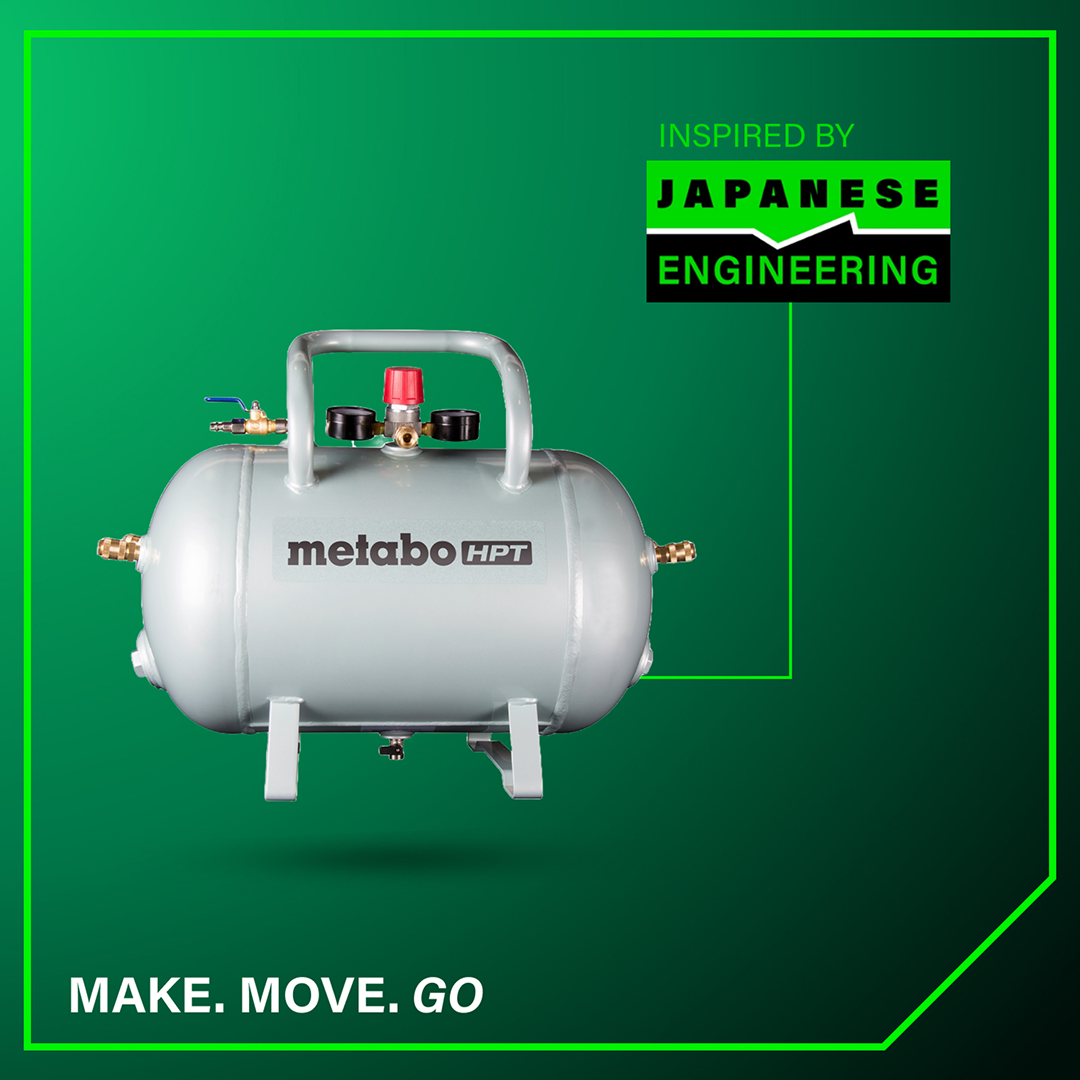

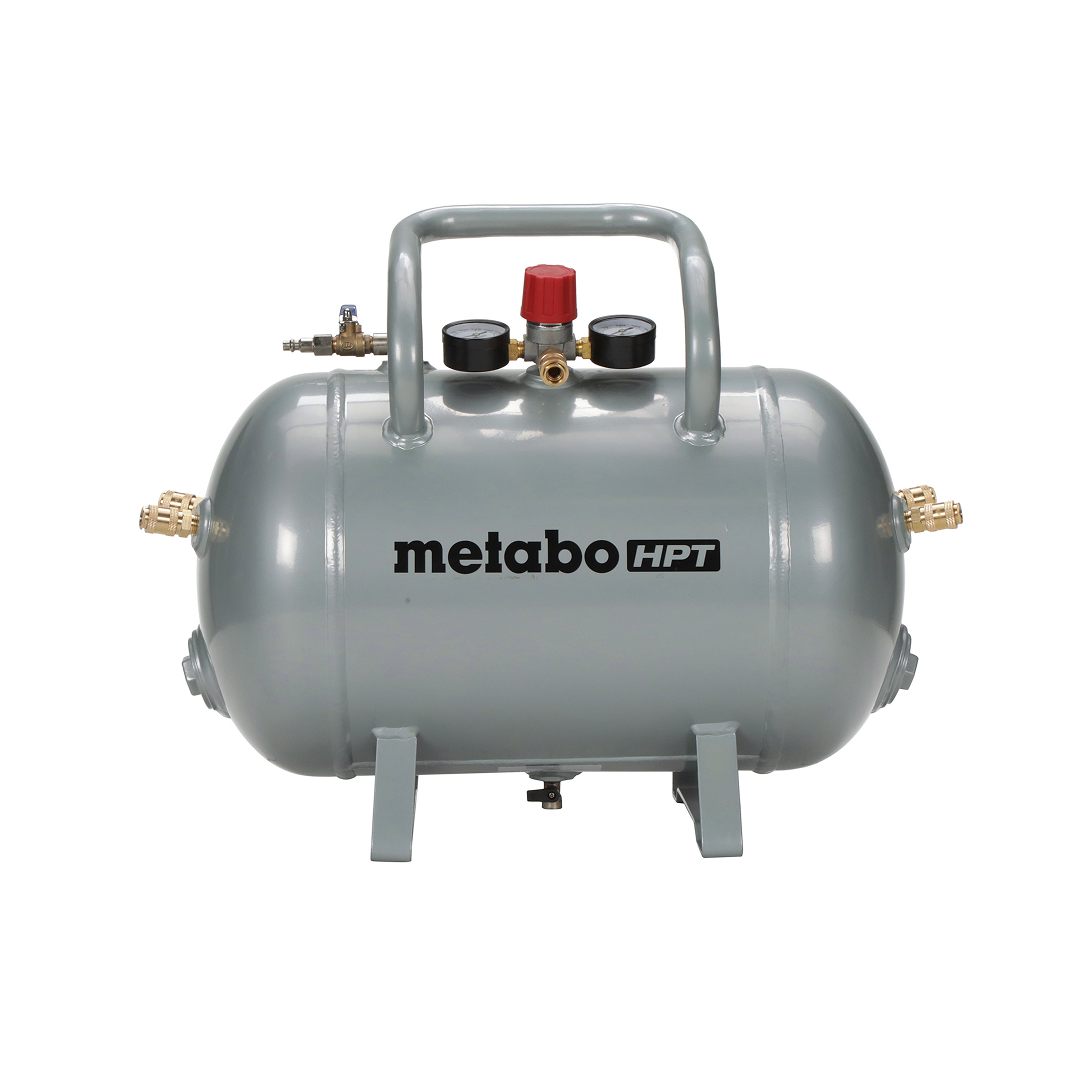

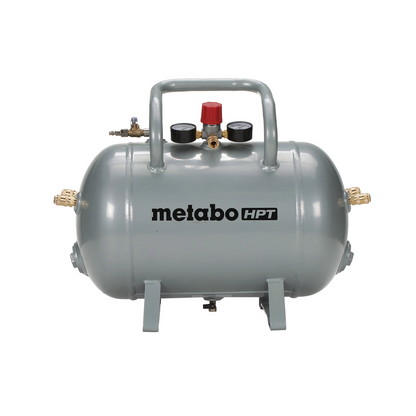

10 Gallon ASME Certified Reserve Air Tank

The 10 Gallon ASME Certified Reserve Air Tank (UA3810ABM) is a professional-grade auxiliary air storage tank designed to maintain consistent air pressure across multiple pneumatic tools on large jobsites. Ideal for framing crews, roofing contractors, and finish carpenters, this reserve tank acts as an intermediate air reservoir between the compressor and nailers, ensuring stable pressure delivery even when the compressor is positioned 200 feet or more away. Its ASME-certified 10-gallon tank provides reliable, code-compliant air storage for demanding commercial and industrial applications.

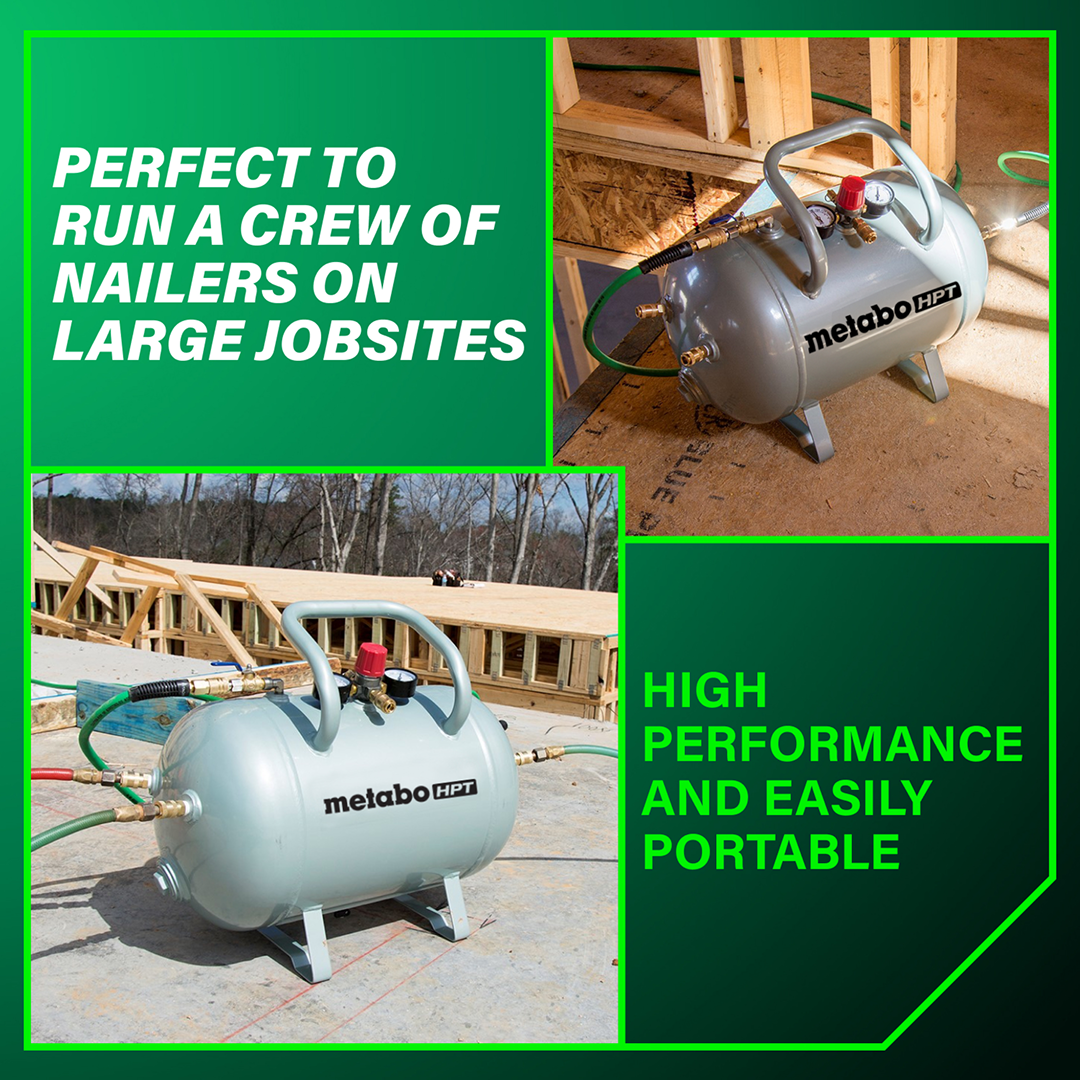

Engineered to improve jobsite efficiency, the UA3810ABM supplies enough reserve air to operate five or more pneumatic nailers simultaneously while minimizing pressure fluctuations that can affect fastening performance. It features five industrial air outlets, including four unregulated outlets for full tank pressure and one regulated outlet with a factory-installed large adjustment knob, allowing tools with different pressure requirements to operate from the same air supply. Integrated tank and regulated pressure gauges provide clear pressure monitoring, while the input shut-off valve and safety relief valve enhance operational safety and convenience.

Built with durability and portability in mind, the reserve tank features a rugged horizontal barrel design capable of handling a maximum working pressure of 175 PSI. The sturdy construction withstands demanding jobsite conditions while maintaining dependable performance for years of service. Whether supporting multiple framing nailers, roofing nailers, finish nailers, or other pneumatic tools, the UA3810ABM helps maintain consistent airflow, improve productivity, and reduce pressure loss across long hose runs.

Key Features

• Professional 10-gallon ASME-certified reserve air tank
• Maintains consistent air pressure over hose runs exceeding 200 feet

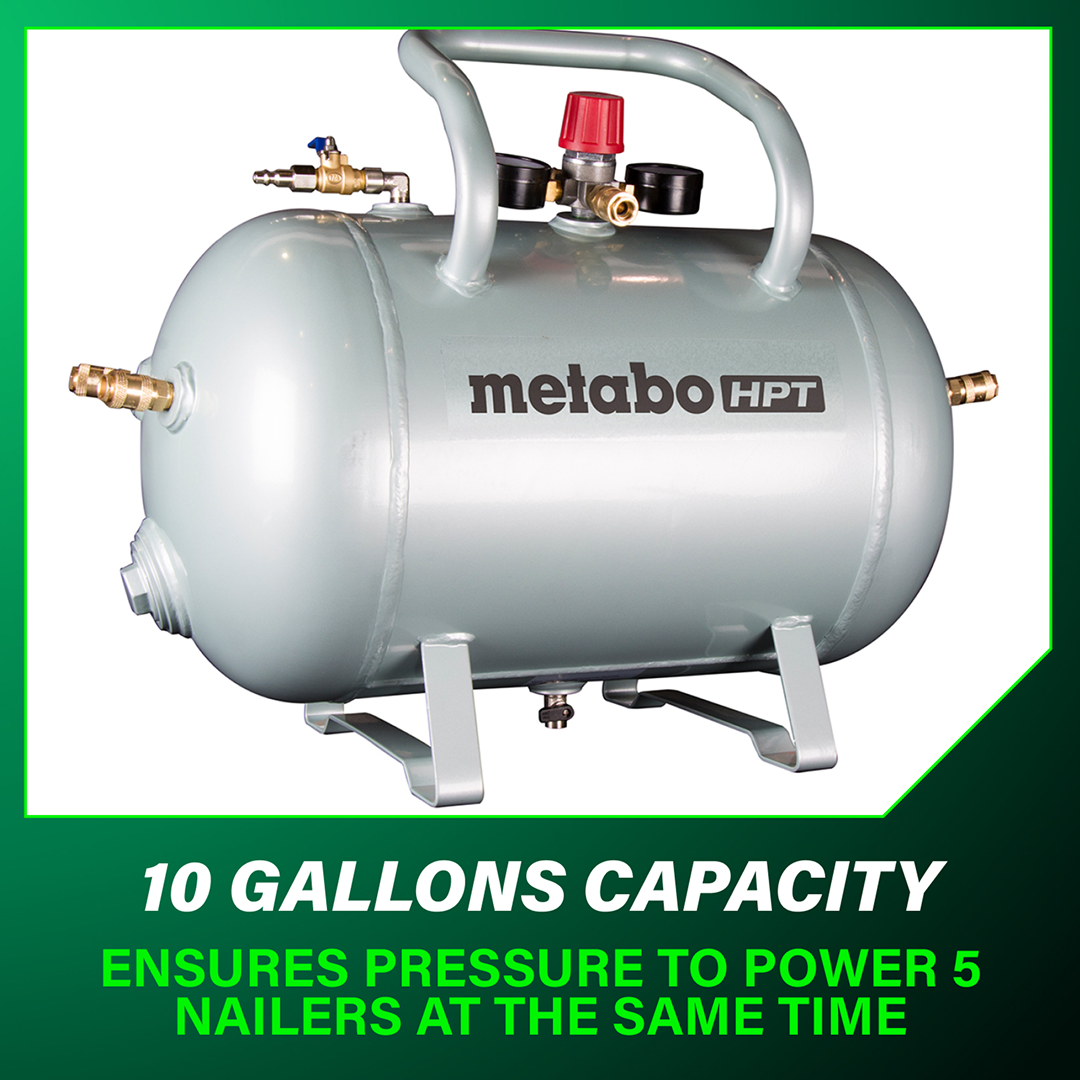

• Supports five or more pneumatic nailers operating simultaneously
• Four unregulated outlets plus one adjustable regulated outlet
• Factory-installed large regulator knob for precise pressure control
• ASME-certified tank ensures safe and code-compliant operation

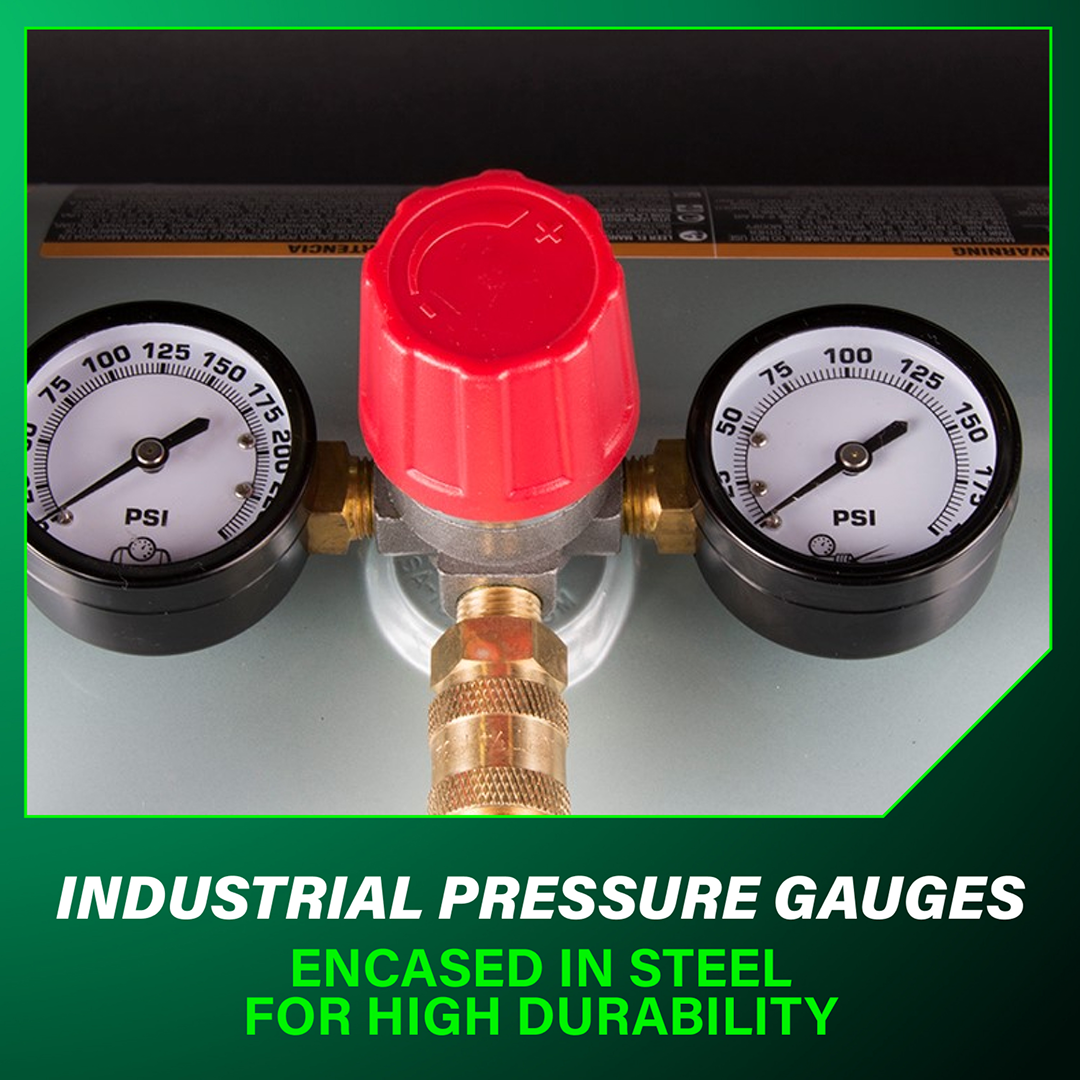

• Integrated tank and regulated pressure gauges for accurate monitoring

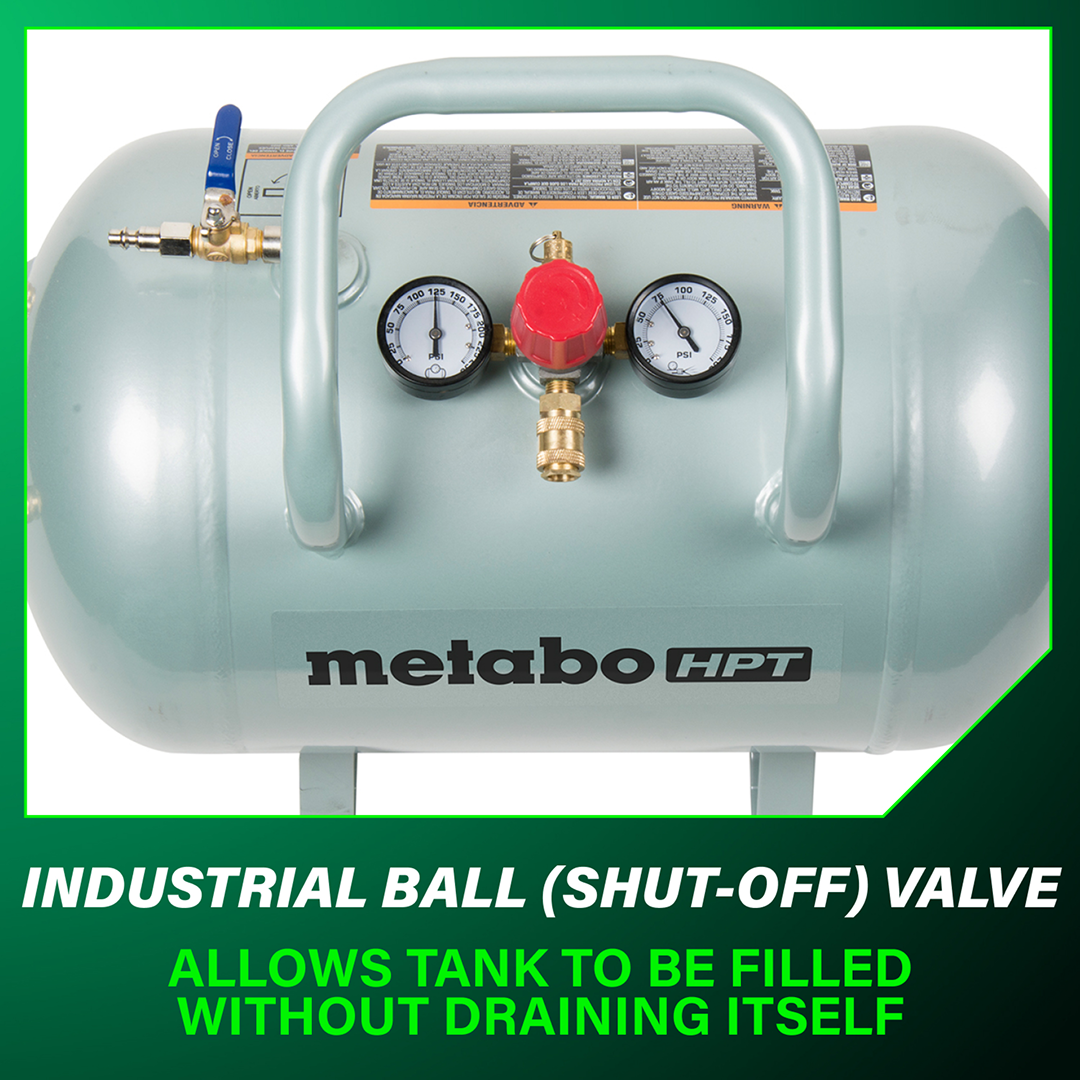

• Input shut-off valve simplifies air supply control
• Safety relief valve provides enhanced operational protection

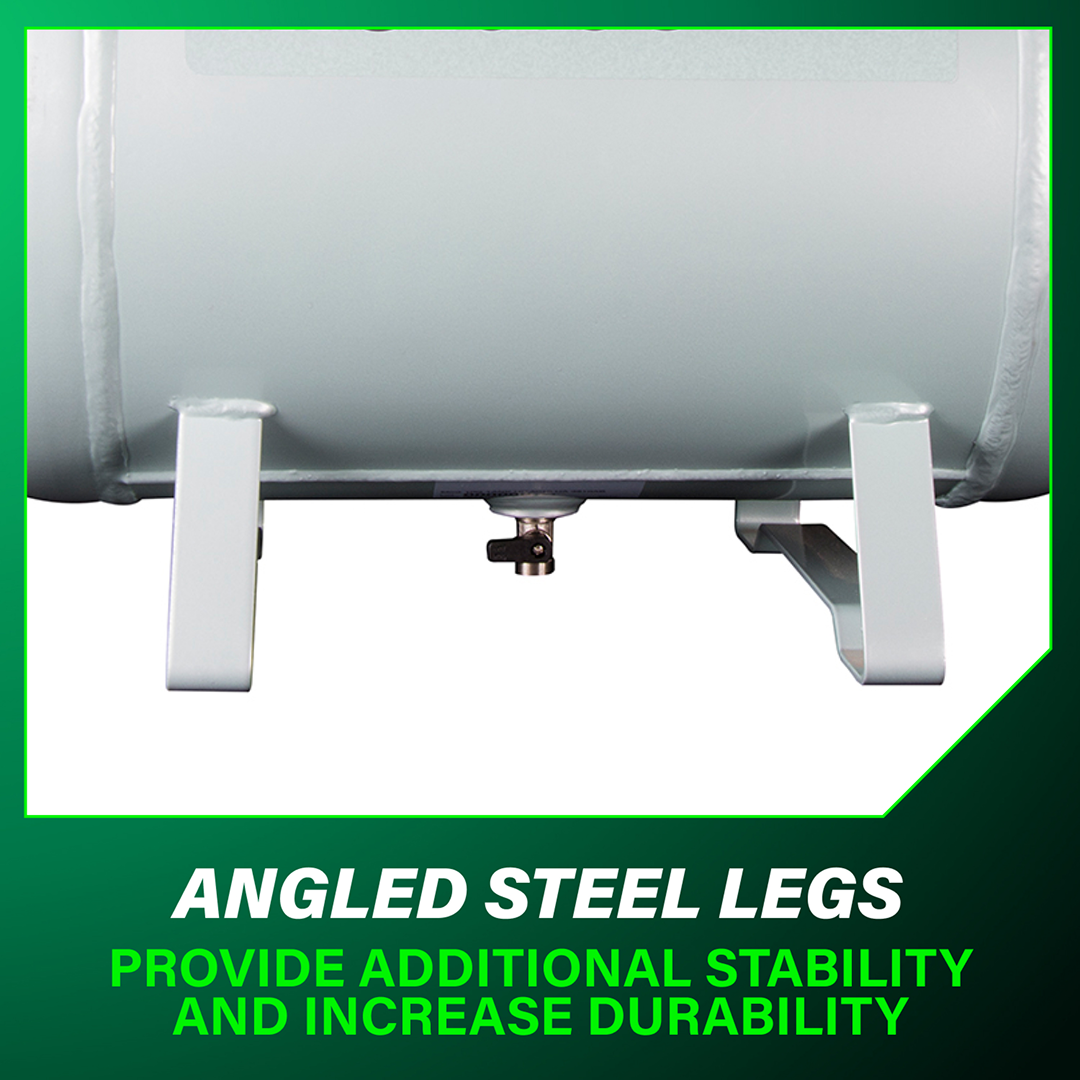

• Durable horizontal barrel tank designed for demanding jobsites
• Reduces pressure fluctuations and improves pneumatic tool performance
• Ideal for framing, roofing, siding, finish carpentry, and general construction

Specifications

• Model: UA3810ABM
• Tool Type: Reserve Air Tank
• Tank Type: Horizontal Barrel

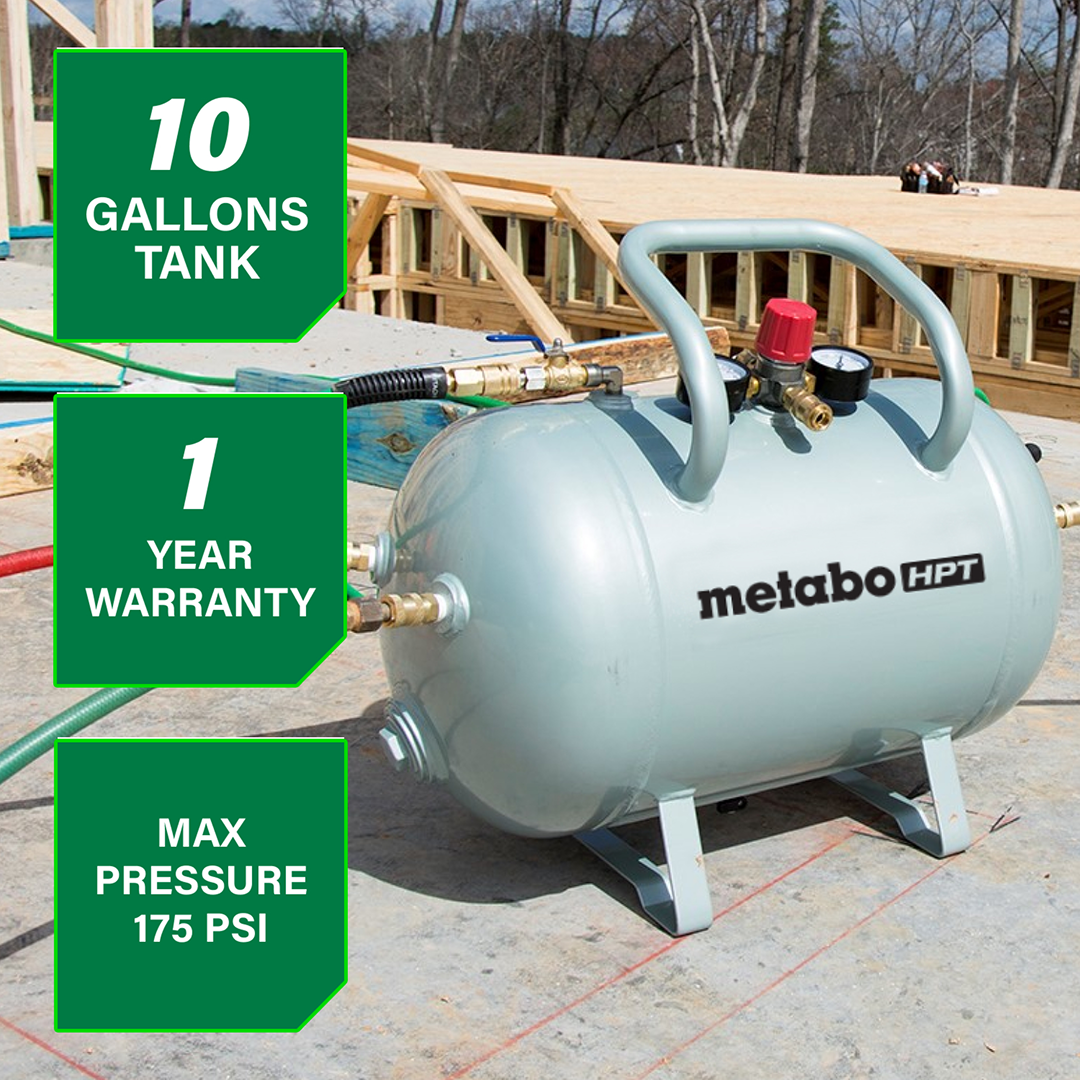

• Tank Capacity: 10 Gallons (ASME Certified)
• Maximum Working Pressure: 175 PSI

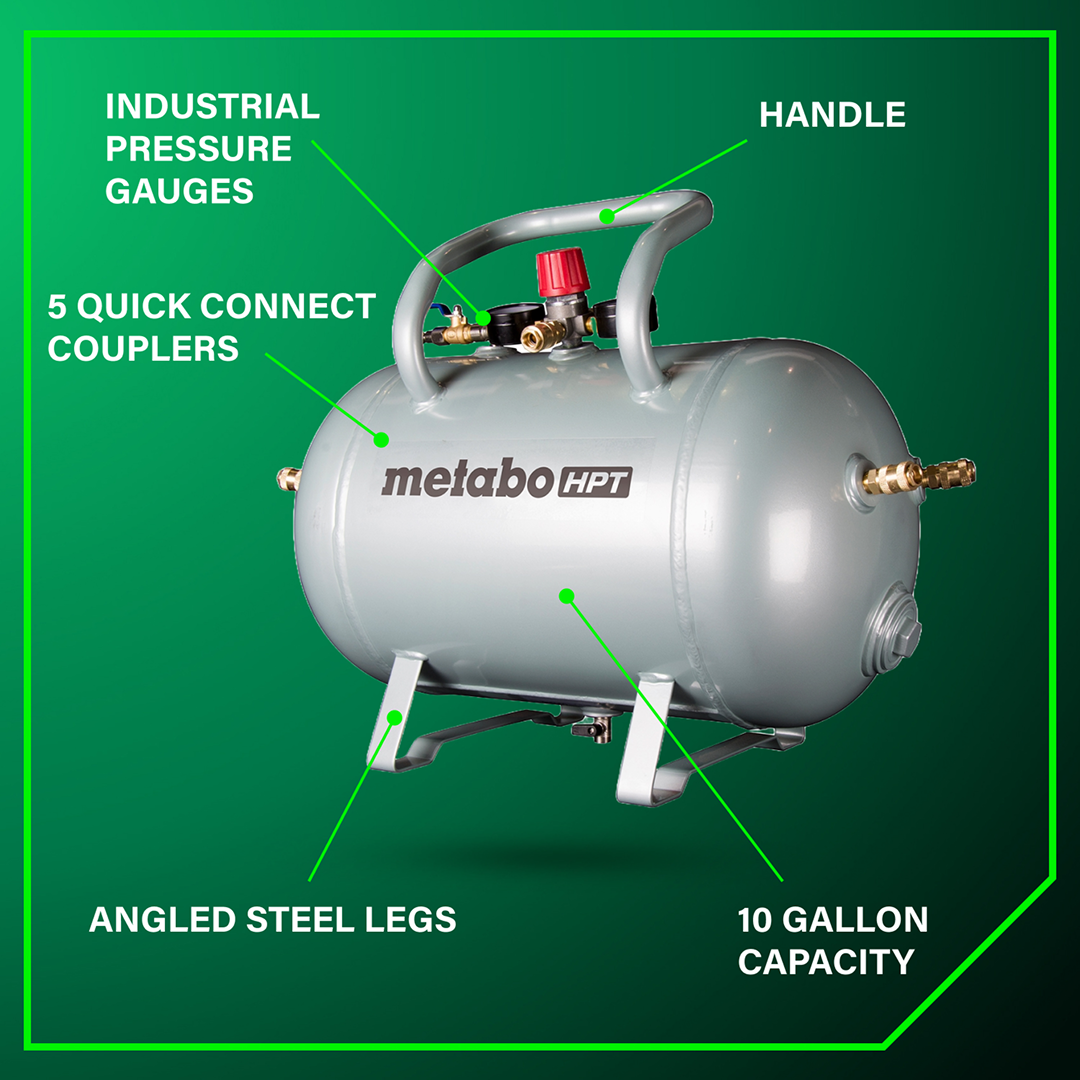

• Number of Outputs: 5 (4 Unregulated + 1 Regulated)

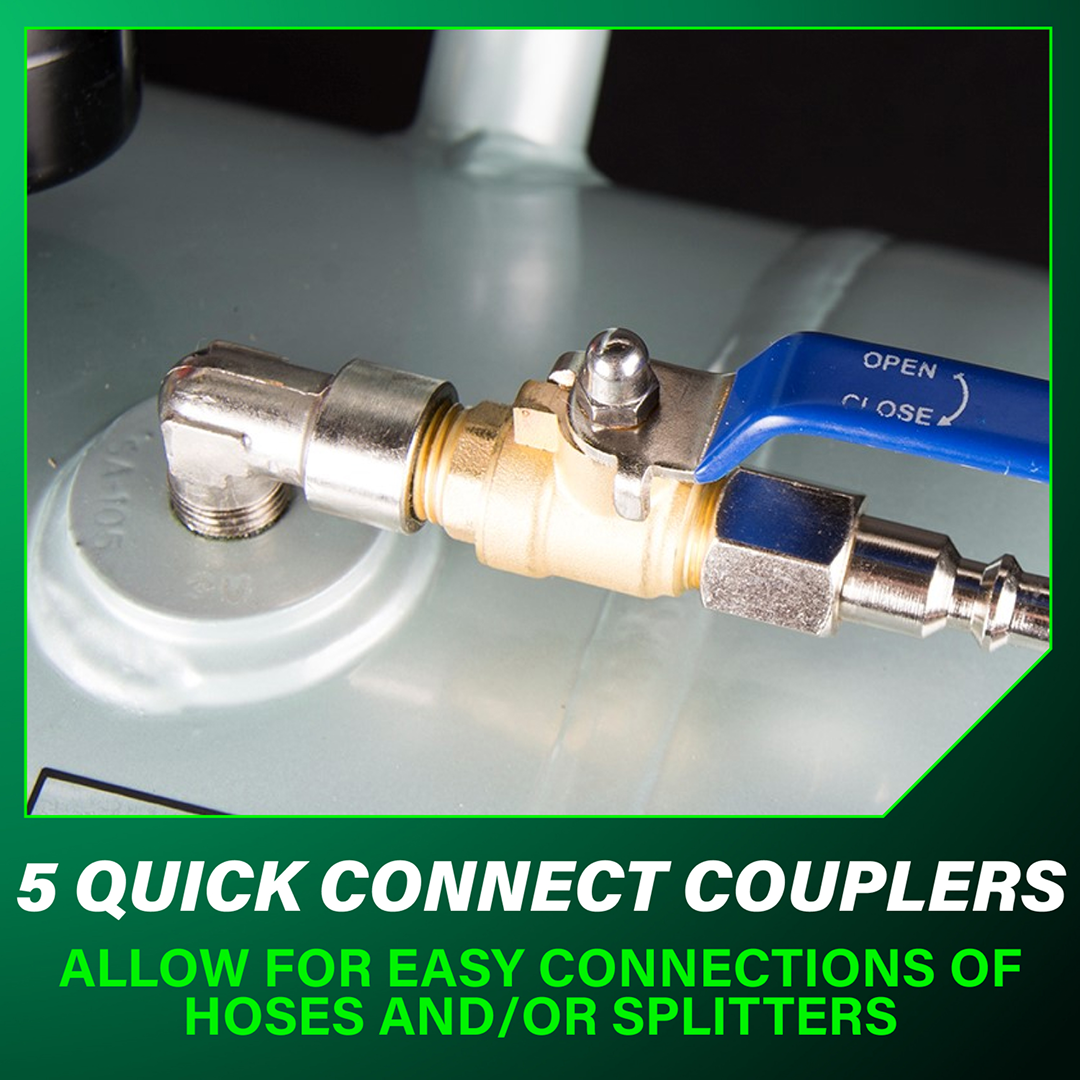

• Coupling Sockets: Five 1/4" Industrial Couplers
• Tank Pressure Gauge: Yes
• Regulated Pressure Gauge: Yes
• Input Shut-Off Valve: Yes
• Safety Relief Valve: Yes
• Weight: 40 lbs
