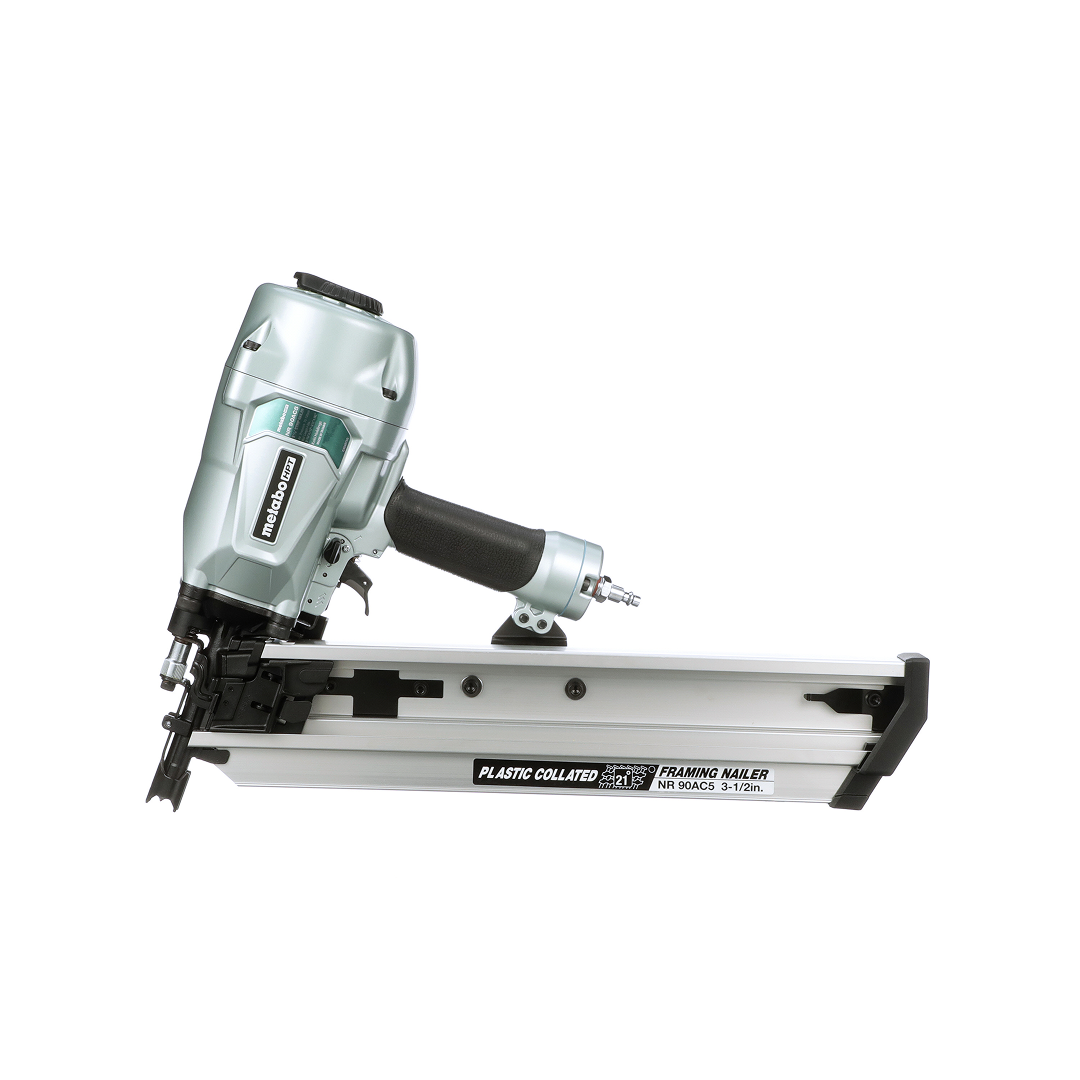

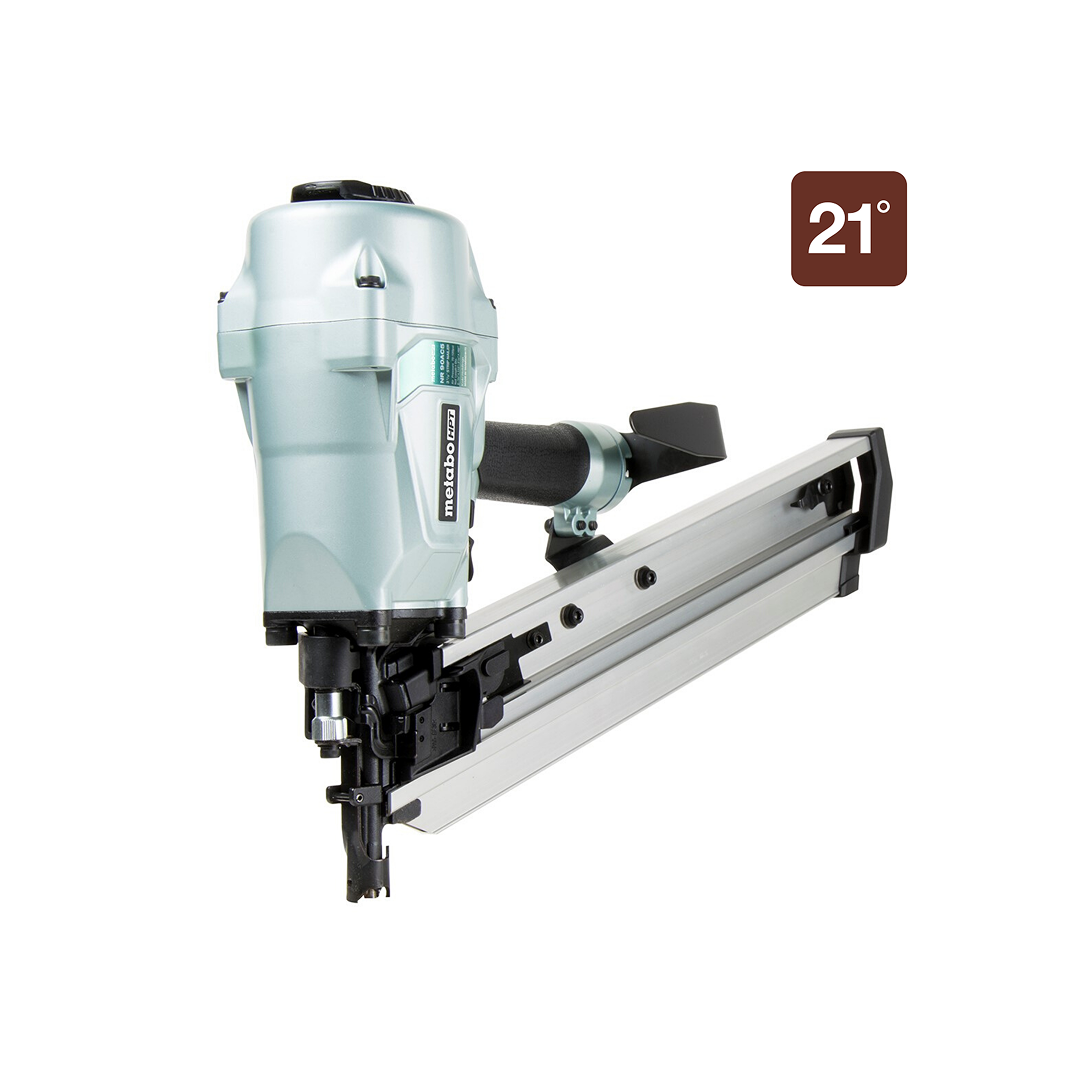

21 Degree 3-1/2 Inch Plastic Collated Framing Nailer

The 21° 3-1/2" Plastic Collated Framing Nailer (NR90AC5M) is a professional-grade pneumatic framing nailer engineered to deliver maximum driving power, precision, and durability for the toughest structural construction applications. Designed for professional framers, contractors, builders, and carpenters, this high-performance nailer is ideal for floor framing, wall framing, roof decking, subfloor installation, truss assembly, wall sheathing, and engineered lumber construction. Built to drive large-diameter framing nails into LVL (Laminated Veneer Lumber) and other engineered wood products, the NR90AC5M combines powerful performance with a well-balanced design to minimize user fatigue during extended use.

Capable of driving 21° plastic collated full head nails ranging from 2-3/8" to 3-1/2" in length and up to 0.162" in diameter, the NR90AC5M provides the strength needed for demanding framing applications. Its tool-less depth adjustment allows fast and precise control of nail depth across different materials, while the selective actuation switch enables instant switching between sequential firing for precision work and contact (bump) firing for high-speed production. The two-piece anodized aluminum rear-loading magazine features a simple two-step loading process for quick nail replenishment, while the open nose design ensures fast jam clearing to minimize downtime. An adjustable exhaust port and ergonomic rubber grip further improve operator comfort and control.

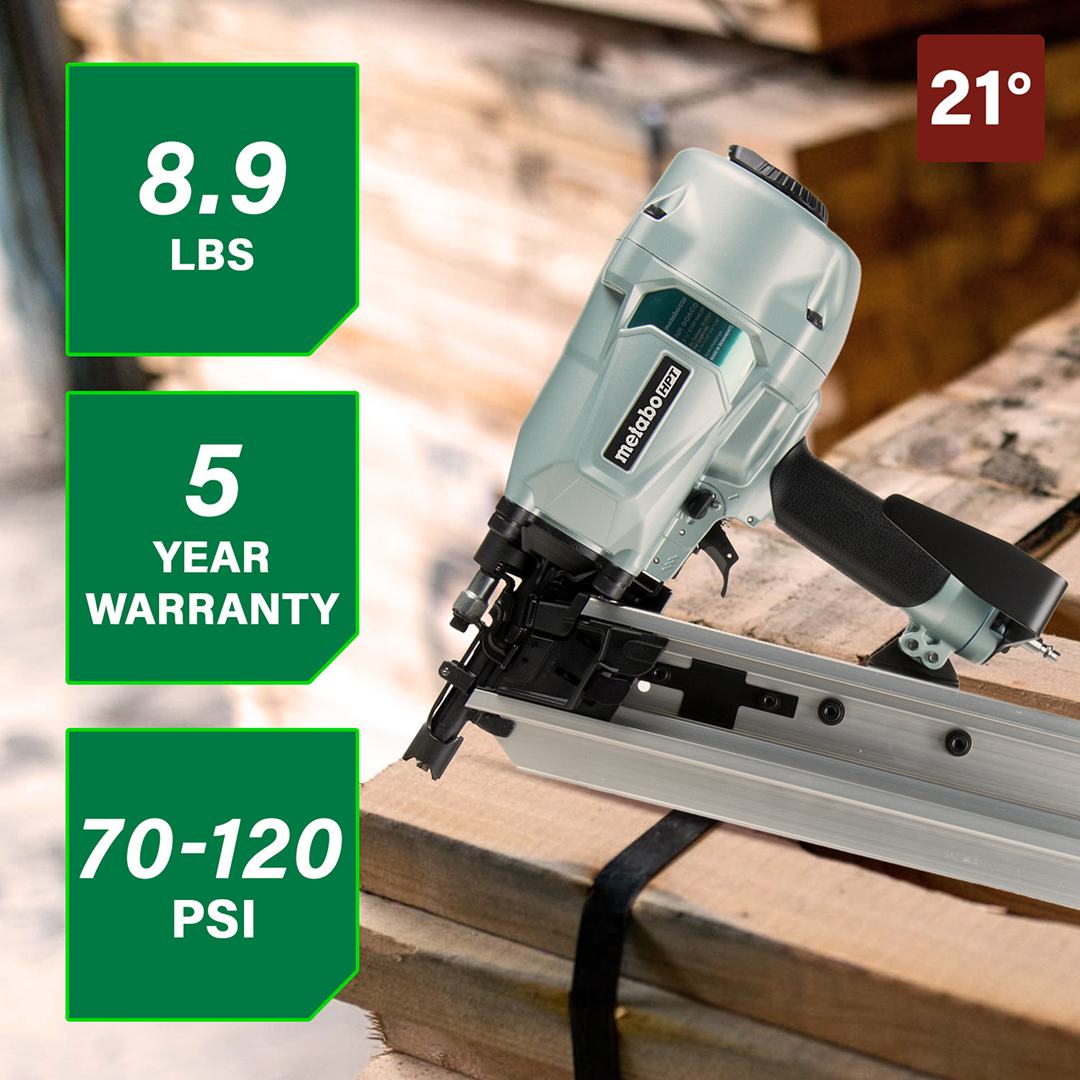

Operating at 70–120 PSI, the NR90AC5M features a 64-nail magazine capacity and delivers reliable, consistent fastening performance on residential, commercial, and industrial construction sites. Weighing only 8.9 lbs (without hook), this durable framing nailer offers an excellent combination of power, efficiency, and ergonomic handling, making it an ideal choice for professionals tackling heavy-duty framing projects.

Key Features

• Professional pneumatic framing nailer for heavy-duty structural construction
• Ideal for floor framing, wall framing, roof decking, subflooring, truss assembly, wall sheathing, and engineered lumber applications
• Drives nails into LVL and other engineered wood products with ease
• Accepts 21° plastic strip collated full head framing nails
• Compatible with fastener lengths from 2-3/8" to 3-1/2"
• Supports fastener diameters from 0.113" to 0.162"

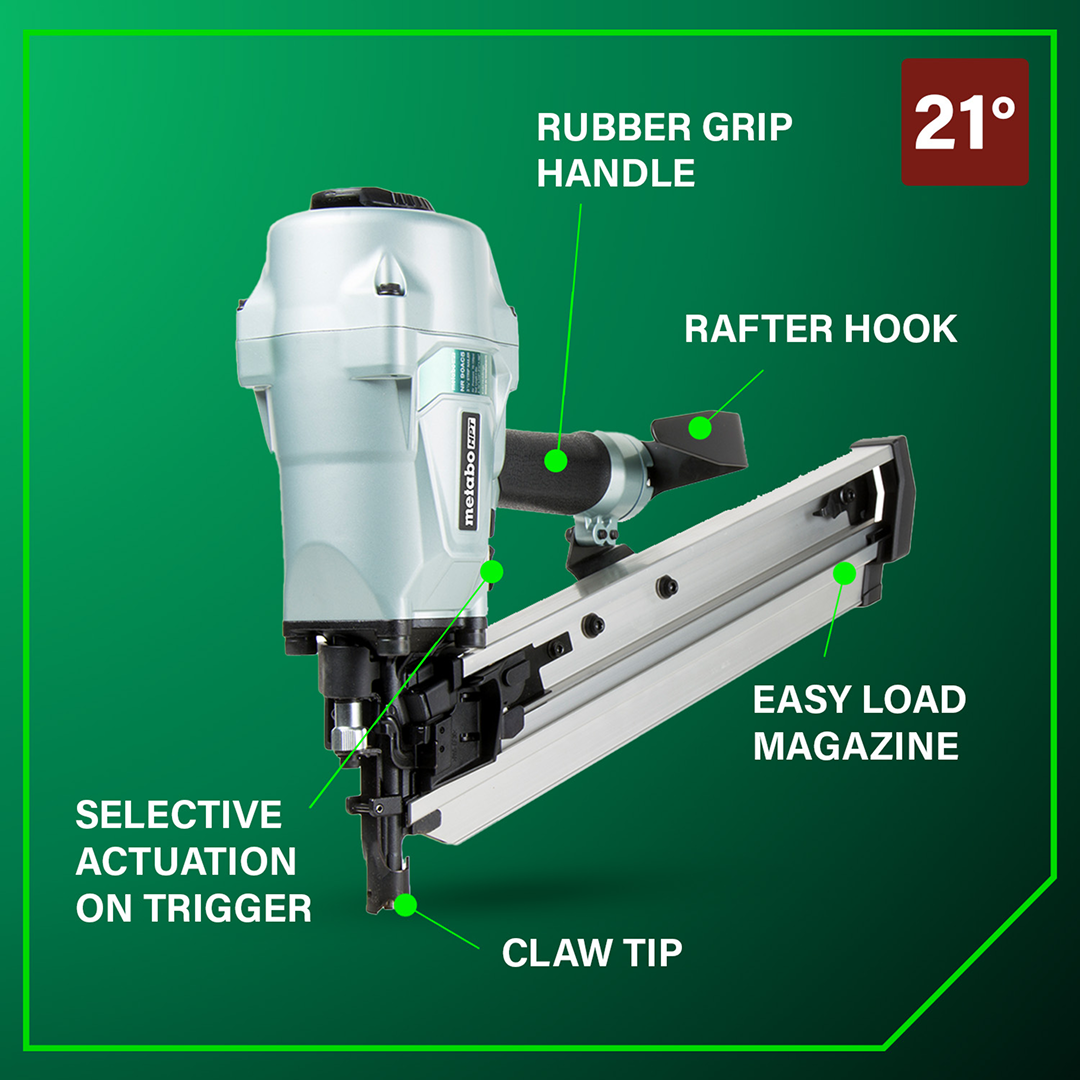

• Tool-less depth adjustment allows quick and precise nail depth control
• Selective actuation enables switching between sequential and contact (bump) firing modes
• Durable two-piece anodized aluminum magazine provides reliable nail feeding

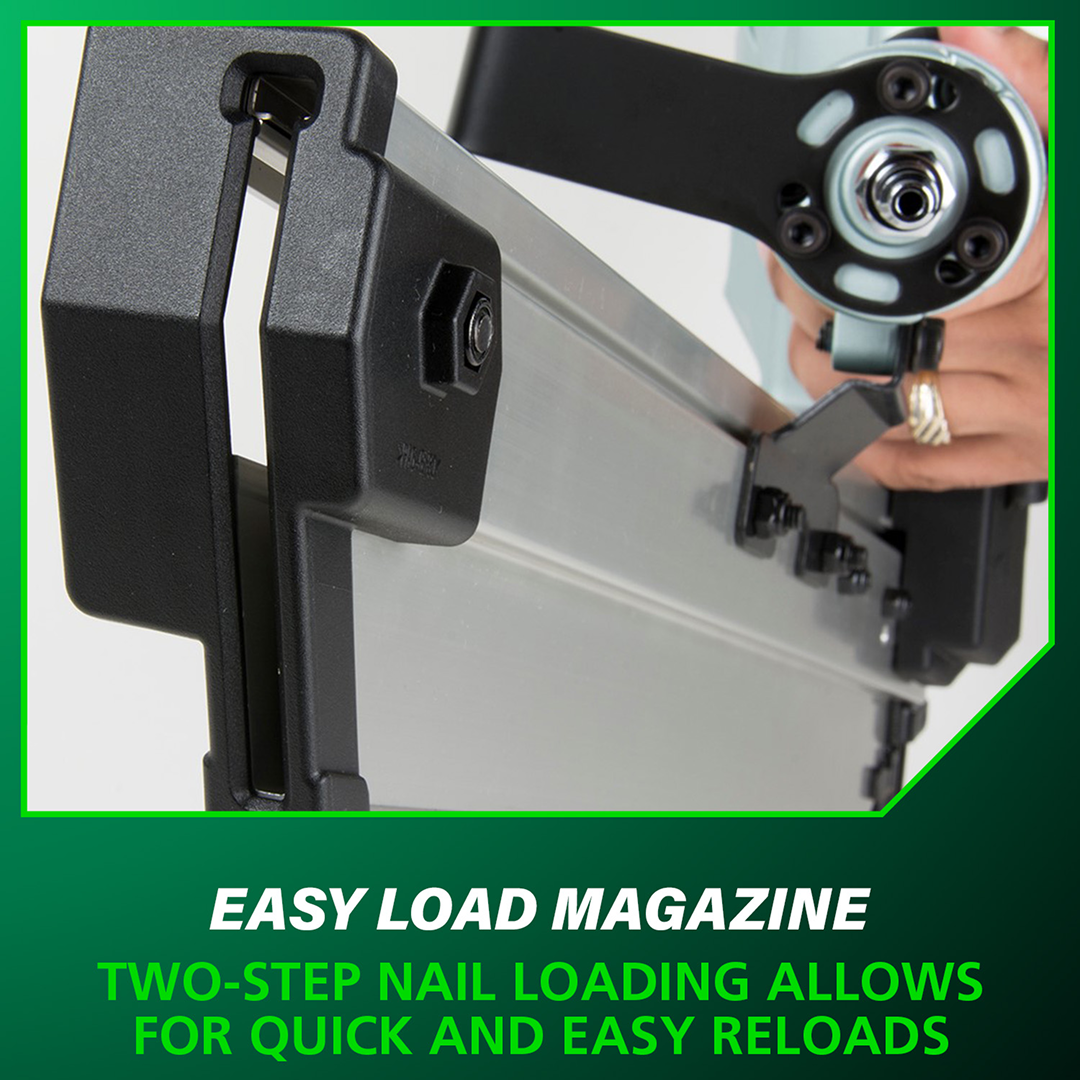

• Rear-loading magazine with simple two-step loading process for fast reloading

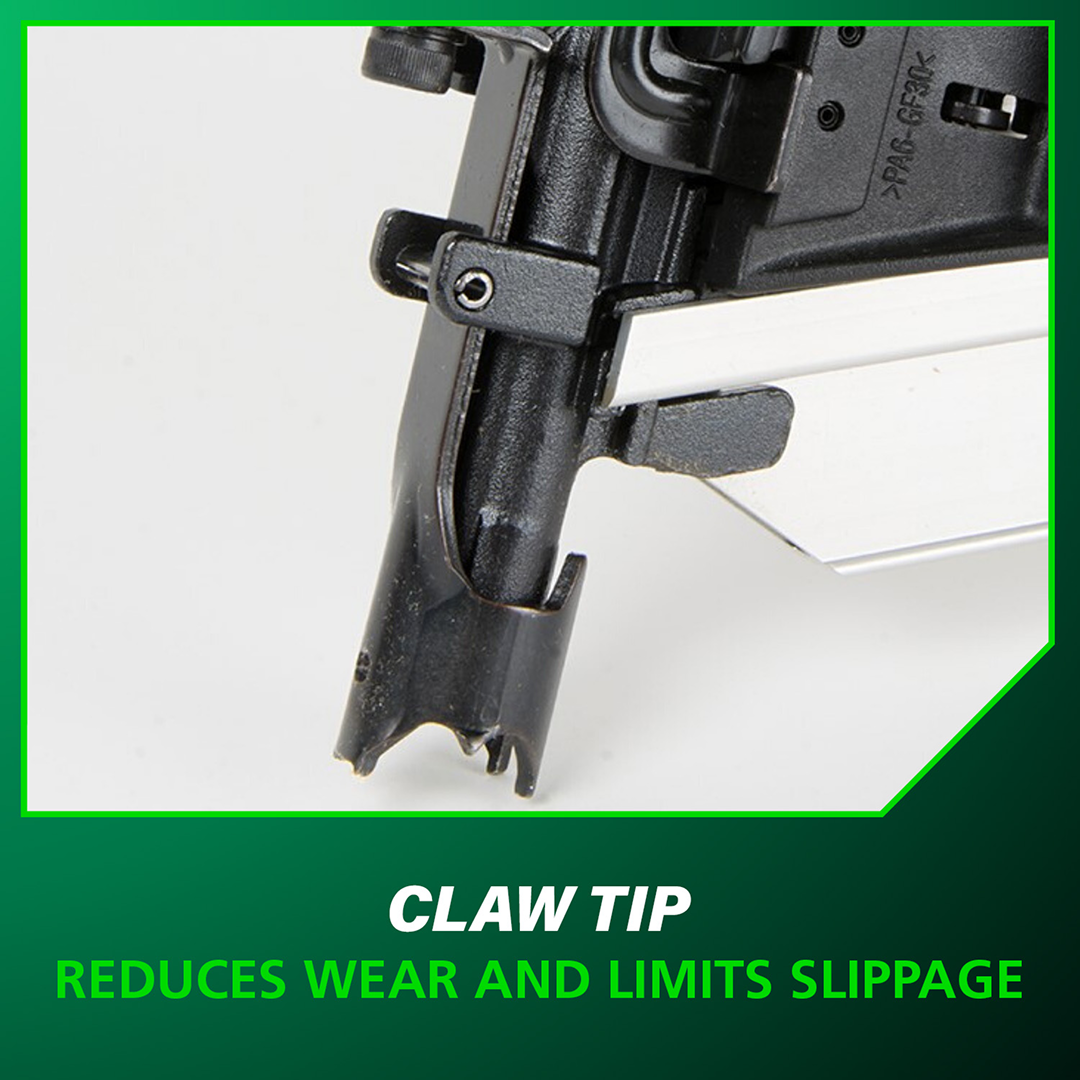

• Open nose design enables quick and convenient jam clearing
• Adjustable exhaust port directs air away from the user
• Ergonomic rubber grip improves comfort and control during extended operation

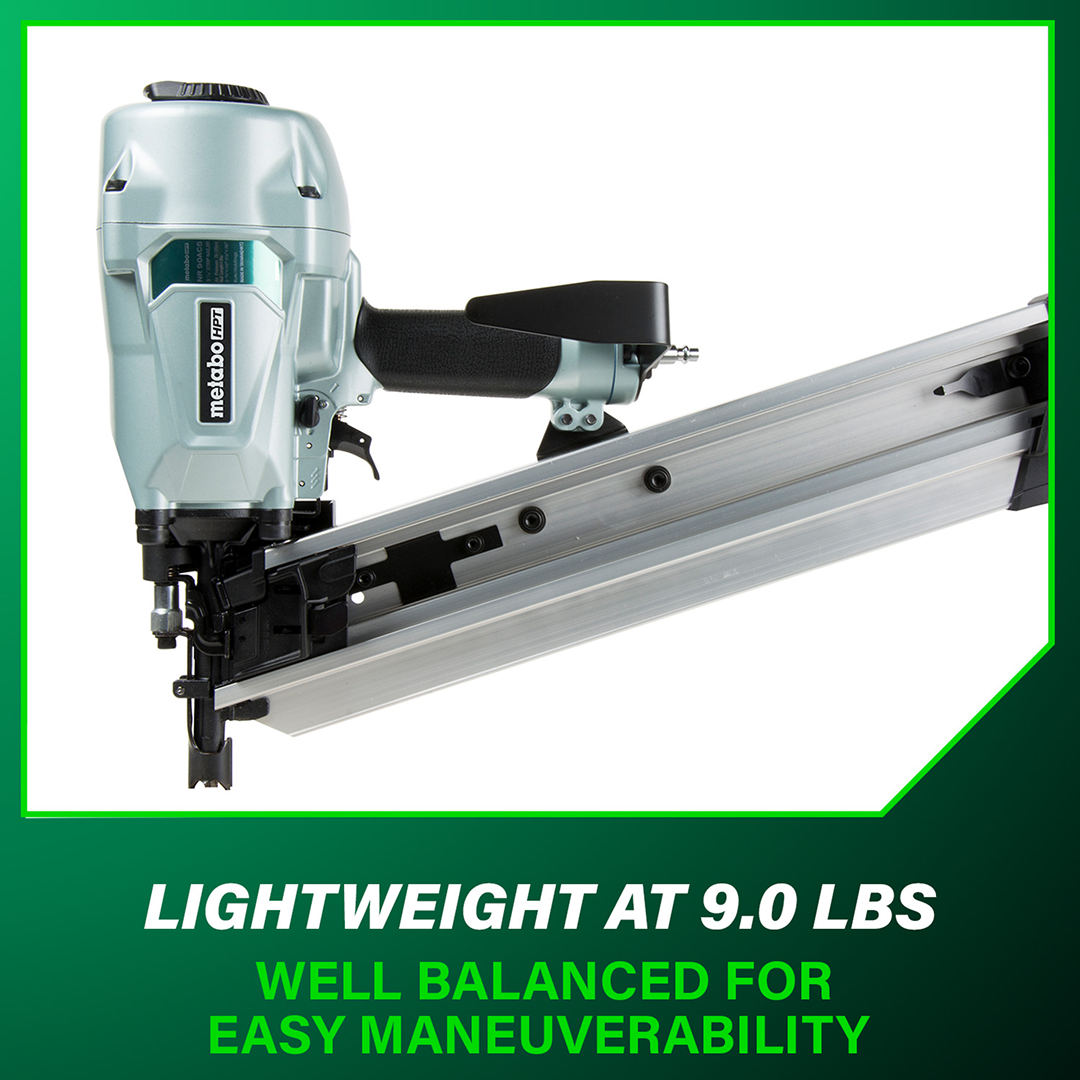

• Well-balanced lightweight design reduces operator fatigue

Specifications

• Model: NR90AC5M
• Tool Type: Pneumatic Framing Nailer
• Fastener Type: Full Head, Plastic Strip Collation
• Magazine Angle: 21°
• Fastener Length Capacity: 2-3/8"–3-1/2"
• Fastener Diameter Range: 0.113"–0.162"
• Magazine Capacity: 64 Nails
• Magazine Loading: Rear
• Air Fitting: 1/4" Industrial
• Operating Pressure: 70–120 PSI
• Jam Clearing: Open Nose
• Depth Adjustment: Tool-Less
• Actuation: Selective (Sequential / Bump Fire)
• Adjustable Exhaust Port: Yes
• Rubber Grip: Yes
• Dimensions (L × W × H): 19-13/16" × 4-3/4" × 13-7/8"
• Tool Weight (Without Hook): 8.9 lbs

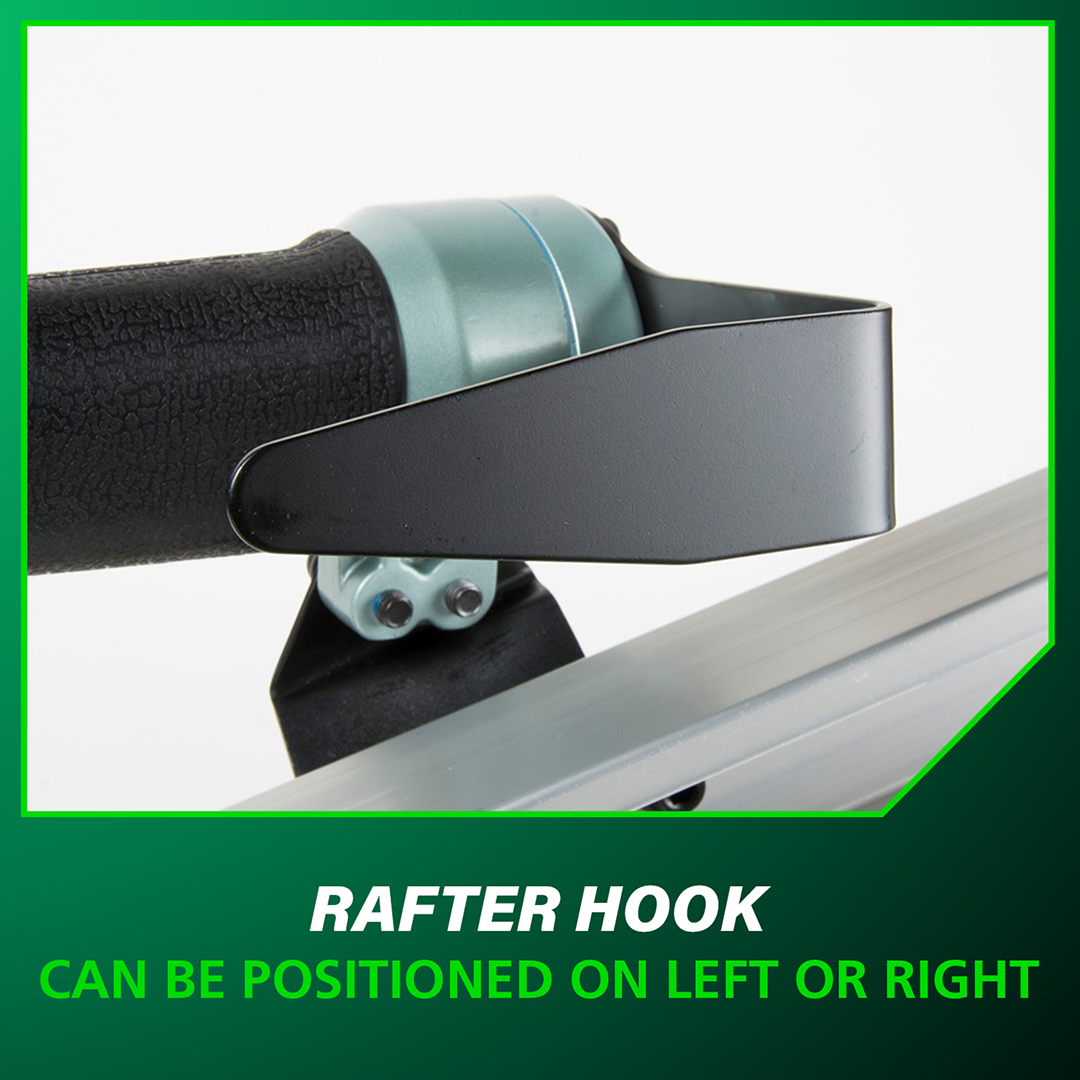

• Tool Weight (With Hook): 9.2 lbs
