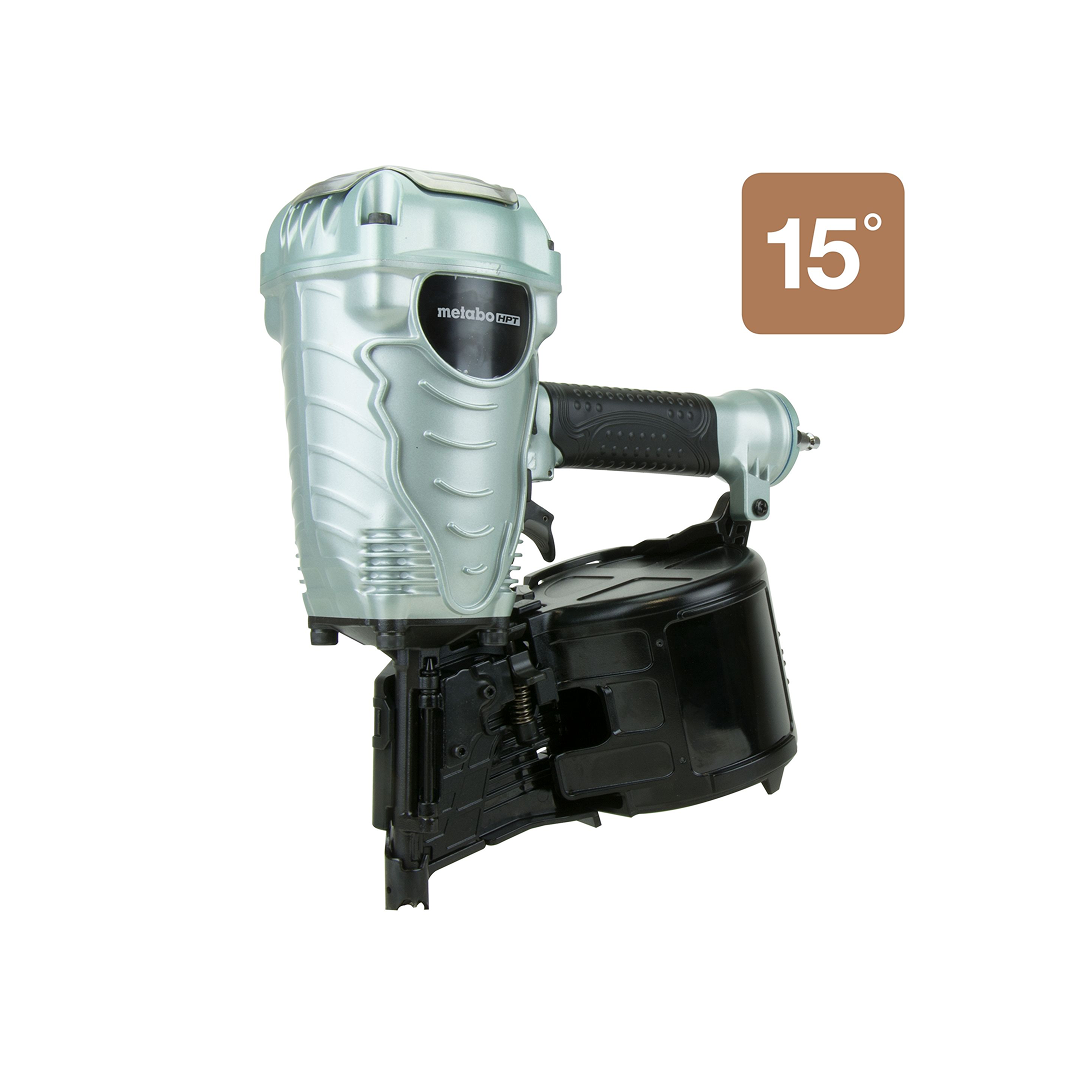

3-1/2 Inch Coil Framing Nailer

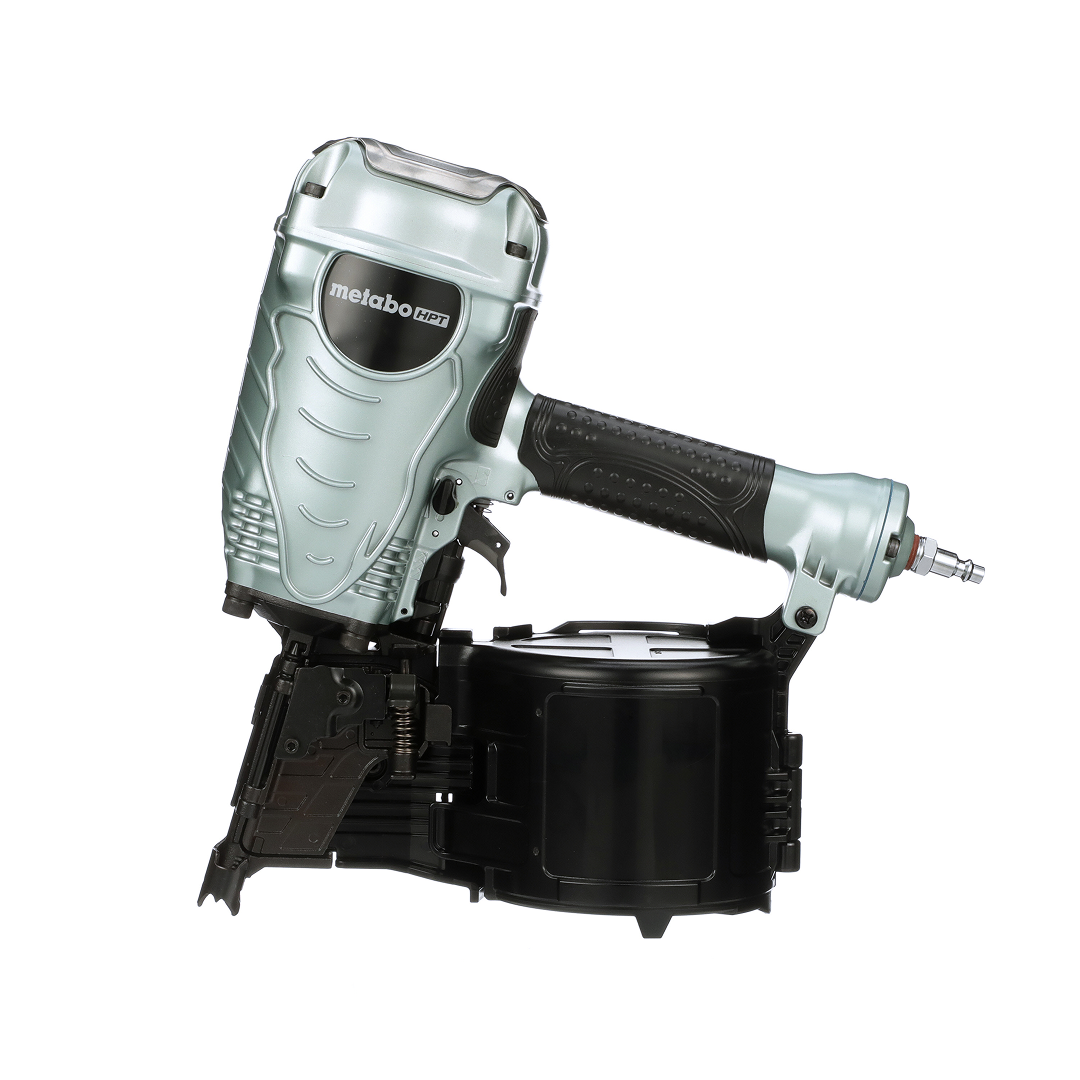

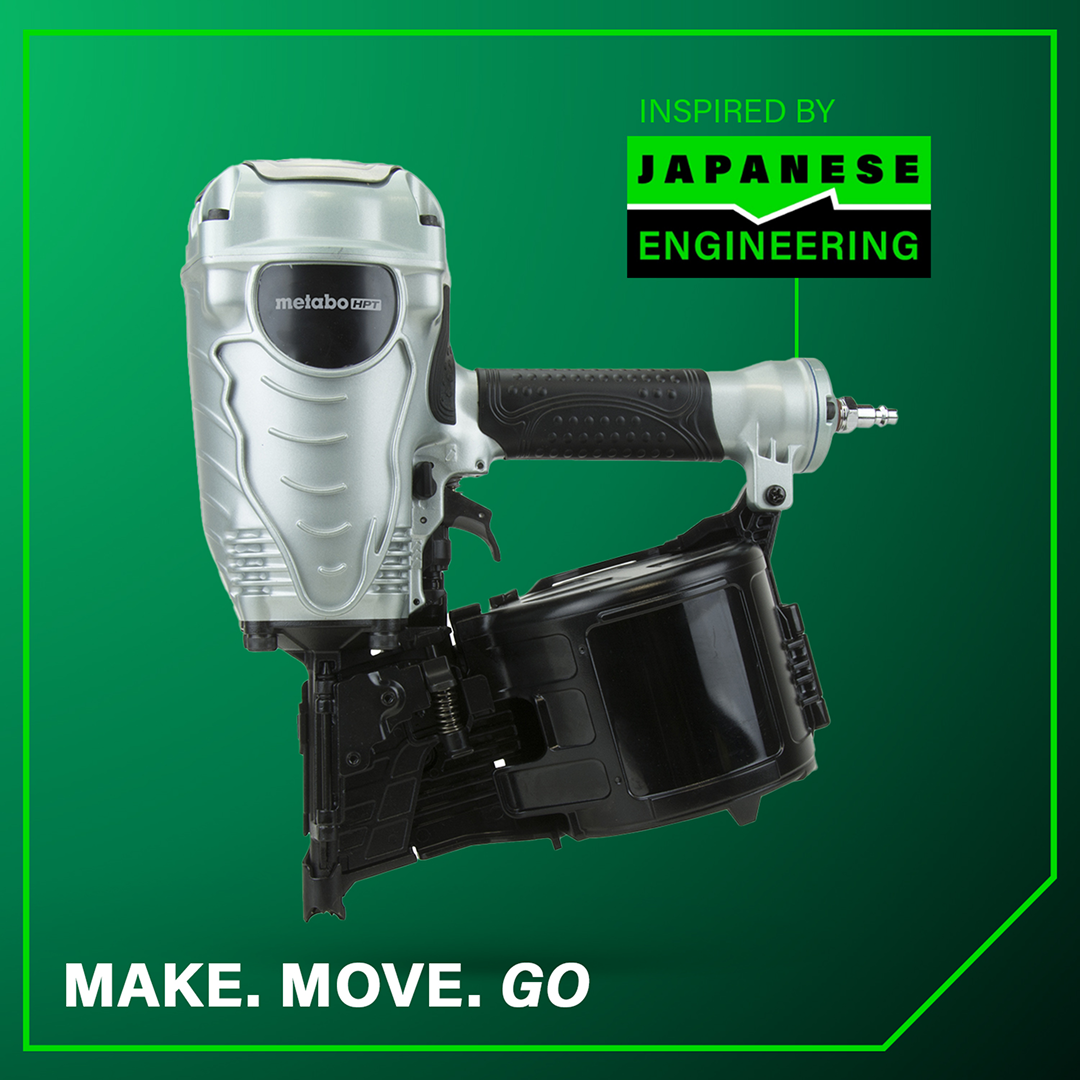

The 3-1/2" Coil Framing Nailer (NV90AGSM) is a professional-grade pneumatic framing nailer engineered for high-speed, heavy-duty framing and structural construction applications. Designed for professional framers, contractors, builders, and construction crews, this versatile nailer delivers the power and durability needed for floor framing, wall framing, roof decking, truss assembly, subfloor installation, window framing, wall sheathing, and residential or commercial construction projects. Featuring Metabo HPT's next-generation industrial design, the NV90AGSM combines improved serviceability with lightweight handling for maximum productivity on demanding jobsites.

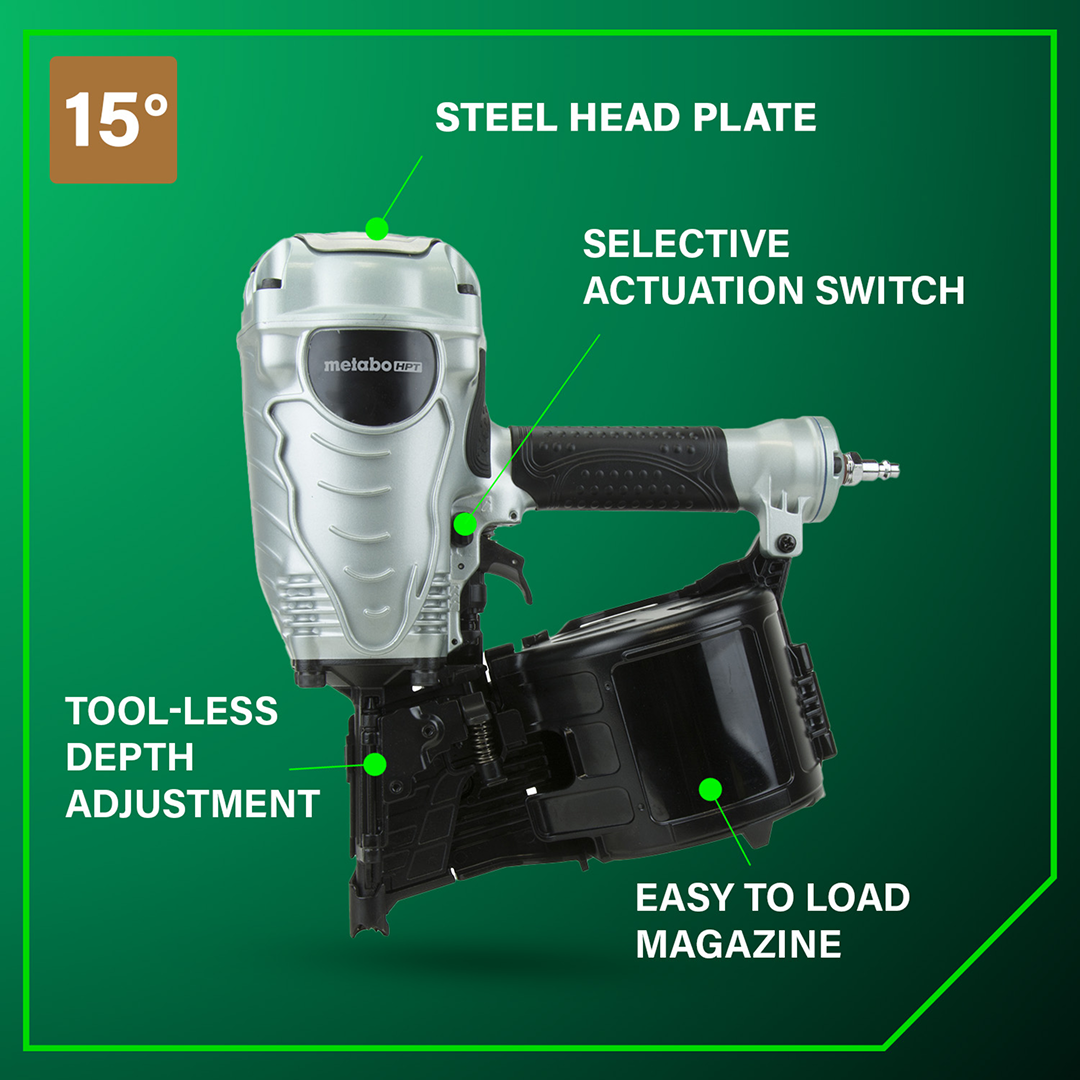

Built to drive 15° wire-collated coil nails ranging from 1-3/4" to 3-1/2" in length, the NV90AGSM accommodates fastener diameters from 0.099" to 0.131", making it suitable for a wide variety of framing applications. The tool-less depth adjustment allows users to quickly adapt fastening depth for different materials, while the selective actuation switch enables easy switching between sequential and contact firing modes for precision or rapid production. The open nose design simplifies jam clearing, and the side-loading tilt-bottom magazine supports quick nail replenishment to reduce downtime. Its redesigned head guard also allows faster and easier disassembly, significantly improving routine maintenance and service efficiency.

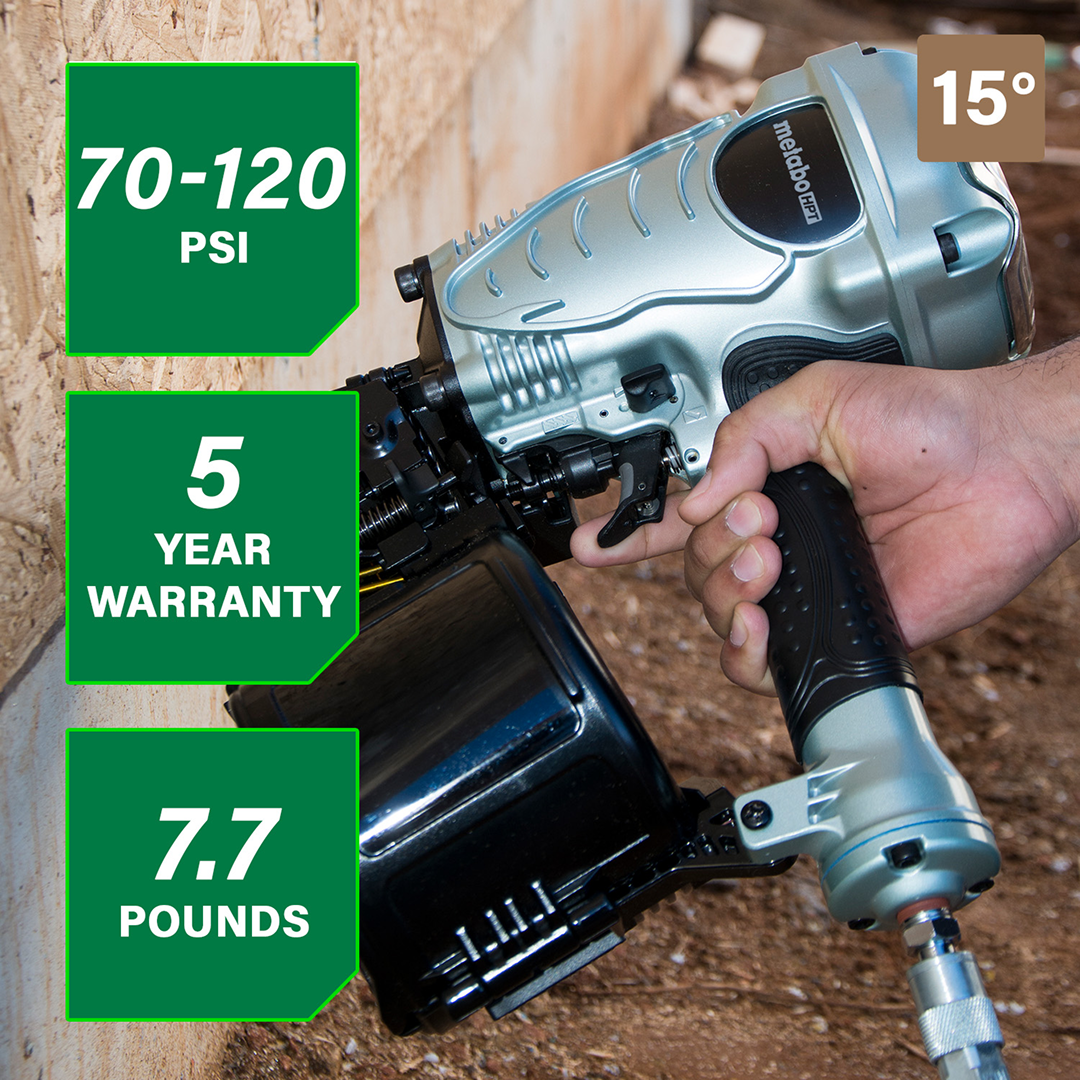

Despite its powerful performance, the NV90AGSM weighs only 7.7 lbs, reducing operator fatigue during extended overhead and repetitive work. Operating at 70–120 PSI with a 200–300 nail magazine capacity, this durable framing nailer delivers outstanding speed, reliability, and efficiency, making it an excellent choice for professional construction crews seeking maximum productivity and long-term performance.

Key Features

• Professional pneumatic coil framing nailer for heavy-duty construction and framing

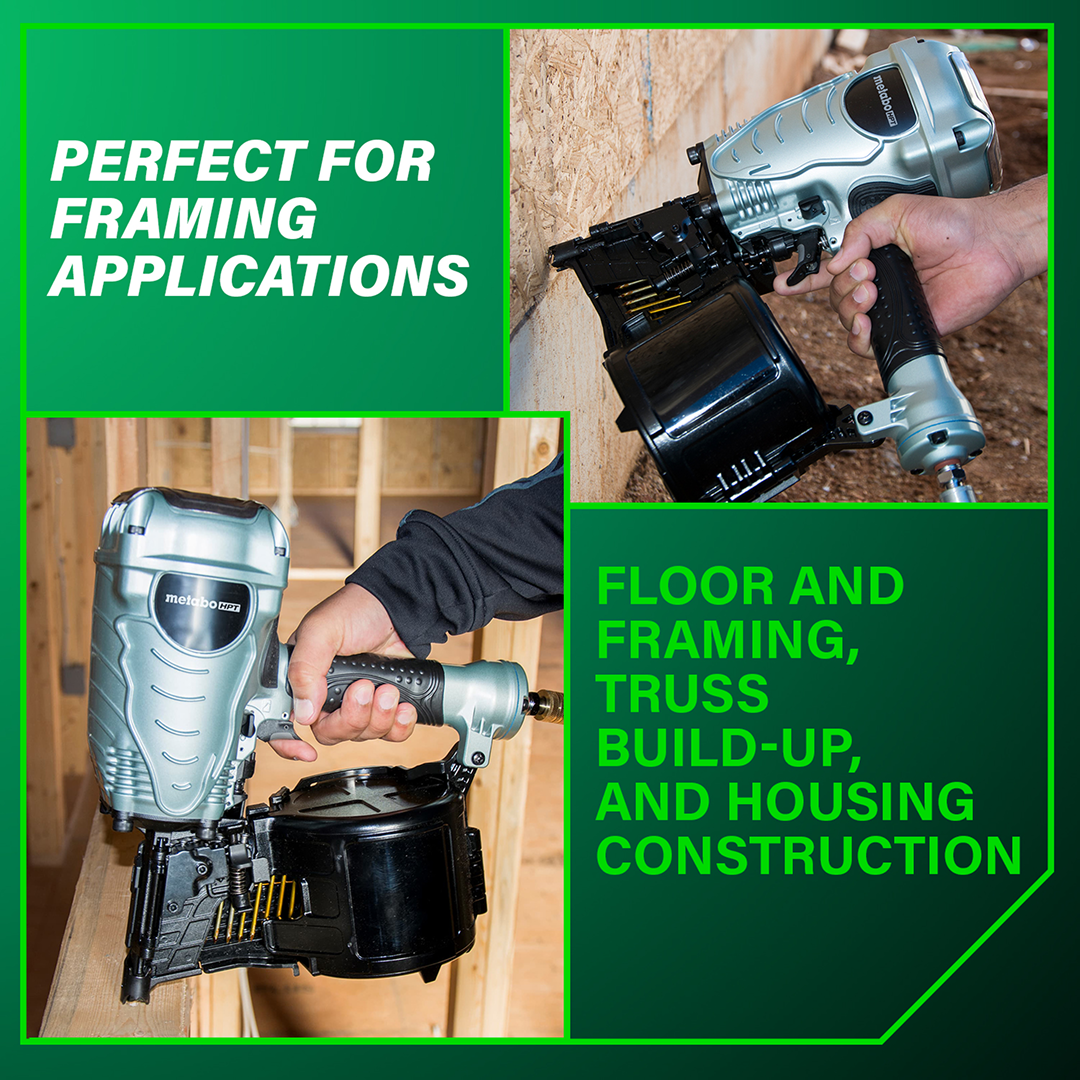

• Ideal for floor framing, wall framing, roof decking, truss assembly, subflooring, window framing, and wall sheathing

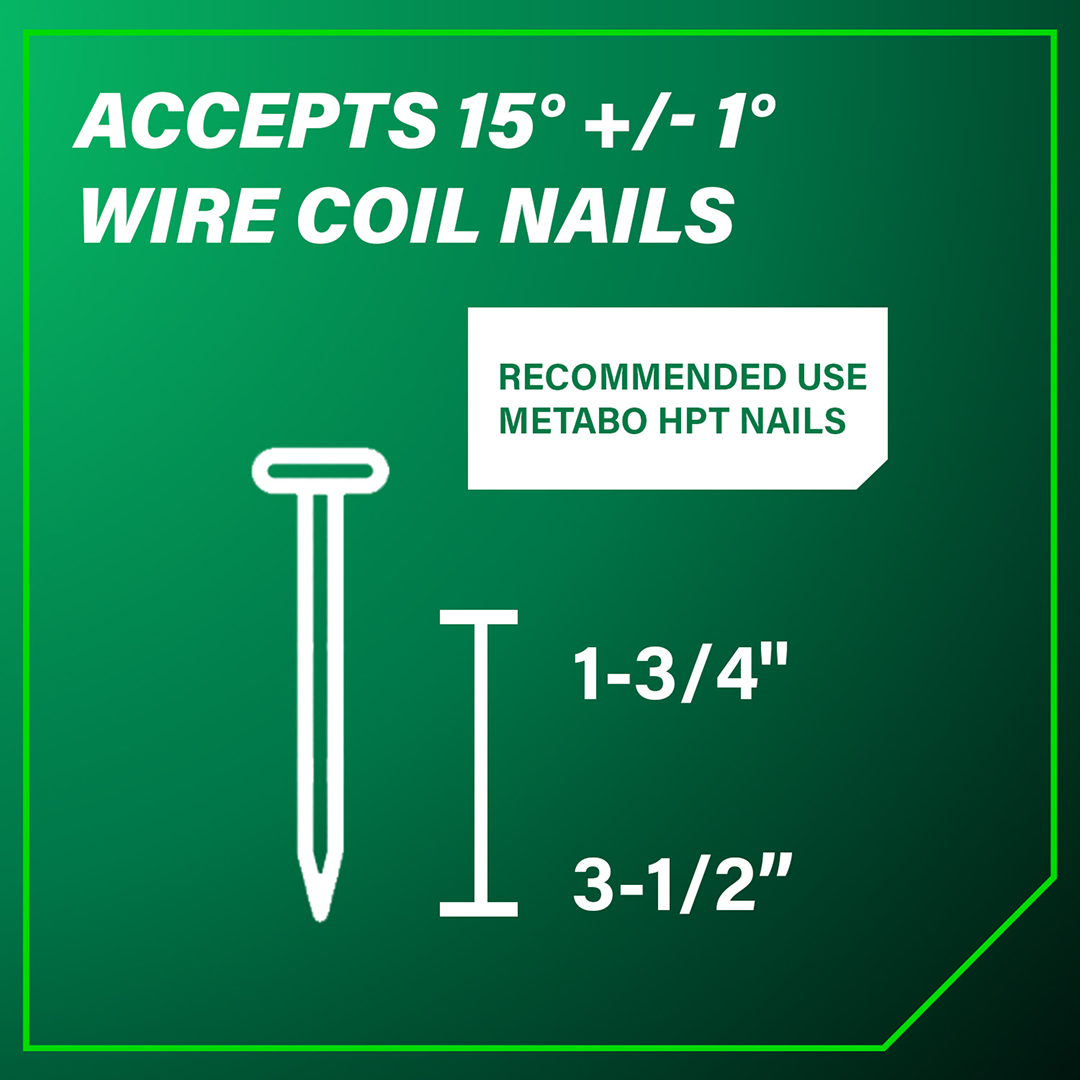

• Accepts 15° wire-collated coil nails
• Compatible with fastener lengths from 1-3/4" to 3-1/2"
• Supports fastener diameters from 0.099" to 0.131"

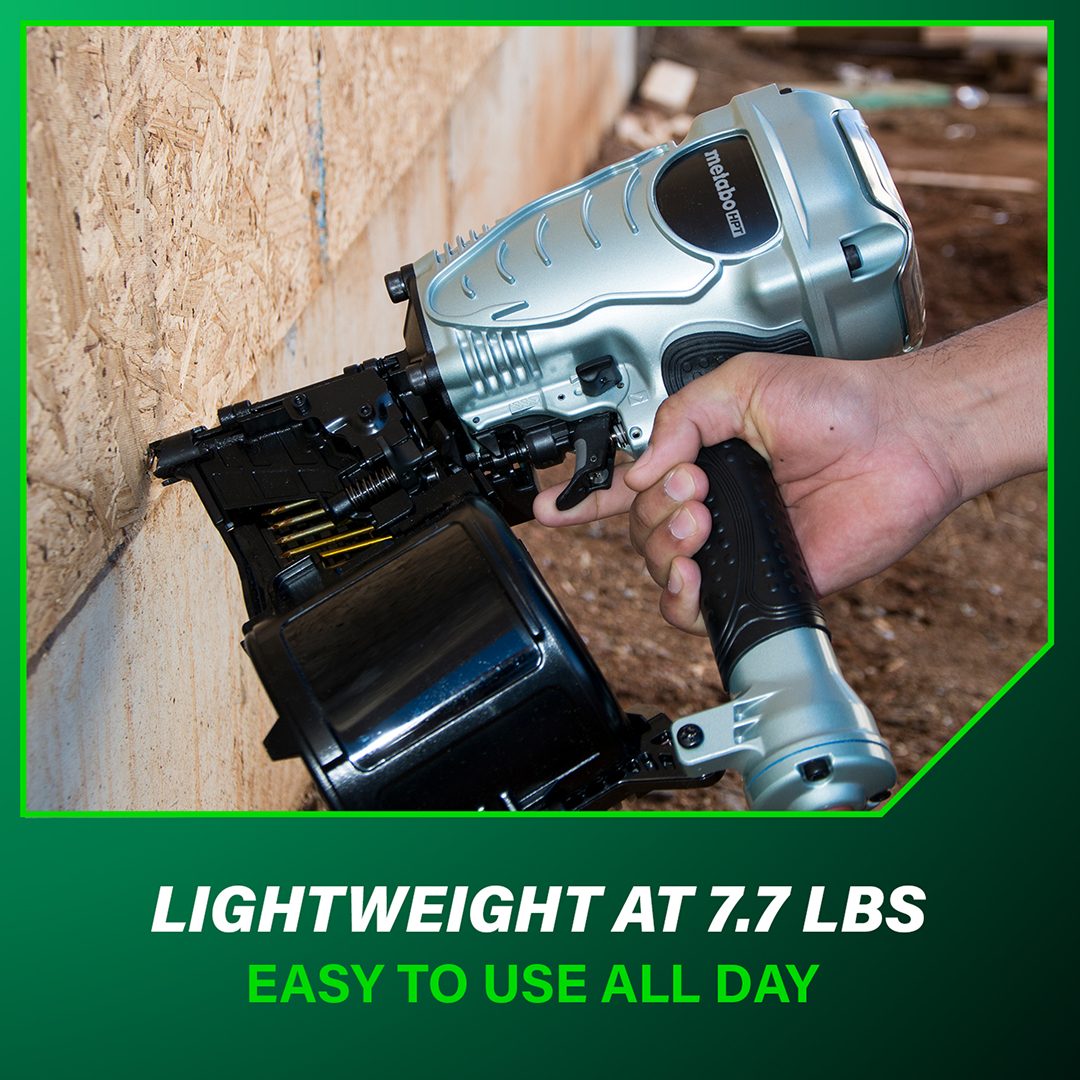

• Lightweight 7.7 lb design reduces user fatigue during all-day operation
• Redesigned industrial head guard allows faster and easier maintenance

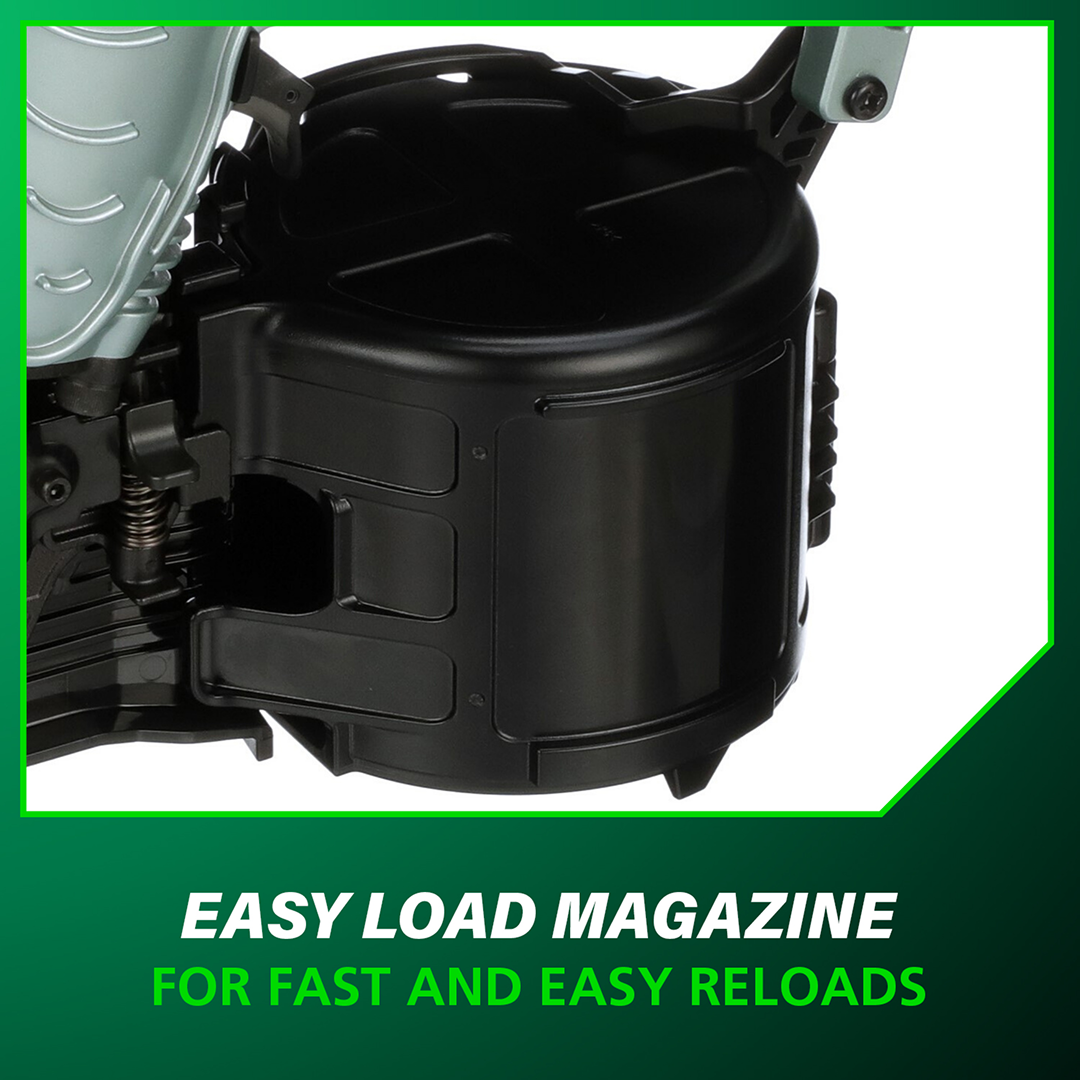

• Side-loading tilt-bottom magazine enables quick and convenient nail reloading
• High-capacity 200–300 nail magazine minimizes reload interruptions

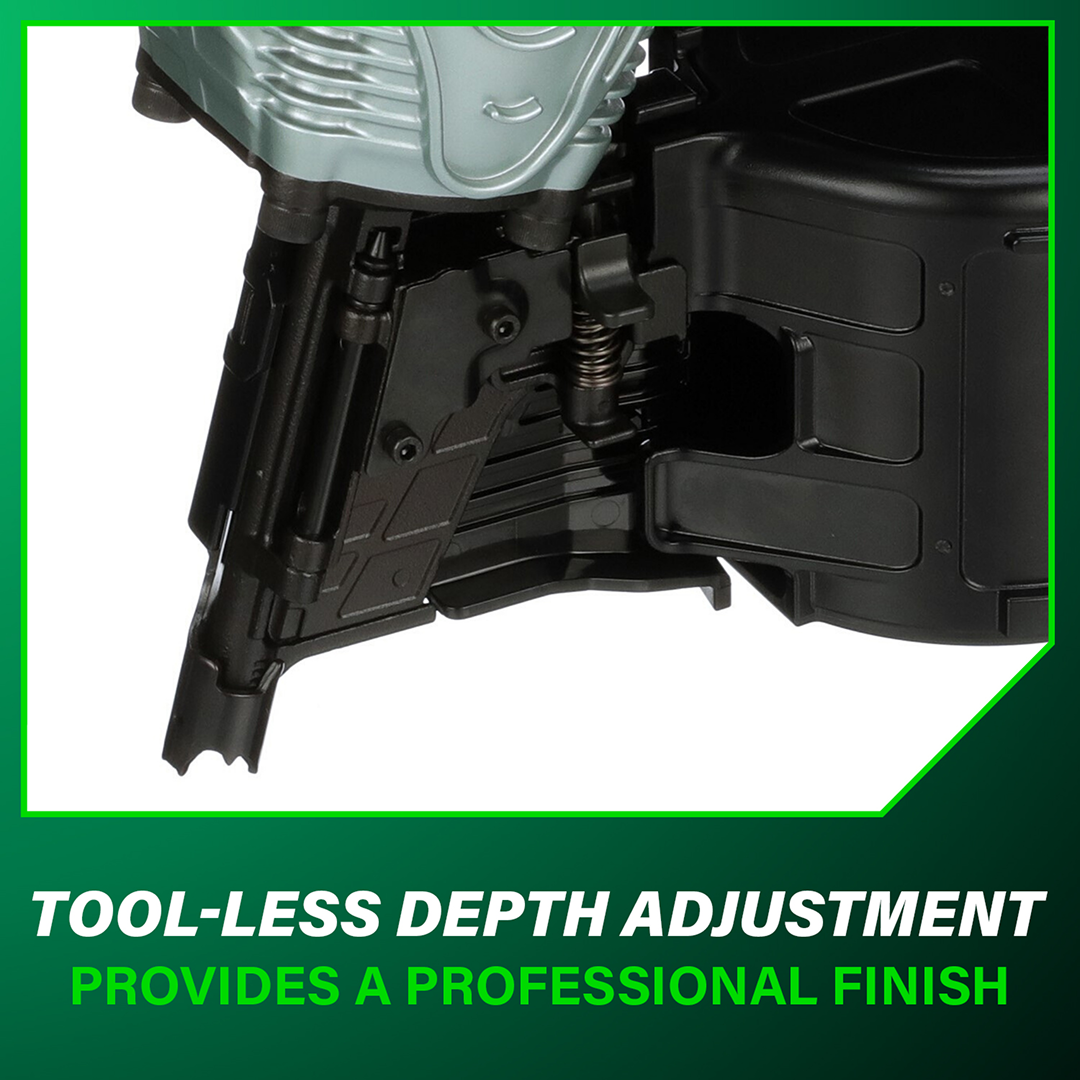

• Tool-less depth adjustment allows fast adaptation for various materials

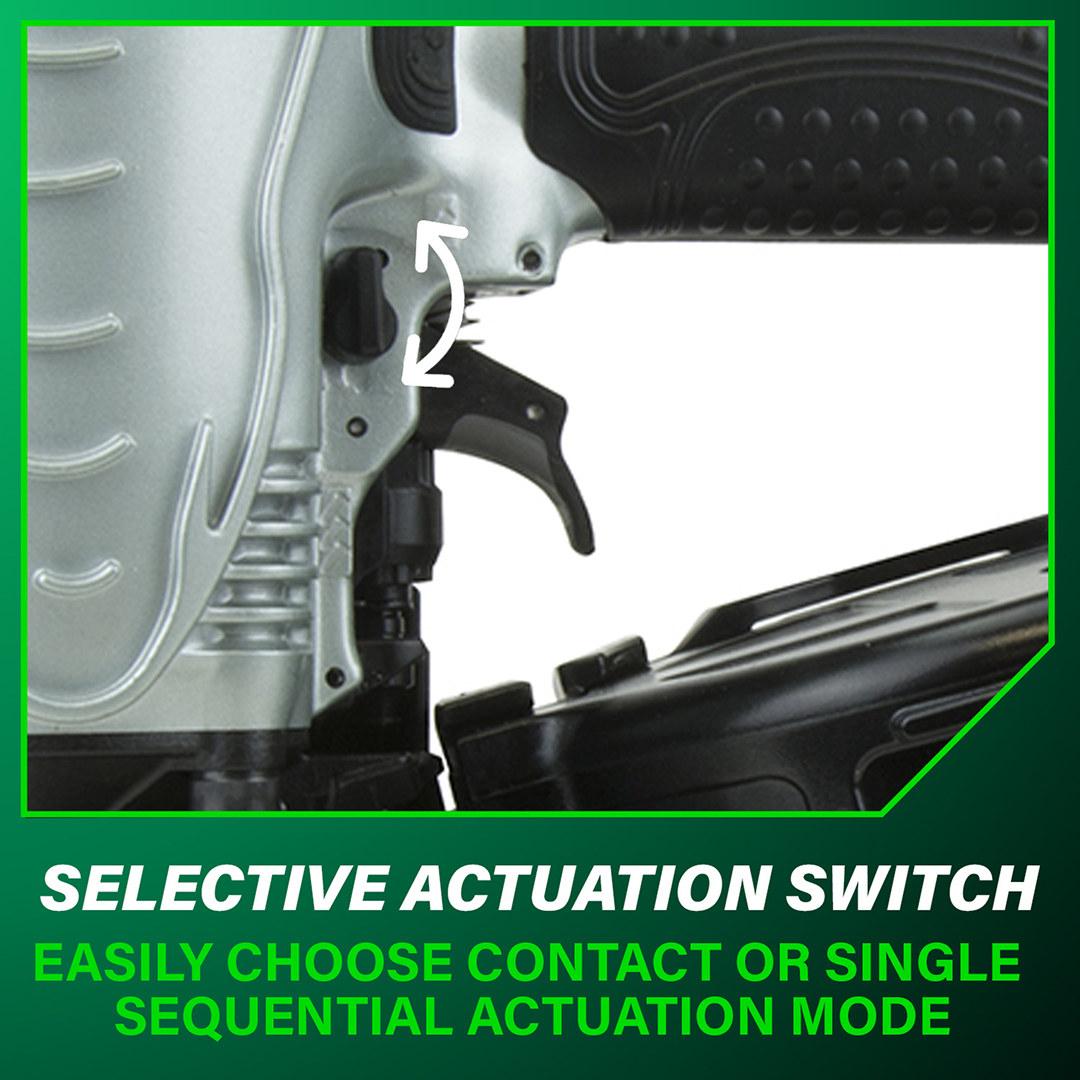

• Selective actuation supports both sequential and contact firing modes
• Open nose design enables quick and easy jam clearing
• Ergonomic rubber grip improves comfort and handling
• Durable construction built for demanding residential and commercial construction projects

Specifications

• Model: NV90AGSM
• Tool Type: Pneumatic Coil Framing Nailer
• Fastener Type: Wire Coil
• Magazine Angle: 15° ±1°
• Fastener Length Capacity: 1-3/4"–3-1/2"
• Fastener Diameter Range: 0.099"–0.131"
• Magazine Capacity: 200–300 Nails
• Magazine Loading: Side
• Operating Pressure: 70–120 PSI
• Air Consumption: 0.09 SCFM @ 100 PSI
• Depth Adjustment: Tool-less
• Actuation: Selective (Sequential / Contact)
• Jam Clearing: Open Nose
• Dry-Fire Lockout: No
• Adjustable Exhaust Port: No
• Rubber Grip: Yes
• Dimensions (L × W × H): 13-1/4" × 5-15/16" × 13-1/16"
• Tool Weight: 7.7 lbs
