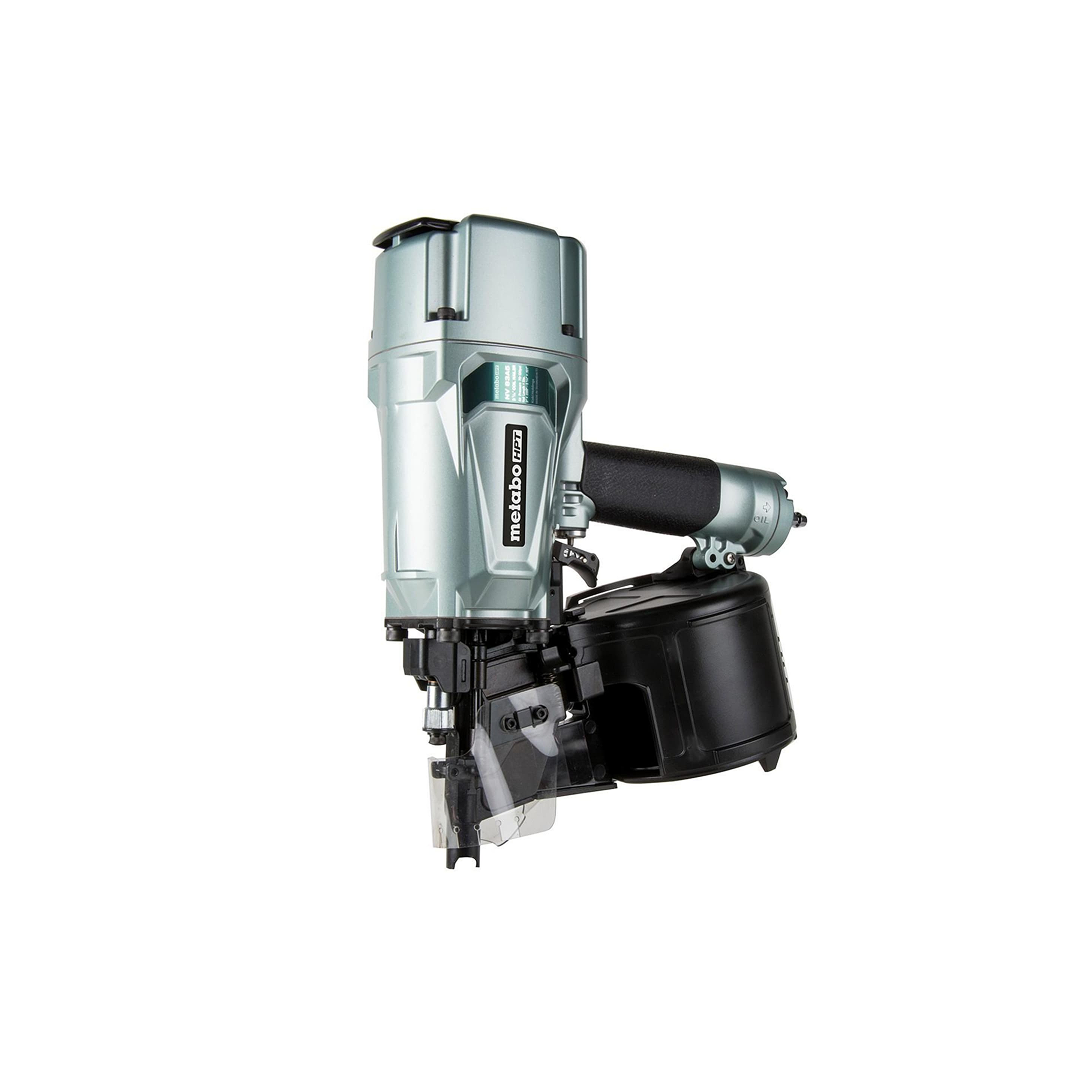

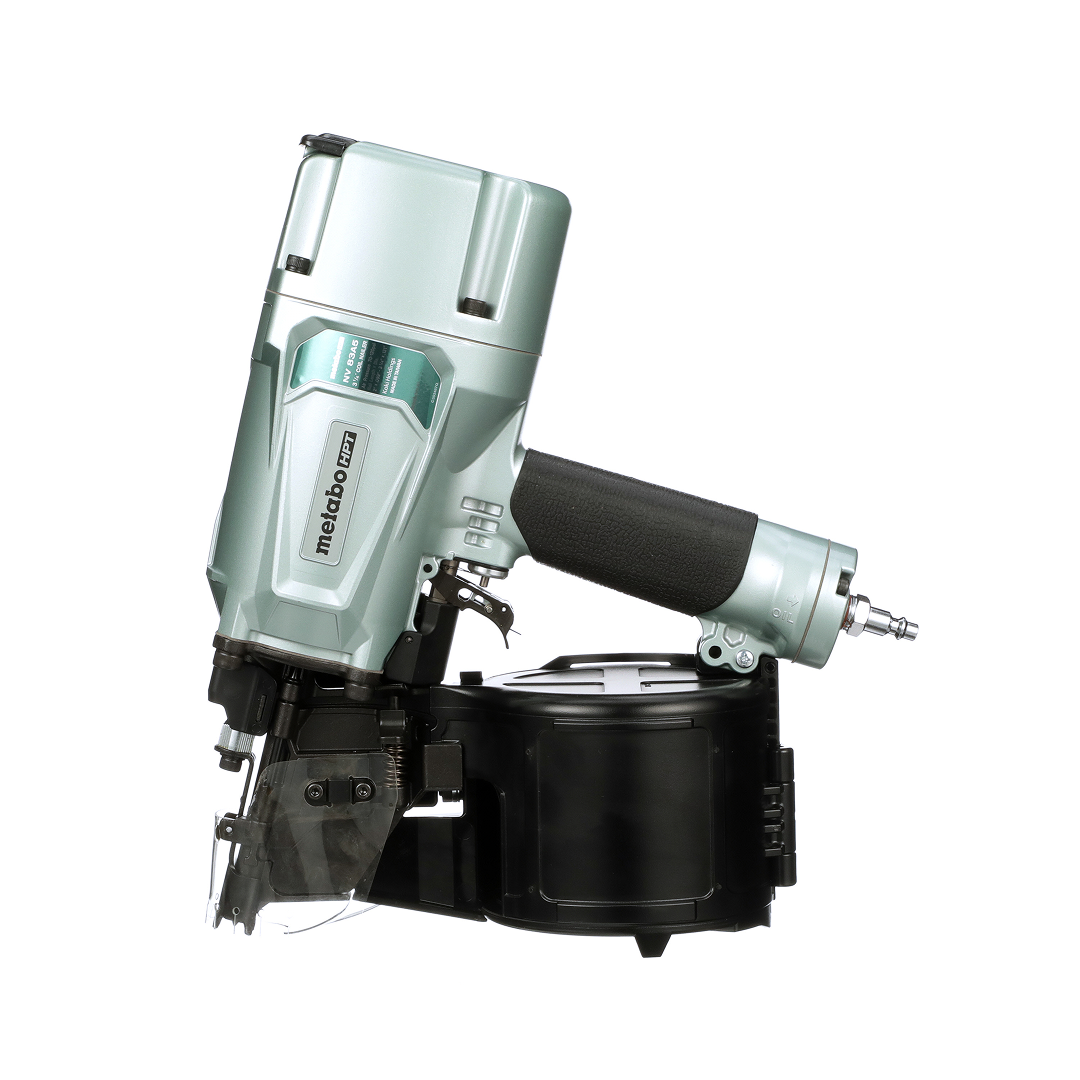

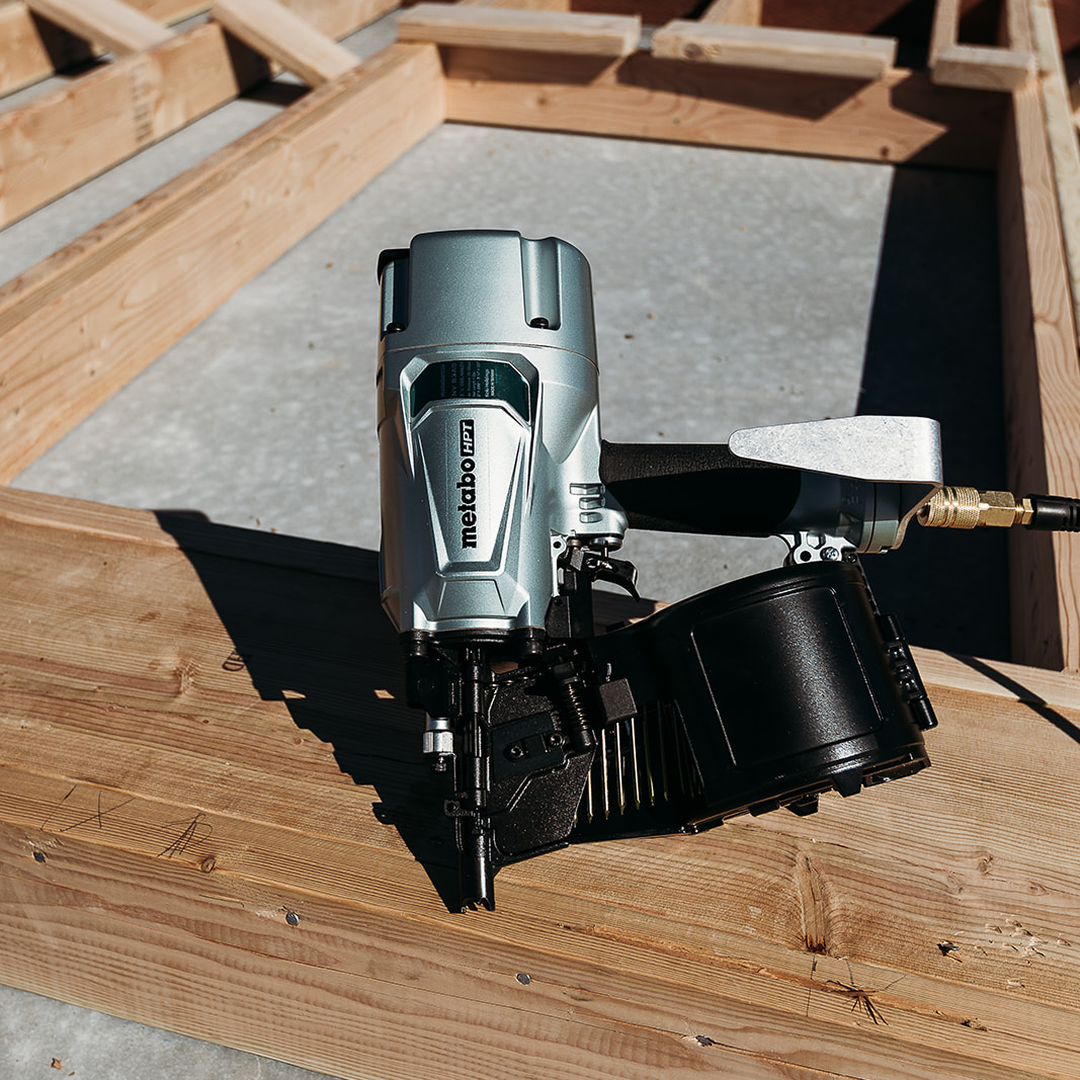

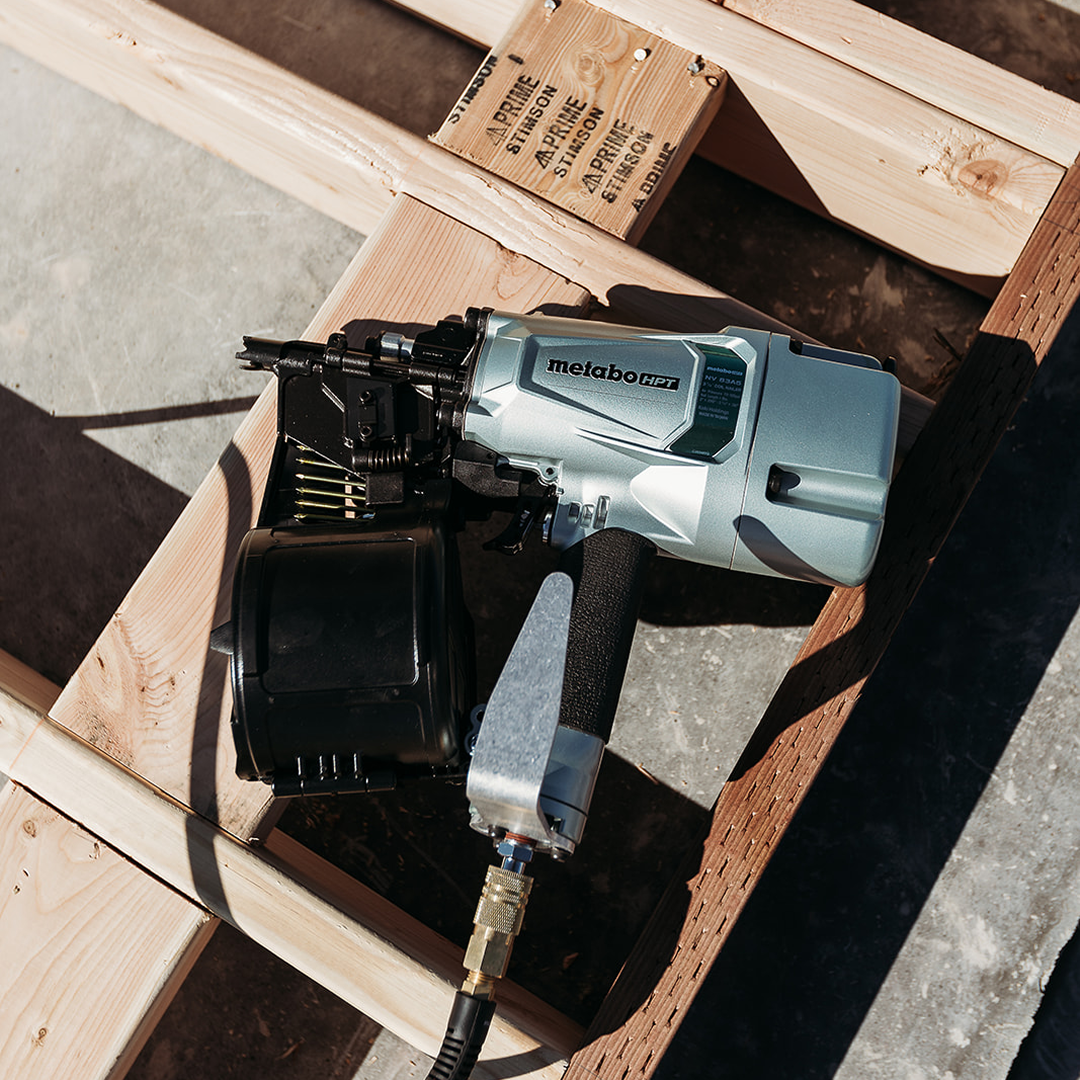

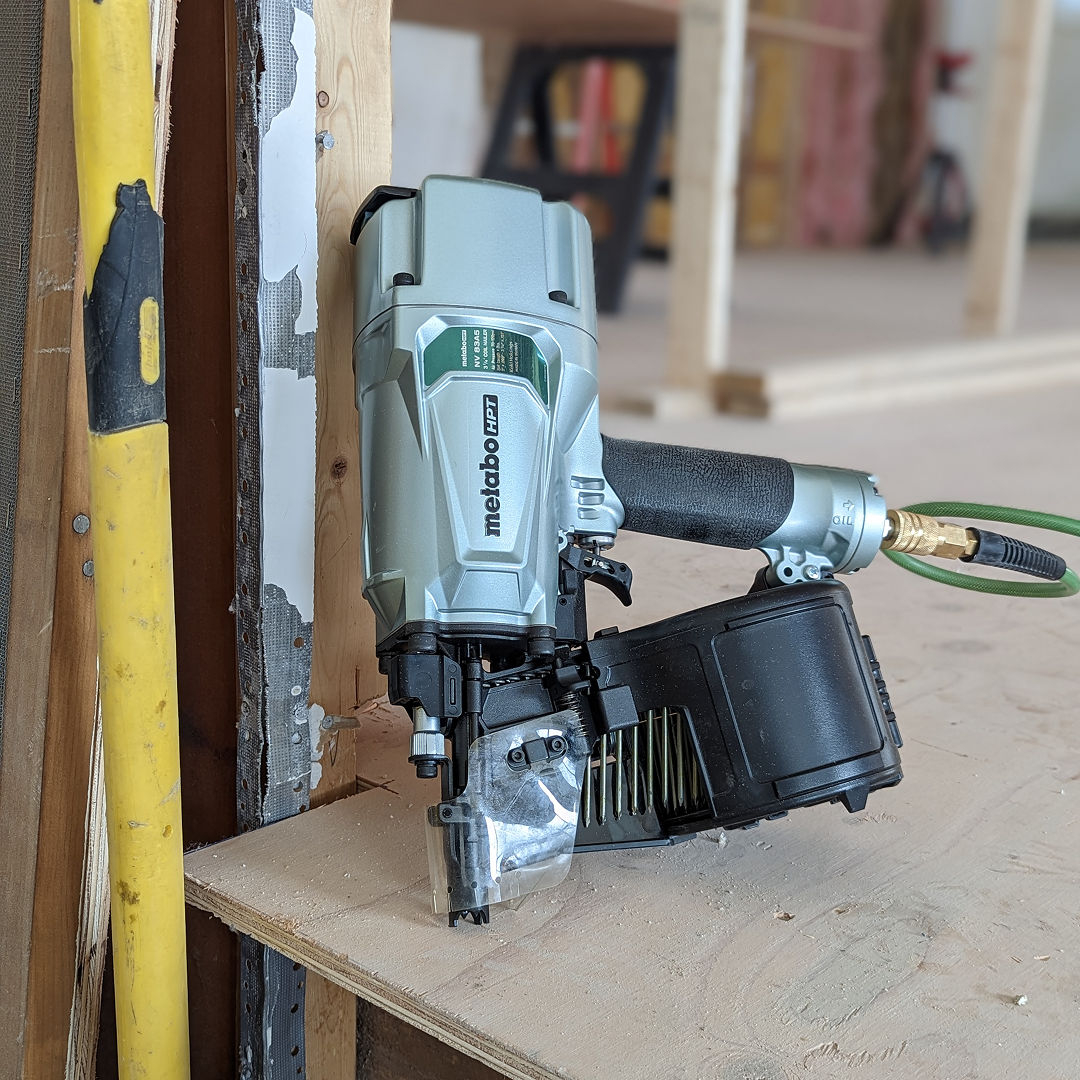

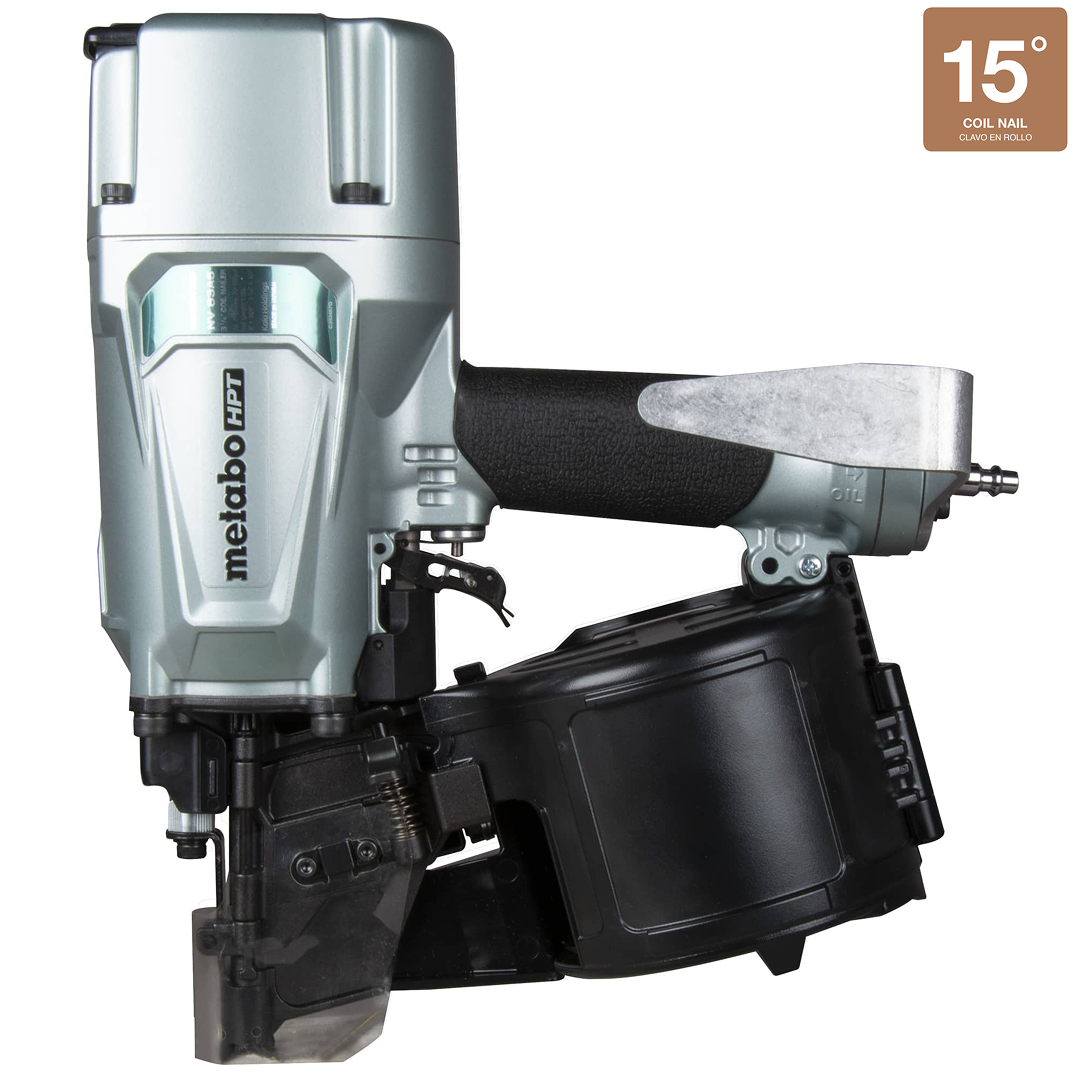

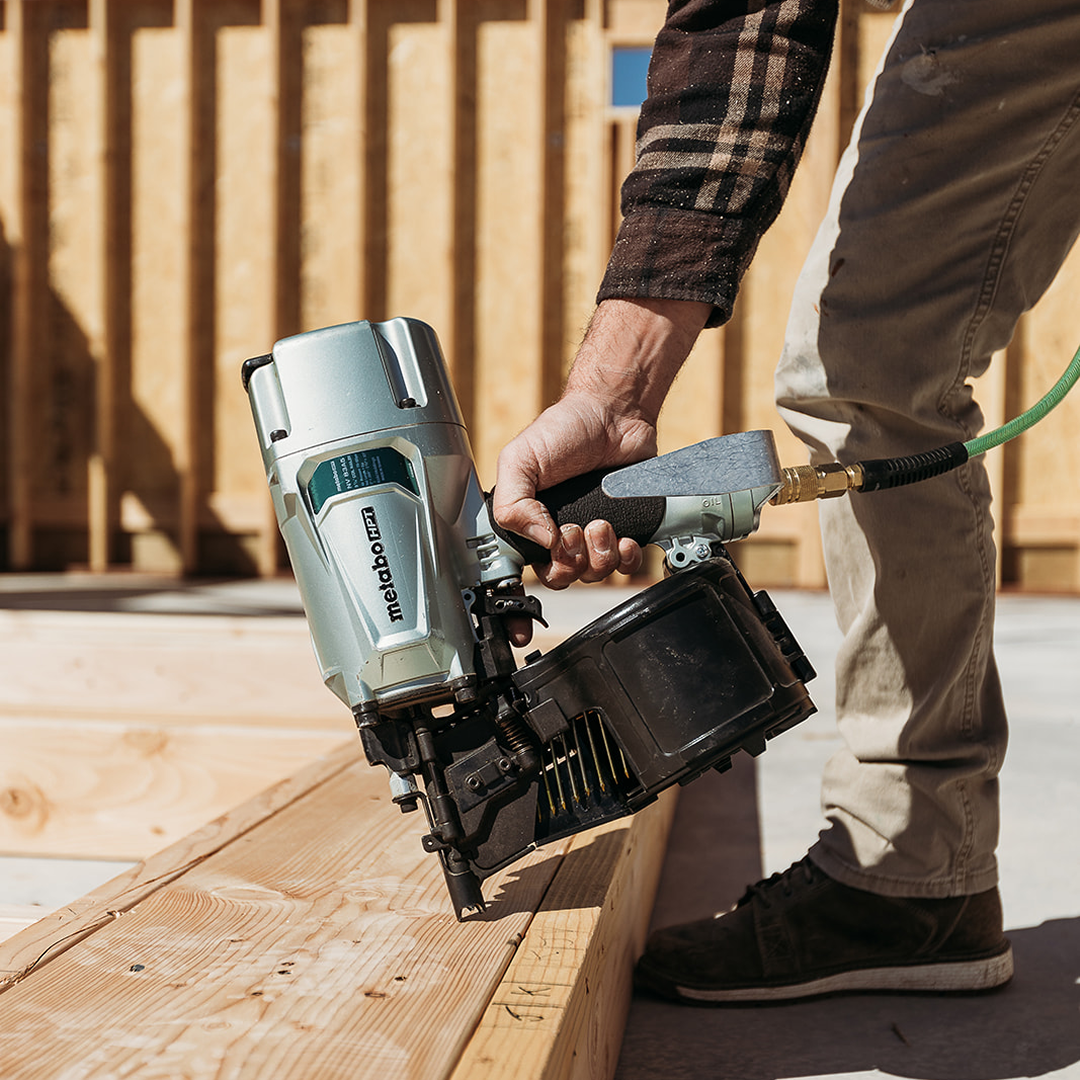

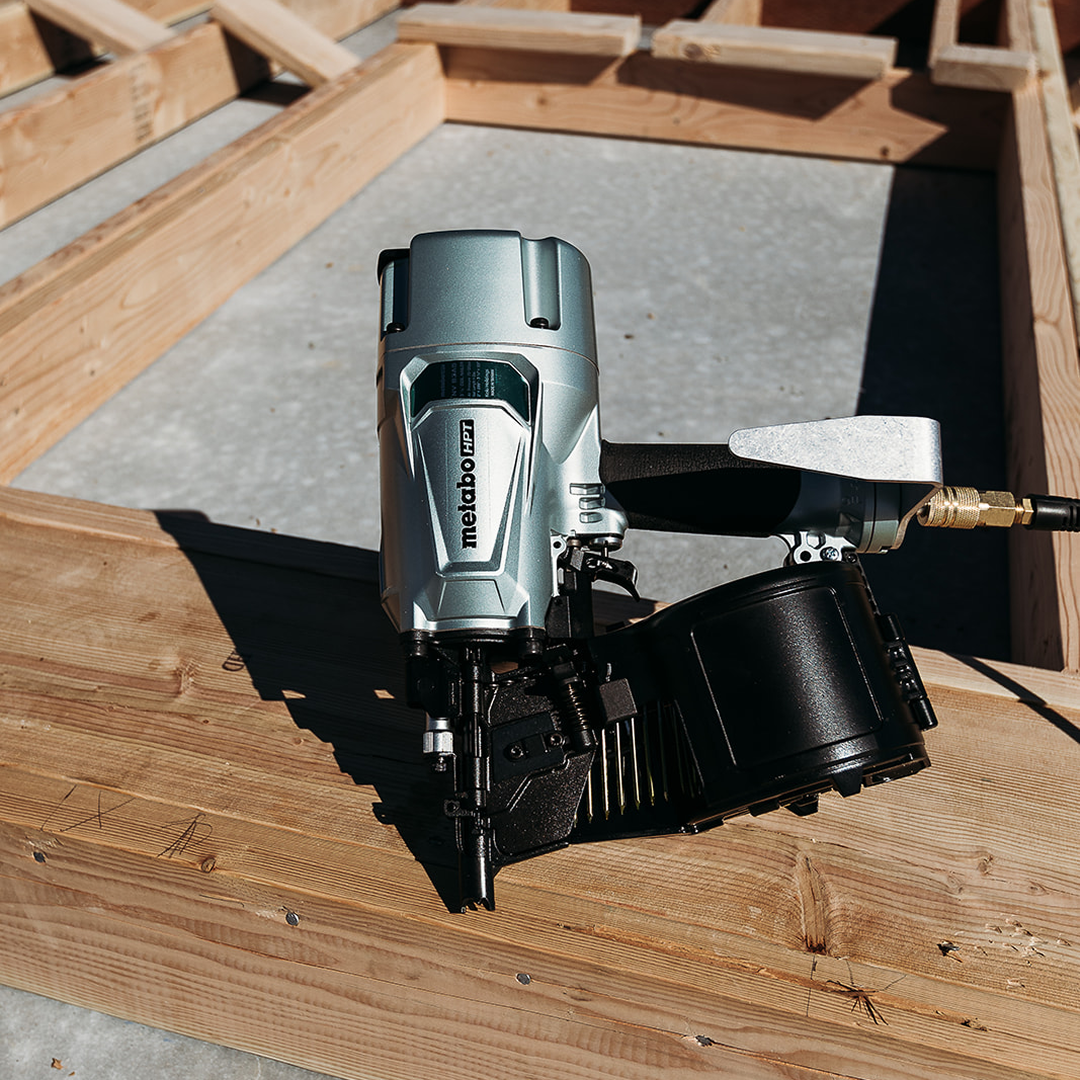

3-1/4 Inch Coil Framing Nailer

The 3-1/4" Coil Framing Nailer (NV83A5M) is a heavy-duty pneumatic framing nailer engineered to deliver exceptional driving power, speed, and reliability for demanding construction applications. Designed for professional framers, contractors, builders, pallet manufacturers, and industrial packaging operations, this versatile nailer is ideal for wall framing, roof decking, subfloor installation, sheathing, modular home construction, wooden crates, pallets, drums, and general crating applications. Built upon the proven legacy of the original NV83A, the NV83A5M combines powerful performance with modern features that improve productivity and ease of use on the jobsite.

Powered by the renowned cylinder valve drive system, the NV83A5M delivers rapid firing response and outstanding driving power to consistently sink nails into hardwoods and engineered lumber. It accepts 15° wire-collated coil nails ranging from 2" to 3-1/4" in length with diameters between 0.099" and 0.131", making it suitable for a wide range of framing and structural fastening tasks. The tool-less depth adjustment allows quick changes for different materials, while the selective actuation switch lets users easily alternate between sequential and contact firing modes for maximum precision or high-speed production. An open nose design simplifies jam clearing, and the side-loading pop-out magazine enables quick and convenient nail reloading to reduce downtime.

With a high-capacity 200–300 nail magazine, lightweight yet rugged construction, and an operating pressure range of 70–120 PSI, the NV83A5M is built to withstand continuous professional use. Weighing only 8.8 lbs (without hook), it offers an excellent balance of power, durability, and maneuverability, making it a dependable solution for high-volume framing and industrial fastening applications.

Key Features

• Professional pneumatic coil framing nailer for heavy-duty construction applications
• Ideal for wall framing, roof decking, subflooring, sheathing, pallets, crates, drums, and modular home construction
• Proven cylinder valve drive system delivers fast response and exceptional driving power
• Accepts 15° wire-collated coil nails
• Compatible with fastener lengths from 2" to 3-1/4"
• Supports fastener diameters from 0.099" to 0.131"
• High-capacity 200–300 nail magazine minimizes reload frequency

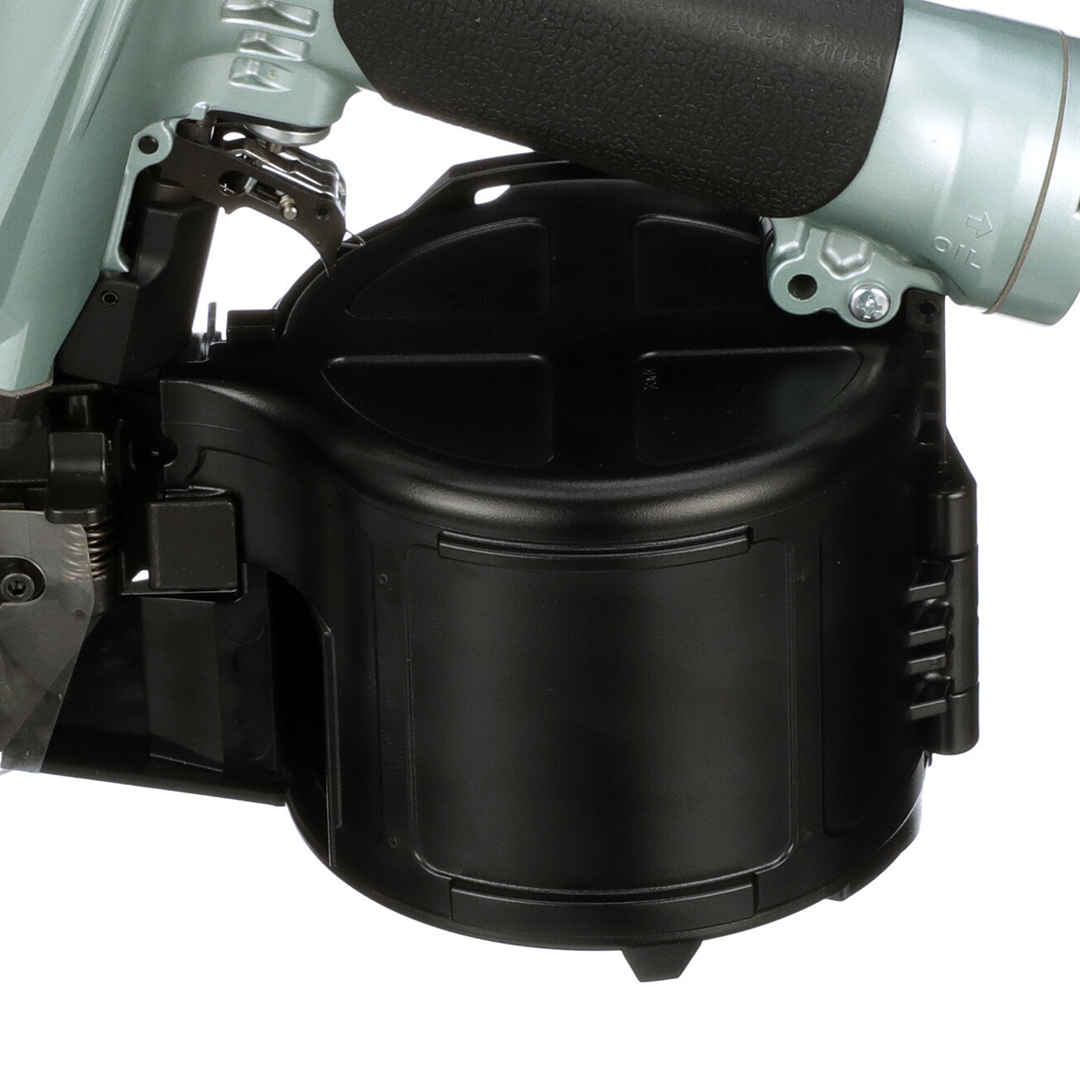

• Side-loading pop-out magazine allows quick and convenient reloading
• Tool-less depth adjustment enables fast depth changes for different materials
• Selective actuation switch supports both sequential and contact firing modes

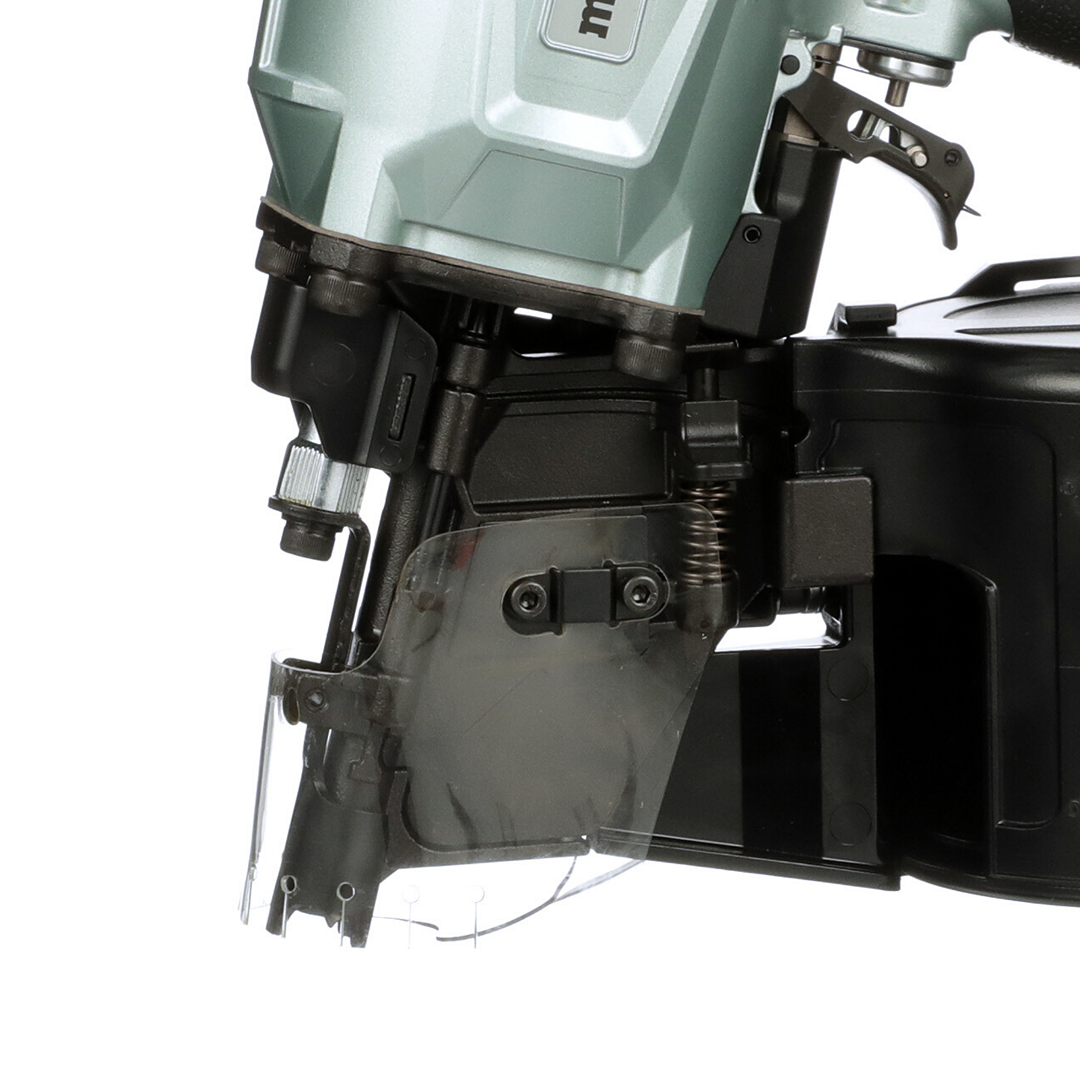

• Open nose design provides fast, tool-free jam clearing
• Durable construction built for demanding jobsite and industrial environments
• Lightweight, balanced design helps reduce operator fatigue during prolonged use

Specifications

• Model: NV83A5M
• Tool Type: Pneumatic Coil Framing Nailer
• Fastener Type: Wire Collation
• Magazine Angle: 15° ±1°
• Fastener Length Capacity: 2"–3-1/4"
• Fastener Diameter Range: 0.099"–0.131"
• Magazine Capacity: 200–300 Nails
• Magazine Loading: Side
• Air Fitting: 1/4" Industrial
• Operating Pressure: 70–120 PSI
• Jam Clearing: Open Nose
• Depth Adjustment: Tool-Less
• Actuation: Selective (Sequential / Contact)
• Dimensions (L × W × H): 12-13/32" × 5-13/32" × 13-11/16"
• Weight (Without Hook): 8.8 lbs
• Weight (With Hook): 9.1 lbs
