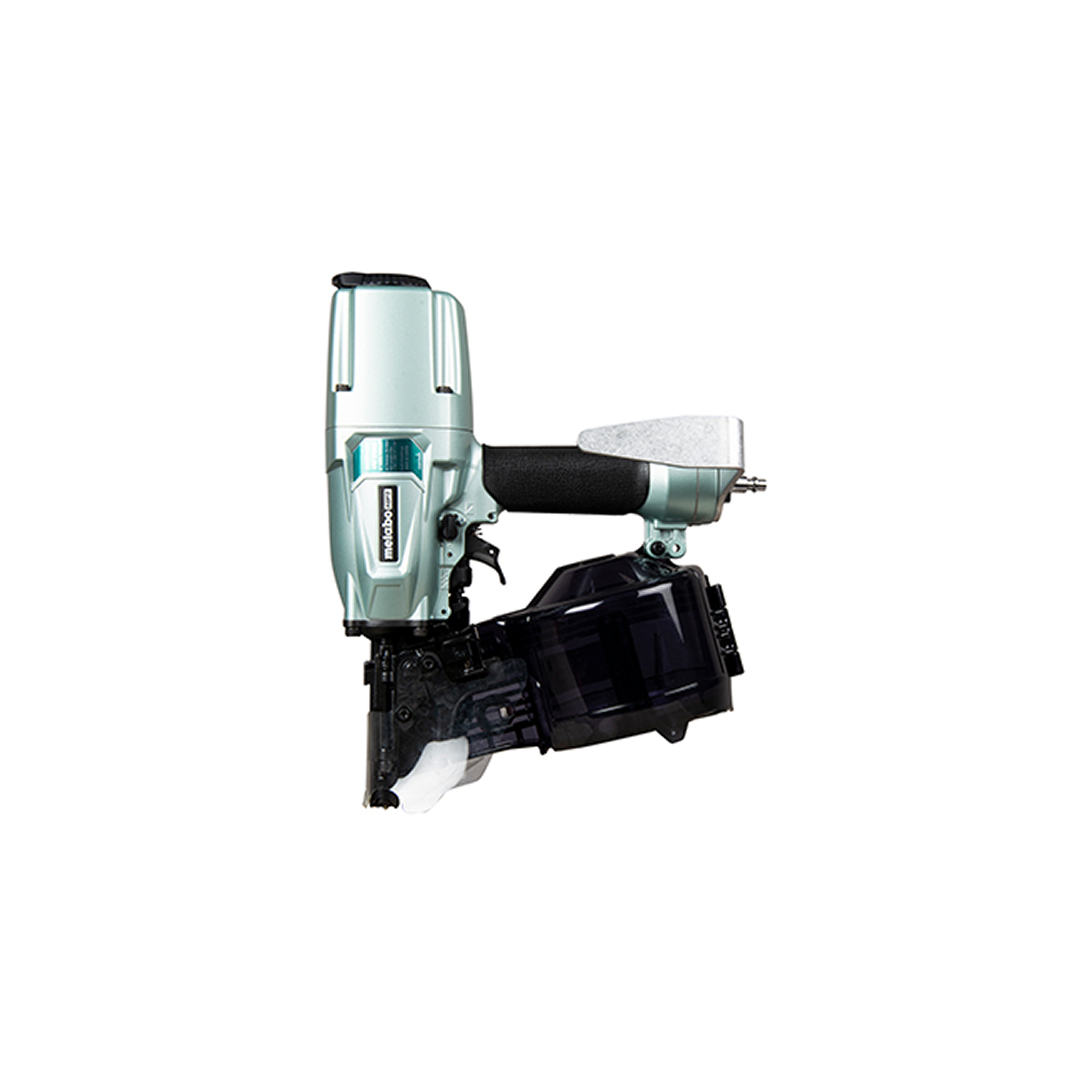

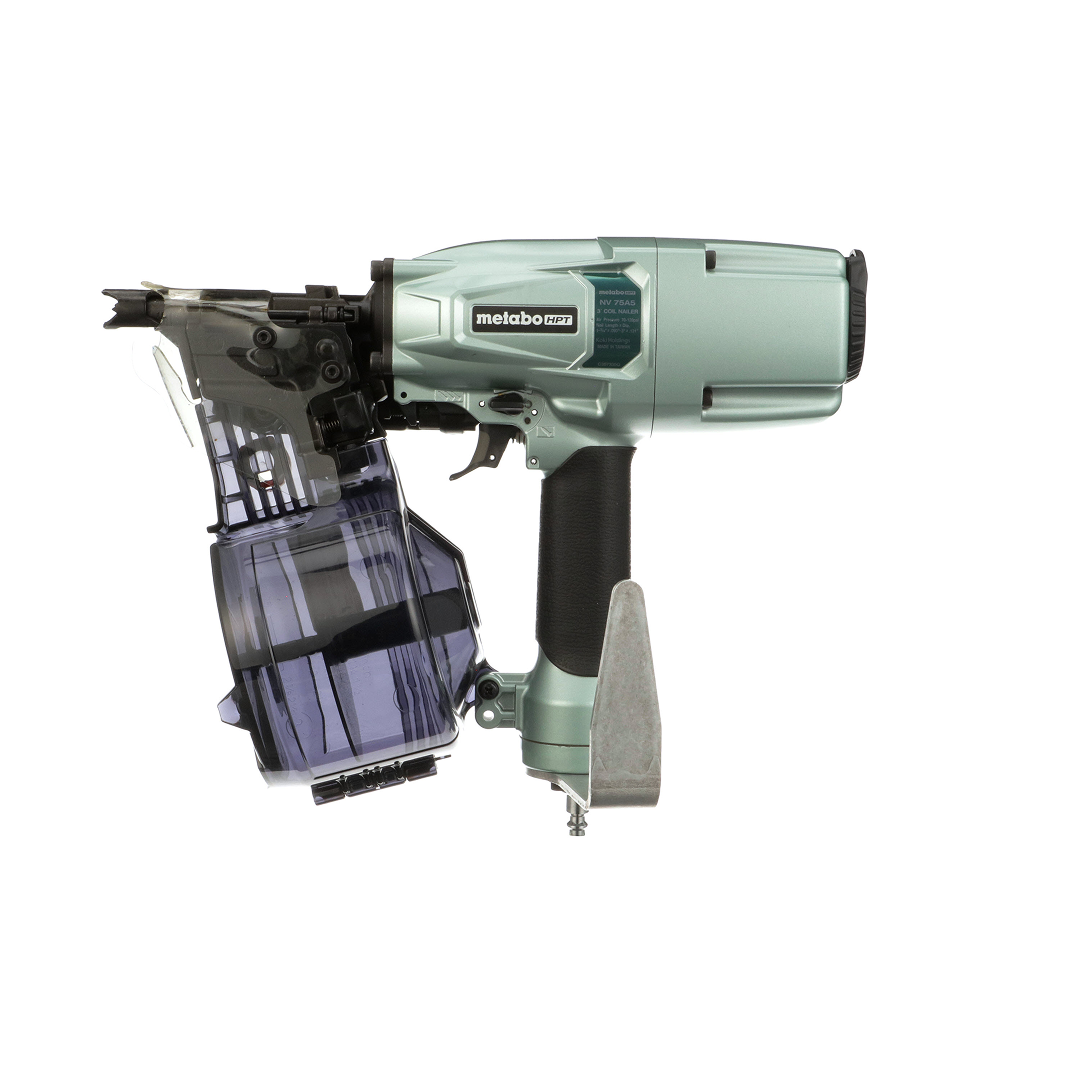

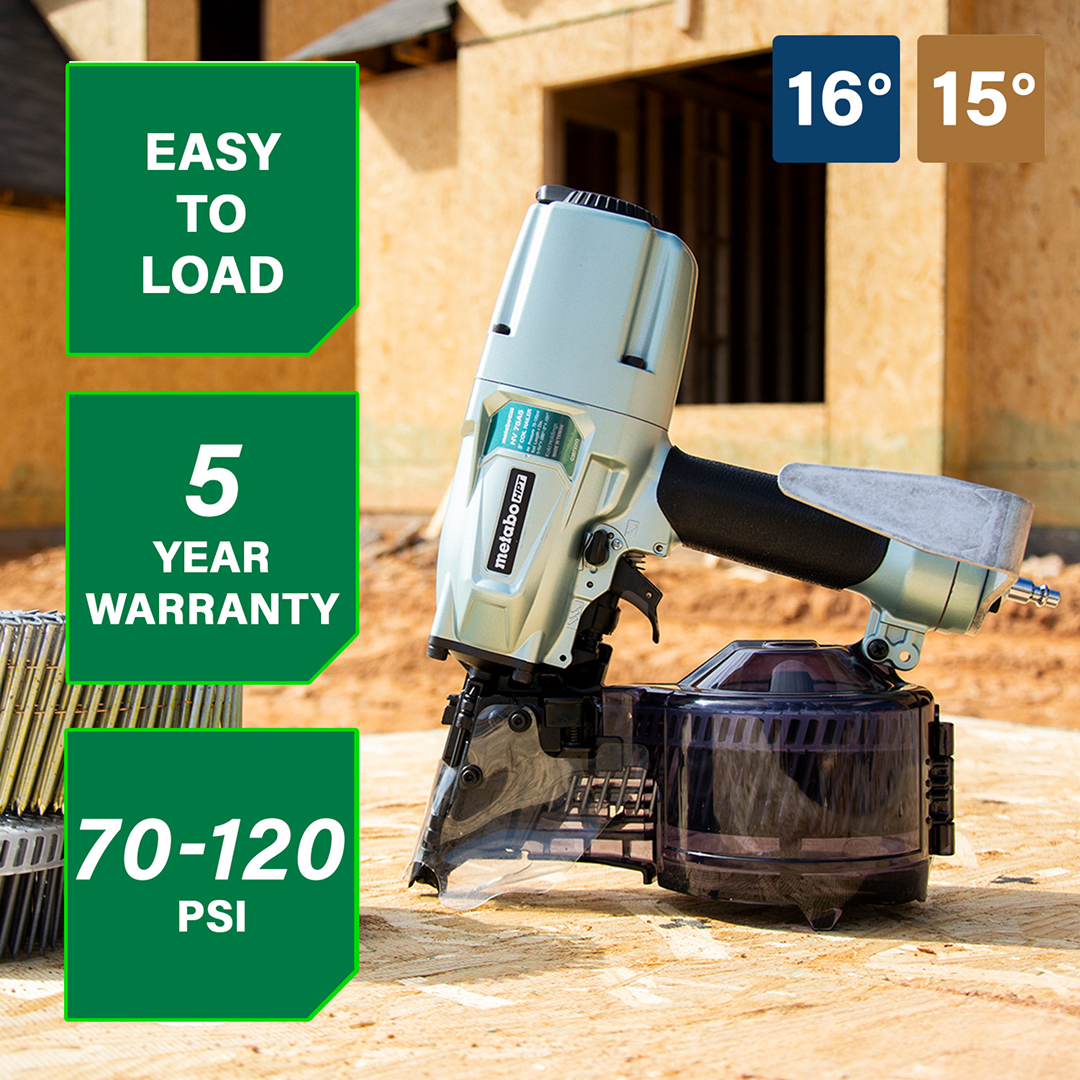

3 Inch Siding/Light Framing (Sheathing) Coil Nailer

The 3 Inch Siding/Light Framing (Sheathing) Coil Nailer (NV75A5M) is a versatile professional-grade pneumatic coil nailer engineered to bridge the gap between siding installation and light framing applications. Combining the driving power required for framing with the precision and convenience needed for siding work, this multi-purpose nailer is ideal for sheathing, decking, fencing, exterior siding, light structural framing, and general construction projects. Its lightweight 5.7 lb design provides excellent maneuverability while delivering the durability and performance required for demanding jobsite conditions.

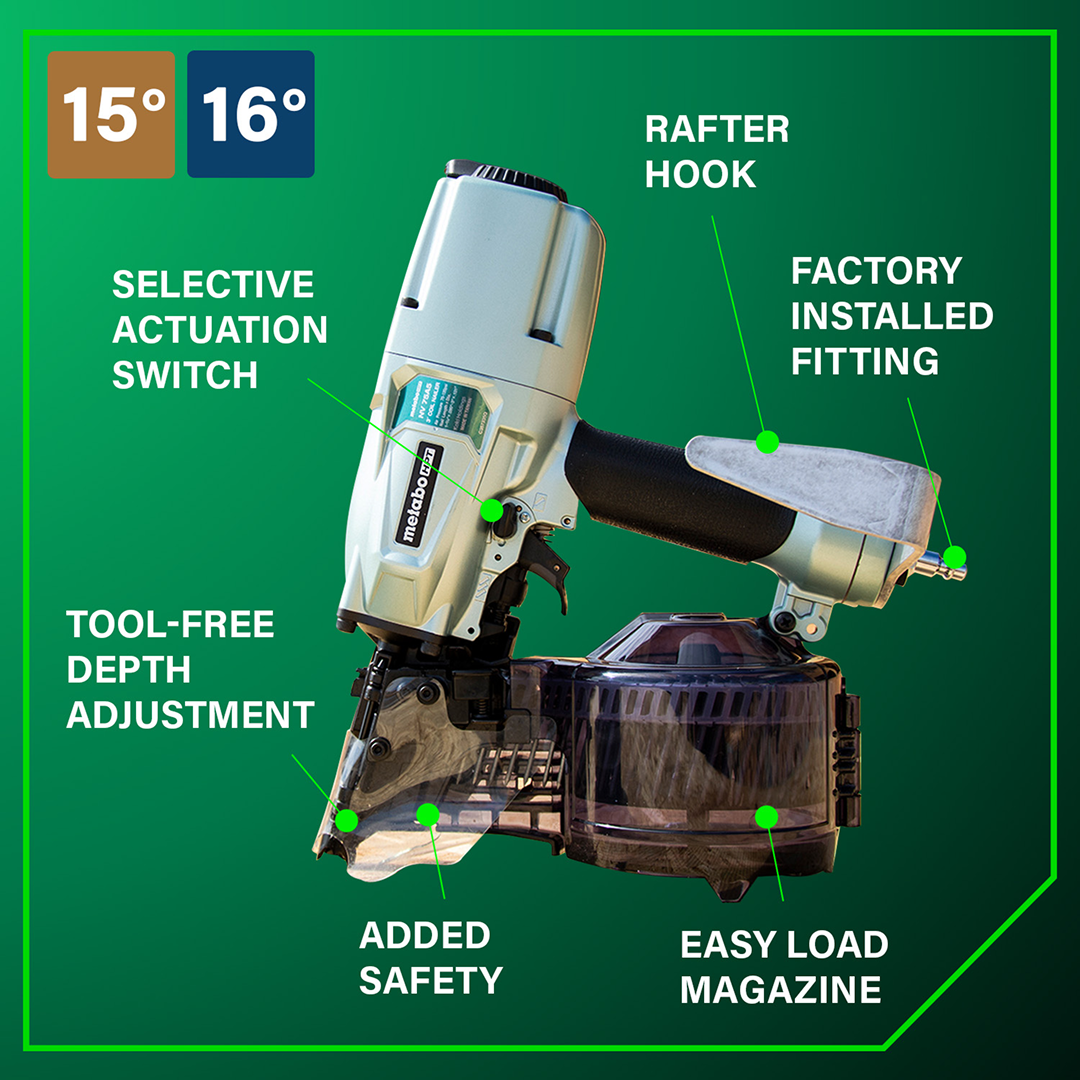

Built for maximum flexibility, the NV75A5M accepts both wire-collated and plastic-collated coil nails, allowing contractors to choose the fastener type best suited for each application. It drives wire-collated nails from 1-3/4" to 3" and plastic-collated nails from 1-3/4" to 2-1/4", with the power to handle fasteners up to 3" × 0.131" for structural sheathing work. The tool-less depth adjustment enables precise control over nail depth across a variety of materials, while the selective actuation system allows users to quickly switch between sequential and contact firing modes for either maximum accuracy or rapid production. Additional convenience features including a side-load tilt-bottom magazine, 360° adjustable air deflector, open nose design, no-mar nose cap, aluminum rafter hook, and protective plastic shield further enhance productivity, safety, and ease of use.

Designed for professional framing and siding crews, the NV75A5M delivers outstanding versatility, dependable pneumatic performance, and ergonomic handling in one compact package. Operating within a 70–120 PSI air pressure range and featuring a high-capacity 200–300 nail magazine, this coil nailer offers the speed, reliability, and durability professionals expect from Metabo HPT for both framing and exterior finishing applications.

Key Features

• Professional pneumatic coil nailer for siding, sheathing, decking, fencing, and light framing applications

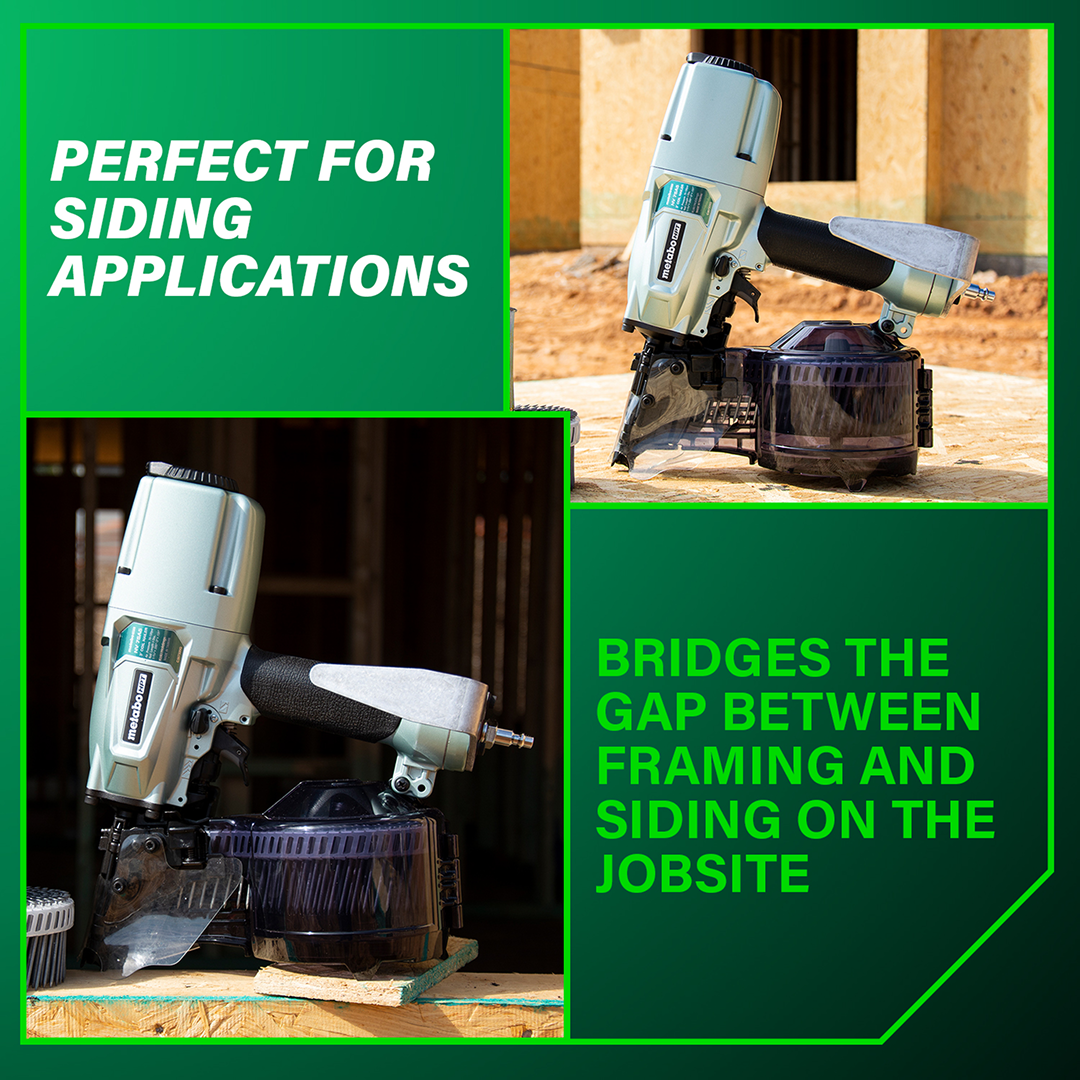

• Bridges the gap between framing power and siding precision

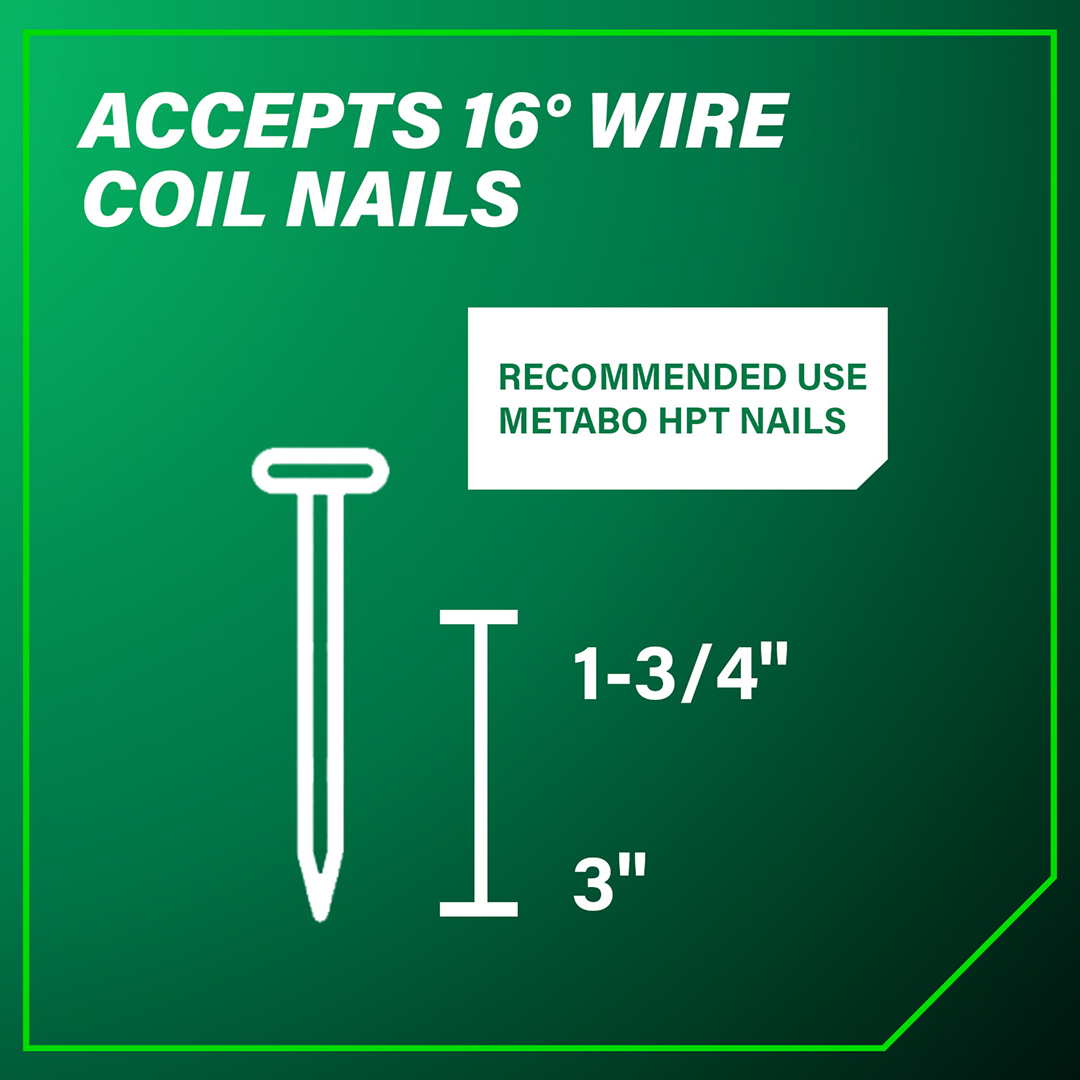

• Drives wire-collated nails from 1-3/4" to 3"

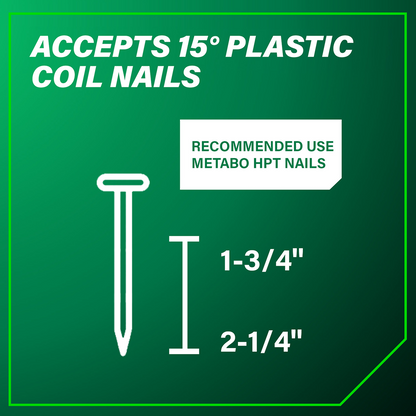

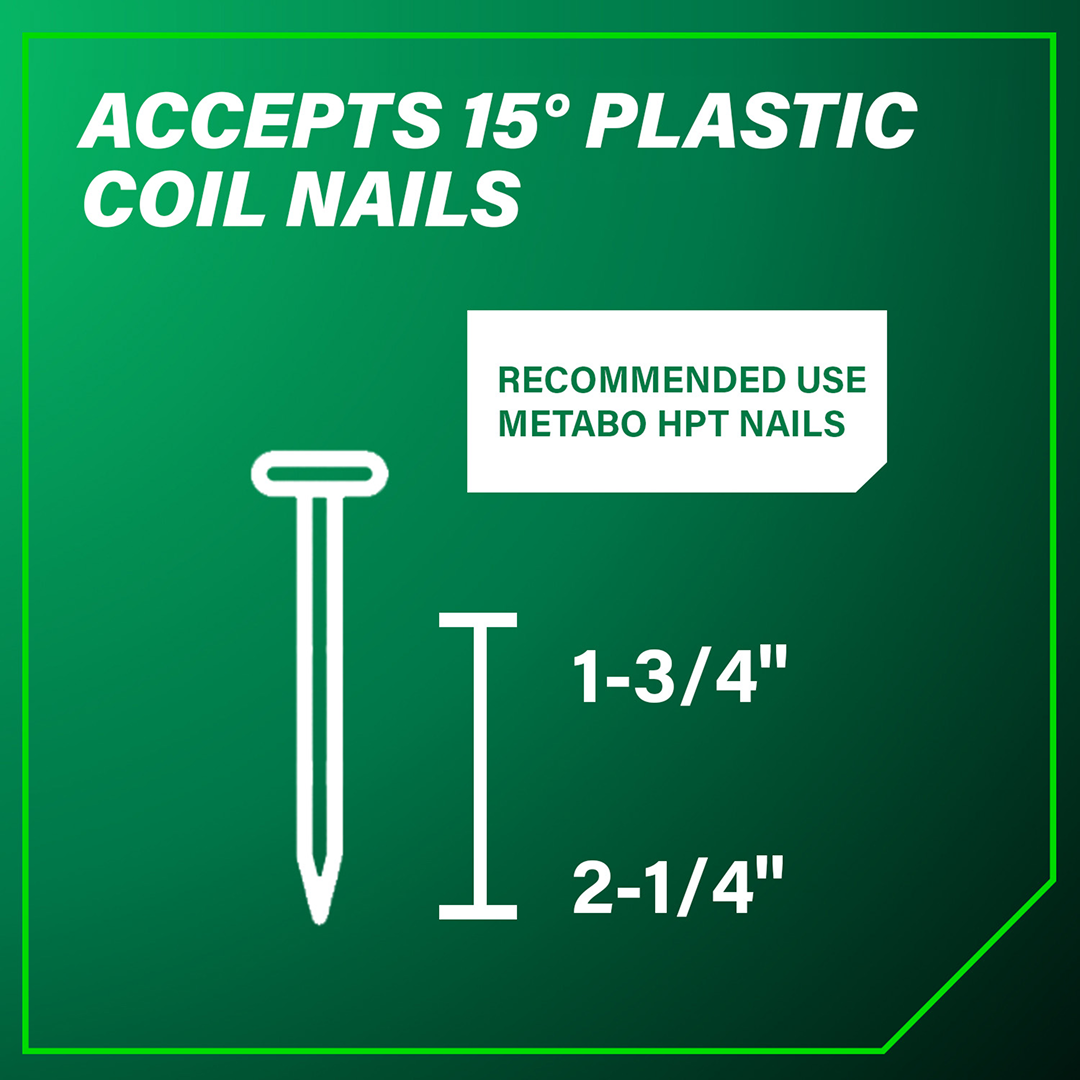

• Drives plastic-collated nails from 1-3/4" to 2-1/4"
• Supports wire nail diameters from 0.099" to 0.131"
• Supports plastic-collated nail diameters from 0.090" to 0.099"

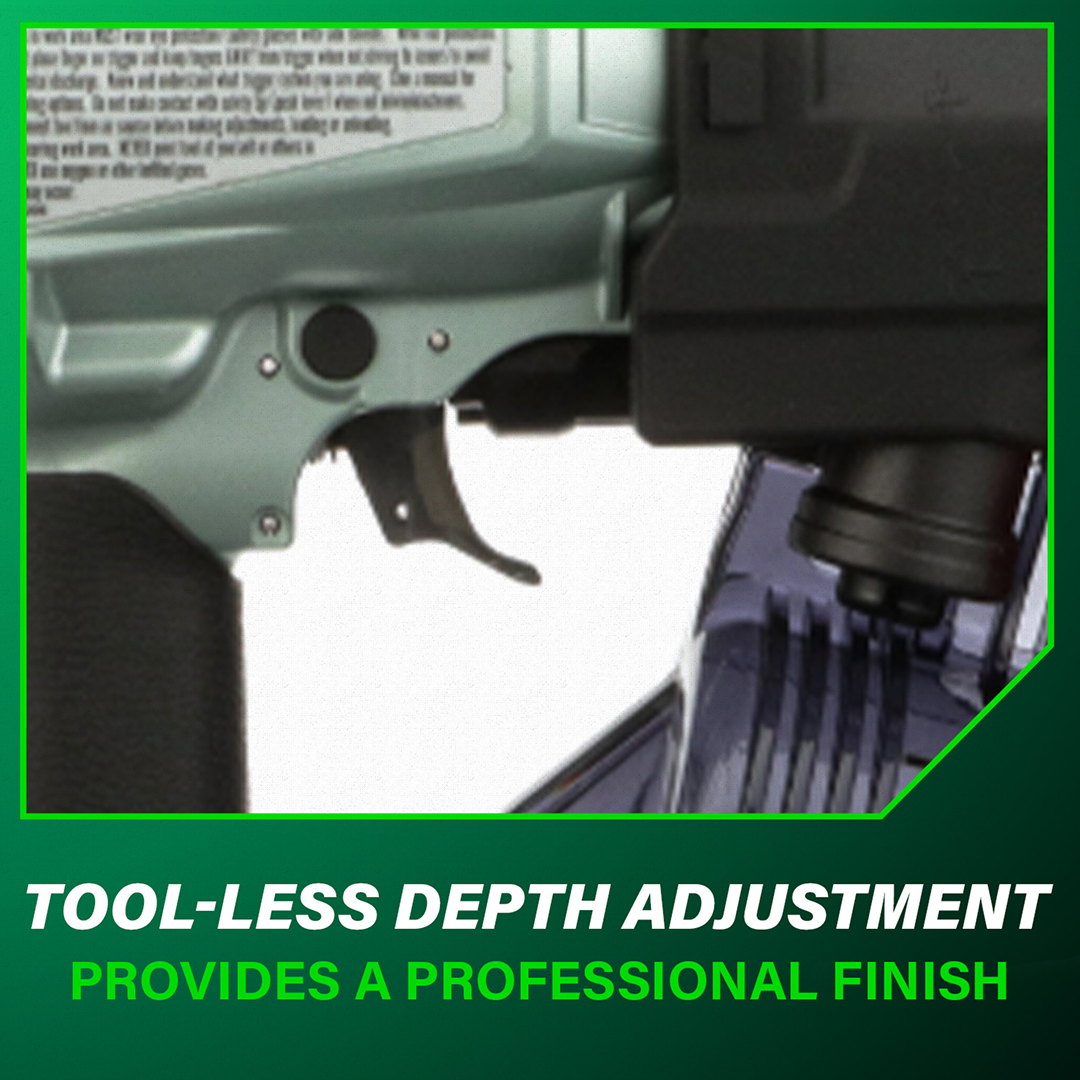

• Tool-less depth adjustment for precise nail placement across different materials

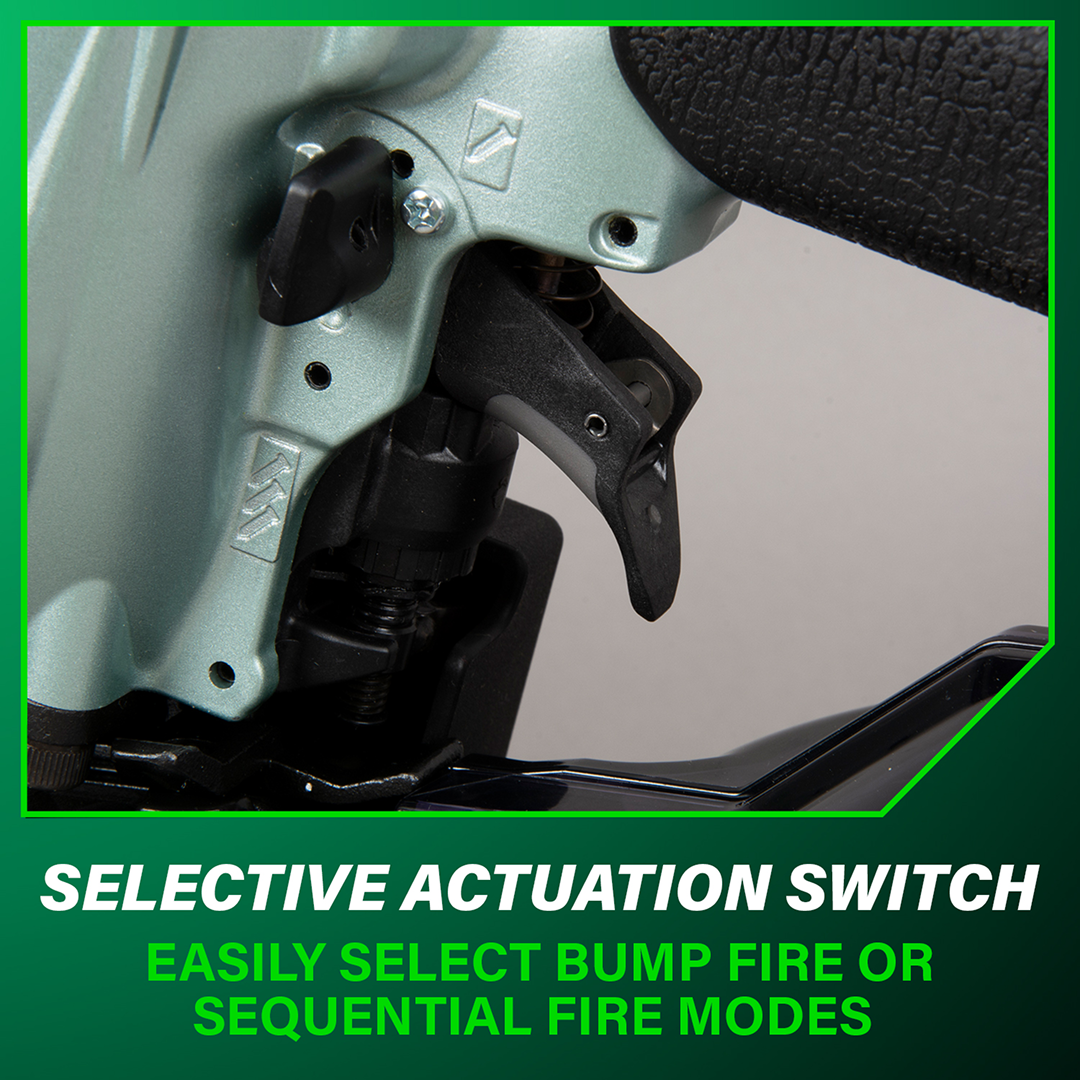

• Selective actuation allows switching between sequential and contact firing modes

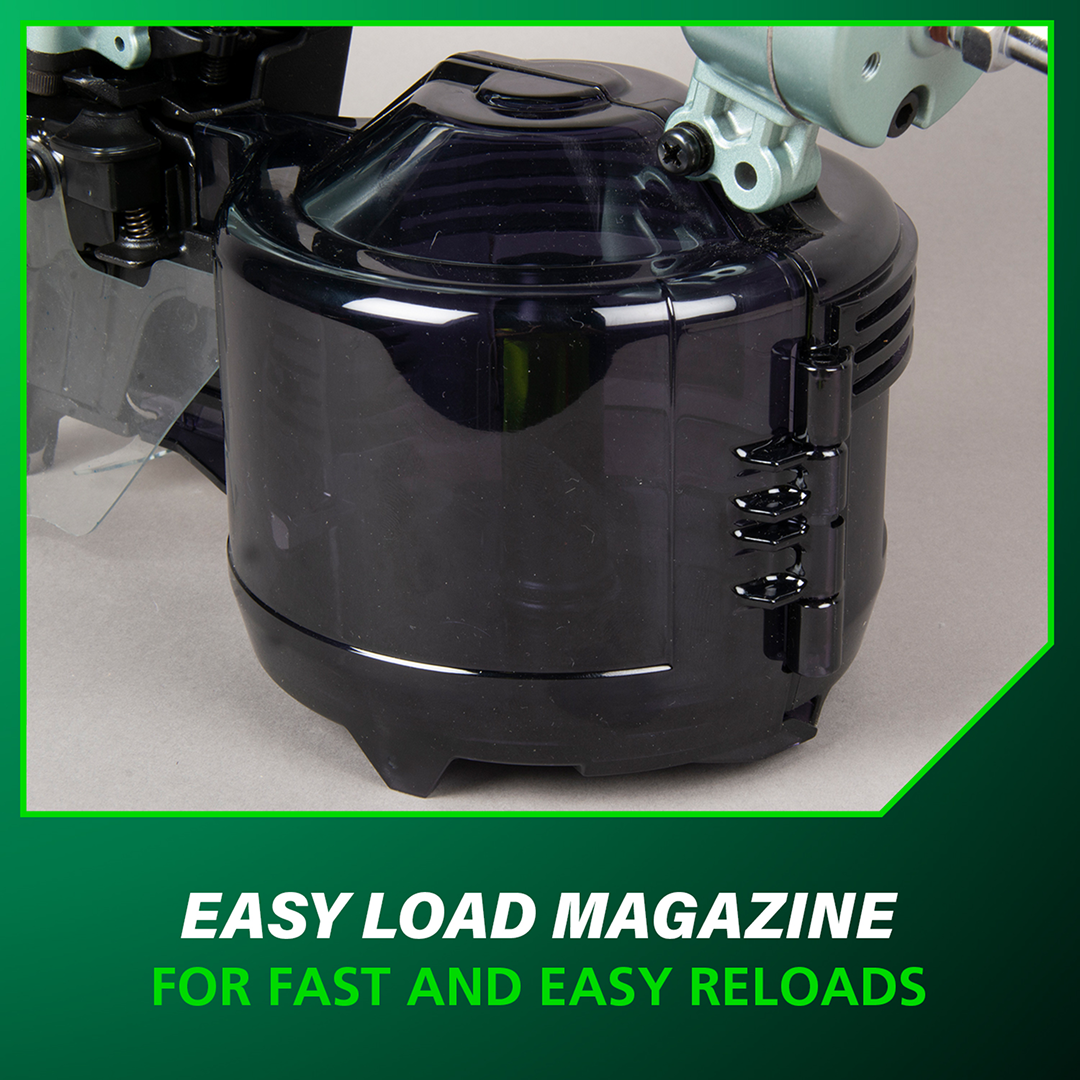

• High-capacity 200–300 nail side-load tilt-bottom magazine for continuous operation

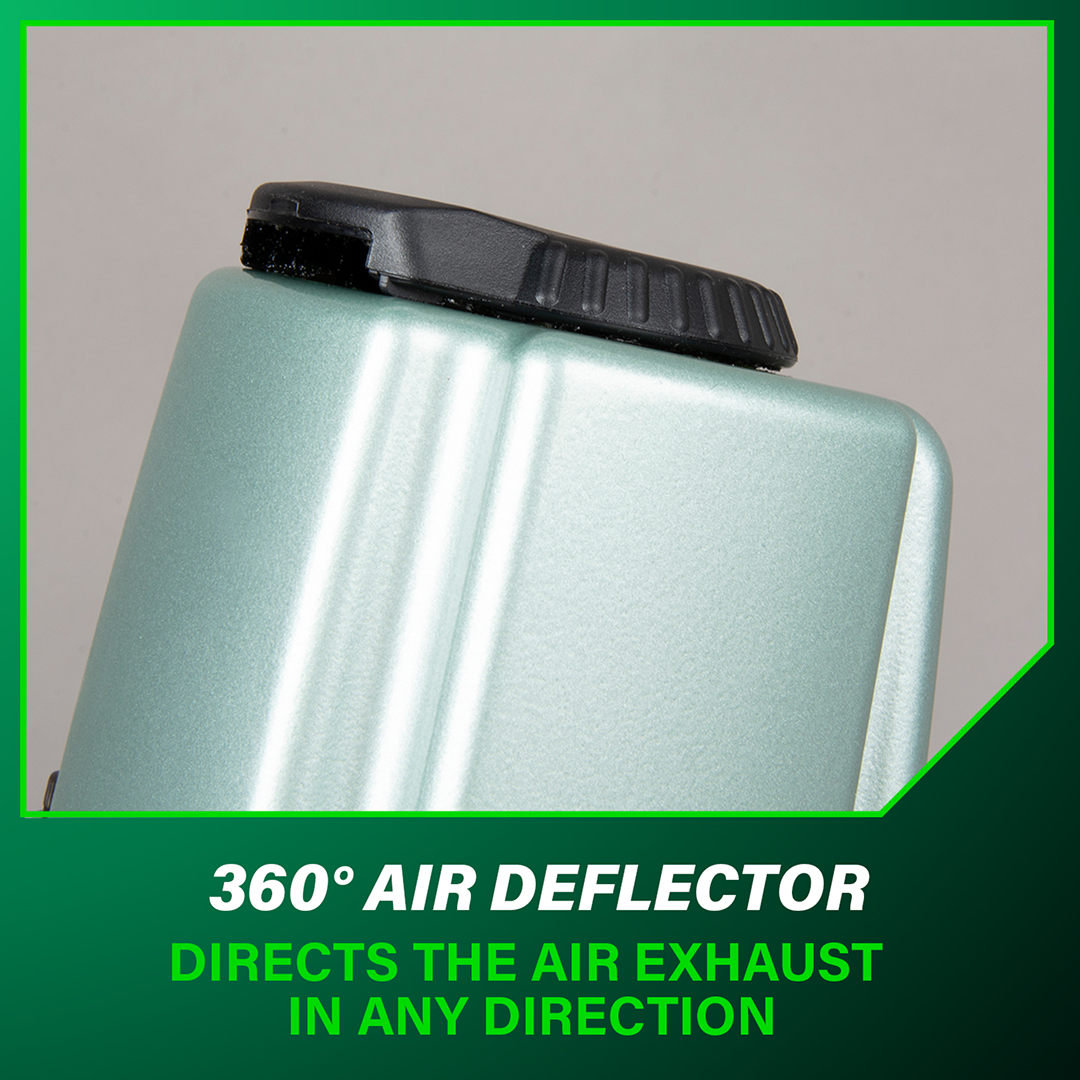

• 360° adjustable air deflector directs exhaust away from the user
• Open nose design enables quick jam clearing
• No-mar nose cap protects finished work surfaces
• Durable aluminum rafter hook provides convenient jobsite storage
• Protective plastic shield enhances operator safety

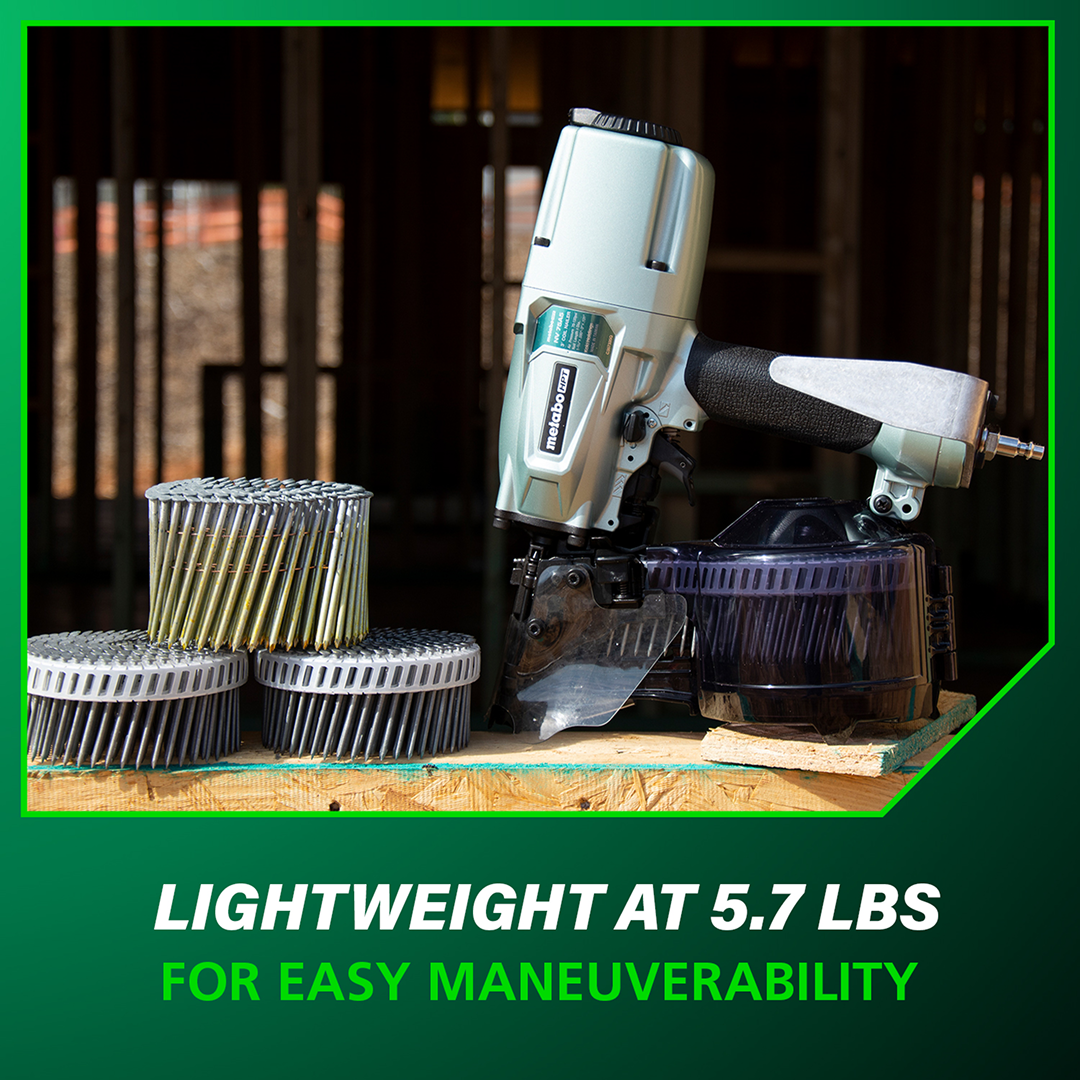

• Lightweight 5.7 lb construction reduces fatigue during extended use
• Ideal for siding installation, wall sheathing, light framing, decking, fencing, and exterior construction

Specifications

• Model: NV75A5M
• Tool Type: Pneumatic Siding / Light Framing Coil Nailer
• Plastic Collated Nail Length: 1-3/4" – 2-1/4"
• Wire Collated Nail Length: 1-3/4" – 3"
• Wire Collated Nail Diameter: 0.099" – 0.131"
• Plastic Collated Nail Diameter: 0.090" – 0.099"
• Actuation: Selective (Sequential / Contact)
• Magazine Angle: 16° (Wire), 15° (Plastic)
• Magazine Loading: Side Load – Tilt Bottom
• Magazine Capacity: 200–300 Nails
• Operating Pressure: 70–120 PSI
• Dry-Fire Lockout: No
• Depth Adjustment: Tool-less
• Adjustable Exhaust Port: Yes
• Jam Clearing: Open Nose Design
• Rubber Grip: Yes
• Dimensions (L × W × H): 10-11/16" × 5-3/16" × 13-3/8"
• Tool Weight: 5.7 lbs
