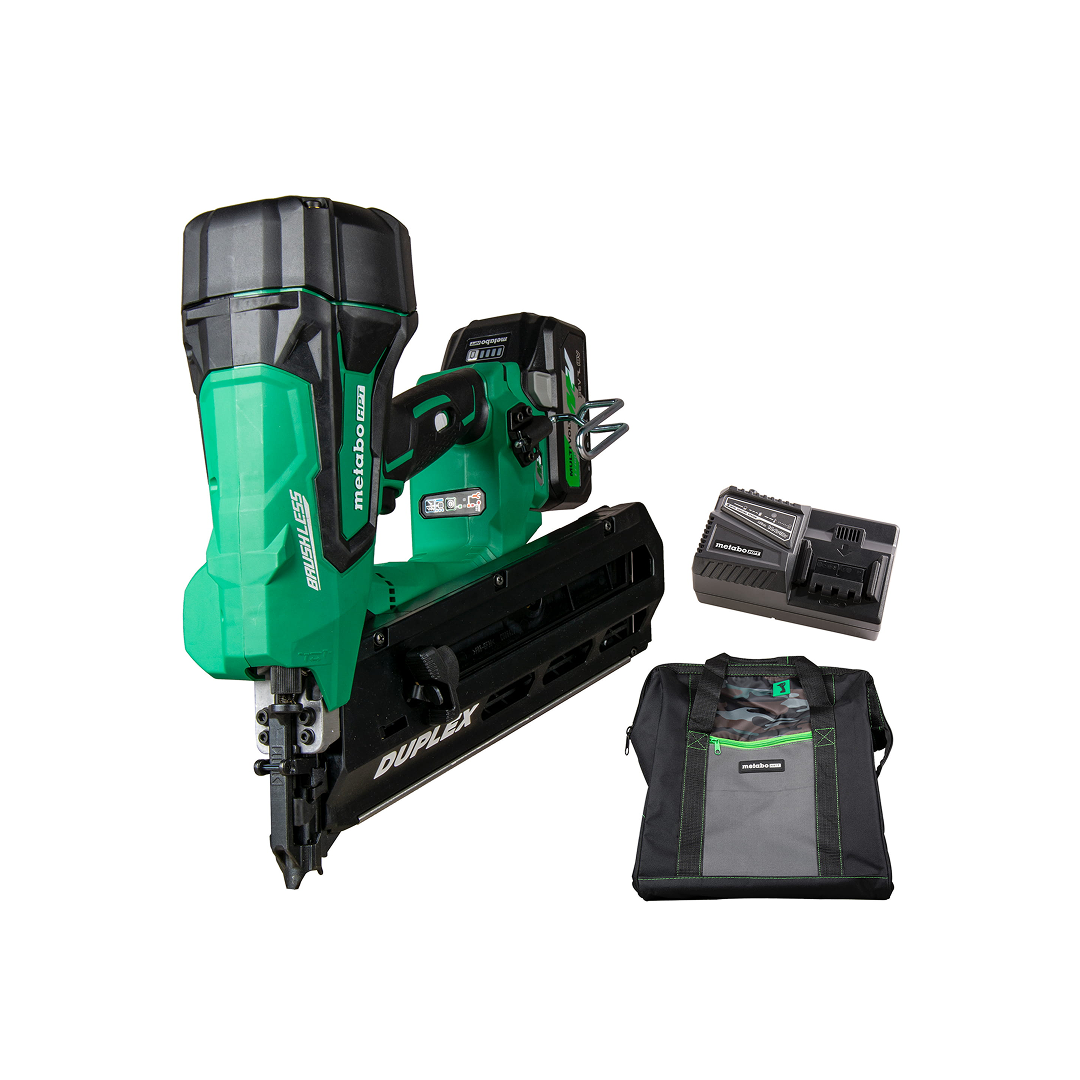

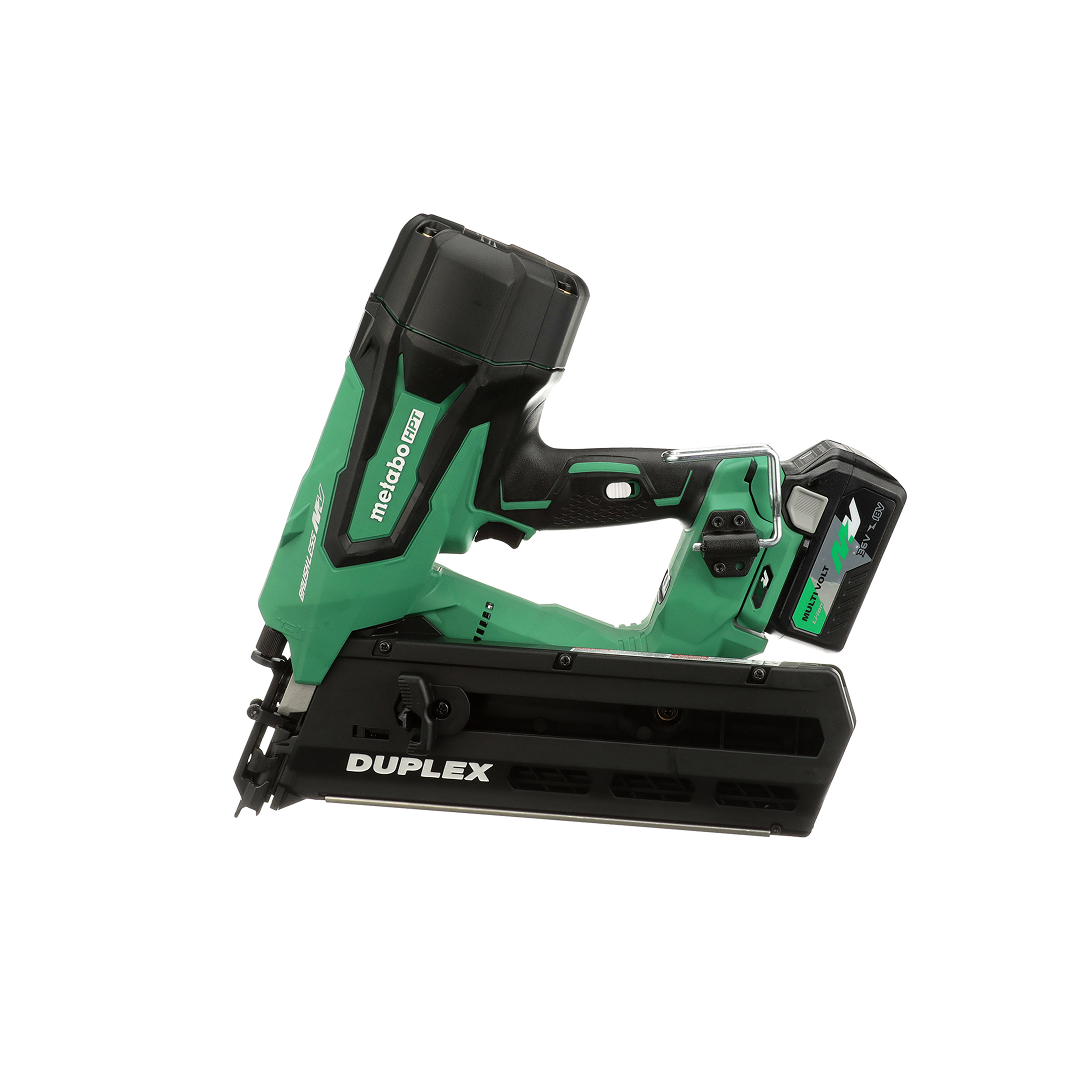

36V 3-1/2 Inch Forming Nailer

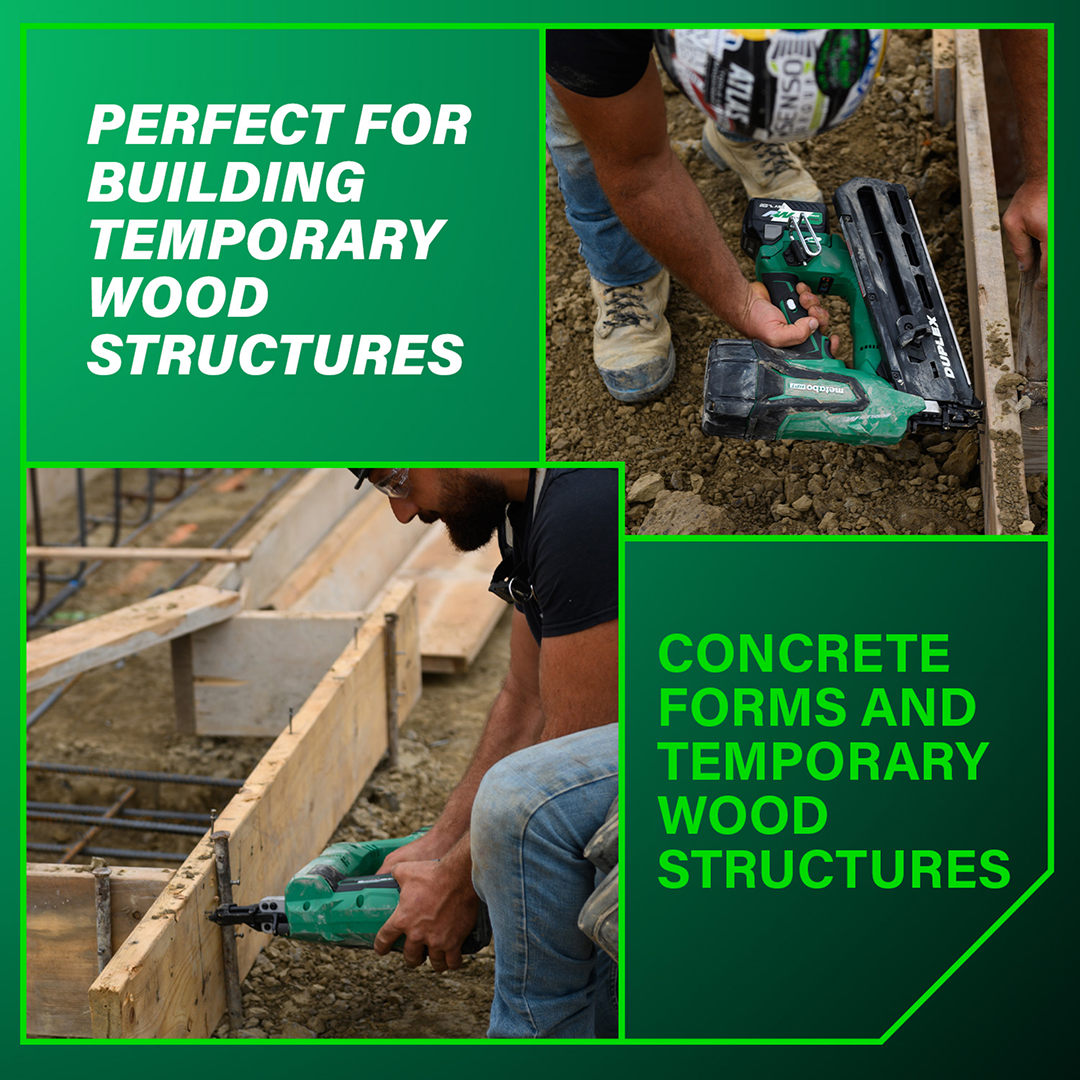

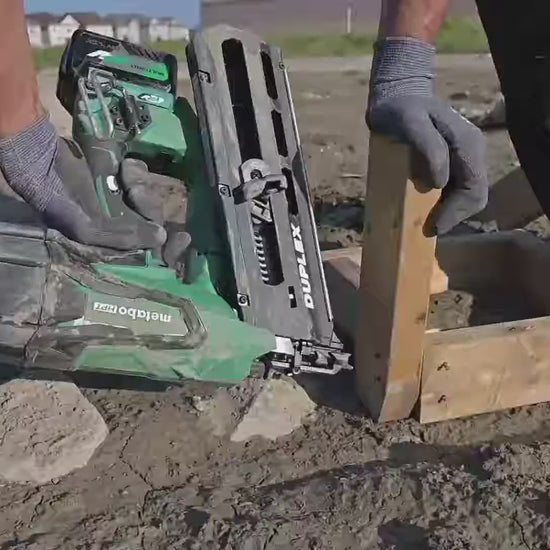

The 36V 3-1/2 Inch Forming Nailer is a high-performance cordless fastening tool designed specifically for concrete forming, temporary wood assembly, and other applications that require secure holding power with easy nail removal. Built to drive duplex and double-headed nails efficiently, this nailer is ideal for contractors working on formwork, scaffolding, temporary bracing, and reusable wood structures. Combining cordless freedom with jobsite-ready power, it offers the performance needed for demanding framing and forming tasks without the inconvenience of hoses or compressors.

Designed for speed, control, and versatility, this forming nailer accepts duplex/double-headed nails ranging from 2" to 3-1/2" in length and .113" to .131" in diameter, making it suitable for a wide range of forming applications. Its selective actuation system allows users to switch between firing modes depending on the task, while the tool-less depth adjustment provides fast and precise control over nail driving depth. An open nose design simplifies jam clearing, reducing downtime on the job, and the dry-fire lockout helps protect both the tool and work surface by preventing firing when nails are depleted.

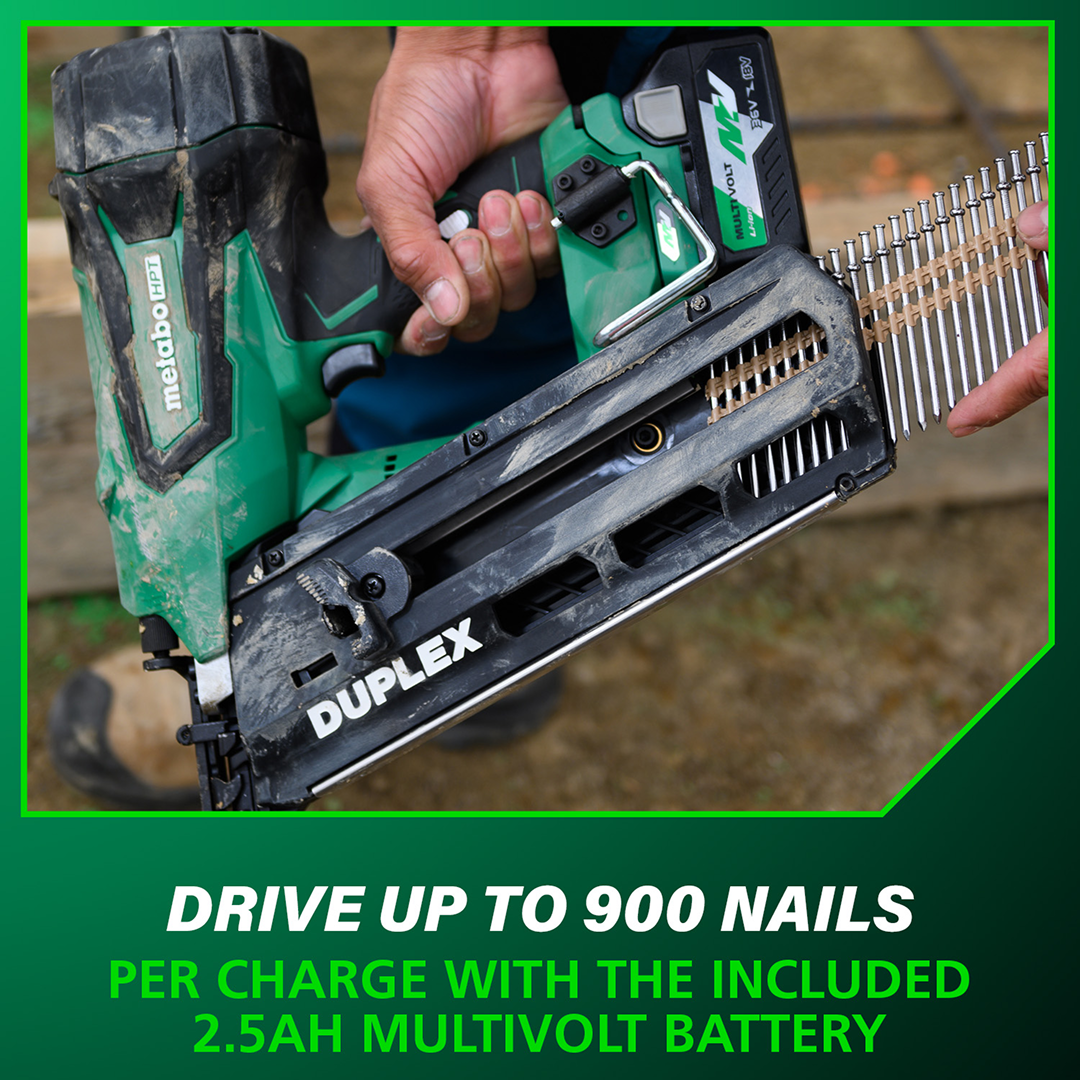

Powered by the 36V battery platform, the nailer can drive up to 900 nails per charge with a 2.5Ah battery, delivering strong cordless productivity for all-day use. The rear-loading 21° magazine holds up to 37 nails, while the balanced body design supports comfortable handling during repetitive fastening work. With features focused on efficiency, durability, and convenience, the 36V 3-1/2 Inch Forming Nailer is an excellent choice for professionals who need a reliable cordless solution for concrete form and temporary construction applications.

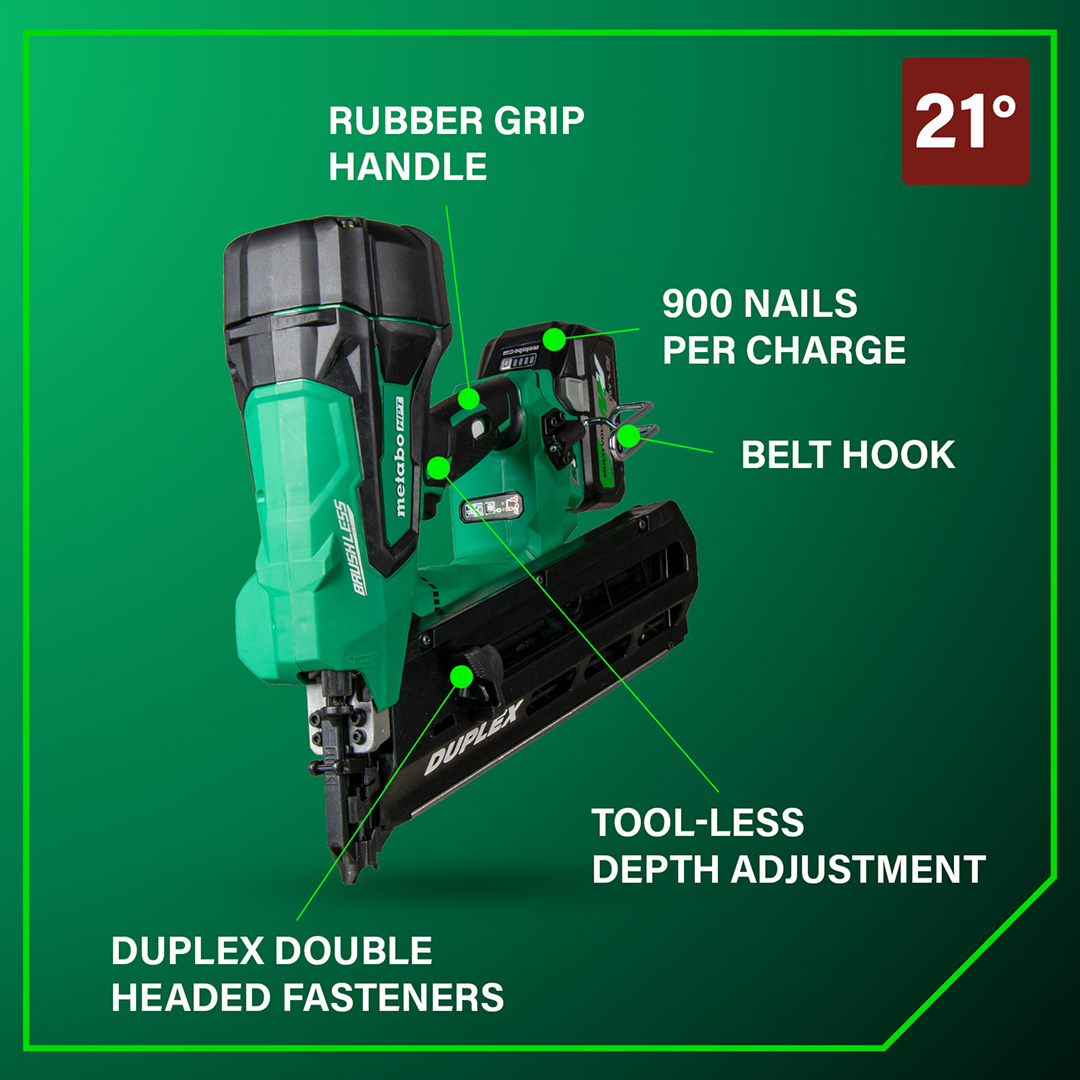

Key Features

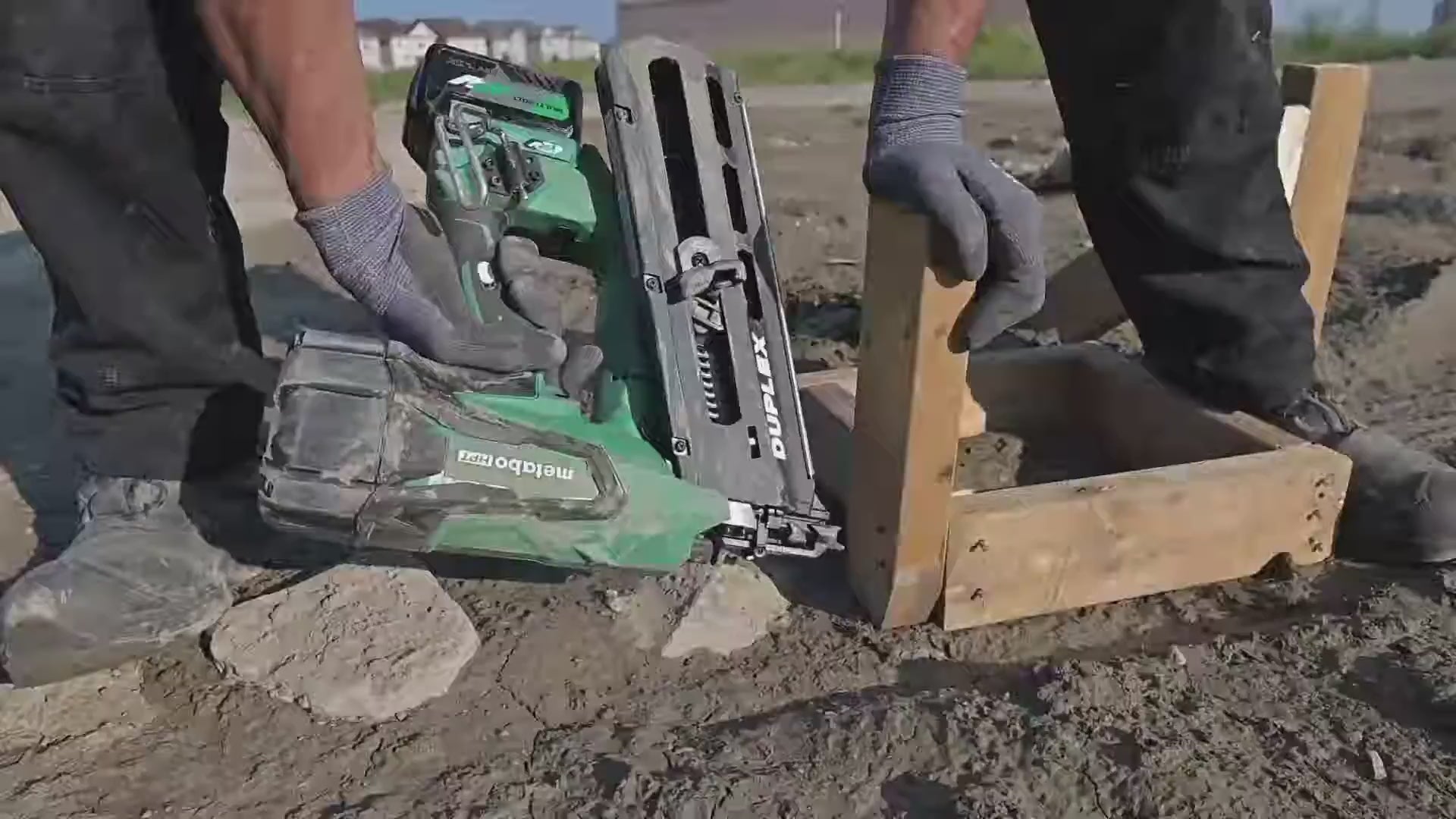

• Cordless forming nailer designed for concrete formwork and temporary wood construction

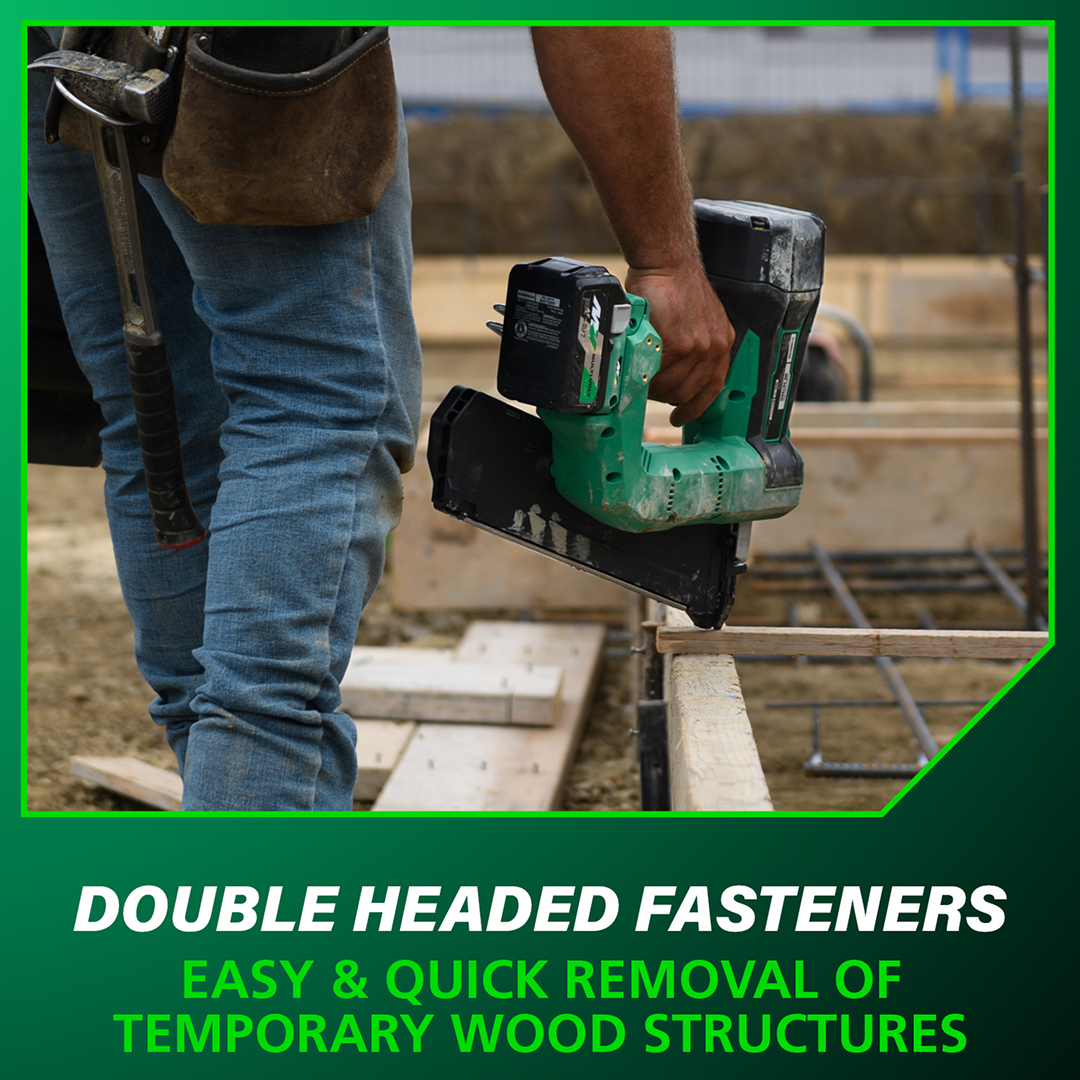

• Drives duplex / double-headed nails for easy removal after use
• Compatible with nails from 2" to 3-1/2" in length
• Supports nail diameters from .113" to .131"
• Selective actuation for flexible firing control
• Tool-less depth adjustment for quick and accurate nail setting
• Dry-fire lockout helps prevent firing when the magazine is empty
• Open nose design for easier jam clearing and reduced downtime
• Rear-loading magazine with 37-nail capacity
• Delivers up to 900 nails per charge with 36V 2.5Ah battery
• Cordless 36V platform for high power and jobsite mobility
• On-battery charge indicator for quick battery status monitoring
• Durable design backed by a professional warranty package

Specifications

Fastener Compatibility

• Fastener Head Type: Duplex / Double Headed
• Applicable Nail Diameter: .113" – .131"
• Applicable Nail Length: 2" – 3-1/2"

Driving Depth Reference

• 16D: 3"
• 8D: 2-1/4"
• 6D: 1-3/4"

Performance

• Nail Capacity: 37
• Nails Per Charge (with 36V 2.5Ah Battery): 900
• Magazine Angle: 21°
• Driving Speed: 2 nails per second
• Magazine Loading: Rear
• Actuation: Selective
• Dry-Fire Lockout: Yes
• Depth Adjustment: Tool-less
• Jam Clearing: Open Nose
• Battery Charge Indicator: On-Battery

Dimensions & Weight

• Dimensions (L x H x W): 13-1/2" x 13" x 5-3/8"

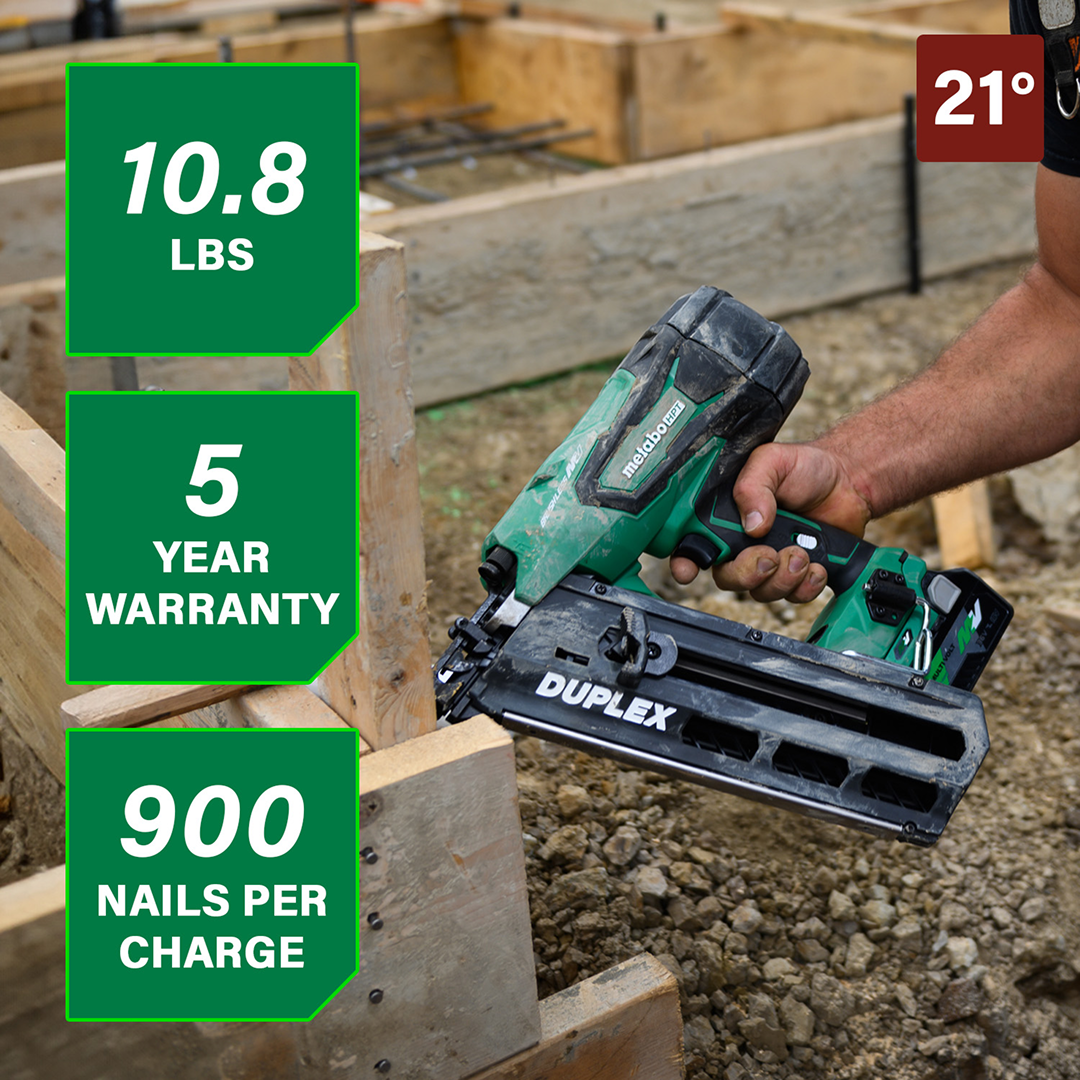

• Weight (with 36V 2.5Ah Battery): 10.8 lbs
