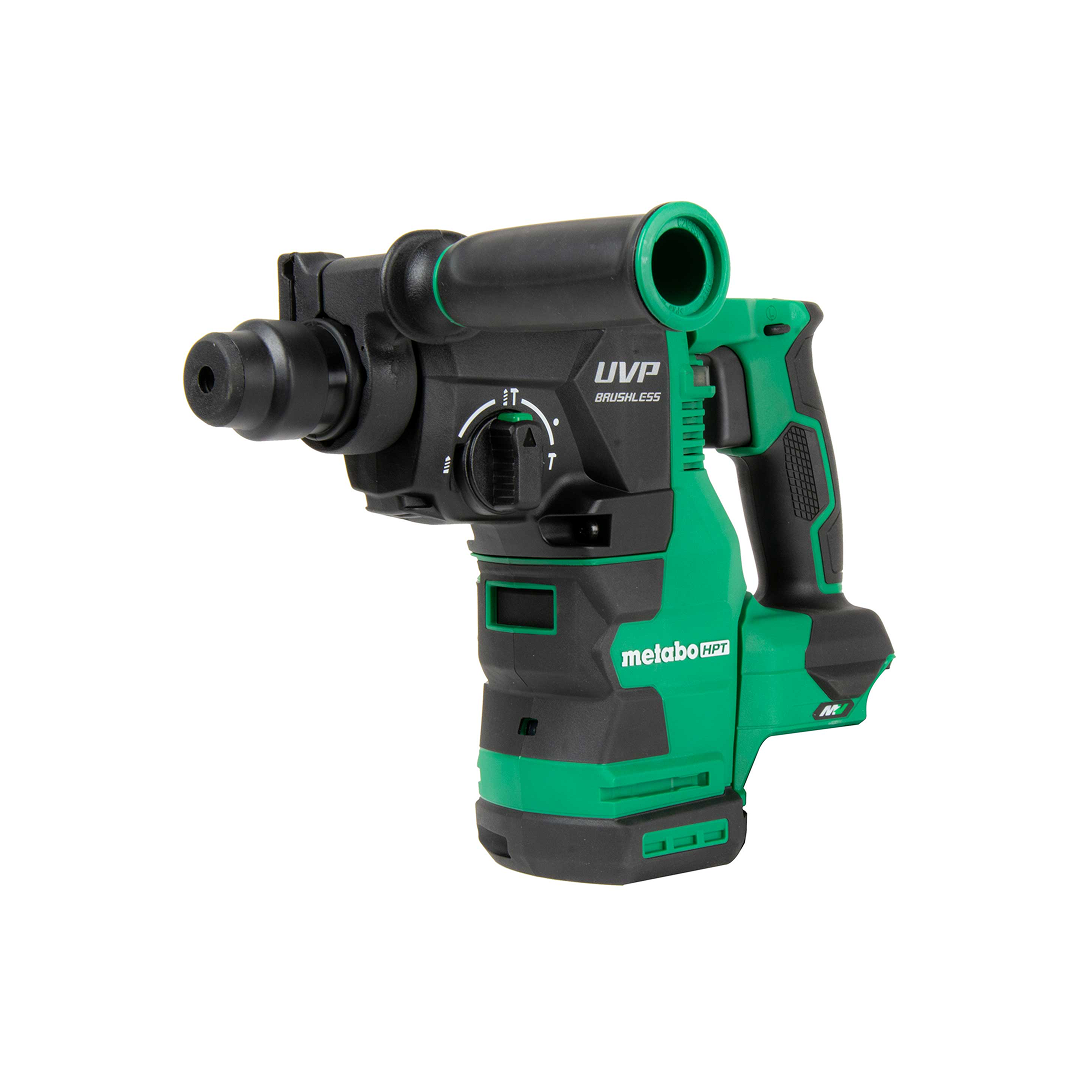

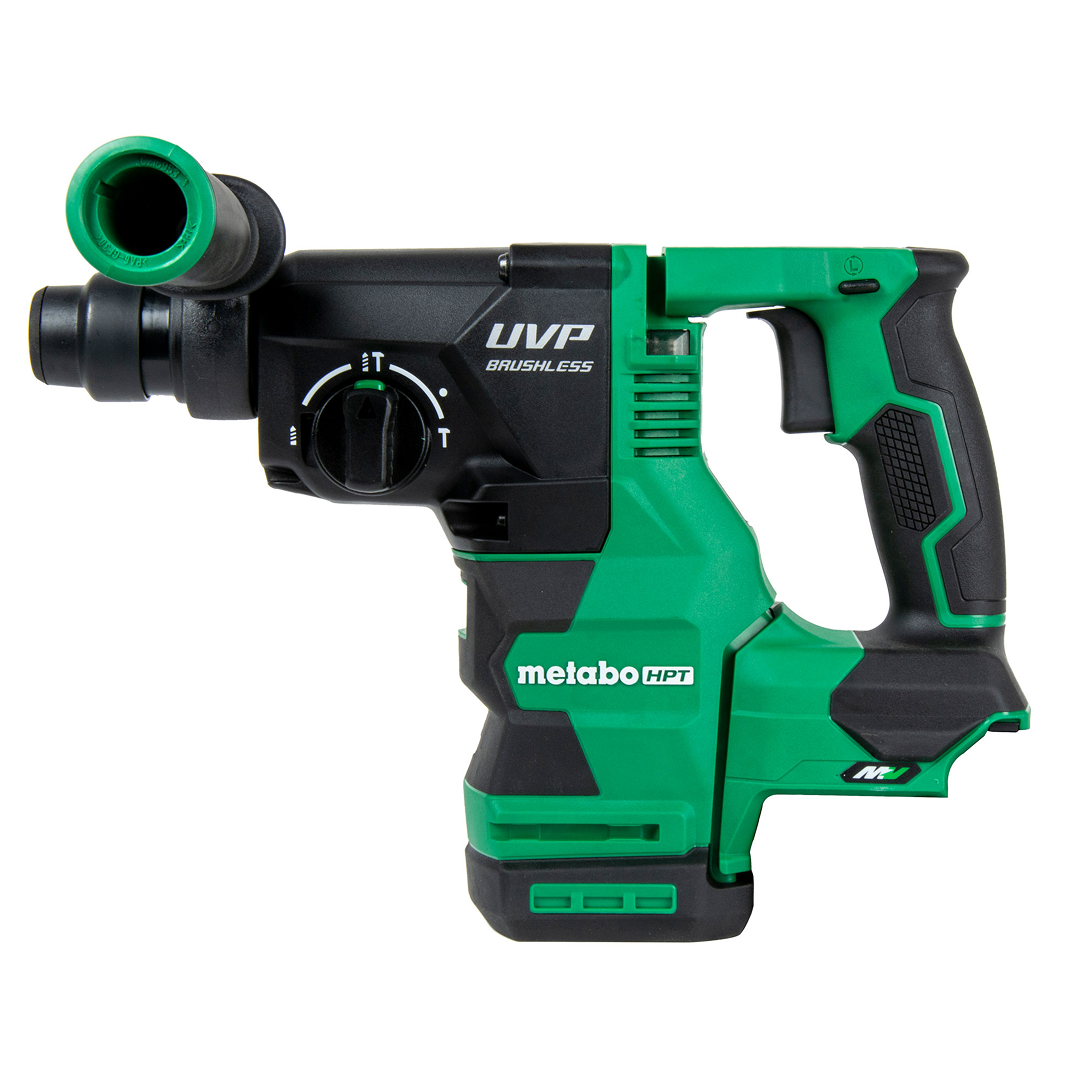

36V MultiVolt™ 1-1/8" SDS Plus Rotary Hammer w/ UVP (Tool Body Only)

The 36V MultiVolt™ 1-1/8" SDS Plus Rotary Hammer with UVP (Tool Body Only) is a professional-grade cordless rotary hammer engineered to deliver corded-level drilling and chiseling performance while providing the flexibility of cordless operation. Designed for contractors, concrete specialists, electricians, plumbers, and construction professionals, the DH3628DAQ4M combines a powerful brushless motor with advanced User Vibration Protection (UVP) technology to reduce operator fatigue during prolonged use. This Tool Body Only version is ideal for users who already own compatible MultiVolt™ batteries and chargers, making it an efficient addition to an existing cordless tool system.

Powered by the 36V MultiVolt™ platform, the DH3628DAQ4M delivers up to 950 RPM, 4,300 BPM, and 2.3 ft-lbs of impact energy, providing fast and efficient drilling into concrete, masonry, wood, and steel. The rotary hammer features three operating modes—Hammer Drilling, Chipping, and Drilling—along with two-speed settings that allow users to match performance to the application. Advanced safety is provided through Reactive Force Control (RFC), which automatically stops the motor if the bit binds unexpectedly, while User Vibration Protection (UVP) significantly reduces vibration for greater comfort. A built-in LED level sensor assists with precise vertical drilling by indicating when the tool is perfectly level, reducing installation errors and improving anchor placement accuracy. Additional features including a variable speed trigger with lock-on function, integrated LED work light, and compatibility with the optional dust extractor help maximize productivity and precision on the jobsite.

As part of the expanding MultiVolt™ System, the DH3628DAQ4M accepts all compatible 36V MultiVolt™ batteries and can also operate using the optional ET36A AC Adapter for unlimited runtime when connected to AC power. With its lightweight 7.0 lb tool body, brushless motor efficiency, advanced vibration control, and intelligent drilling features, this rotary hammer delivers outstanding durability, versatility, and professional performance for demanding construction and masonry applications.

Key Features

• Professional 36V MultiVolt™ cordless SDS Plus rotary hammer with advanced User Vibration Protection (UVP)
• Tool Body Only configuration for users with existing MultiVolt™ batteries and chargers
• High-efficiency brushless motor delivers corded-level performance with reduced maintenance
• Three operating modes: Hammer Drilling, Chipping, and Drilling
• Delivers up to 950 RPM, 4,300 BPM, and 2.3 ft-lbs impact energy
• Two-speed settings optimize drilling performance for different applications
• User Vibration Protection (UVP) minimizes vibration and reduces operator fatigue
• Reactive Force Control (RFC) improves safety by stopping the motor if the bit binds
• Built-in LED level sensor helps achieve accurate, perfectly aligned drilling
• Variable speed trigger with lock-on function provides greater control during continuous operation
• Integrated LED work light improves visibility in low-light work environments
• Compatible with optional dust extraction system for cleaner and safer drilling
• Accepts all 36V MultiVolt™ batteries and optional ET36A AC Adapter
• Lightweight 7.0 lb tool body improves comfort during extended use
• Ideal for concrete drilling, anchor installation, masonry work, demolition, plumbing, electrical, and commercial construction

Specifications

• Model: DH3628DAQ4M
• Voltage: 36V
• Battery Included: No
• Bit Shank: SDS Plus
• Motor Type: Brushless
• Speed Modes: Normal (0–950 RPM) / Low (0–750 RPM)
• Operating Modes: Hammer Drilling / Chipping / Drilling
• Impact Rate: 0–4,300 BPM
• Impact Energy: 2.3 ft-lbs
• Concrete Capacity: 1-1/8"
• Steel Capacity: 1/2"
• Wood Capacity: 1-1/4"
• Variable Speed Trigger: Yes (with Lock-On Feature)
• LED Work Light: Equipped
• Tool Length (with 36V 4.0Ah Battery): 14-11/16"
• Weight (Tool Body Only): 7.0 lbs
