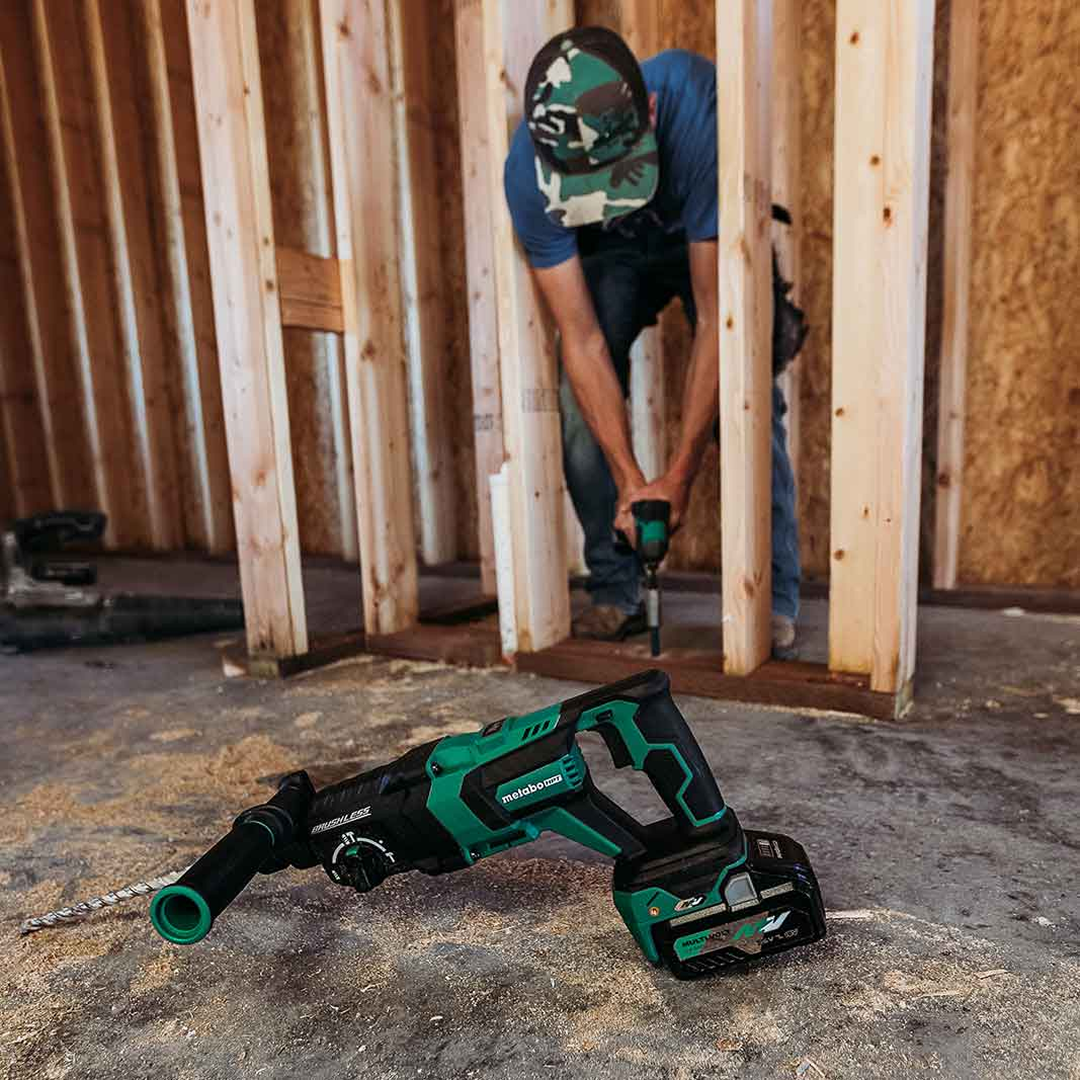

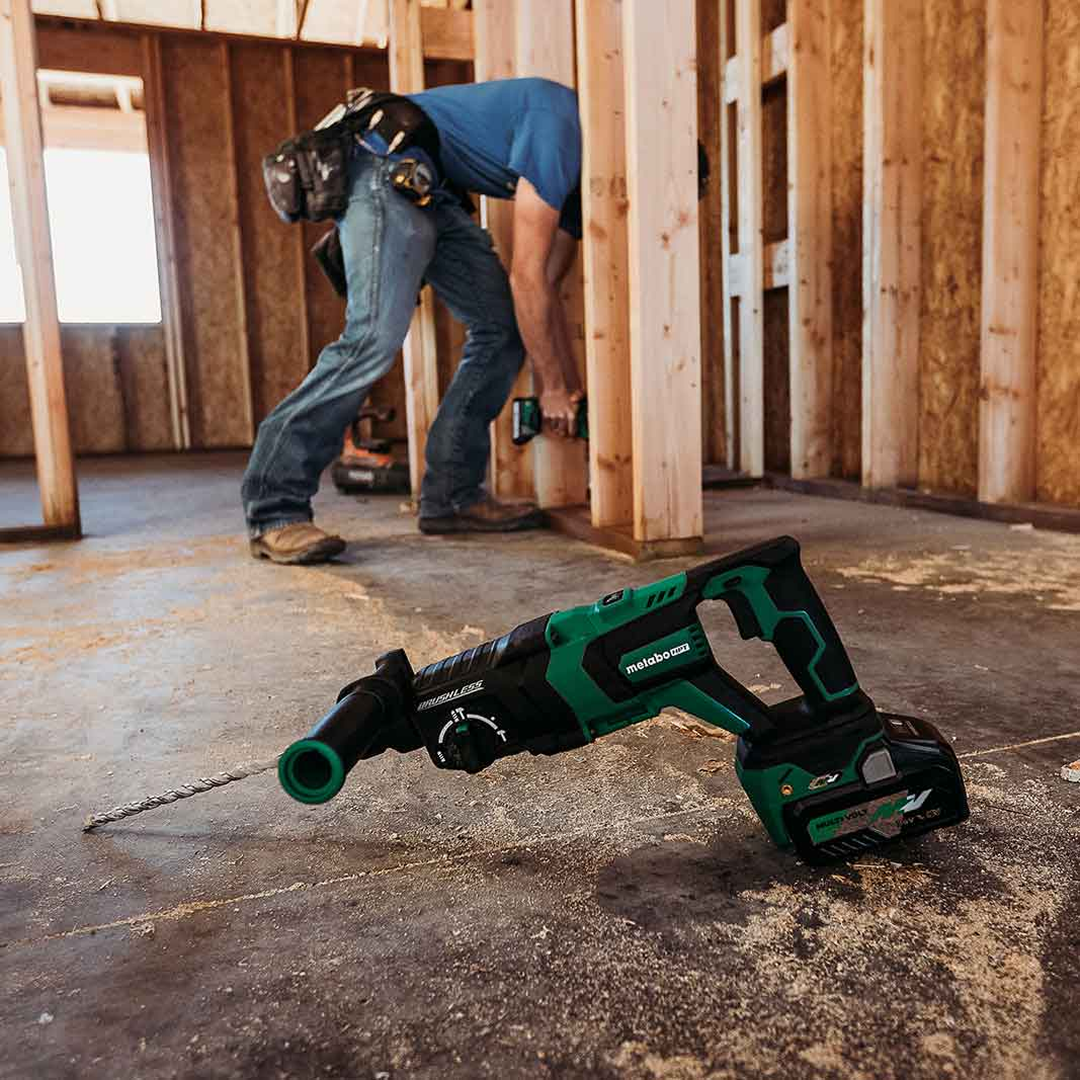

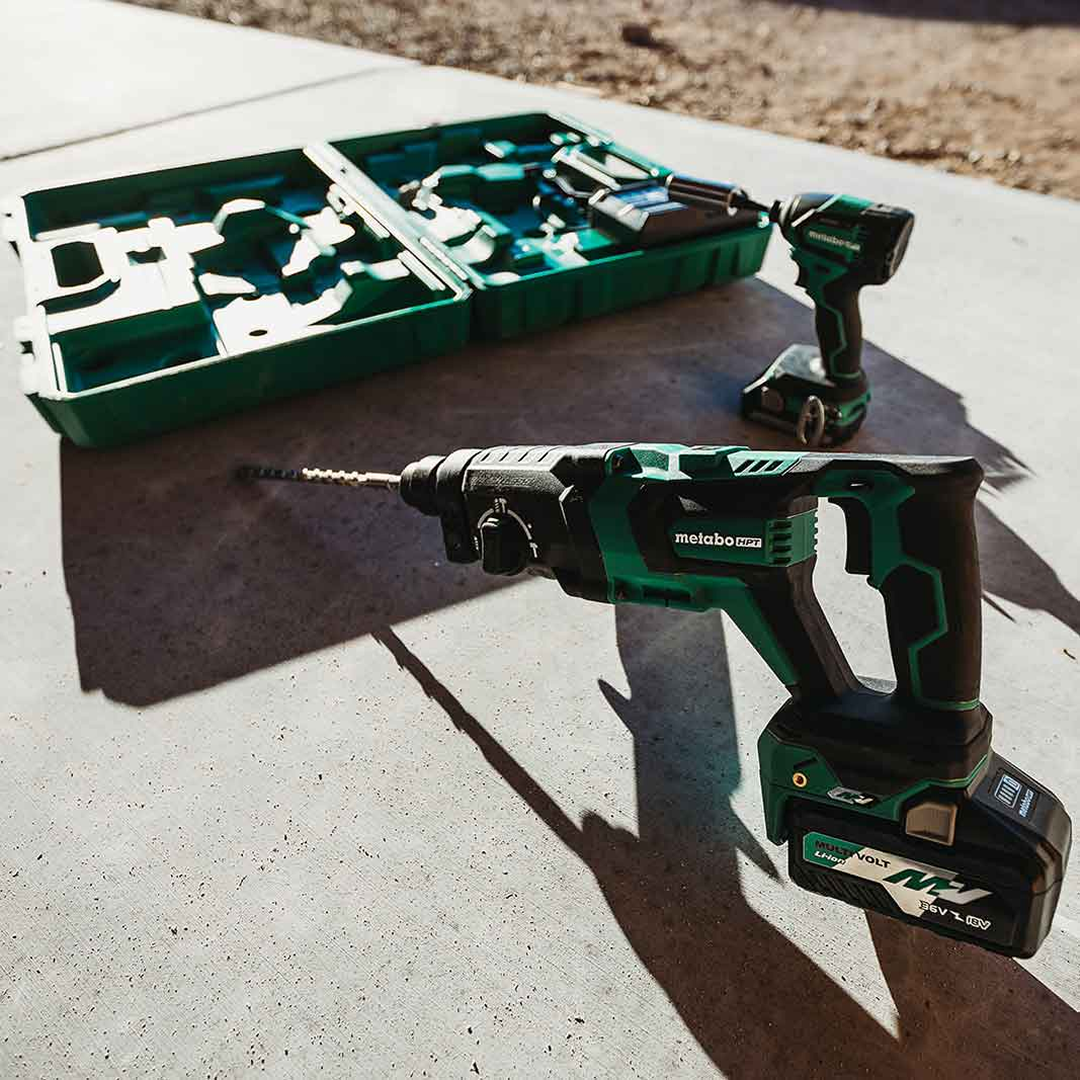

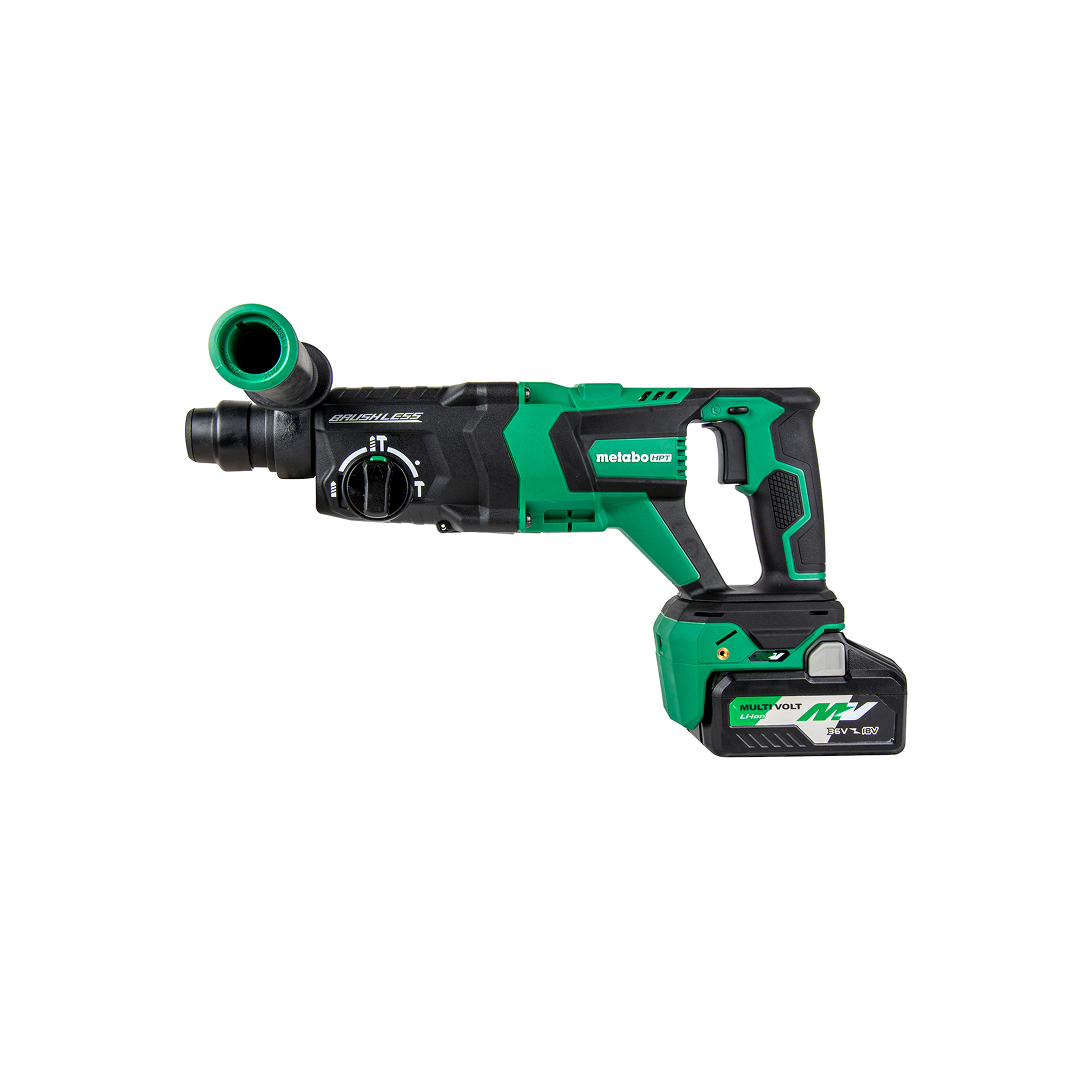

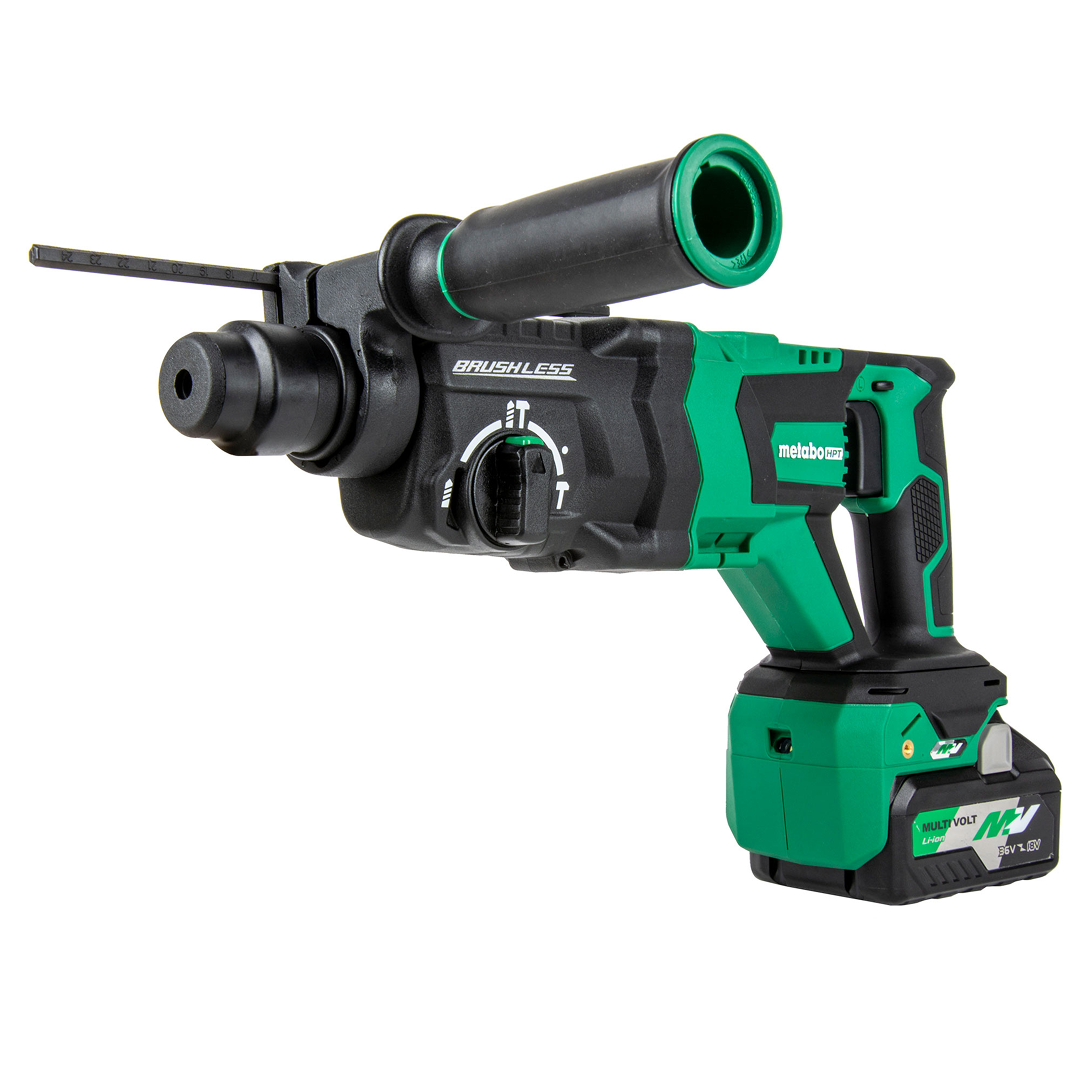

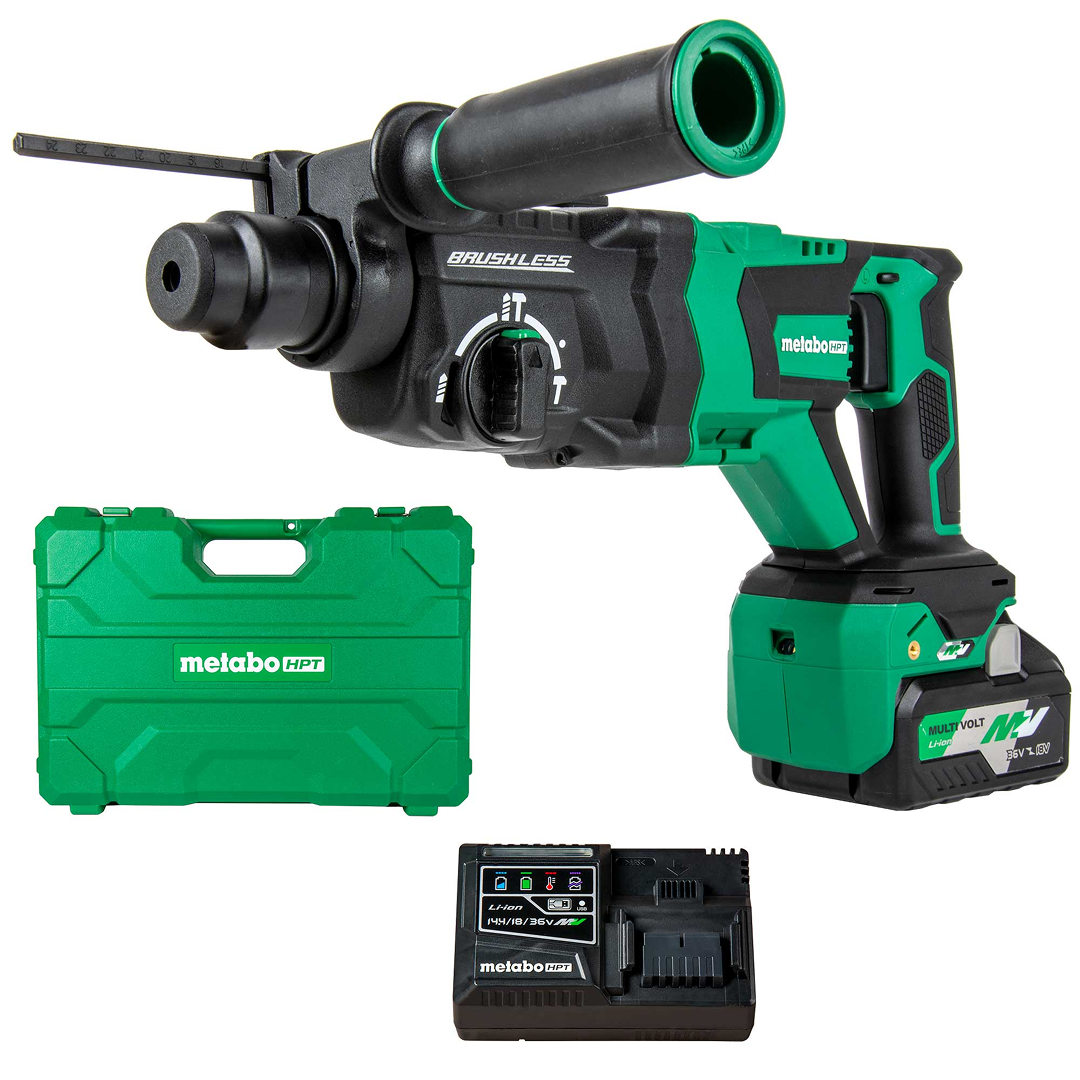

36V MultiVolt™ Brushless 1-1/8" SDS Plus D-Handle Rotary Hammer

The 36V MultiVolt™ Brushless 1-1/8" SDS Plus D-Handle Rotary Hammer is a professional-grade cordless rotary hammer engineered to deliver corded-level drilling and chiseling performance with the freedom of a cordless platform. Designed for contractors, electricians, plumbers, concrete specialists, and construction professionals, the DH3628DDM combines a powerful brushless motor with an ergonomic D-handle design for superior control during overhead, horizontal, and downward drilling applications. Whether drilling anchor holes, chipping concrete, or driving through masonry, this versatile rotary hammer provides the power, comfort, and precision required for demanding jobsite conditions.

Powered by Metabo HPT's advanced 36V MultiVolt™ platform, the DH3628DDM delivers up to 950 RPM, 4,300 BPM, and 2.3 ft-lbs of impact energy for fast, efficient drilling and chiseling performance. Its three operating modes—Hammer Drilling, Drilling, and Chipping—allow the tool to adapt to a wide range of construction tasks. The two-speed control system enables users to optimize drilling speed for different materials, while the Auto Stop Mode simplifies repetitive drilling by automatically stopping at preset depths. Safety is enhanced through Reactive Force Control (RFC), which helps reduce kickback by shutting off the motor if the bit binds unexpectedly. An integrated LED work light improves visibility in dim workspaces, and the optional dust extraction system helps maintain a cleaner, safer work environment.

As part of the expanding 36V MultiVolt™ System, the DH3628DDM is compatible with all MultiVolt™ batteries and the optional ET36A AC Adapter, allowing users to switch between cordless mobility and continuous corded operation. With a lightweight 6.4 lb tool body, brushless motor efficiency, and advanced safety technologies, this rotary hammer delivers exceptional productivity, durability, and user comfort for professionals tackling concrete, masonry, steel, and wood applications.

Key Features

• Professional 36V MultiVolt™ cordless SDS Plus D-Handle rotary hammer for drilling and chiseling applications
• Powerful brushless motor delivers corded-level performance with longer tool life and reduced maintenance

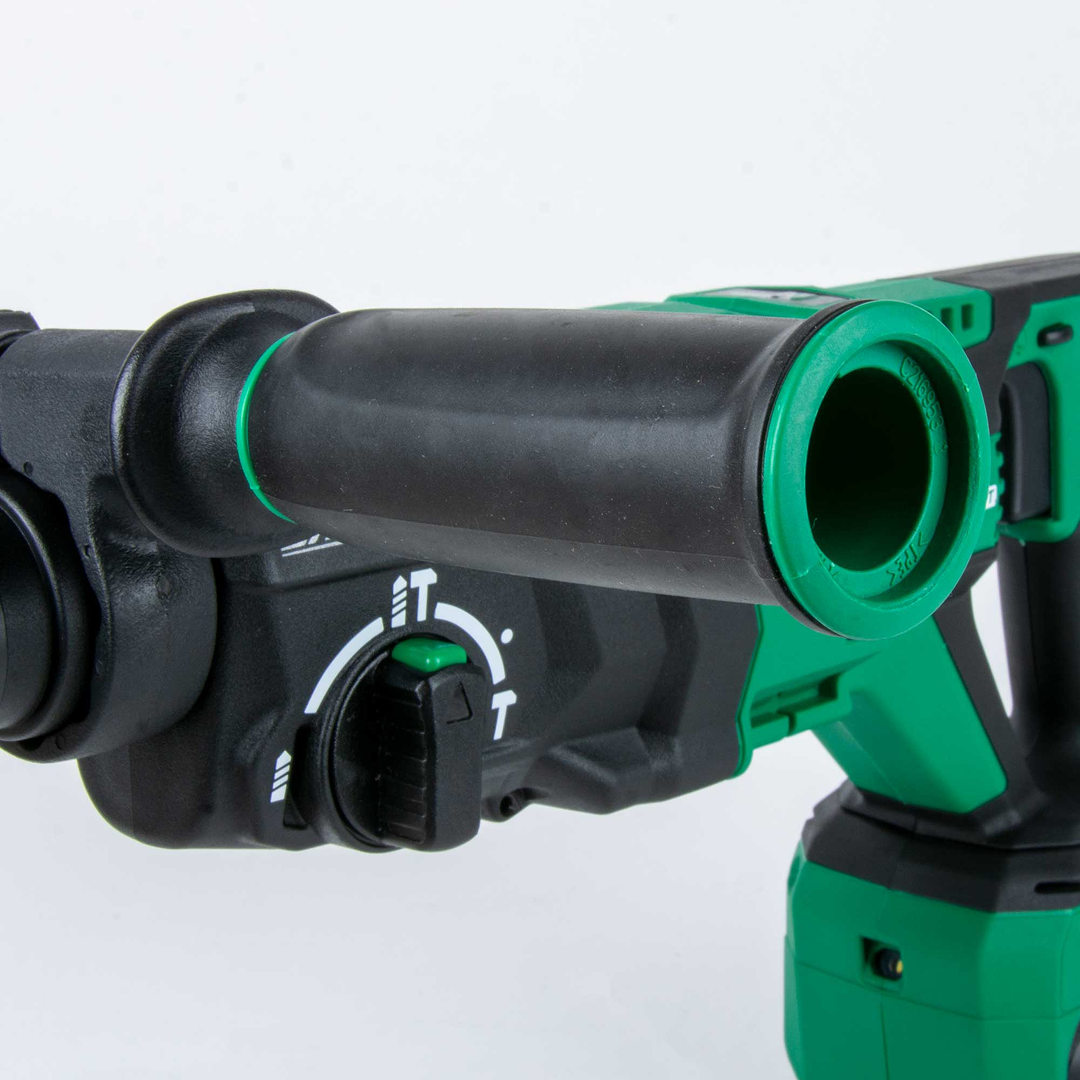

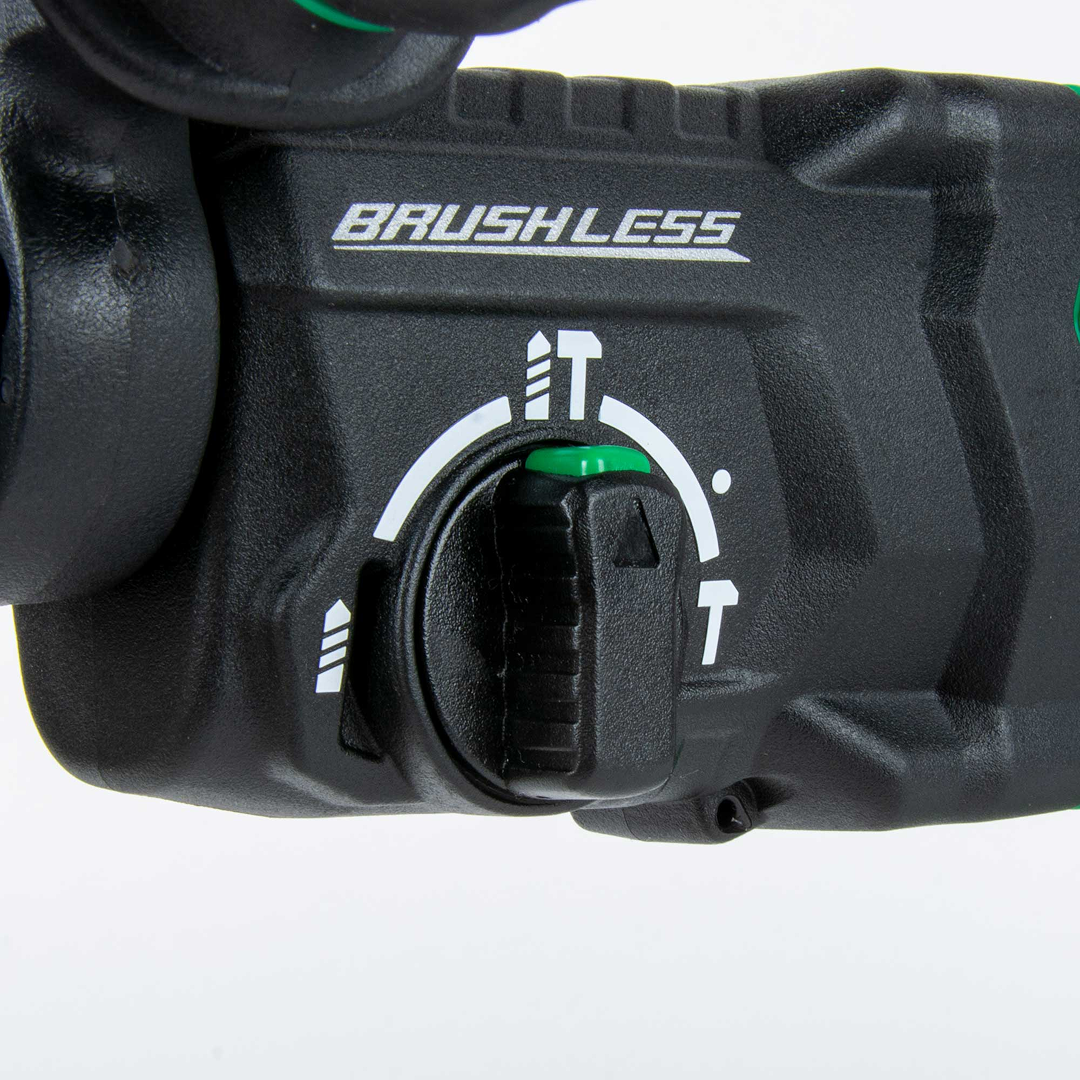

• Three operating modes: Hammer Drilling, Drilling, and Chipping

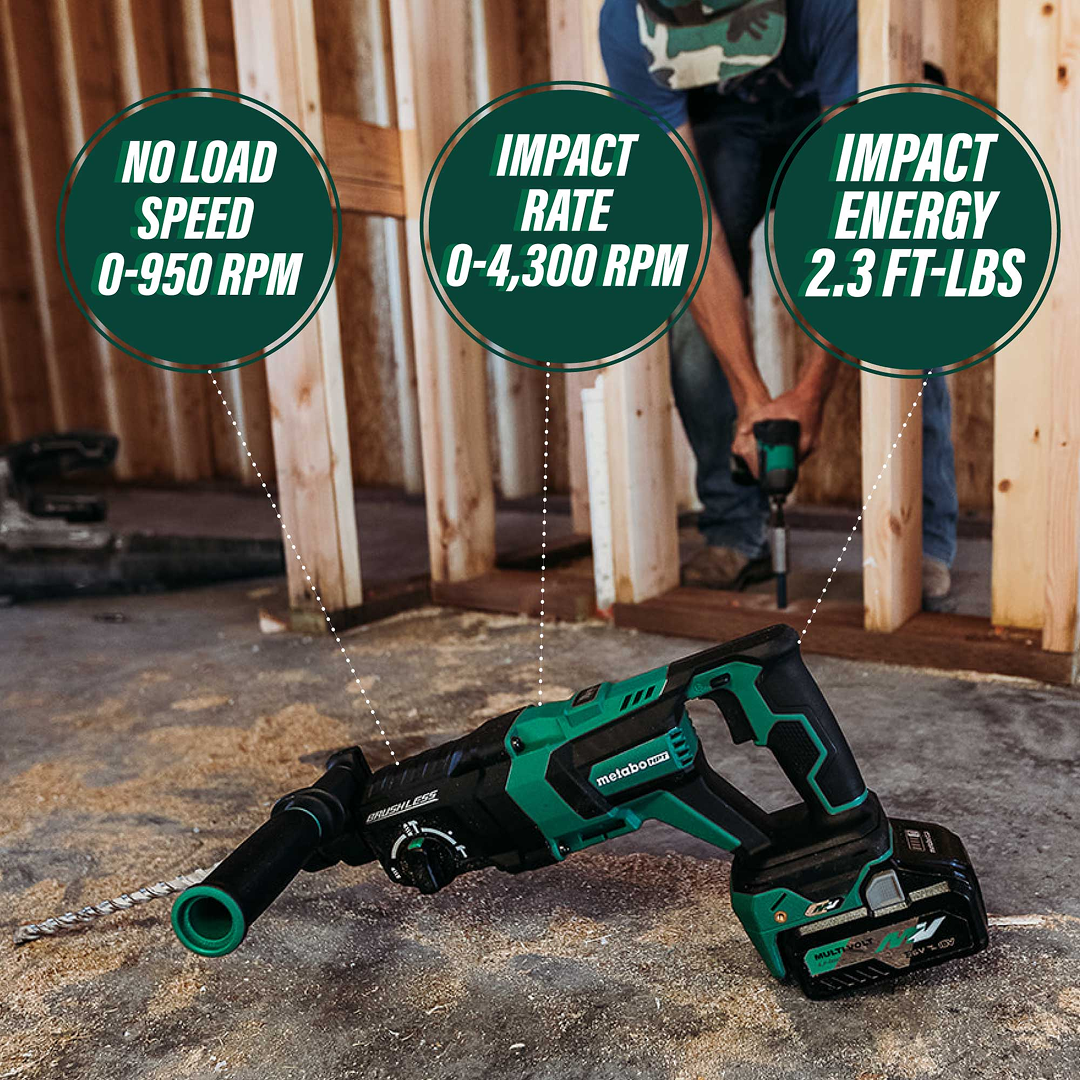

• Delivers up to 950 RPM, 4,300 BPM, and 2.3 ft-lbs impact energy

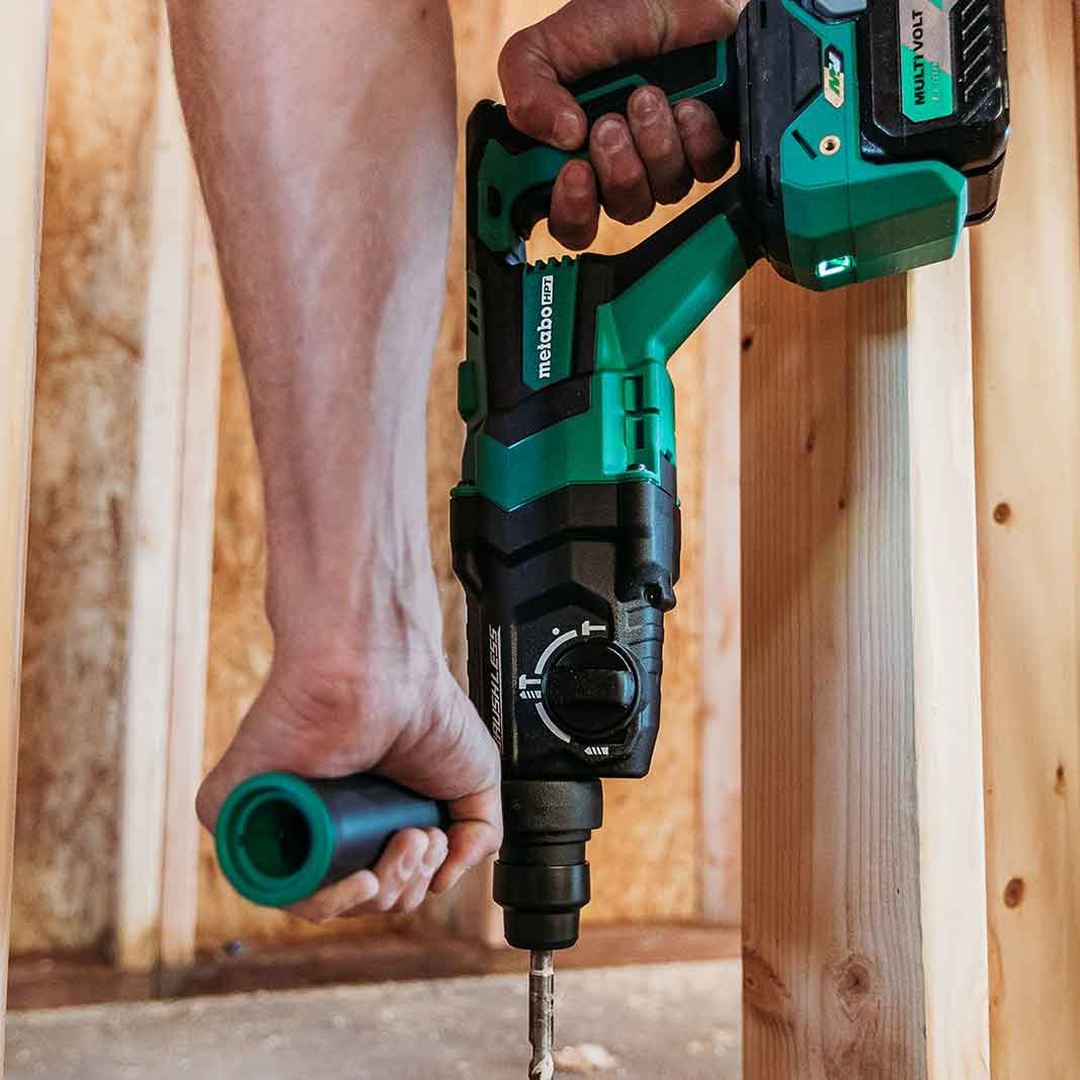

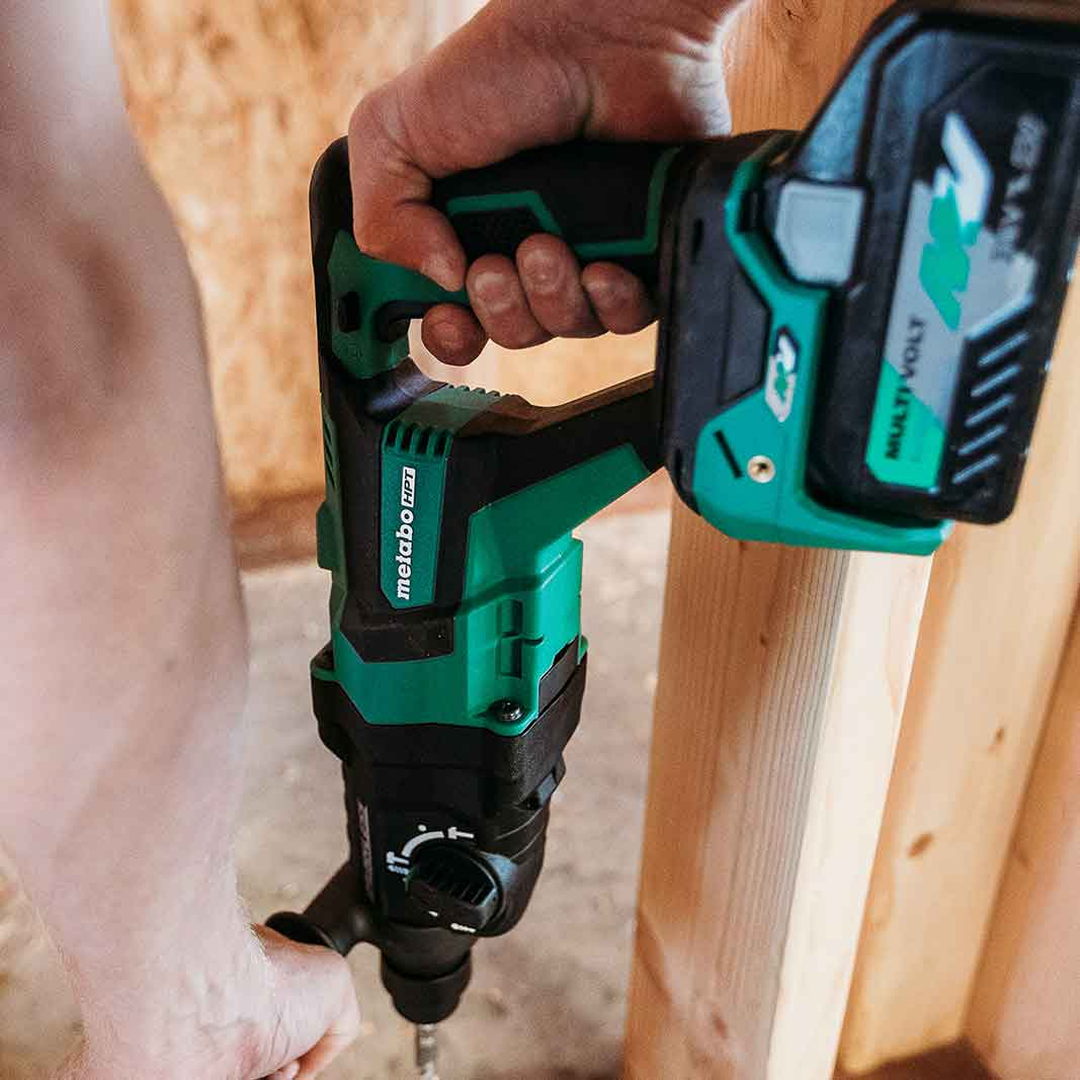

• Ergonomic D-handle design provides excellent control for overhead and vertical drilling
• Two-speed control system allows optimized performance for various materials

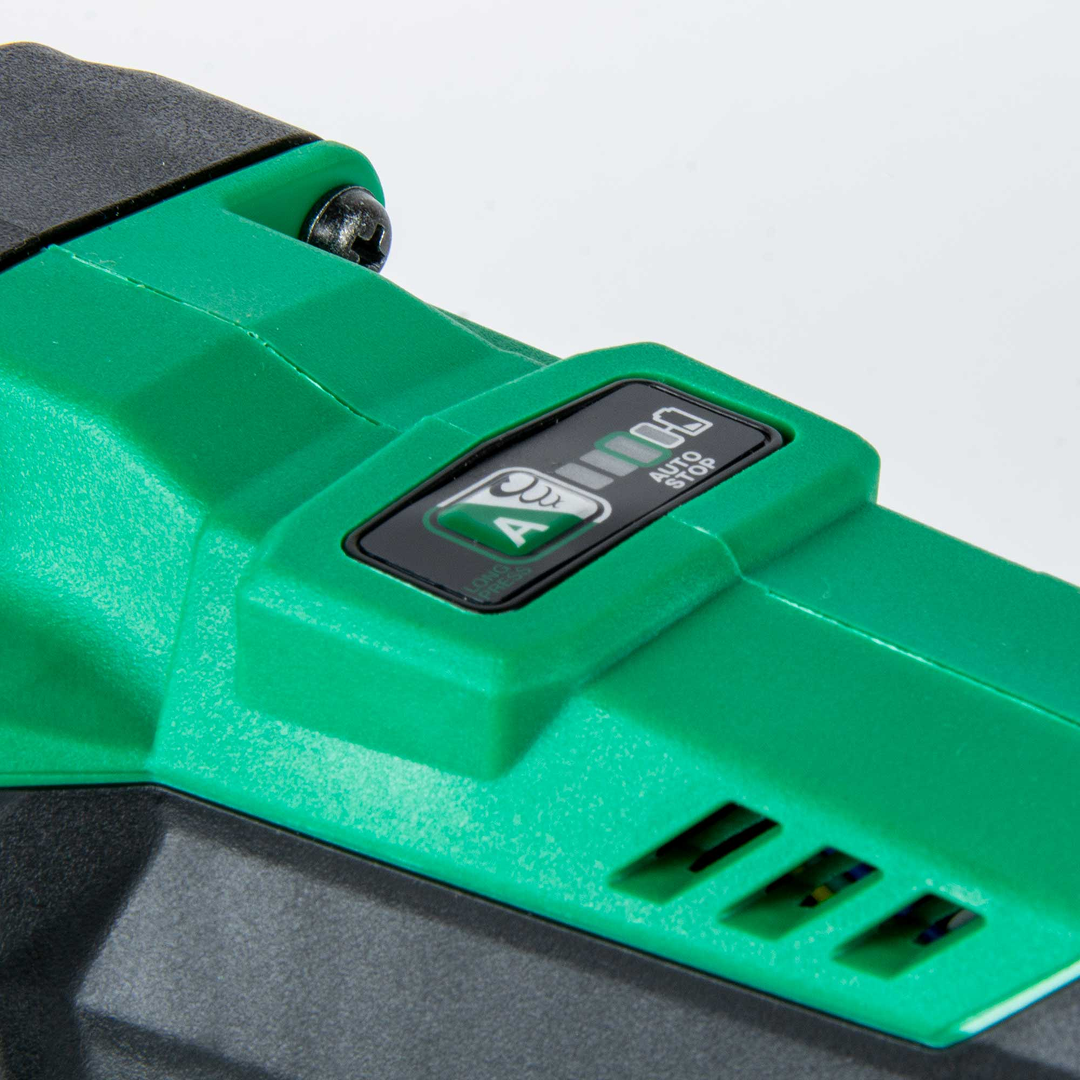

• Auto Stop Mode improves accuracy and efficiency during repetitive drilling tasks
• Reactive Force Control (RFC) enhances operator safety by reducing kickback during bit binding

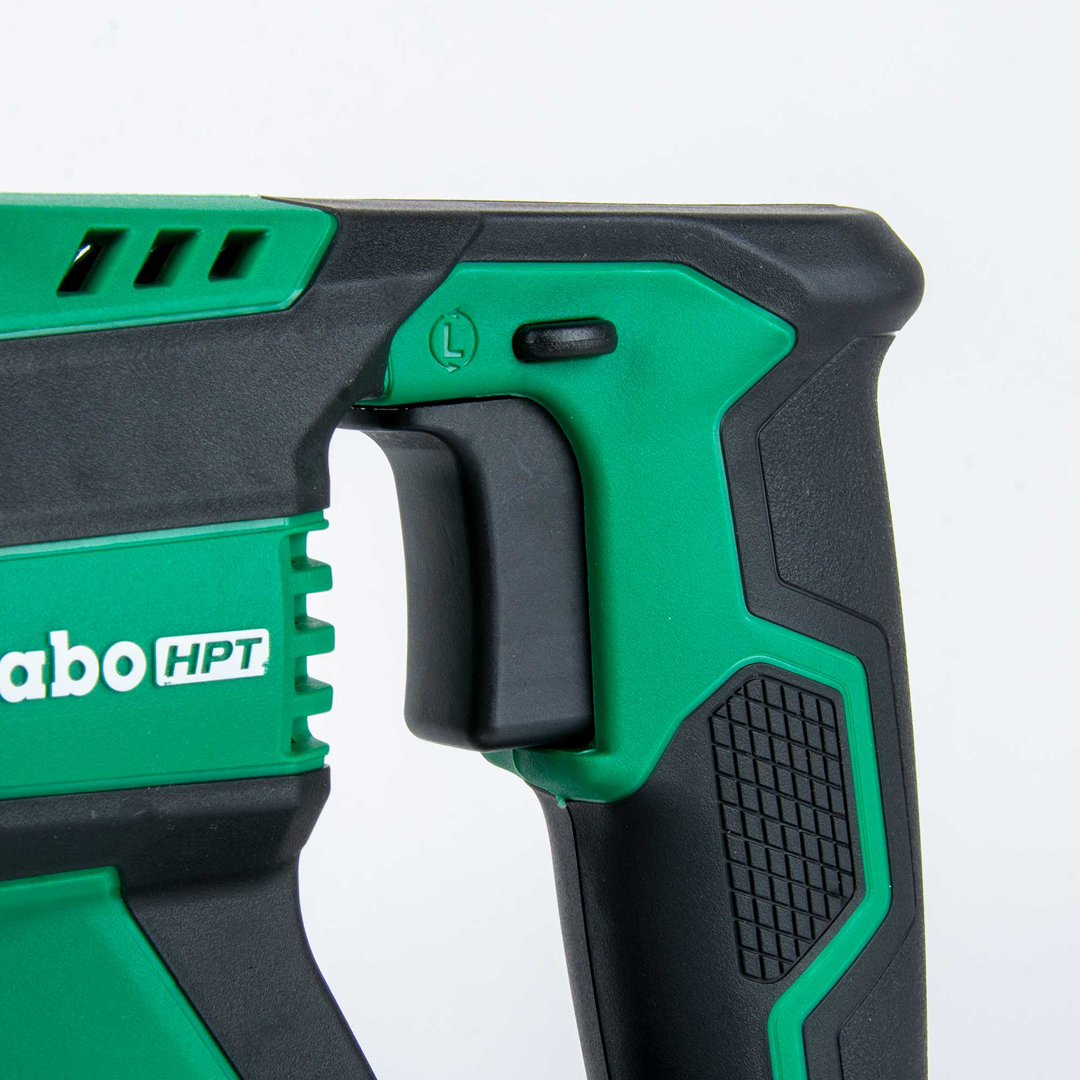

• Variable speed trigger provides smooth, precise drilling control

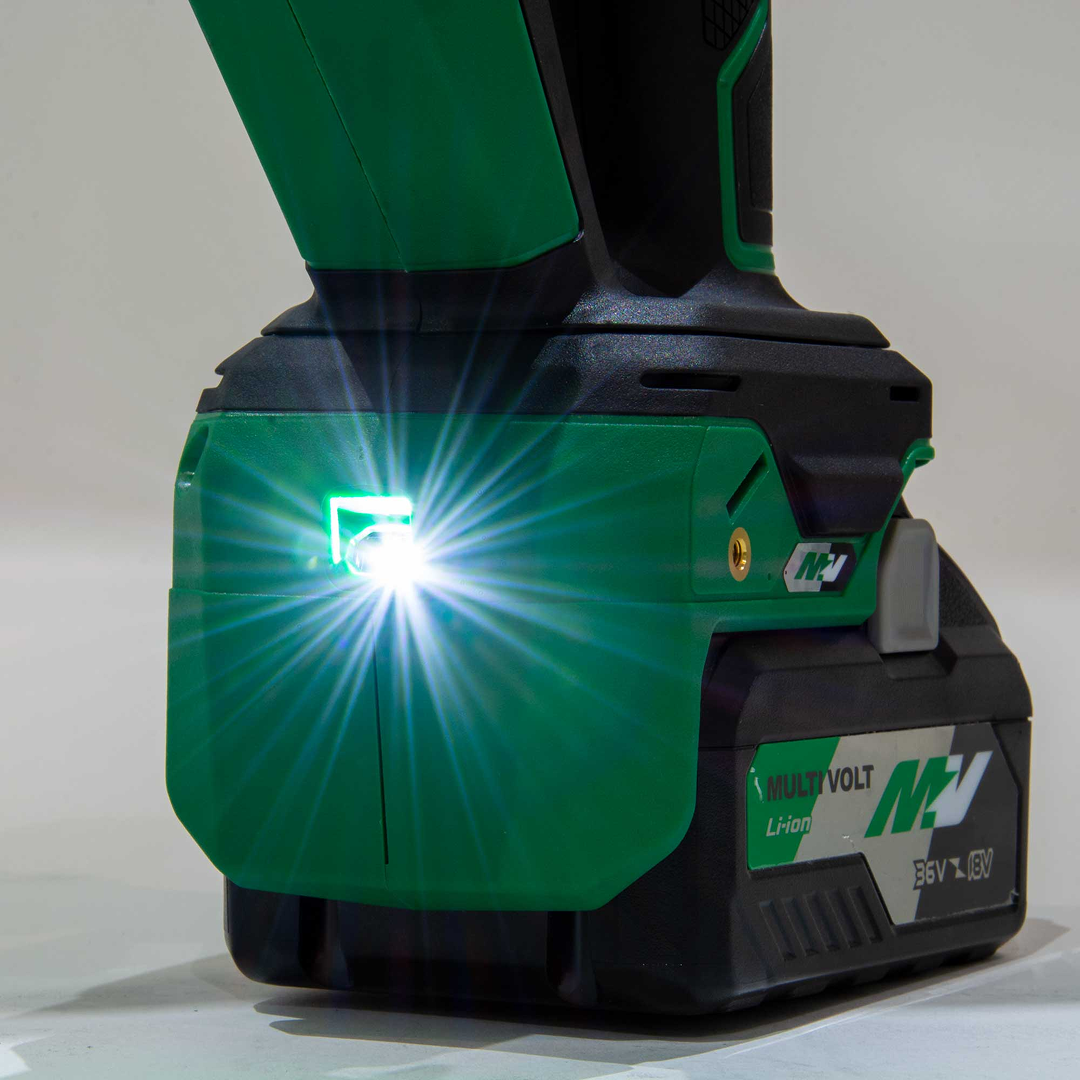

• Integrated LED work light improves visibility in low-light work environments
• Compatible with optional dust extraction system for cleaner operation
• Works with all 36V MultiVolt™ batteries and optional ET36A AC Adapter
• Lightweight 6.4 lb tool body reduces user fatigue during extended use

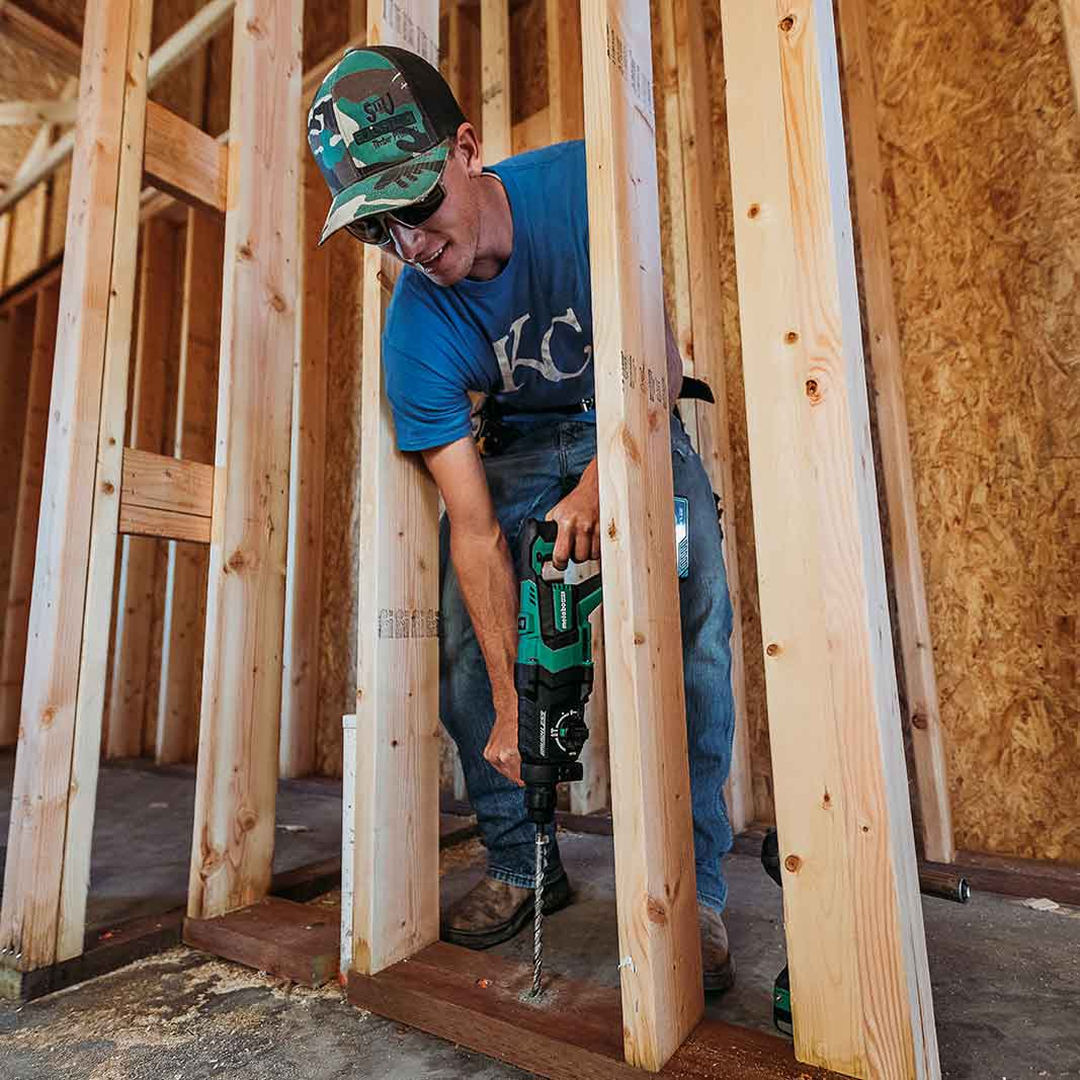

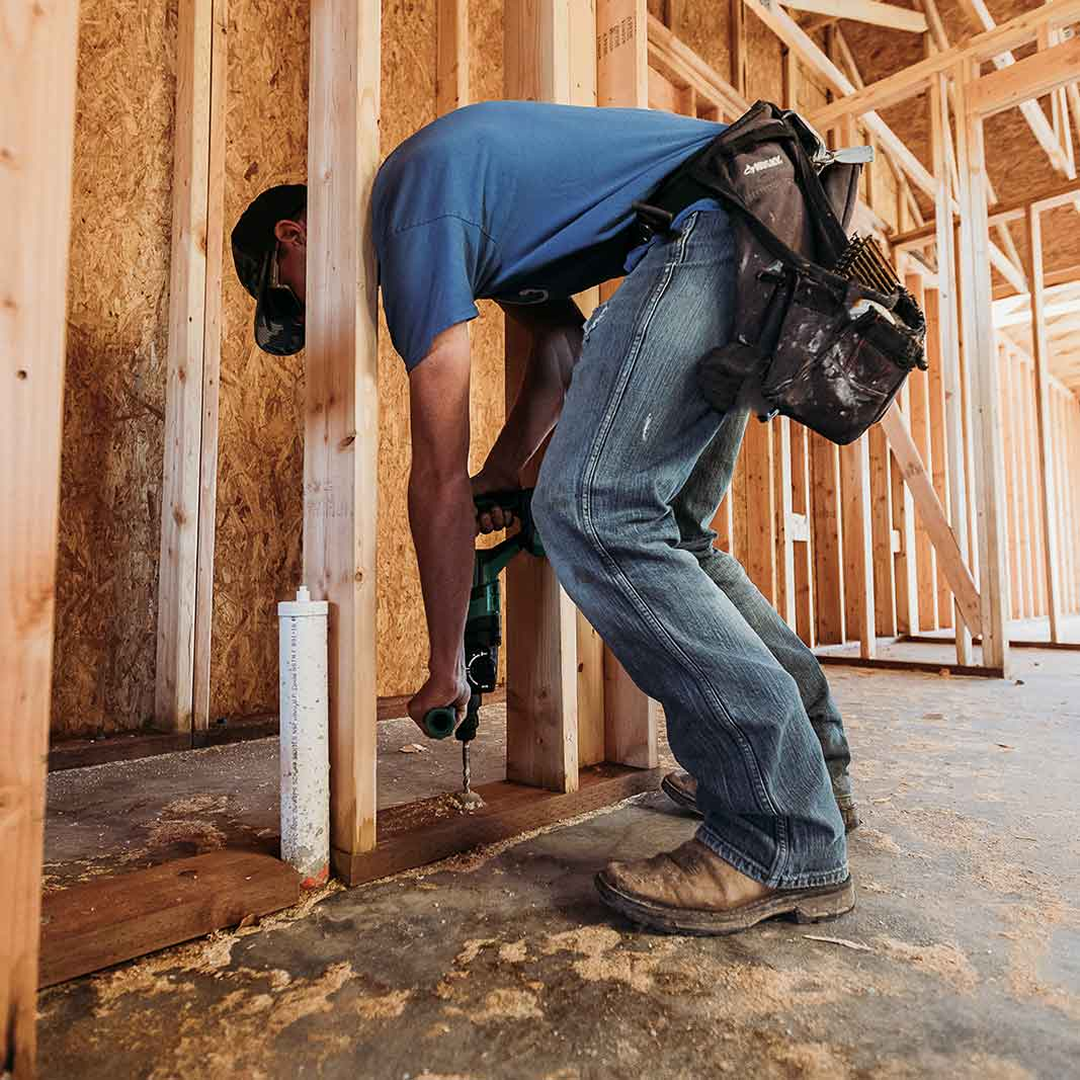

• Ideal for concrete drilling, masonry work, anchor installation, demolition, plumbing, electrical, and construction applications

Specifications

• Model: DH3628DDM
• Voltage: 36V
• Motor Type: Brushless

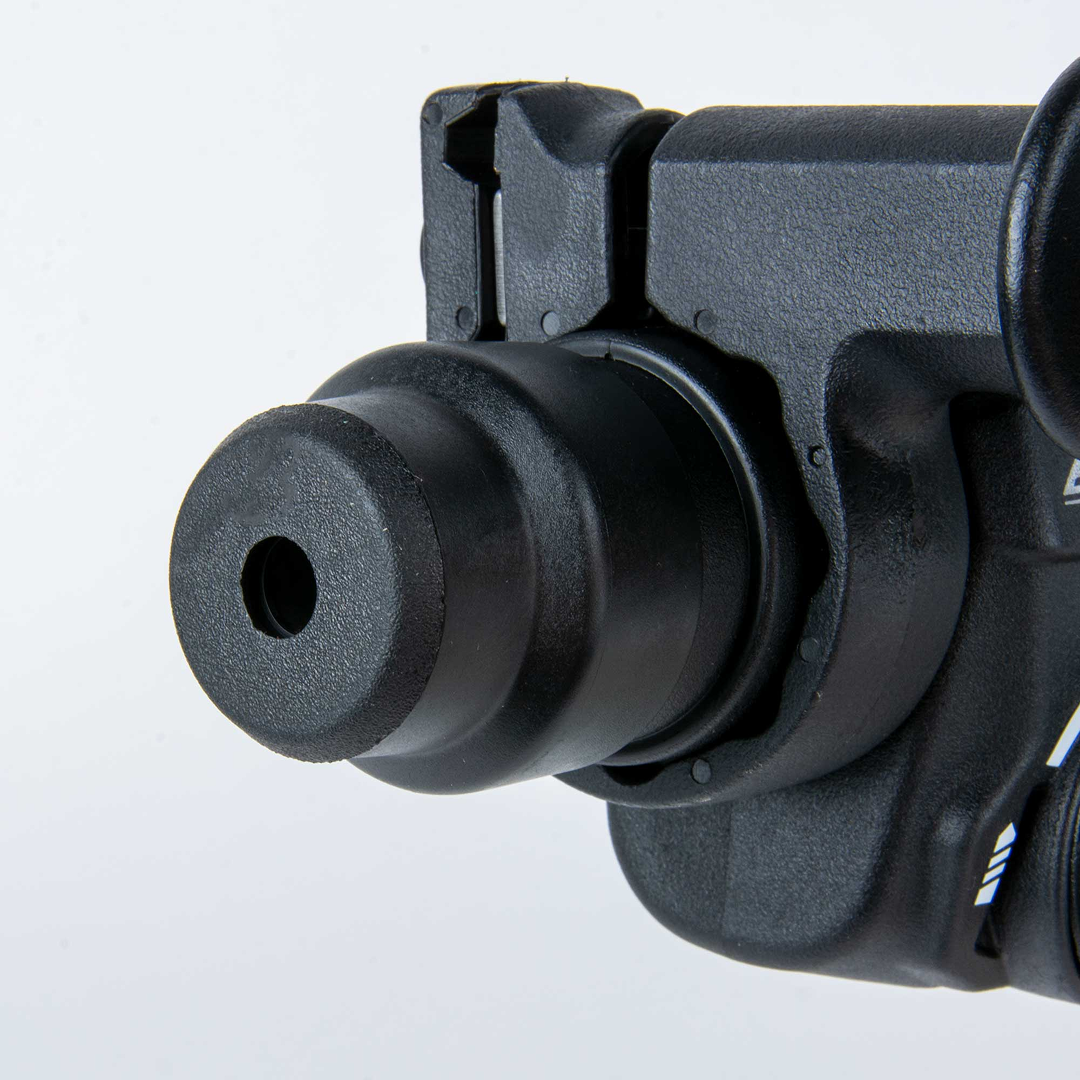

• Bit Shank: SDS Plus
• Power Source: DC
• Operating Modes: Hammer Drilling / Chipping / Drilling
• No-Load Speed: 0–950 RPM
• Impact Rate: 0–4,300 BPM
• Impact Energy: 2.3 ft-lbs
• Concrete Capacity: 1-1/8"
• Steel Capacity: 1/2"
• Wood Capacity: 1-1/4"
• Variable Speed Trigger: Yes
• Speed Control: 2-Speed
• Auto Stop Mode: Equipped
• LED Work Light: Equipped
• Tool Length (with 36V 4.0Ah Battery): 17-9/32"
• Tool Width: 3.3"
• Tool Height: 9.1"
• Weight (Tool Body Only): 6.4 lbs
