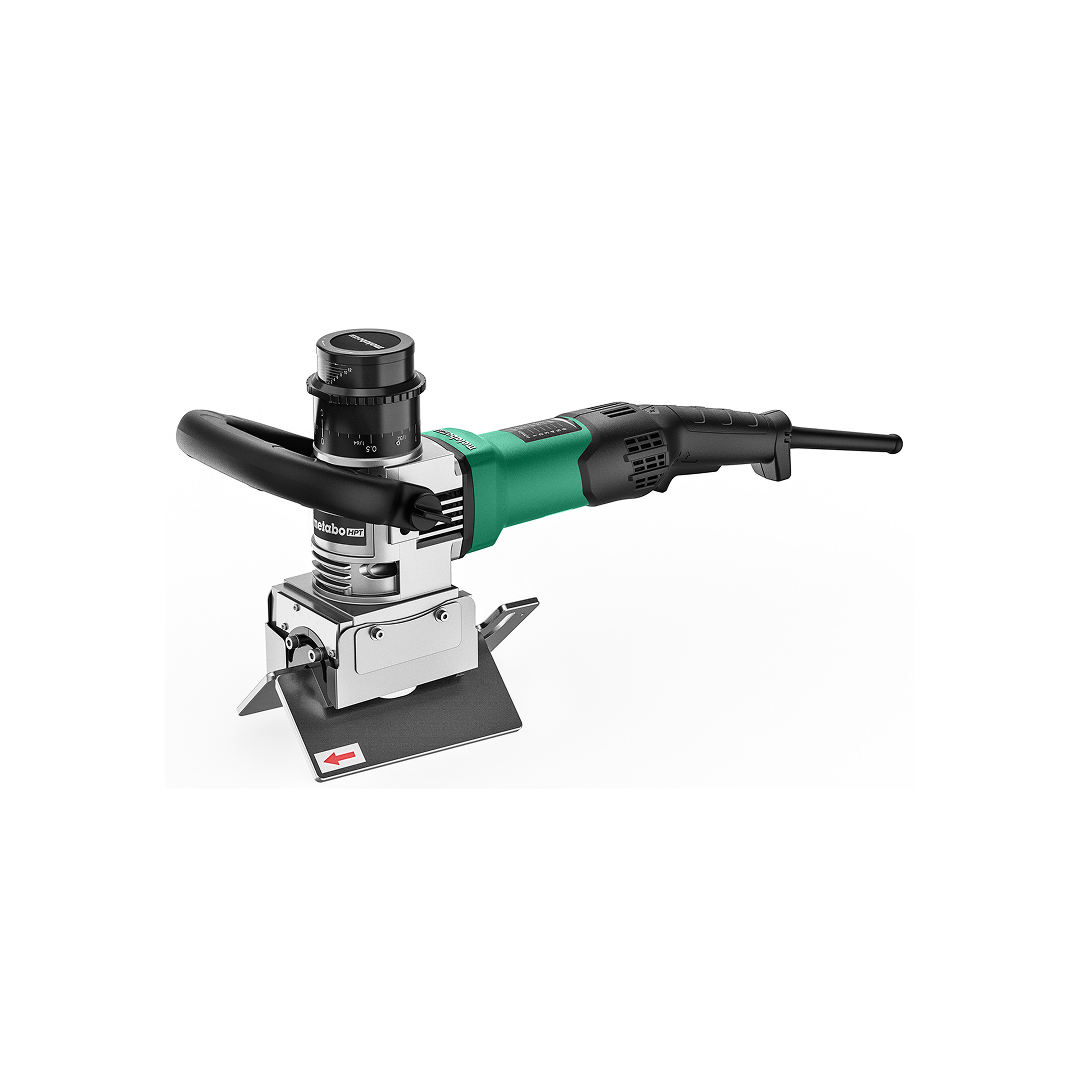

5/8" KFMVP 17-15 F Metal Beveling Tool For Metal

The Metabo HPT KFMVP 17-15 F 5/8" Metal Beveling Tool is a premium professional-grade beveling machine engineered for fast, accurate, and efficient weld preparation on steel plates, pipes, and structural metal components. Designed and manufactured in Germany, this high-performance tool is powered by a 1,700W motor with a variable speed range of 6,200–12,000 RPM, allowing users to optimize cutting performance for a wide variety of materials and applications. Capable of producing chamfer angles from 0° to 90° with a maximum 5/8" (15 mm) bevel height at 45°, the KFMVP 17-15 F is the ideal solution for fabrication shops, pipeline construction, structural steel fabrication, shipbuilding, and industrial manufacturing.

Engineered for precision and long-term durability, the KFMVP 17-15 F features a universal milling head with three indexable carbide inserts that produce clean, consistent bevels while transferring heat into the metal chips rather than the workpiece, reducing heat distortion and material stress. The innovative One-Touch Controller enables tool-free cutting depth adjustment in 0.1 mm (0.004") increments, ensuring exceptional accuracy with minimal setup time. Advanced Electronic Speed Stabilization maintains nearly constant speed under load, while electronic soft start and restart protection improve safety and operational control. An ergonomic rear rat-tail handle with a non-locking switch automatically stops the motor when released, while the adjustable front loop handle provides excellent control and comfort in multiple working positions.

Key Features

• Powerful 1,700W motor delivers outstanding performance for professional metal beveling applications.
• Variable speed control (6,200–12,000 RPM) allows optimal cutting performance for different materials.
• Produces chamfer angles from 0° to 90° for versatile weld preparation.
• Maximum 5/8" (15 mm) bevel height and 13/16" (21 mm) bevel width at 45°.
• Universal milling head with three indexable carbide inserts delivers clean, precise bevels.
• Heat transfers into metal chips rather than the workpiece, reducing thermal distortion.
• One-Touch Controller enables tool-free cutting depth adjustment in 0.1 mm (0.004") increments.
• Electronic Speed Stabilization maintains consistent speed under heavy loads.
• Electronic Soft Start provides smooth startup with reduced torque reaction.
• Restart Protection prevents accidental startup after power interruptions.
• Ergonomic rear rat-tail handle with non-locking safety switch enhances operator control.
• Adjustable front loop handle improves stability and comfort in multiple working positions.
• Ideal for weld seam preparation, structural steel fabrication, pipeline work, shipbuilding, and industrial metalworking.

Specifications

• Model: KFMVP 17-15 F
• Tool Type: Variable Speed Metal Beveling Tool
• Rated Input Power: 1,700 W
• Output Power: 880 W
• Variable Speed: 6,200–12,000 RPM
• Edge Type: Chamfer
• Chamfer Angle Range: 0°–90°
• Maximum Chamfer Width (45°): 21 mm (13/16")
• Maximum Chamfer Height (45°): 15 mm (19/32")
• Cutting Depth Adjustment: 0.1 mm (0.00394")
• Minimum Outer Curve Diameter: 100 mm (3-15/16")
• Weight (Without Power Cable): 6.3 kg (13.8 lbs)
• Cable Length: 3.9 m (13 ft)
