Aardwolf Electric Vacuum Lifter AEVLP8-1000

Name: Aardwolf Electric Vacuum Lifter AEVLP8-1000
Brand: Skyline Stone Products
SKU: AEVLP8-1000
Price: 12623.95 USD
Availability: InStock

$12,623.95

Sale Sold out

Shipping calculated at checkout.

SKU: SKU: AEVLP8-1000

Engineered Tools for Professionals
Expert Fabrication Guidance
Nationwide Shipping You Trust

Trusted by Industry Fabricators

Money Back Guarantee
Best Price Guarantee
100% payment protection

Description

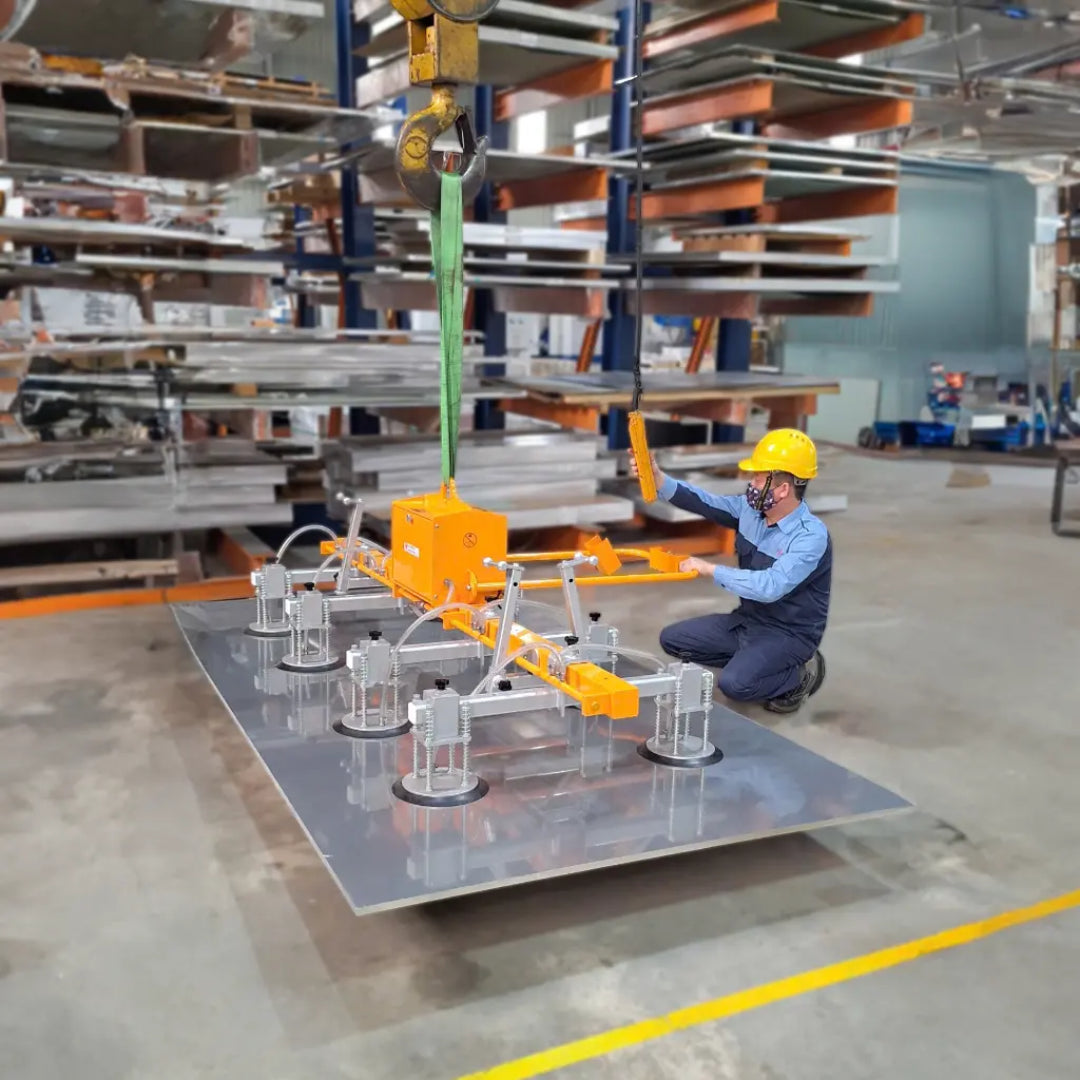

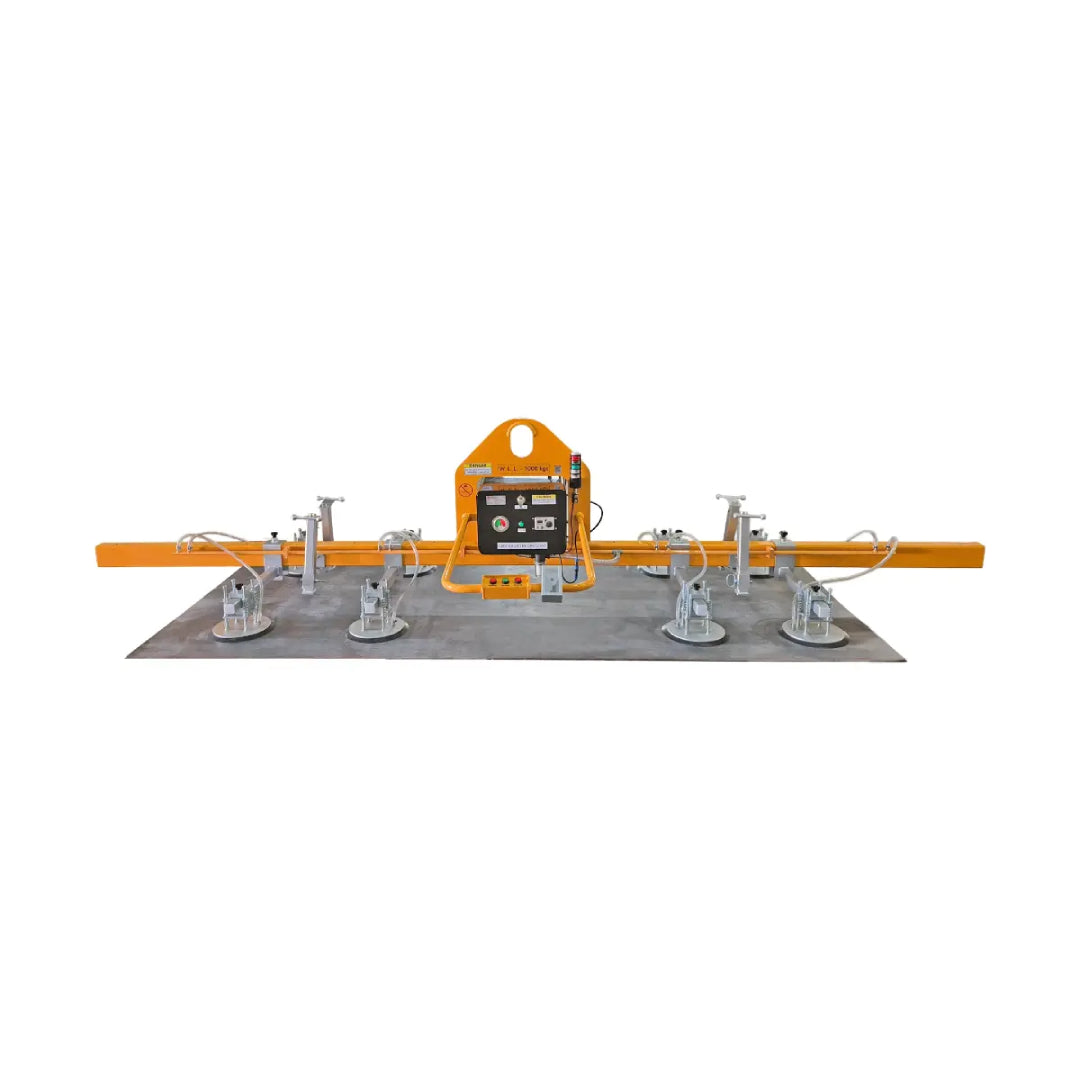

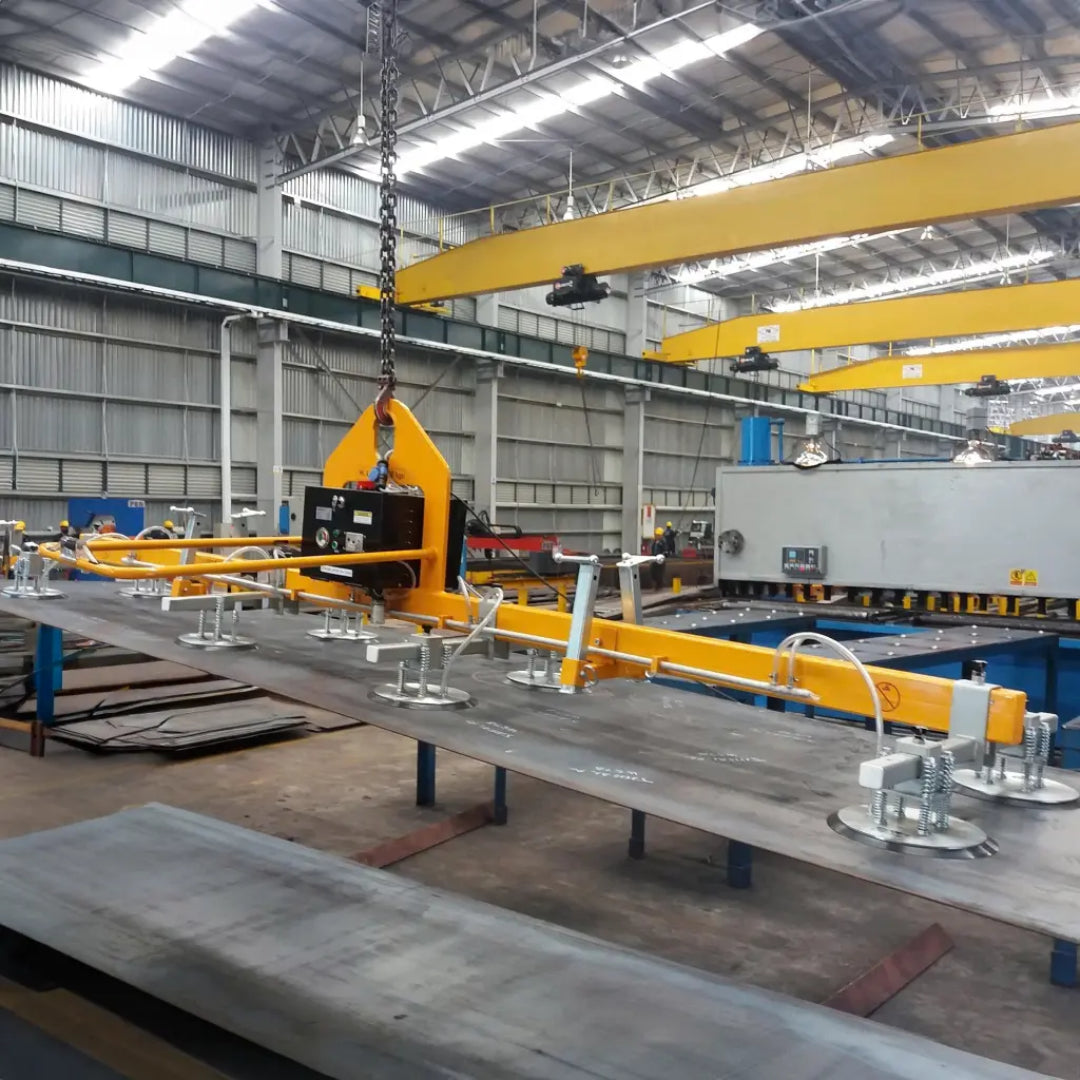

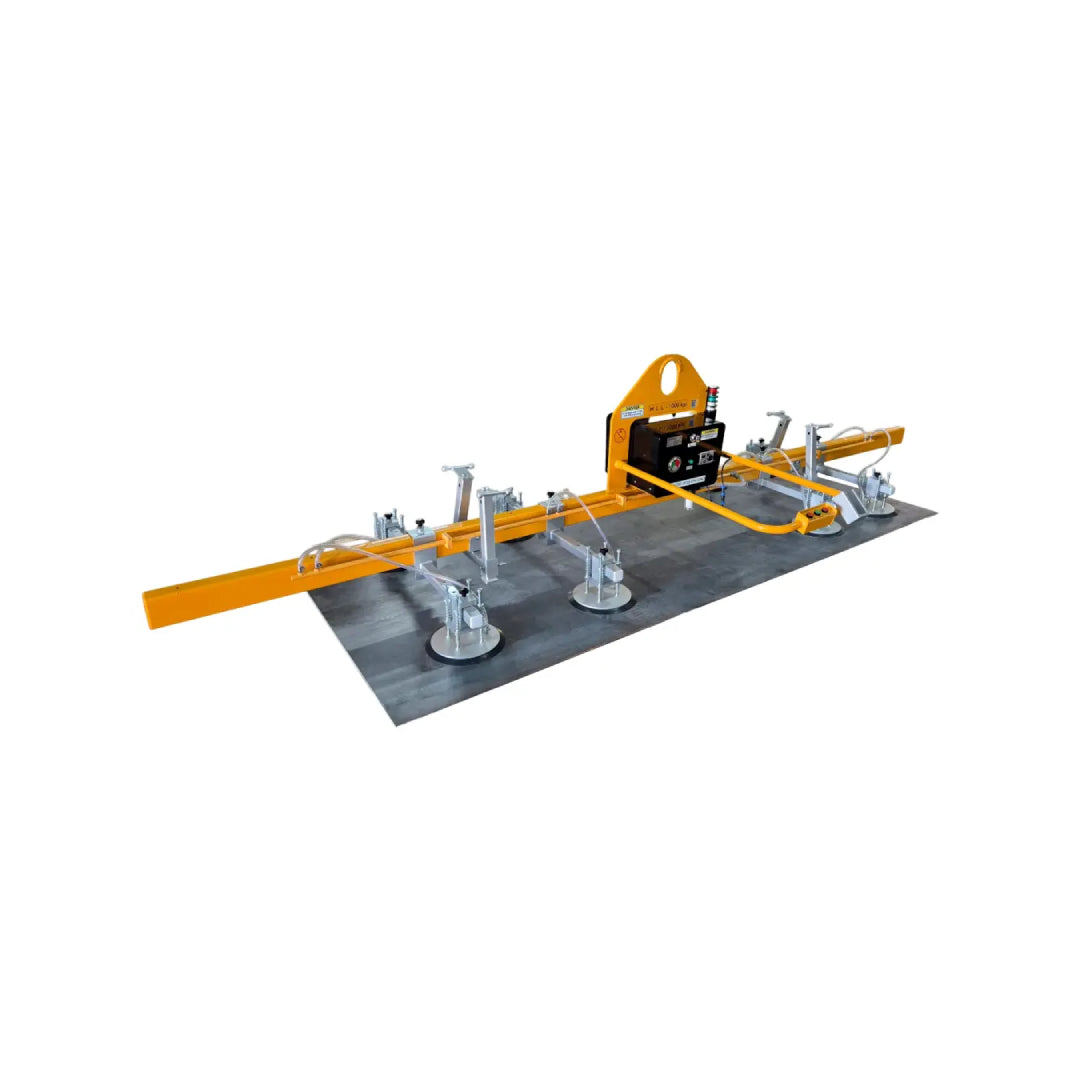

The Aardwolf Electric Vacuum Lifter is designed for lifting flat, non-porous materials such as metal sheets. It uses an electric vacuum pump and is available in configurations with 1, 4 or 8 pads. The main beam and vacuum pad positions are adjustable to accommodate different sheet sizes. Depending on the model, the system supports loads of up to 2000 kg and sheet dimensions up to 236.2″ × 70.9″.

Each unit is equipped with a pressure monitoring system, automatic vacuum pump reactivation in case of pressure loss, and audio-visual alerts for safe operation. It is suitable for use in workshops and industrial environments.

Features

Adjustable Beam and Pad Positions: Suitable for handling different sheet sizes.
Lifting Capacities: Available models support 500 kg, 1000 kg, or 2000 kg loads.
Safety Alerts: Audio-visual indicators notify the operator when pressure drops.
Automatic Pump Activation: The system automatically restarts the vacuum pump if pressure drops below the safe level.
Battery-Powered Alarm: Runs on a 3.7V LiPo battery, up to 7 hours continuous use and 720 hours standby.
Electric Motor: 3-phase 380V power input with vacuum flow rates up to 8.7 m³/h, depending on model.

Specifications

AEVLP8-1000	Imperial
Number of pads	8
Pad diameter	11 3/4"
Working load limit	2204 lb

Battery information for the alarm system

Power supply	3.7V LiPo battery
Battery capacity	2000 mAh x 1
Adapter	DC 5V-1A
Standby time	720 hours
Charging cycle	1000 times
Charging time	2 hours
Non-stop working time	7 hours
6-month warranty	-

Motor information

Input supply	AC 380-3Phase 50/60Hz
Vacuum flow rate	4.1/4.7 m3/hour
