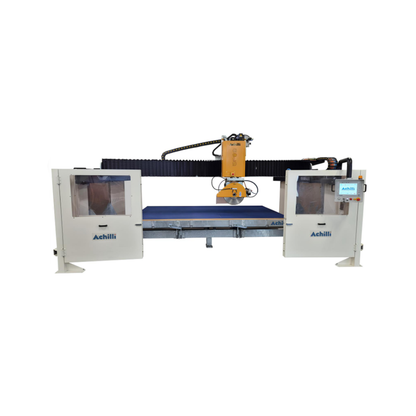

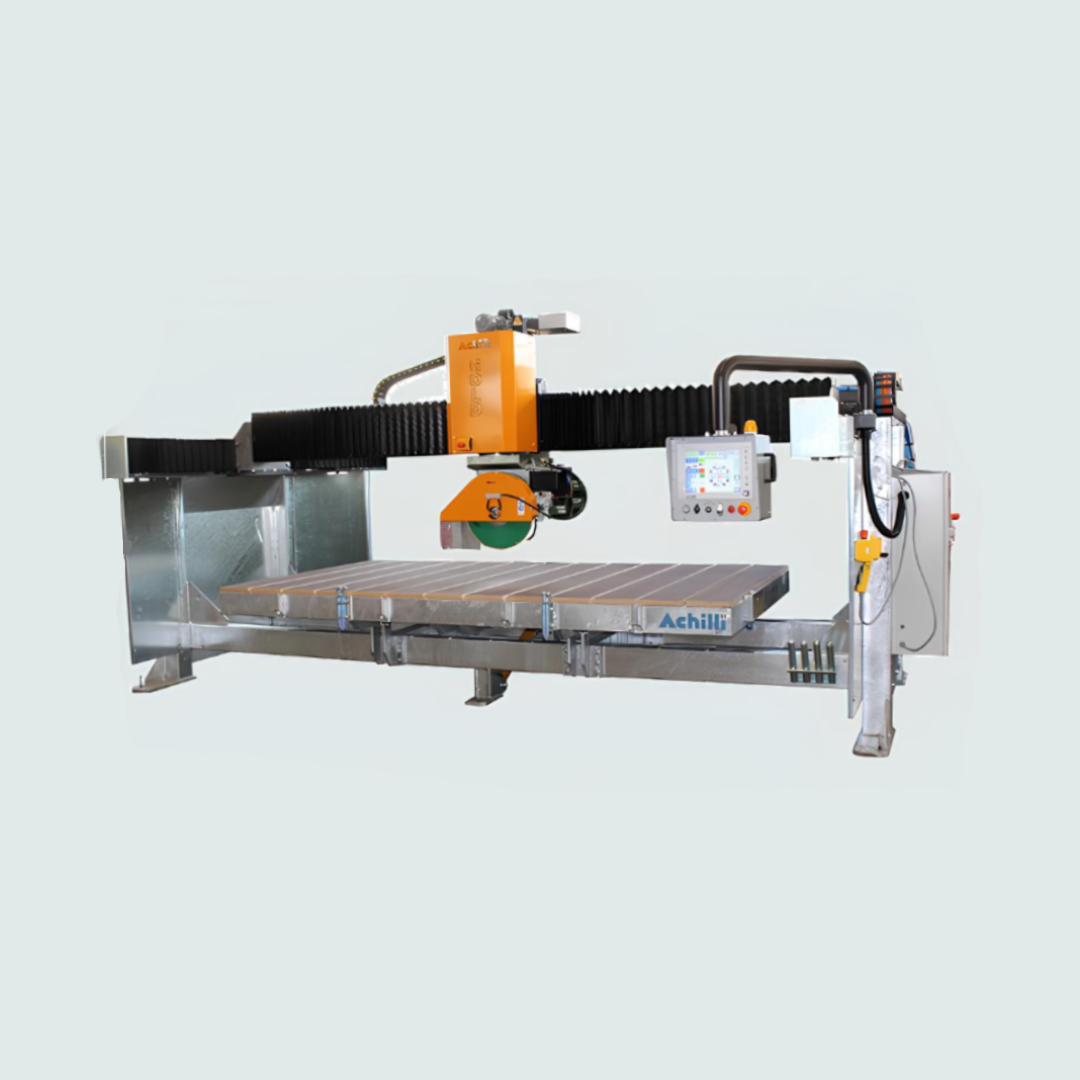

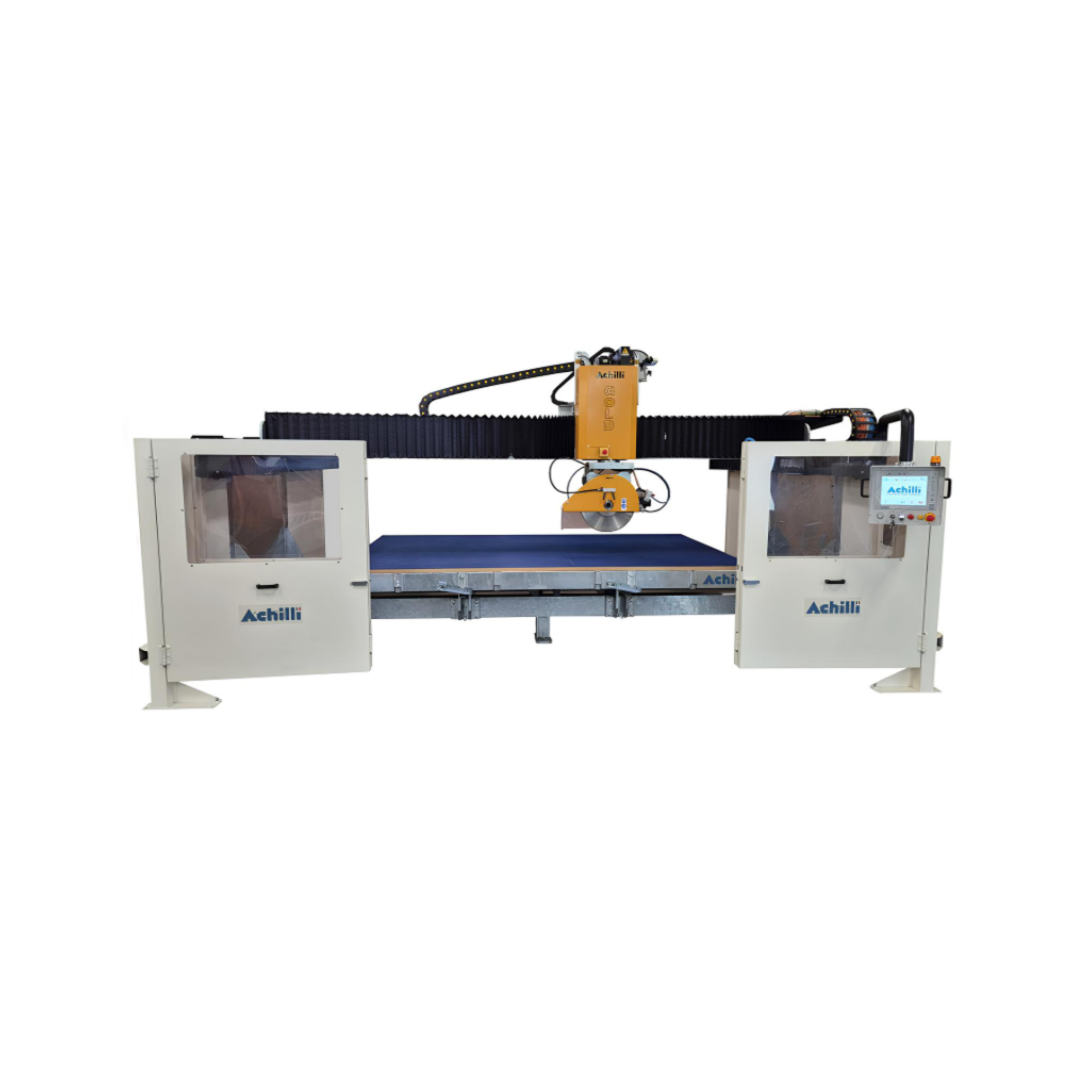

ACHILLI GOLD - CNC BRIDGE SAWS MONOBLOCK BRIDGE SAW GOLD HIGH PRECISION 4+1 AXIS MONOBLOCK BRIDGE SAW WITH BRUSHLESS MOTORS

The Achilli GOLD Monoblock Bridge Saw is a high-precision CNC stone cutting machine designed for demanding fabrication of stone, engineered stone, ceramics, granite, marble, and concrete slabs. Built with a durable monoblock steel frame and advanced CNC control, this saw delivers accurate, efficient, and versatile cutting performance ideal for industrial workshops and production environments.

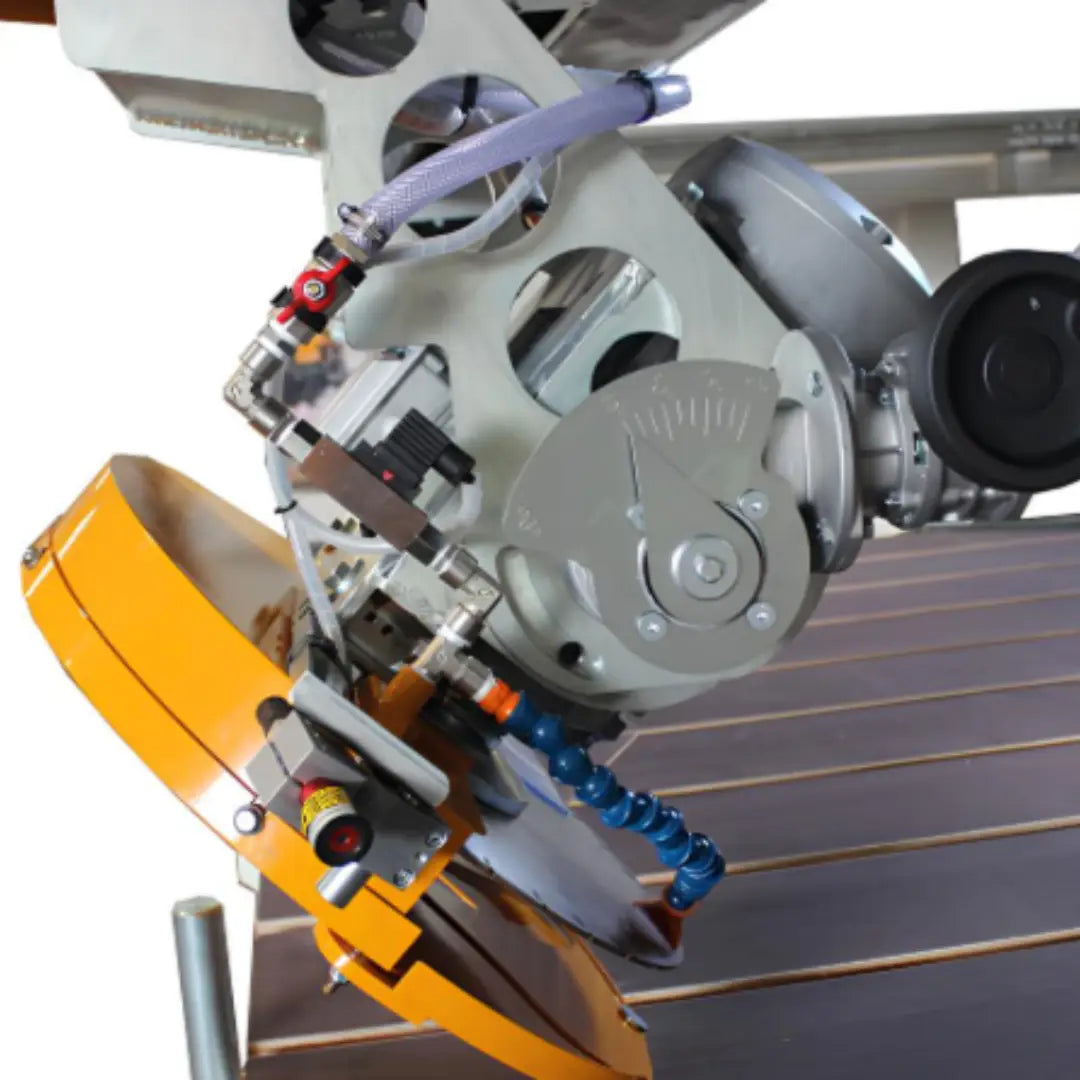

Powered by brushless motors with linear guides and recirculating ball slides, the GOLD saw offers smooth, stable motion across multiple axes and reliable operation under load. Its automatic head rotation (0°–360°) and tilting capability (0°–50° and up to 90°) allow for a wide range of cuts from straight cuts and angle cuts to complex geometries, all programmable through the CNC interface.

The CNC system features a 12″ touchscreen display for easy programming and execution of cutting, drilling, and milling cycles. A laser alignment device ensures accurate blade placement, while a remote pendant control provides ergonomic operator control close to the workpiece if needed.

Key Features

• CNC-controlled 4- or 5-axis cutting with automatic head rotation and tilt for precision shaping.
• Brushless motors and linear guides with recirculating ball slides for high accuracy and durability.
• Monoblock frame construction for rugged stability and simple installation (no foundation required).
• Automatic and semi-automatic operating modes for flexible use.
• CNC parametric shape generation (rectangle, hexagon, circle, “L” kitchen top, trapezoid, etc.).
• Laser cutting guide for optimized alignment and cutting accuracy.
• Remote pendant control for convenient on-site adjustments.

Applications

• Straight and angled slab cutting for countertops, floors, facades, and architectural elements.
• Precision drilling and milling cycles with optional cutters.
• Artistic profiling, decorative frames, recess drains, and custom stone shapes.

Standard Technical Highlights

• Head rotation: 0°–360°; Head tilt: 0°–50° and up to 90°
• Automatic CNC programming via touchscreen
• Worktable options: fixed, tilting, or with replaceable boards
• Optional hydraulic tables, pop-up rollers, and a water tank with a recycle pump
