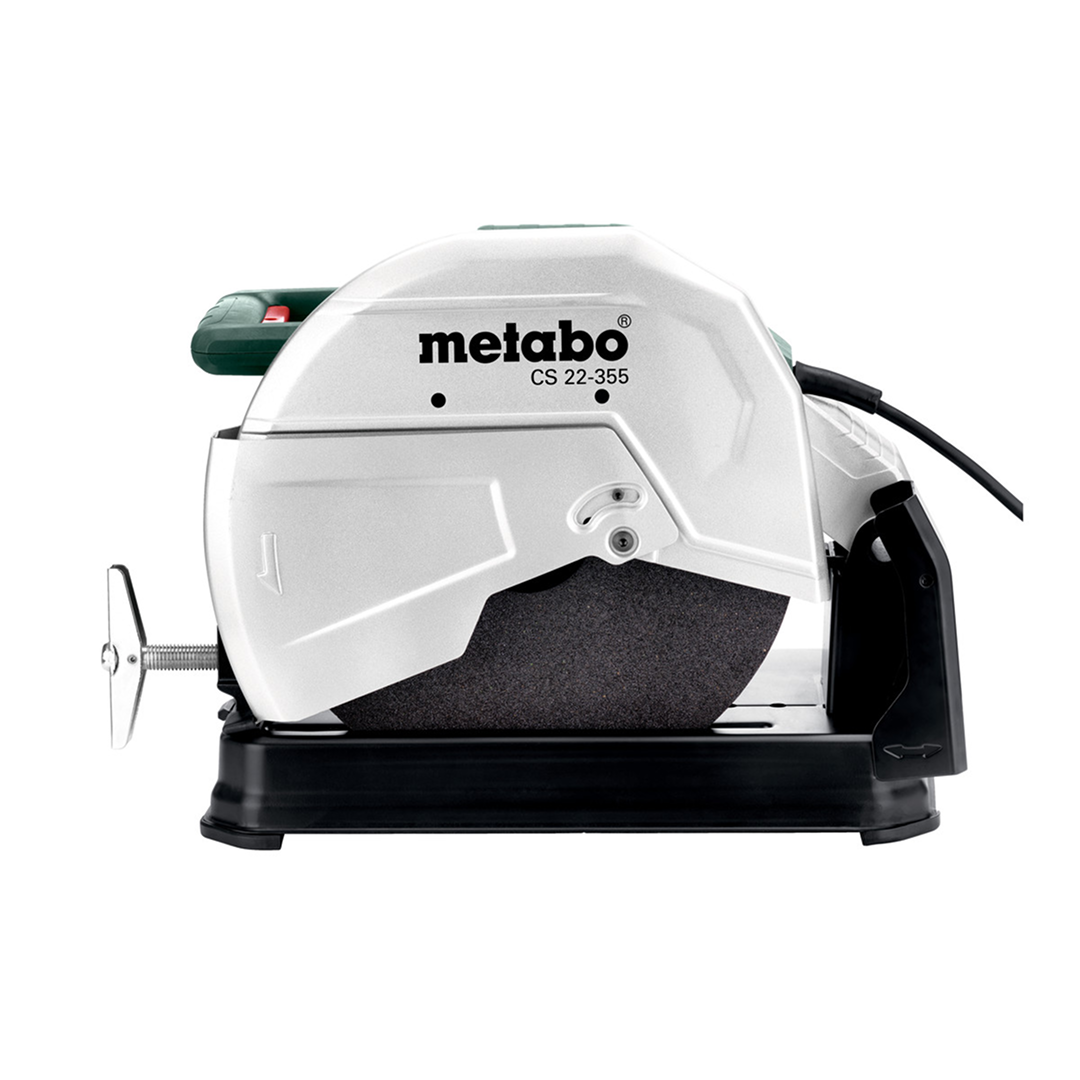

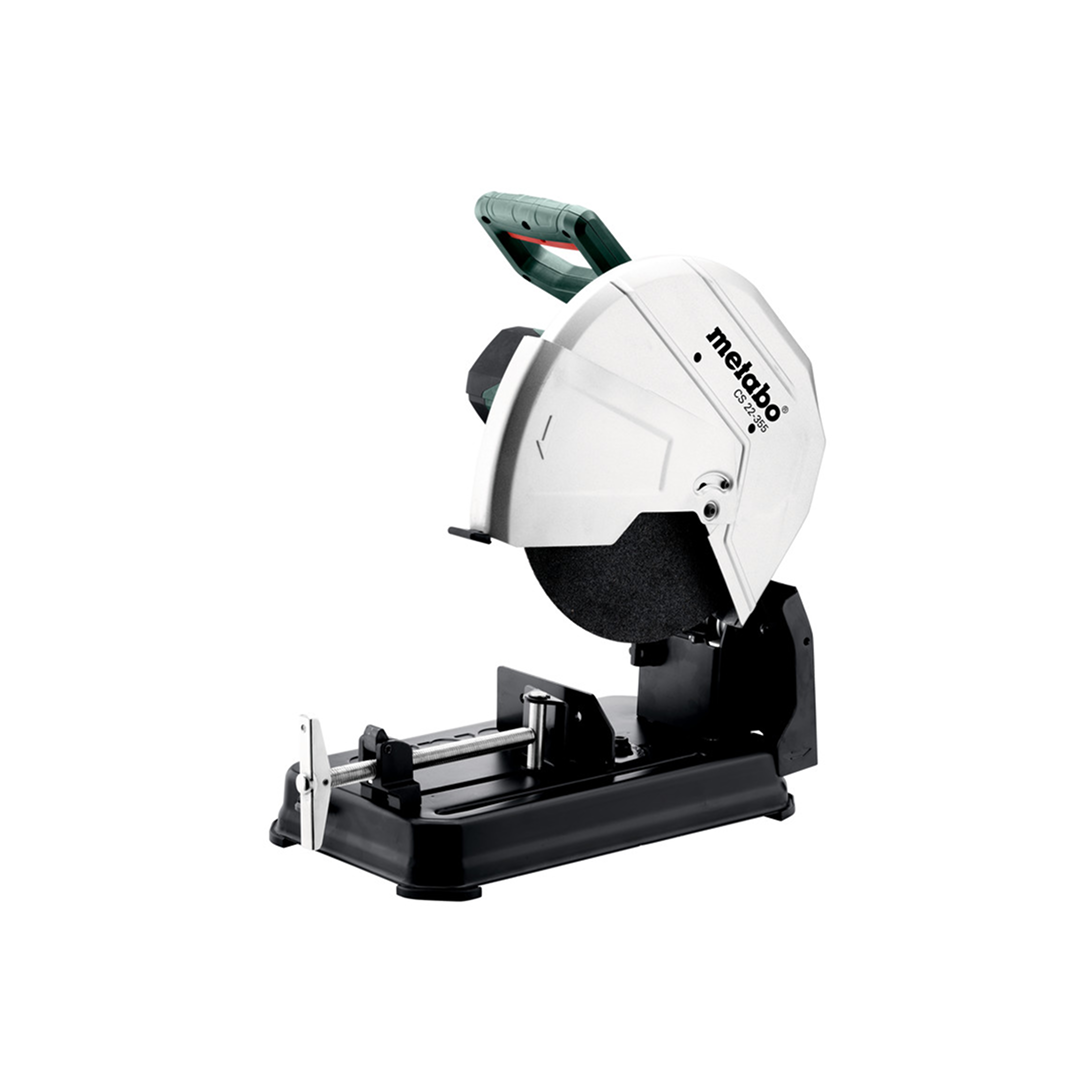

CS 22-355 (601786420) Metal Chop Saw

The Metabo CS 22-355 (601786420) Metal Chop Saw is a heavy-duty professional metal cutting saw designed for fast, accurate, and efficient cutting of steel, iron, non-ferrous metals, pipes, tubes, rods, and structural profiles. Powered by a robust 15 Amp (2300W) motor, this high-performance chop saw delivers a 3,700 RPM no-load speed, providing the cutting power needed for demanding fabrication, construction, metalworking, and industrial maintenance applications. Its large cutting capacity and adjustable miter system make it ideal for producing clean, repeatable cuts on a wide variety of metal materials.

Built for durability and operator safety, the CS 22-355 features a quick-clamping vise with variable miter adjustment from -15° to 45°, allowing fast and accurate angled cuts without complicated setup. The ergonomically positioned side handle delivers excellent leverage for controlled cutting, while the adjustable cutting depth limiter helps maximize cutting wheel life. A spindle lock enables quick, tool-assisted wheel changes, and multiple safety features including a swiveling blade guard, adjustable spark deflector, rubber-coated base, and safety switch to prevent accidental startup provide added protection during operation. With its rugged steel base, integrated carrying handle, and built-in transport lock, the CS 22-355 is designed for reliable performance both on the jobsite and in the workshop.

Key Features

• Powerful 15 Amp (2300W) motor delivers high cutting performance for demanding metalworking applications.
• 3,700 RPM no-load speed provides fast, clean, and efficient metal cutting.
• Ideal for cutting steel, iron, non-ferrous metals, pipes, tubes, rods, and structural profiles.
• Quick-clamping vise allows fast, secure workpiece positioning.
• Variable miter adjustment from -15° to 45° enables precise angled cuts.
• Ergonomic side handle provides improved leverage and cutting control.
• Adjustable cutting depth limiter maximizes cutting wheel life.
• Spindle lock allows quick and easy cutting wheel replacement.
• Swiveling blade guard, adjustable spark deflector, and rubber-coated base enhance operator safety.
• Safety switch helps prevent accidental startup.
• Large heavy-duty steel base provides stability during cutting operations.
• Integrated carrying handle and transport lock allow easy transportation between jobsites.

Specifications

• Model: CS 22-355 (601786420)
• Tool Type: Metal Chop Saw
• Motor: 15 Amp
• Rated Input Power: 2300 W
• No-Load Speed: 3,700 RPM
• Grinding Wheel Size (Diameter x Bore): 13-31/32" x 1"
• Maximum Round Pipe Capacity: 5-3/16"
• Maximum Square Pipe Capacity: 4-23/32" × 4-23/32"
• Maximum Rectangular Pipe Capacity: 3-15/16" × 8-3/16"
• Maximum L-Profile Capacity: 5-29/32" × 5-29/32"
• Miter Range: -15° to 45°
• Base Plate Dimensions: 17-15/16" × 10-1/16"
• Transport Height: 15-1/2"
• Weight: 37 lbs
• Cable Length: 13 ft

Applications

• Metal Cutting
• Steel Fabrication
• Pipe and Tube Cutting
• Structural Steel Work
• Construction
• Industrial Maintenance
• Metal Workshops
• Manufacturing and Repair Operations
