Fork Mounted Vacuum Lifting Attachment

$15,026.95

Sale Sold out

Shipping calculated at checkout.

SKU: SKU: FMVLA

Engineered Tools for Professionals
Expert Fabrication Guidance
Nationwide Shipping You Trust

Trusted by Industry Fabricators

Model: FMVLA FMVLA FMVLAC2

Money Back Guarantee
Best Price Guarantee
100% payment protection

Description

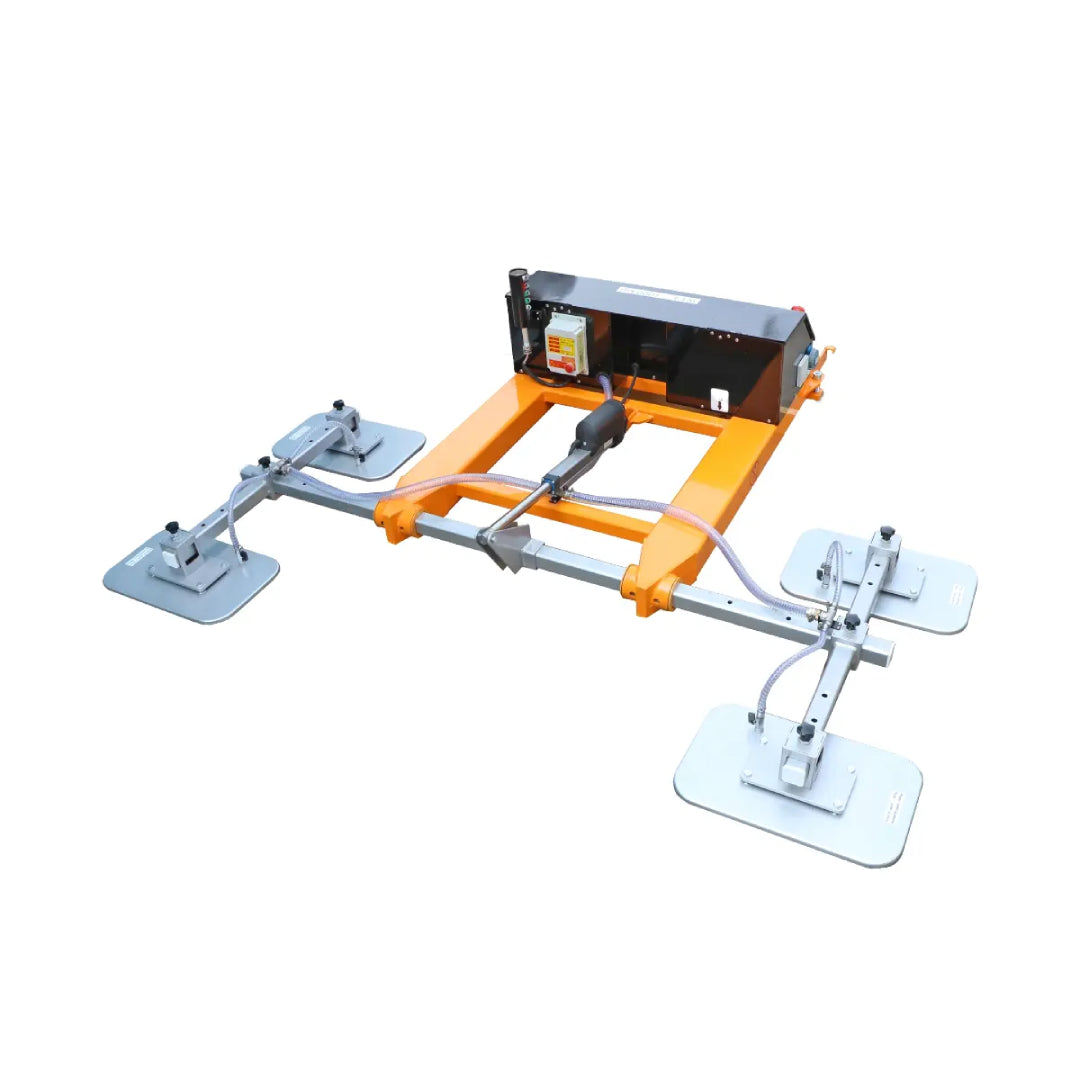

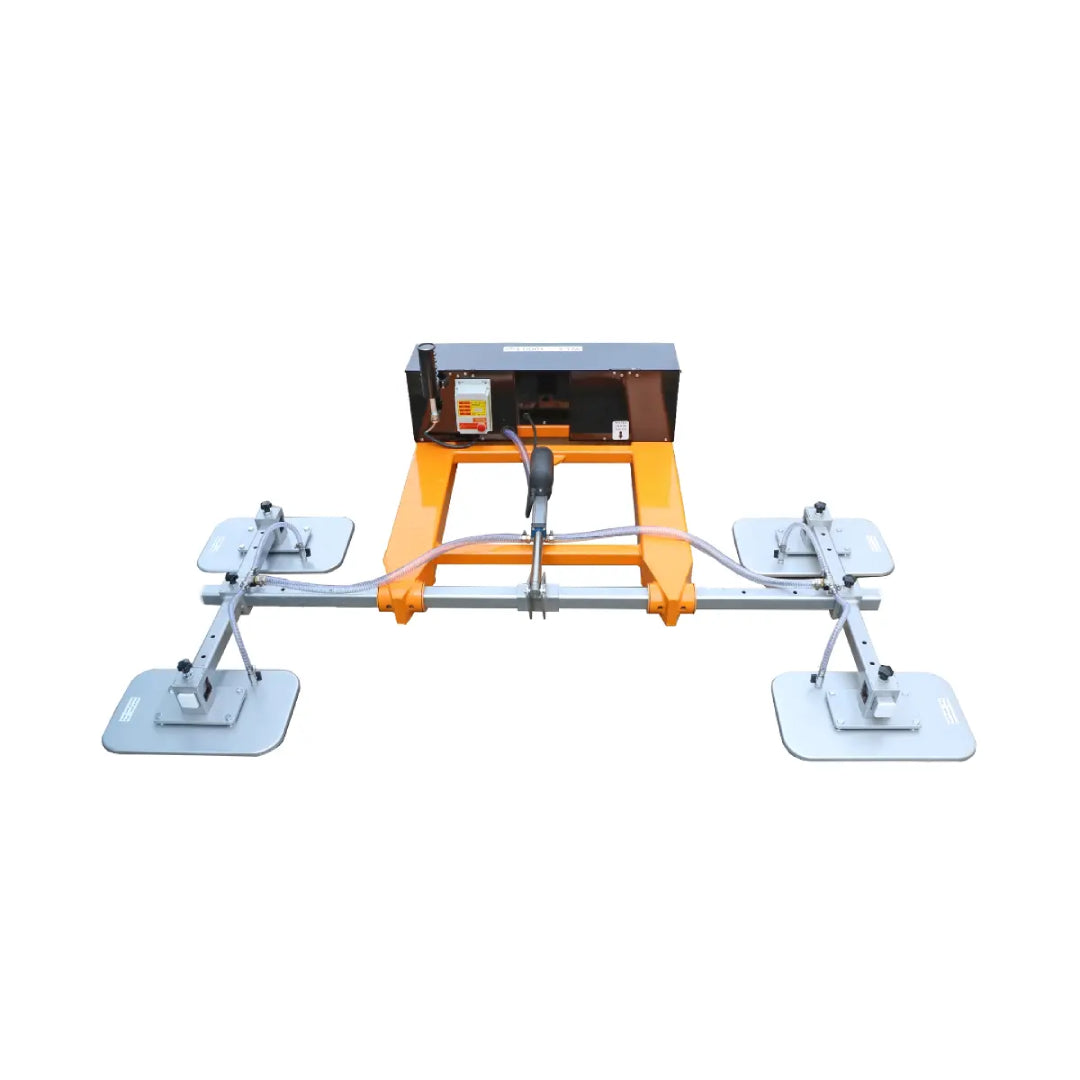

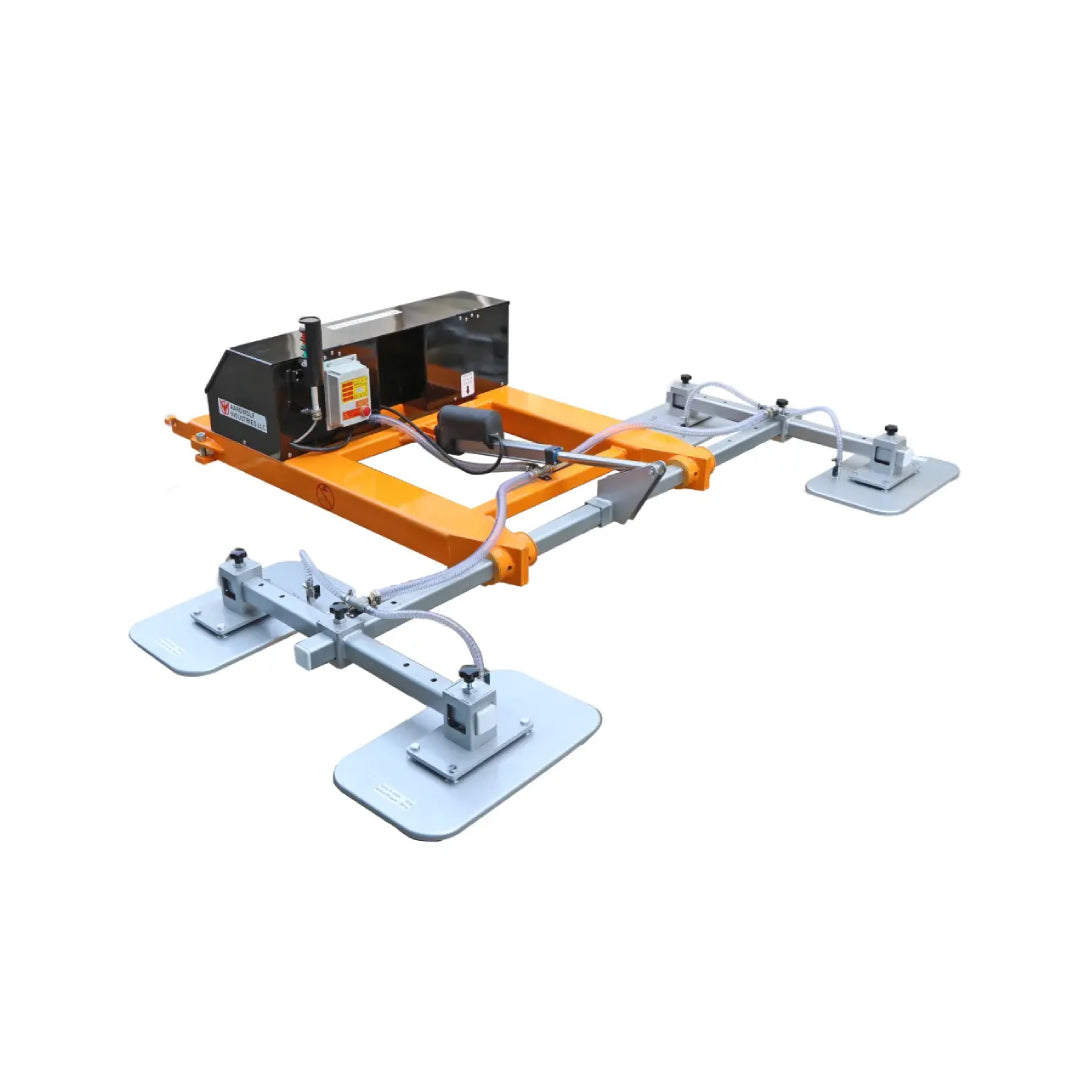

The Fork Mounted Vacuum Lifting Attachment is designed to lift and lower sheet materials. The device combines a vacuum lifter with a fork truck and remote control for handling diversified types of sheet, plate, and large panels such as glass, stone, metal, concrete, plastics, timber, and laminates.

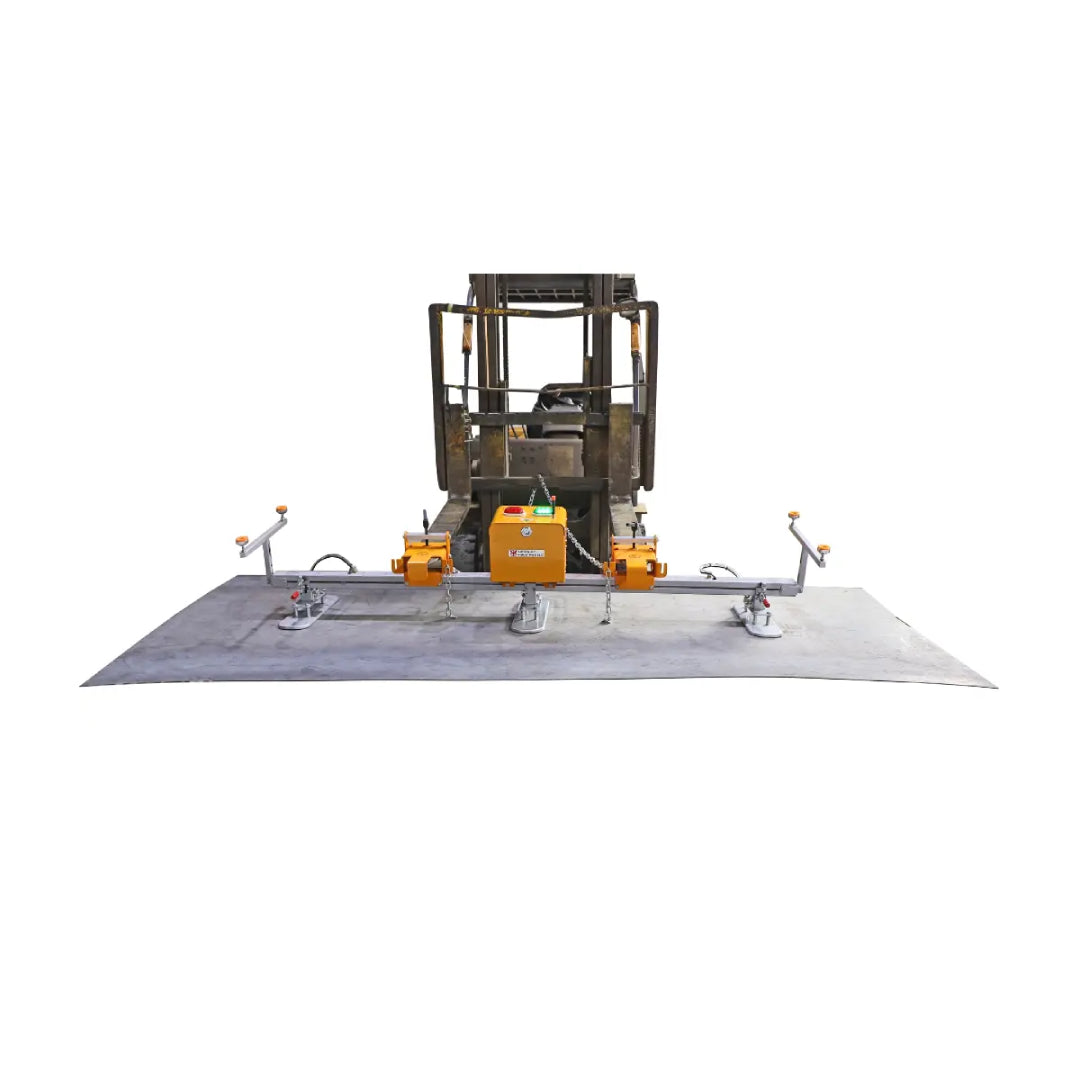

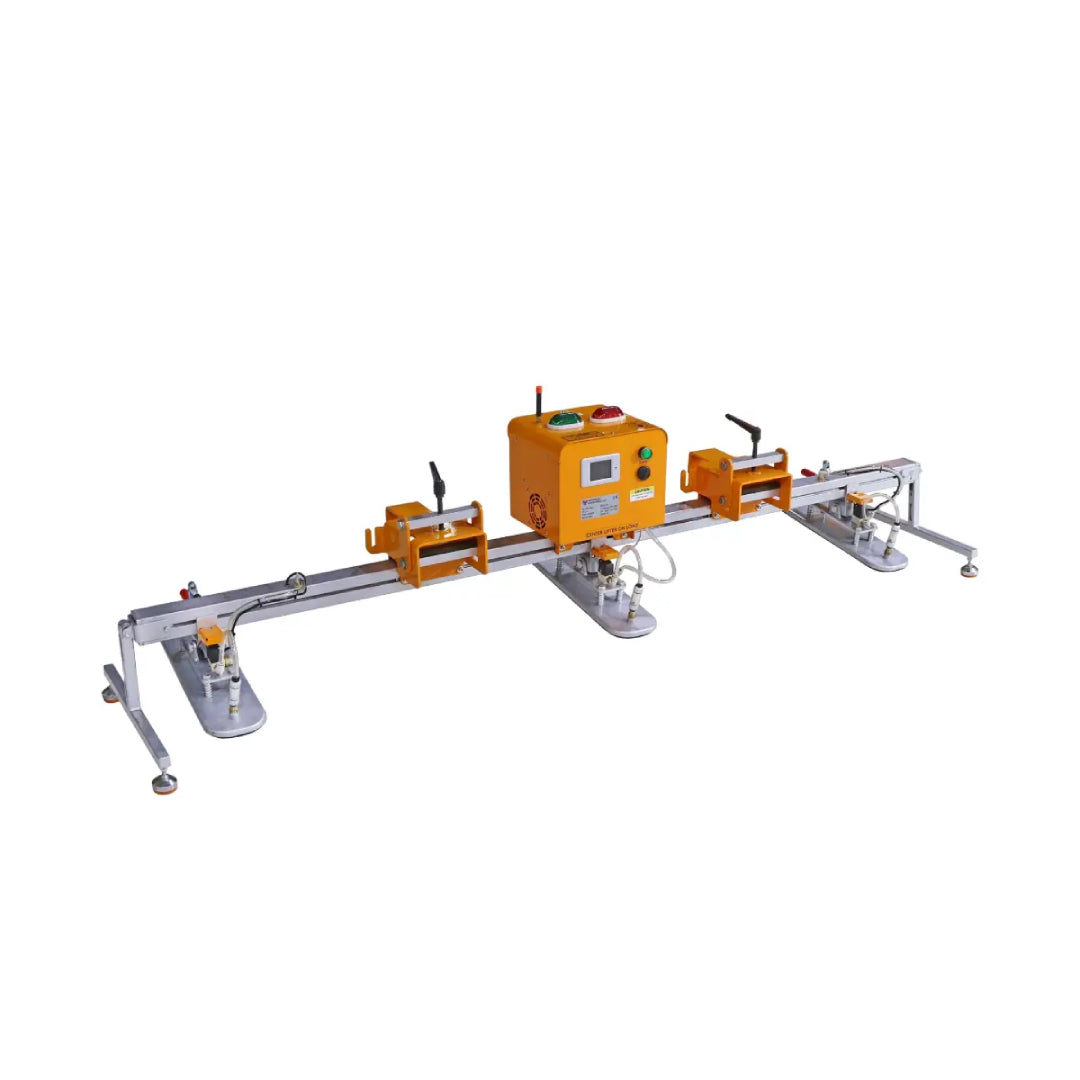

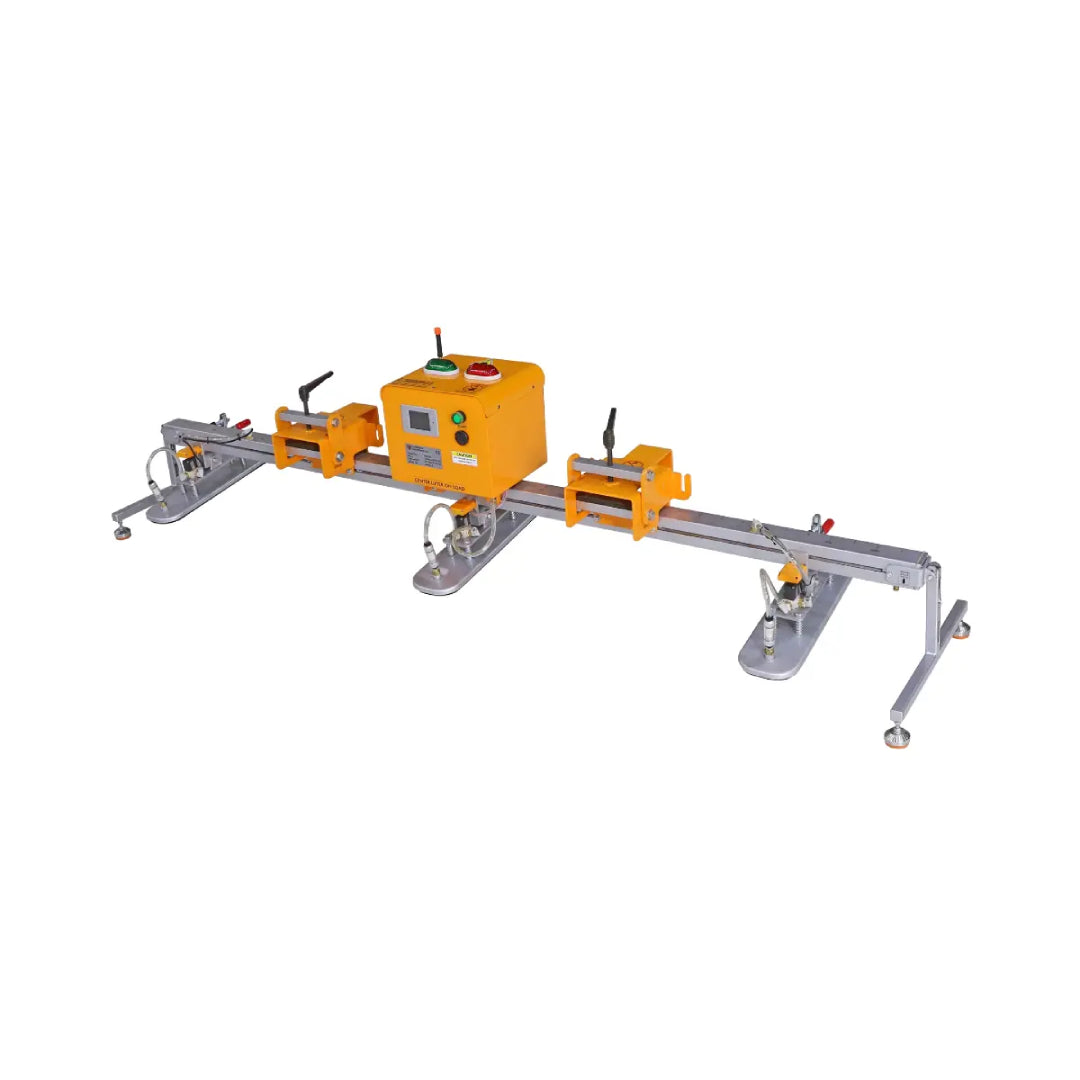

The Aardwolf Fork Mounted Vacuum Lifter (FMVLAC2) is a lightweight attachment for handling flat, non-porous materials such as stone, glass, or metal sheets. It mounts to standard forklift tines and uses a 3-pad vacuum system to lift loads up to 150 kg.

The unit features remote control operation and a control box with visual and audible indicators for monitoring vacuum pressure. FMVLAC2 is suitable for workshop and job site applications requiring forklift-mounted lifting.

FMVLA Features

Ability to tilt 90 degrees through an electrically operated remote control.
Vacuum pads can be easily adjusted.
The pressure control system automatically activates the vacuum pump once the pressure exceeds the limit.
Operated by an Australian Standard AS4991-2004 battery.
Audio/visual safety system.
Integrated with a forklift through a safe chain system.
It provides versatile lifting that is cost-effective.
It is more versatile than magnets and more productive than clamps or slings.

FMVLAC2 Features

3-Pad Vacuum System: Each pad includes its own filter and valve for effective suction.
Load Positioning and Balance: Built-in measuring scale and self-locking stand ensure stable lifting.
Easy Adjustments: Tool-free clamp adjustments for quick pad placement.
Vacuum Pressure: Monitoring Control box displays real-time pressure with audio-visual alerts.
Wireless Remote Control: Operate the system from a distance for greater safety and convenience.

Specifications

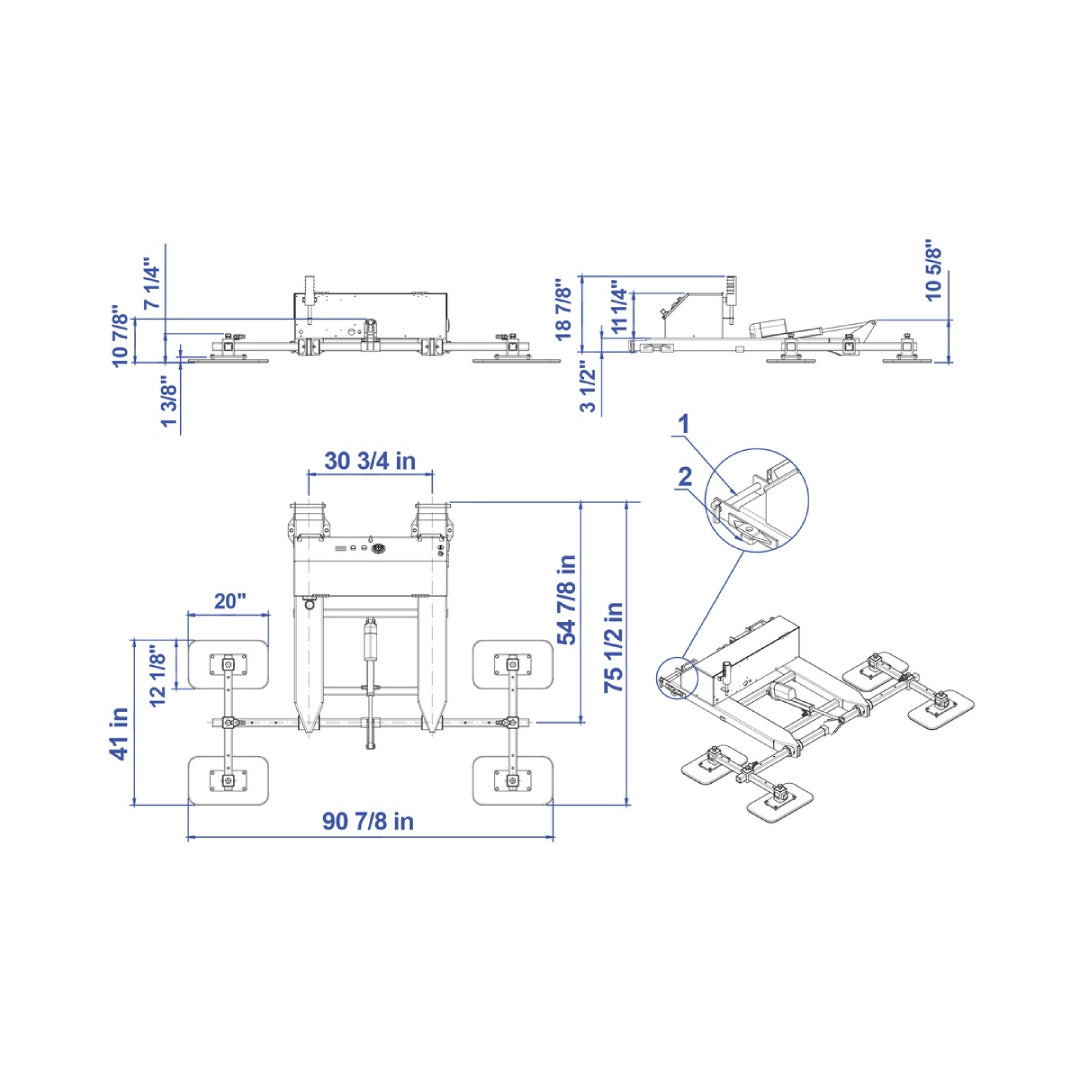

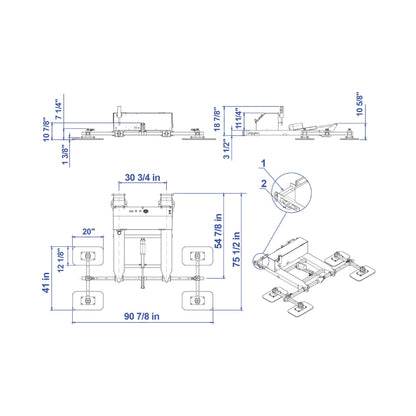

FMVLA	Imperial
Length-width of sheet material	118 1/8" - 78 3/4"
Pad sizes	19 3/4" x 11 3/4"
Working load limit	1676 lb 2204 lb
Net weight	485 lb
Gross weight	639 lb
Packaging dimensions	89 1/4" x 67 1/4" x 24 7/8"

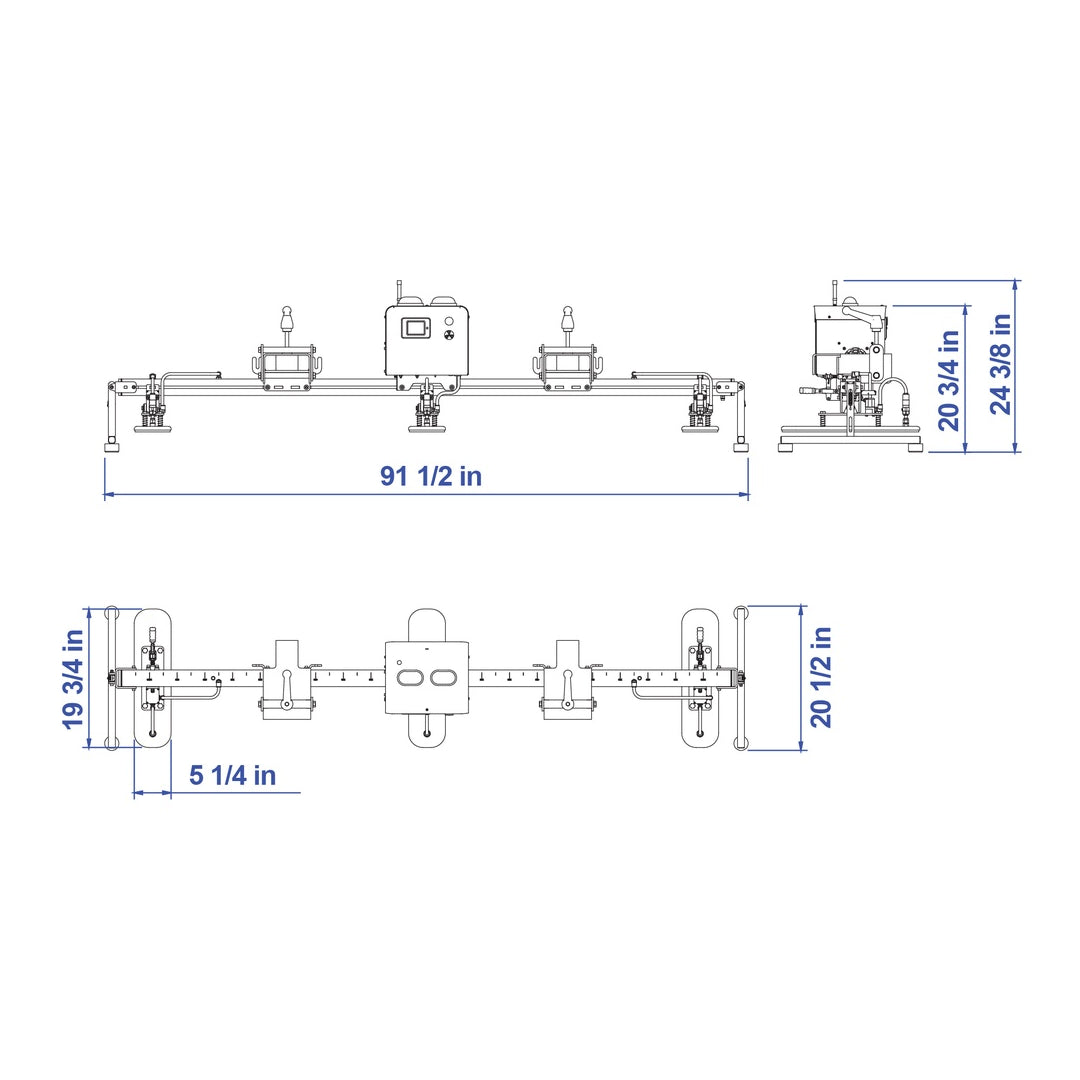

FMVLAC2	Imperial
Number of pads	3
Pad sizes	19 3/4 x 5 1/4"
Working load limit	331 lbs
Net weight	143 lbs
Gross weight	220 lbs
Packaging dimensions	94 1/8 x 23 5/8 x 29"
