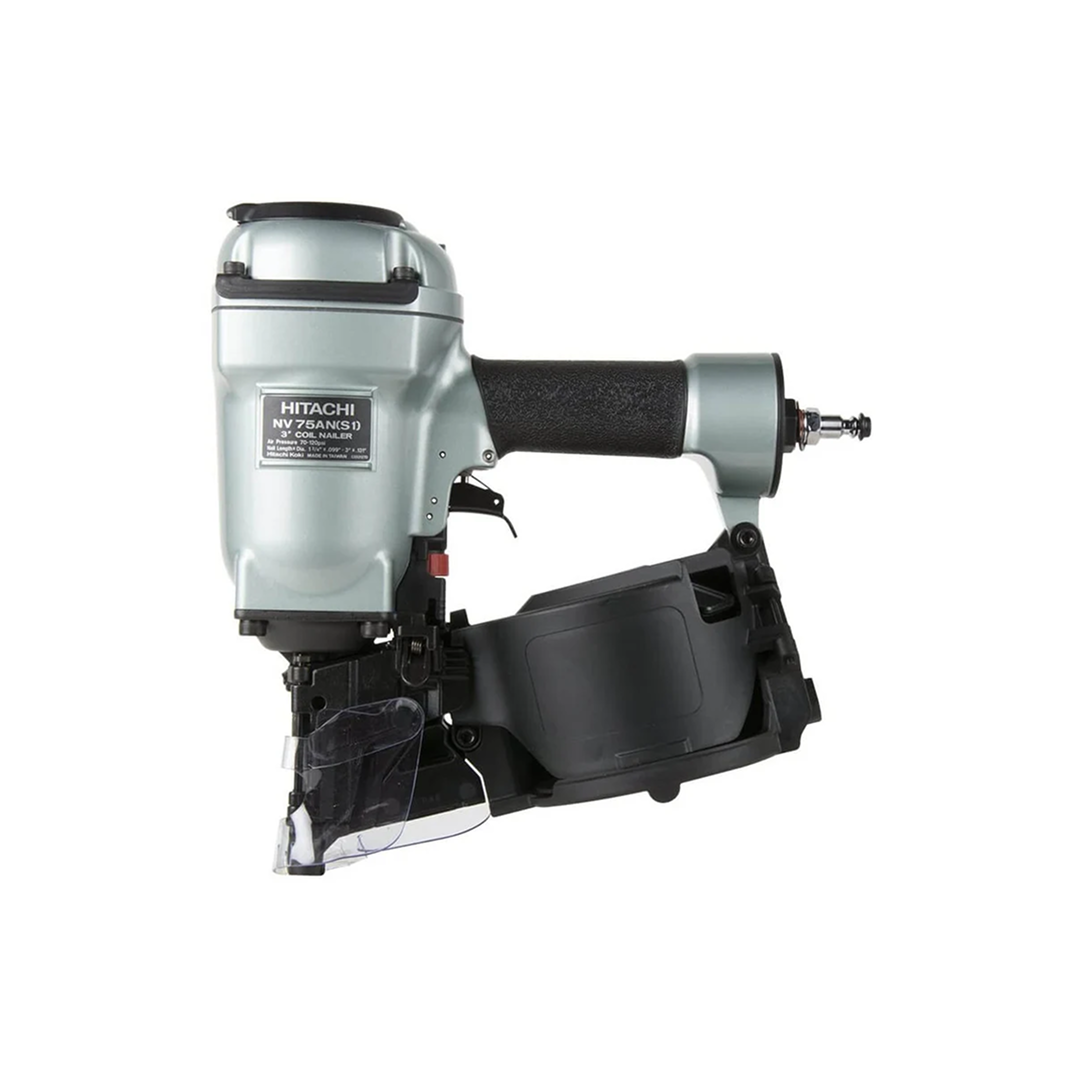

HPT NV75AN(S1)M 3 in. Pallet Nailer

The Metabo HPT NV75AN(S1)M 3 Inch Pallet Nailer is a heavy-duty pneumatic coil pallet nailer engineered for high-volume pallet manufacturing, crate assembly, packaging, and industrial woodworking applications. Designed to deliver exceptional power, speed, and precision, this professional-grade nailer is capable of driving nails up to 3 inches long while maintaining outstanding productivity in demanding production environments. Weighing just 6.3 lbs, the NV75AN(S1)M offers an excellent balance of durability, maneuverability, and operator comfort, making it an ideal solution for pallet manufacturers, lumber yards, and industrial packaging facilities. Recognized as the Pro Preferred Nailer for six consecutive years (2014–2019) by Builder and Developer Magazine, it reflects Metabo HPT's commitment to professional-grade performance and long-term reliability.

Powered by a high-performance pneumatic drive system, the NV75AN(S1)M drives wire-collated nails from 1-3/4" to 3" and plastic sheet collated nails from 1-3/4" to 2-1/4", accommodating nail diameters from 0.099" to 0.131". Its tool-less depth of drive adjustment allows fast and accurate nail depth control for various wood species and pallet materials, while the contact (bump) trigger delivers rapid fastening speeds of up to 3 nails per second. An optional sequential trigger is included for applications requiring greater fastening precision. The flat nose safety push lever enables smooth sliding across pallet boards for faster production, while the side-loading high-capacity magazine, open nose design, 360-degree adjustable air deflector, and clear plastic safety shield further enhance productivity, convenience, and operator safety throughout continuous operation.

Designed for professional industrial use, the NV75AN(S1)M combines powerful fastening performance, ergonomic handling, and durable construction to maximize efficiency while minimizing operator fatigue. Operating between 70 and 120 PSI, this pallet nailer also features a comfortable rubber grip and supports both wire and plastic collated nails for increased application flexibility. Backed by Metabo HPT's Professional 5-Year Warranty, the NV75AN(S1)M delivers the reliability, durability, and productivity professionals expect for demanding pallet production and industrial fastening applications.

Key Features

• Professional pneumatic 3" coil pallet nailer for pallet manufacturing, crate assembly, packaging, and industrial woodworking
• Drives wire-collated nails from 1-3/4" to 3"
• Drives plastic sheet collated nails from 1-3/4" to 2-1/4"
• Accepts nail diameters from 0.099" to 0.131"
• Delivers fastening speeds of up to 3 nails per second for maximum productivity
• Flat nose (safety push lever) enables rapid fastening while sliding across workpieces
• Tool-less depth of drive adjustment for accurate fastener placement
• Contact (bump) trigger installed with optional sequential trigger included
• High-capacity side-loading magazine enables quick and convenient reloading
• Open nose design allows fast and easy jam clearing
• 360° adjustable air deflector directs exhaust away from the operator
• Clear plastic safety shield deflects wire collation for improved operator safety
• Compatible with both wire and plastic sheet collated nails for greater flexibility
• Durable rubber grip provides improved comfort during prolonged operation
• Lightweight 6.3 lb construction reduces fatigue during continuous use
• Rated Pro Preferred Nailer (2014–2019) by Builder and Developer Magazine
• Backed by Metabo HPT Professional 5-Year Warranty
• Compliant with U.S. pneumatic nailer safety standards

Specifications

• Model: NV75AN(S1)M
• Tool Type: Pneumatic Coil Pallet Nailer
• Plastic Collated Nail Length: 1-3/4" – 2-1/4"
• Wire Collated Nail Length: 1-3/4" – 3"
• Nail Diameter: 0.099" – 0.131"
• Collation Angle: 16° ± 1°
• Operating Pressure: 70–120 PSI
• Dimensions (L × W × H): 11" × 5.2" × 12.4"
• Tool Weight: 6.3 lbs
