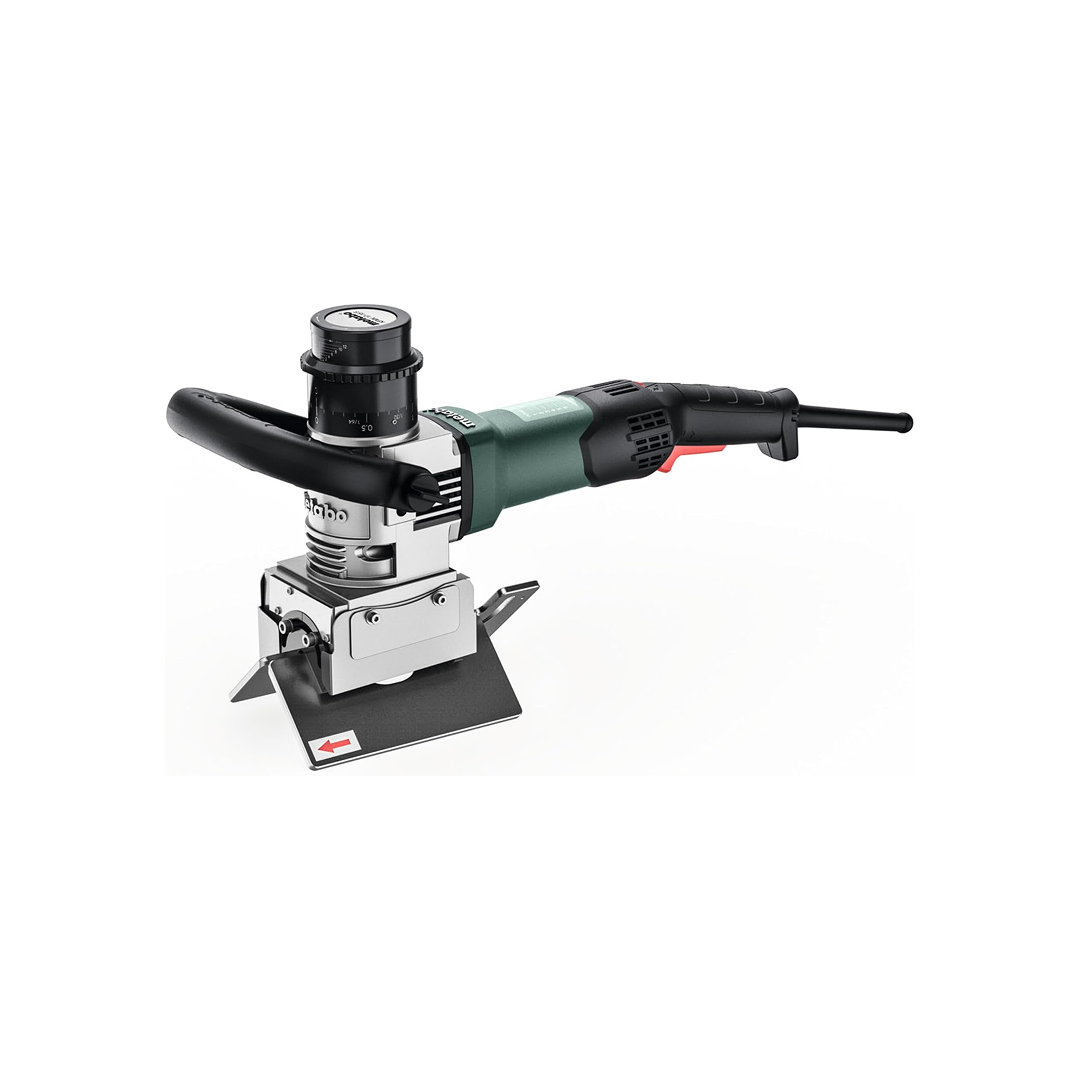

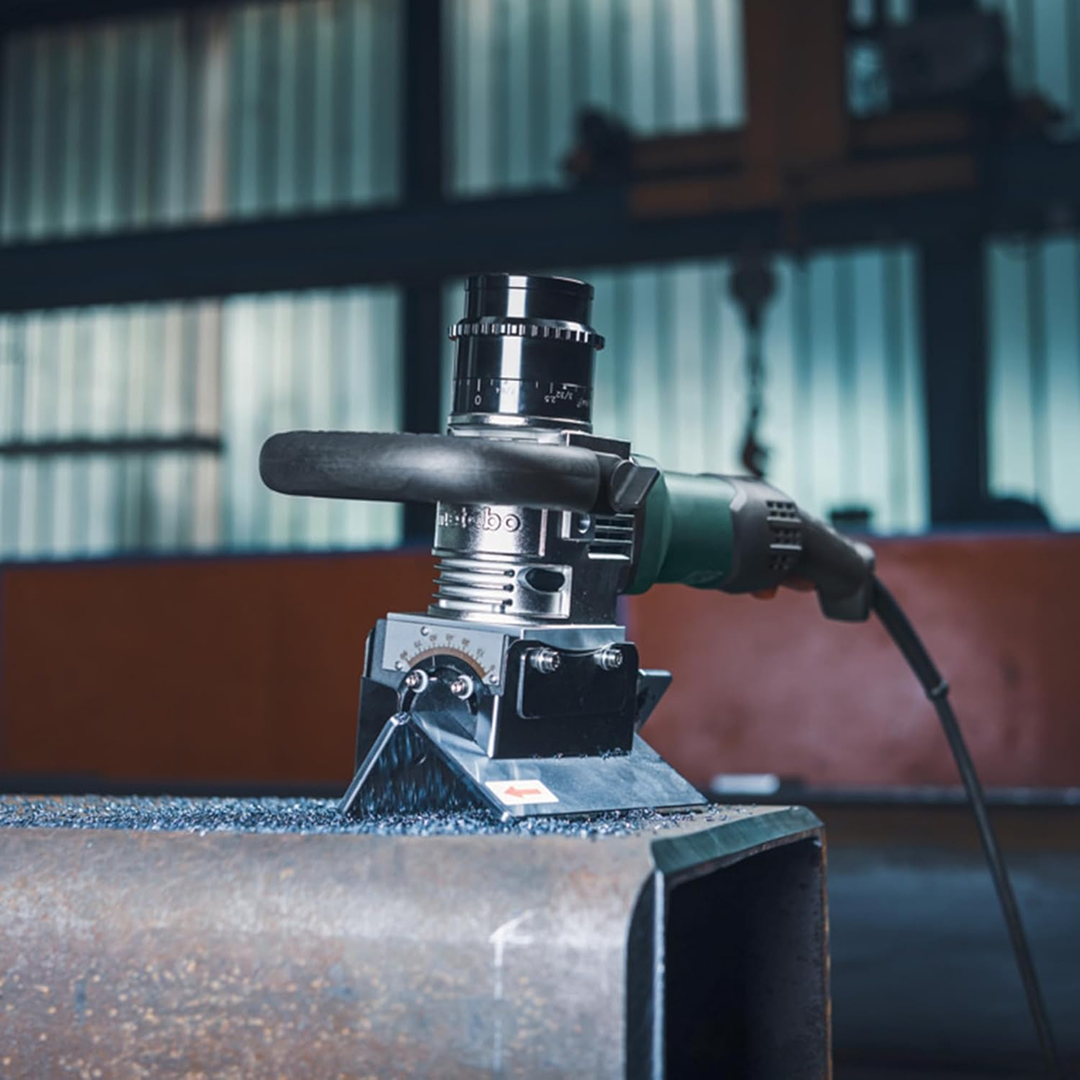

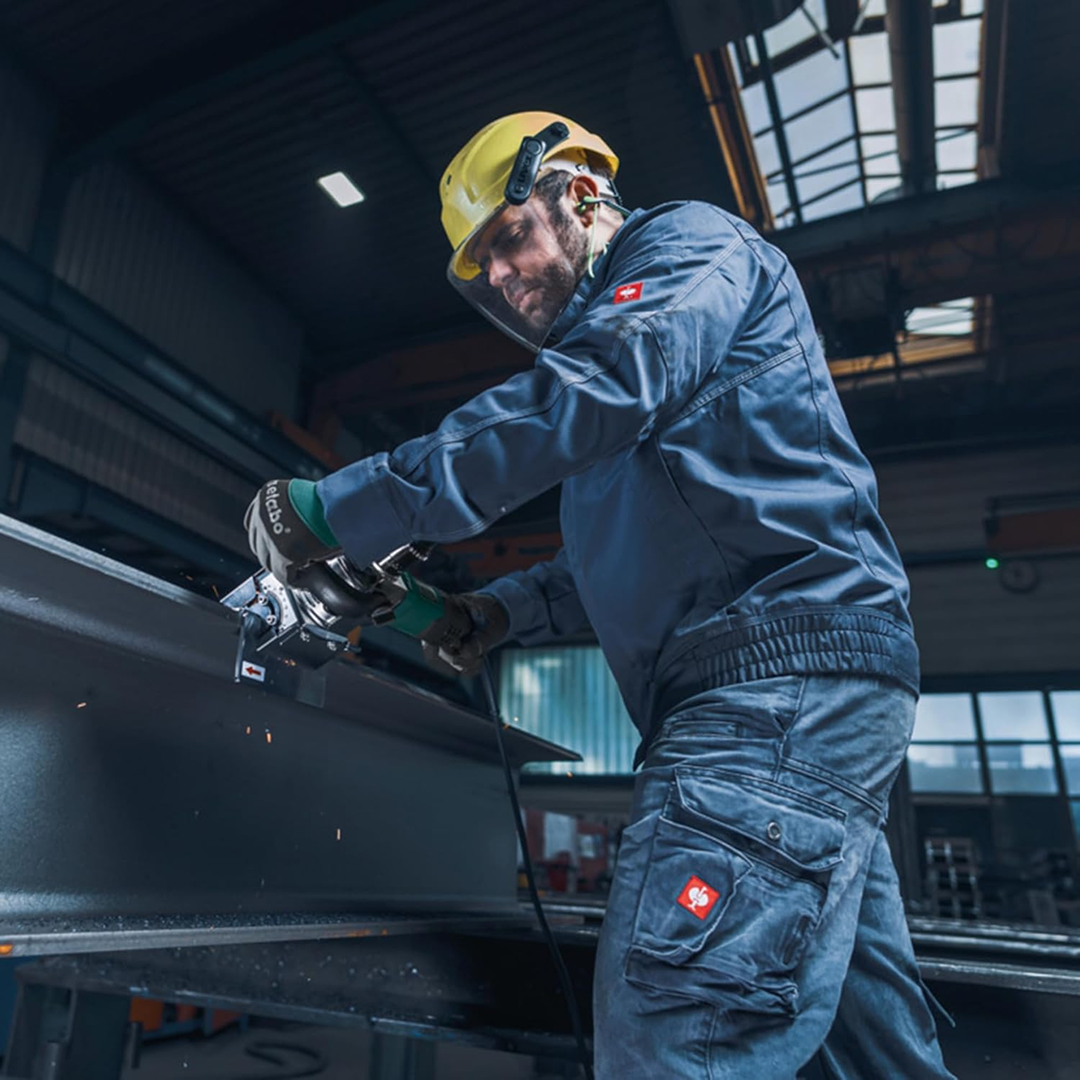

Metabo KFMVP 17-15 F 601771620 5/8 Inch Metal Chamfering Tool Vario-Tacho-Constamatic (VTC) Full Wave Electronics Large Surface Guide Plates One-Touch Controller KFMVP 17-15 F

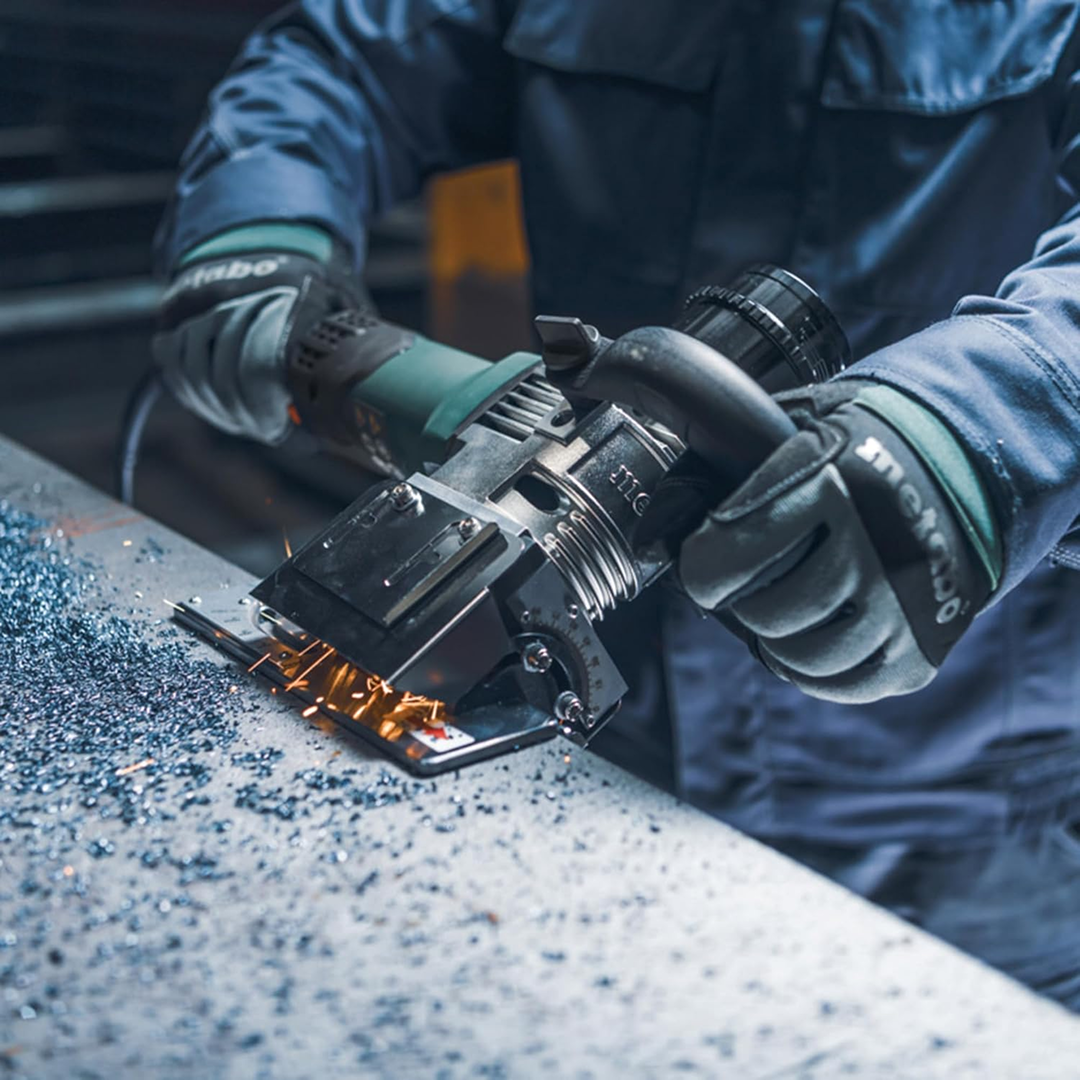

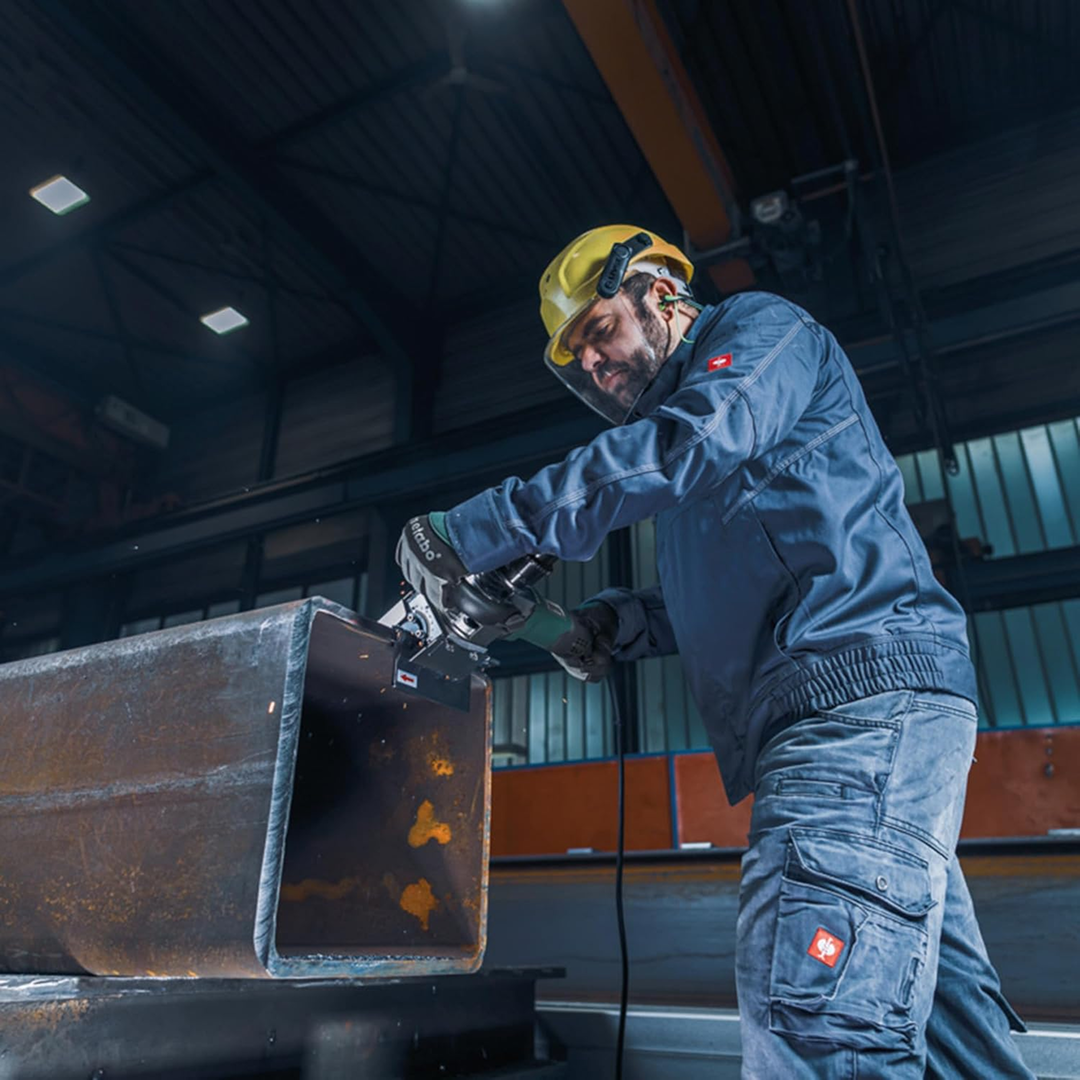

The Metabo KFMVP 17-15 F (601771620) 5/8" Metal Chamfering Tool is a premium German-engineered beveling machine designed for fast, precise, and efficient weld preparation on steel plates, pipes, and structural metal components. Built for professional fabrication and industrial applications, this high-performance tool features a 1,700W motor with a variable speed range of 6,200–12,600 RPM, allowing users to optimize cutting performance for a wide variety of metals. Capable of producing chamfer angles from 0° to 90° with bevel heights up to 5/8" (15 mm) at 45°, the KFMVP 17-15 F is ideal for structural steel fabrication, pipeline construction, heavy equipment manufacturing, shipbuilding, and industrial maintenance where clean, accurate bevels are essential.

Engineered with Metabo's advanced technology, the KFMVP 17-15 F features Vario-Tacho-Constamatic (VTC) Full-Wave Electronics, which maintain a nearly constant speed under load for consistent cutting performance. Its universal milling head with three replaceable carbide inserts transfers heat into the chips instead of the workpiece, reducing material distortion and extending insert life. The patented One-Touch Controller enables tool-free cutting depth adjustment in precise 0.1 mm (0.004") increments, while large surface guide plates ensure stable operation and accurate chamfer angles. Additional features such as electronic soft start, restart protection, a non-locking safety switch, an adjustable loop handle, and pipe guide rollers provide outstanding control, safety, and versatility for both flat surfaces and pipe beveling applications.

Key Features

• Powerful 1,700W motor delivers professional-grade performance for heavy-duty metal chamfering.
• Variable speed control (6,200–12,600 RPM) allows optimal performance across a wide range of materials.
• Produces chamfer angles from 0° to 90° for versatile weld preparation.
• Maximum 5/8" (15 mm) chamfer height at 45° for demanding fabrication applications.
• Vario-Tacho-Constamatic (VTC) Full-Wave Electronics maintain nearly constant speed under load.
• Universal milling head with three replaceable carbide inserts delivers clean, accurate bevels.
• Heat is directed into metal chips, reducing stress and distortion on the workpiece.
• Patented One-Touch Controller provides tool-free cutting depth adjustment in 0.1 mm (0.004") increments.
• Large surface guide plates ensure smooth operation and precise chamfer angle control.
• Electronic Soft Start enables smooth startup with reduced torque reaction.
• Restart Protection prevents accidental startup after power interruptions.
• Non-locking safety switch automatically shuts the tool off when released.
• Adjustable loop handle allows comfortable, secure operation in multiple working positions.
• Pipe guide rollers simplify beveling on round pipes and tubular materials.
• Durable motor with extended carbon brush life for increased service life.
• Ideal for weld seam preparation, structural steel fabrication, pipeline construction, shipbuilding, heavy equipment manufacturing, and industrial maintenance.

Specifications

• Model: KFMVP 17-15 F (601771620)
• Tool Type: Variable Speed Metal Chamfering Tool
• Rated Input Power: 1,700 W
• Variable Speed: 6,200–12,600 RPM
• Chamfer Angle Range: 0°–90°
• Maximum Chamfer Height (45°): 5/8" (15 mm)
• Maximum Chamfer Width (45°): 13/16" (21 mm)
• Cutting Depth Adjustment: 0.1 mm (0.004") increments
• Electronics: Vario-Tacho-Constamatic (VTC) Full-Wave Electronics
• Motor Protection: Electronic Soft Start and Restart Protection
• Switch Type: Non-Locking Safety Switch
• Guide System: Large Surface Guide Plates and Pipe Guide Rollers
• Handle: Adjustable Tool-Free Loop Handle
• Applications: Metal Chamfering, Weld Preparation, Structural Steel Fabrication, Pipe Beveling, Heavy Industrial Manufacturing, and Maintenance
